Introduction

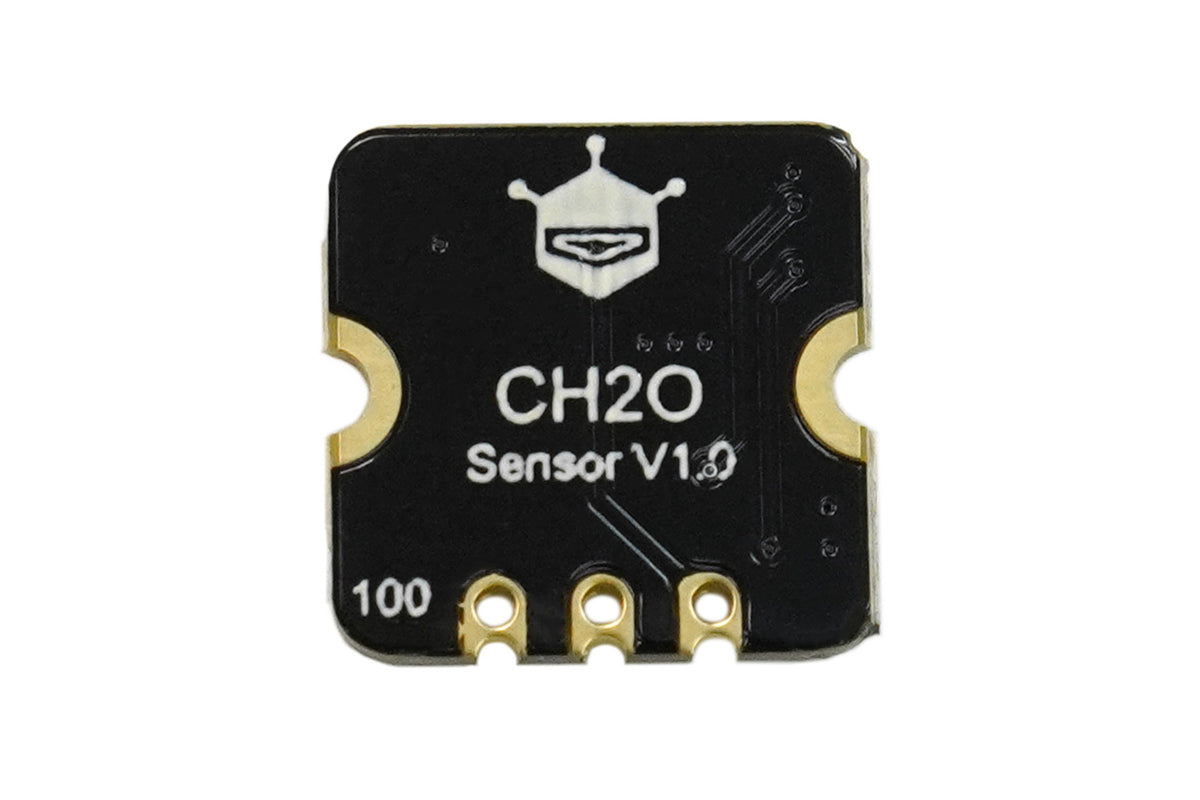

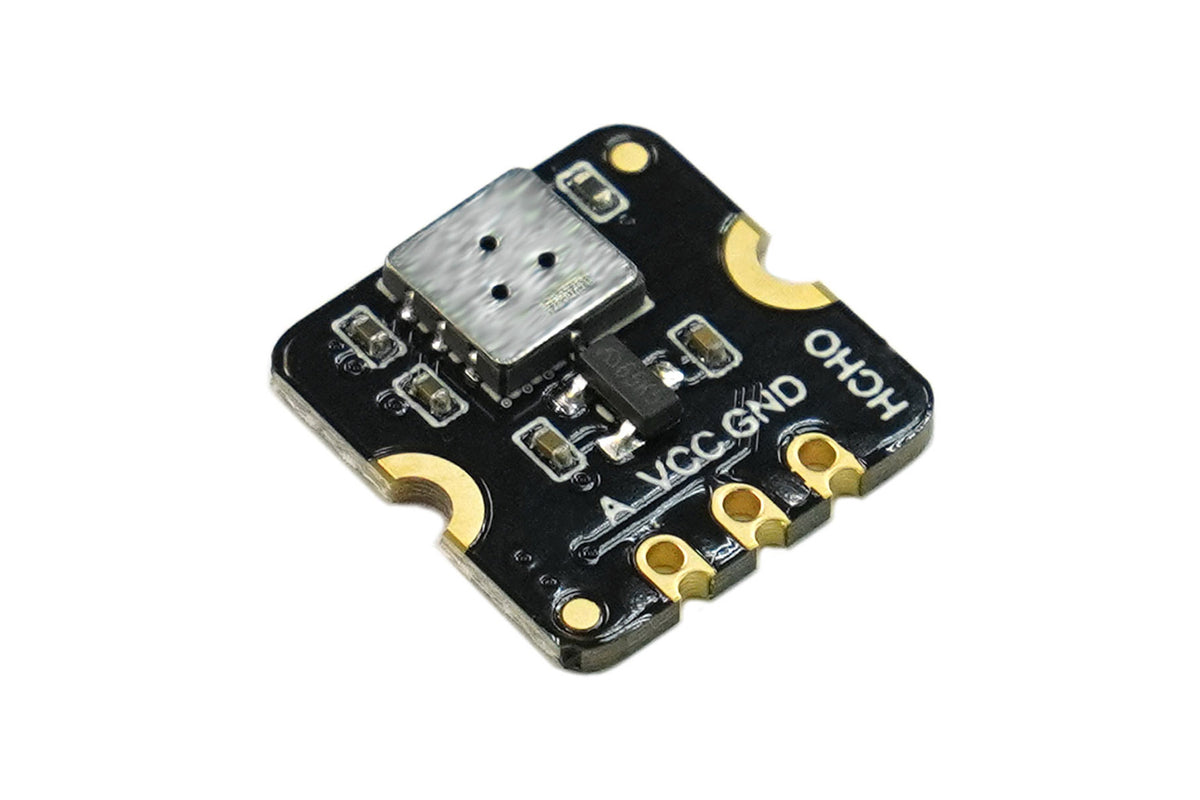

Ensure safe indoor air quality with the Fermion MEMS Formaldehyde Sensor (HCHO), a high-sensitivity detector for 0-3ppm gas concentrations. Perfect for HVAC systems, air purifiers, and portable monitors, this low-power sensor delivers fast, reliable results with MEMS technology.
High Sensitivity & Fast Response
The MEMS-based sensor detects HCHO concentrations (0-3ppm) with rapid recovery times, ensuring real-time monitoring for health-critical environments.
Ultra-Low Power Consumption (＜20mA)
Designed for battery-operated devices, the sensor’s minimal power draw extends operational life in portable detectors and IoT deployments.
Compact & Easy to Integrate

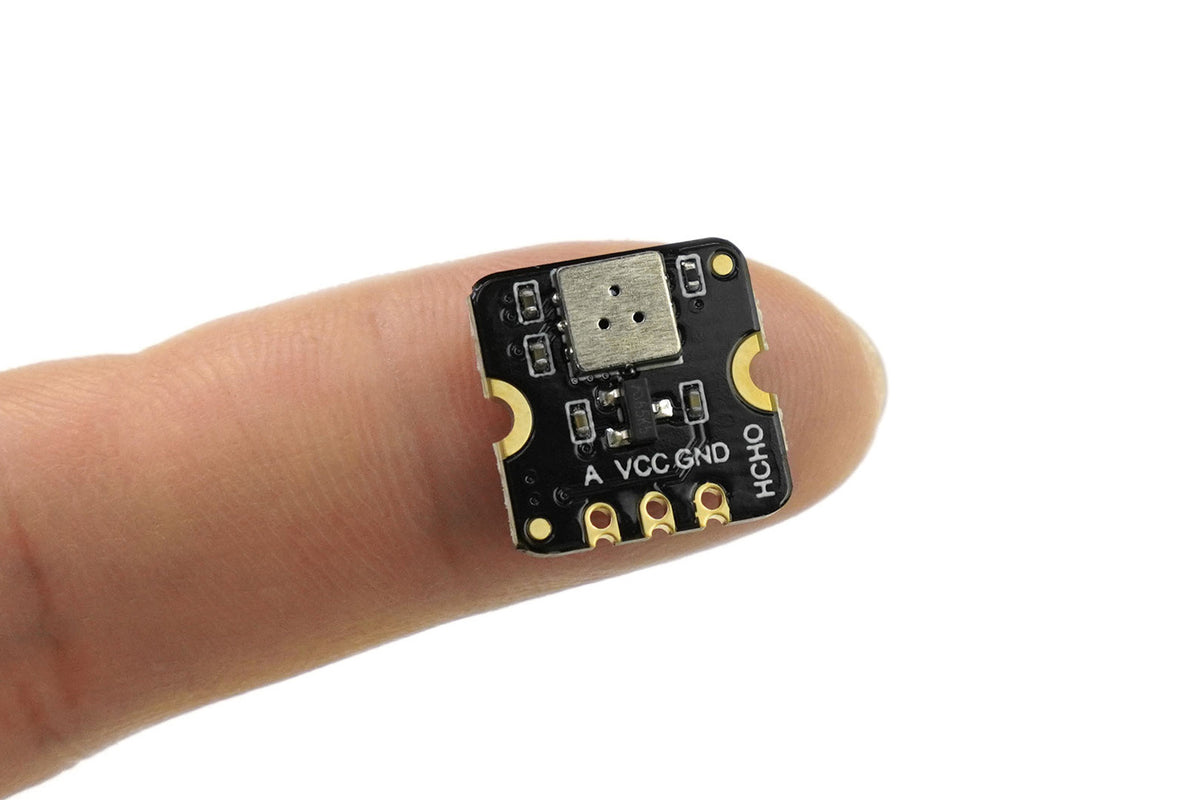

At just 13×13×2.5mm, the sensor fits seamlessly into air purifiers, smart wearables, and Arduino/Raspberry Pi projects with analog voltage output.
Durable for Long-Term Use
With a 3-year lifespan and -10°C to 50°C operating range, it withstands diverse environments while avoiding interference from humidity or contaminants.
Precautions for use
- Kindly remove the protective film before usage.
- To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
- Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
- Prevent contamination from alkalis, alkali metal salts, and halogens.
- Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
- Avoid contact with water, condensation, and freezing.
- Minimize excessive vibration, impact, and dropping.
- Please refrain from employing this module in systems that involve personal safety concerns.
- For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Features
- Compact size, measuring only 13*13*2.5mm
- Low power consumption,operating current ＜20mA
- High sensitivity and rapid response recovery
- Advanced MEMS technology
Applications
- Air purifiers
- HVAC systems
- Smart wearables
- Portable detectors
Specification
- Gas detected: Formaldehyde (HCHO)
- Detection range: 0-3ppm
- Operating voltage: 3.3-5V
- Operating current: ＜20mA
- Output signal: Analog voltage
- Sensitivity: R0(in air)/Rs(in 0.4ppm HCHO) ≥ 1.8
- Operating temperature: -10-50℃
- Operating humidity: 15-90%RH (non-condensing)
- Lifespan: ≥3 years (in air)

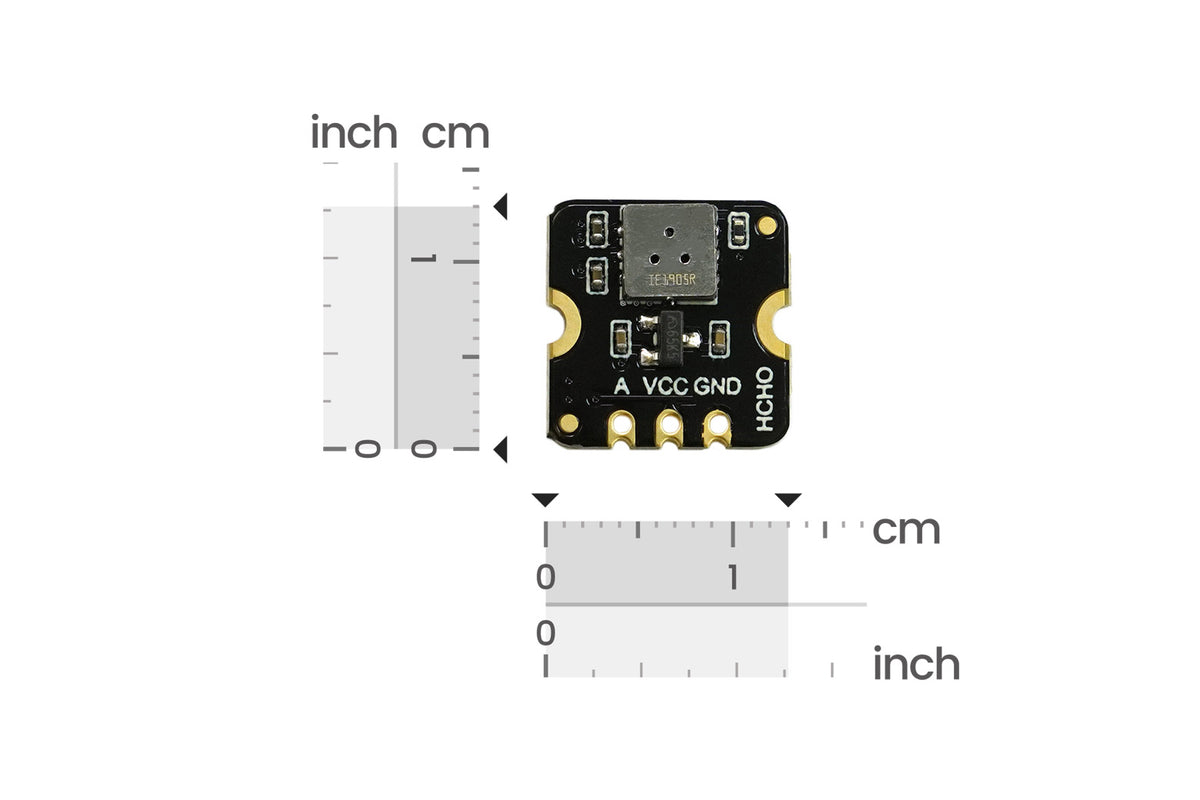

- Dimension：13×13 x 2.5mm/ 0.0.51×0.51x0.1"
Shipping List

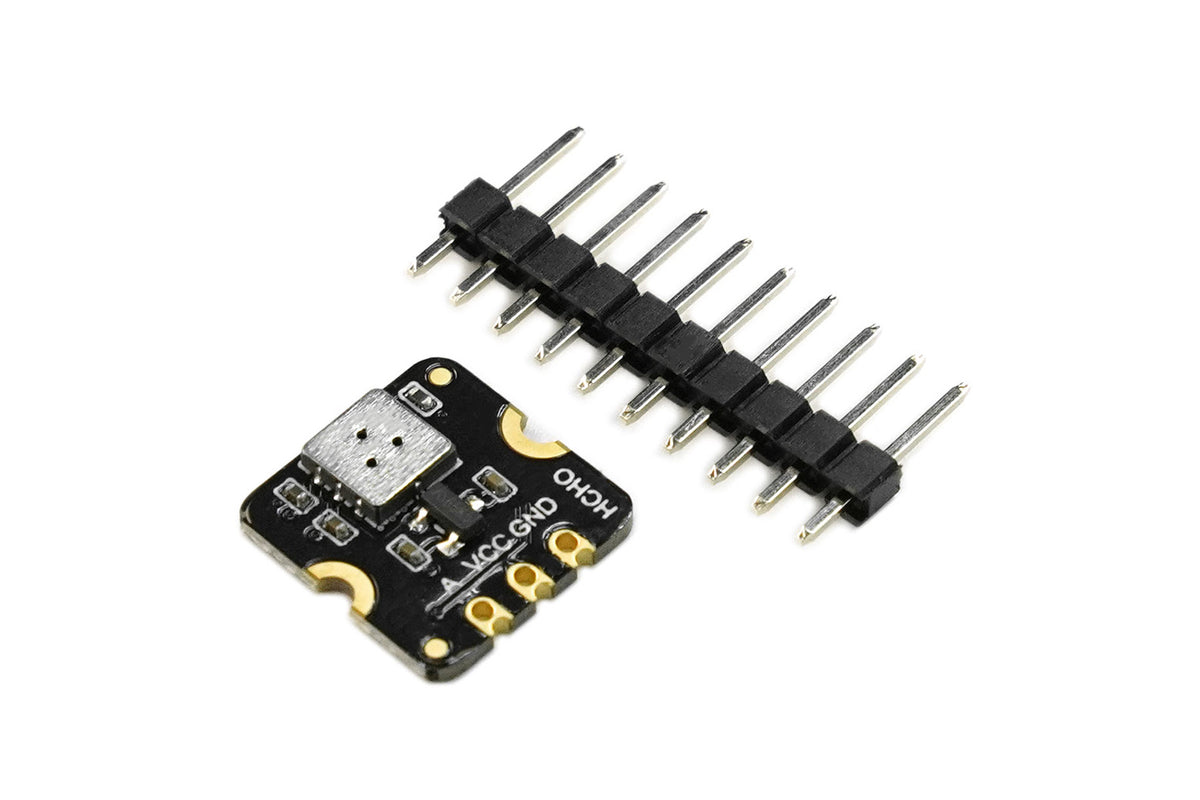

- Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor (breakout) × 1
- 2.54mm pitch header pin × 1
Documents
Certifications
- CE CE
- RoHS RoHS
