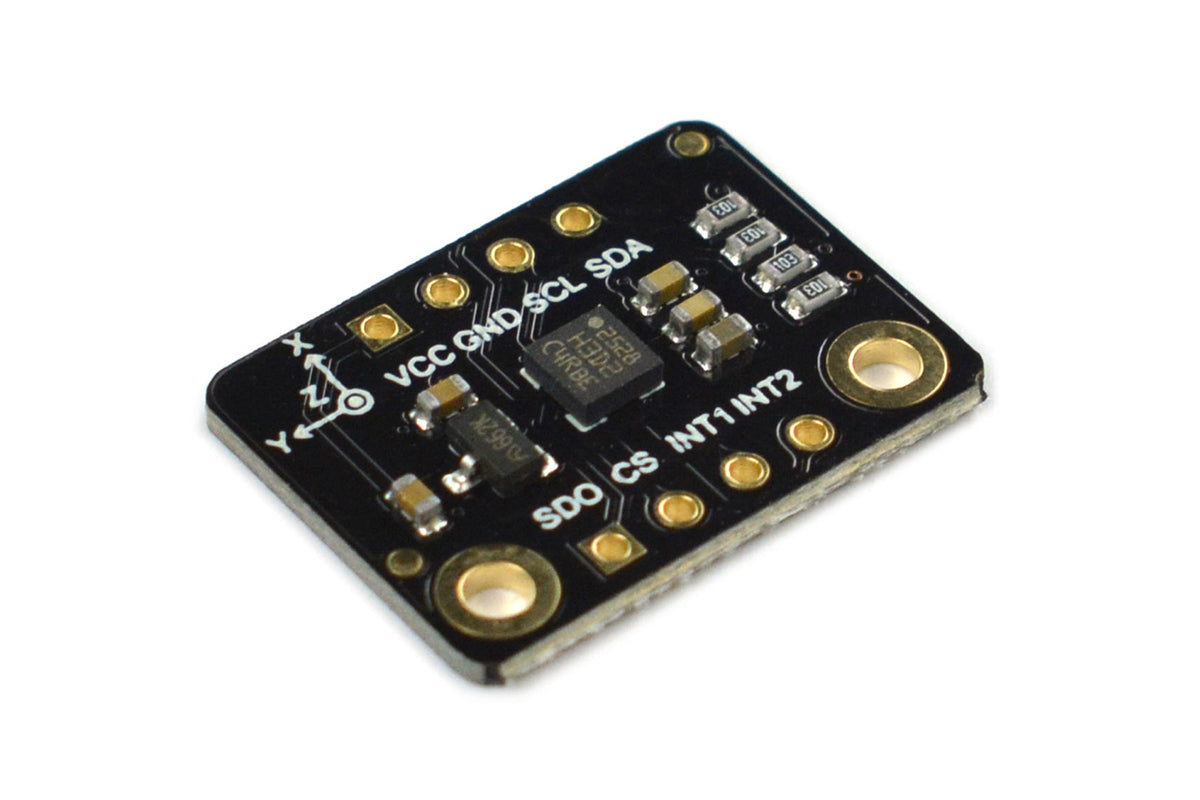

Introduction
The H3LIS200DL is an ultra low-power(down to 10uA) and low noise 3-axis accelerometer. It has user selectable scales of ±100g/±200g and is capable of measuring accelerations with output data rates from 0.5Hz to 1kHz. The device contains two programmable independent interrupt engines that is able to recognize dedicated inertial events, which makes it more playable.
Connect Diagram
Features
- Selectable Large Scale Range: ±100g/±200g
- Two programmable interrupts
- Smart sleep to wake-up function that allows advanced power saving
Applications
- High-speed impact detection and recording
- Free-fall detection
- Automobile collision test
Specification
- Operating Voltage: 3.3 V
- Operating Current: minimum 10uA (low-power mode) / 0.3mA-0.4mA (normal mode)
- Interface: I2C/SPI
- I2C Address: 0x19 (Default) / 0x18 (Selectable)
- Selectable Scale: ±100g / ±200g
- Frequency: 0.5Hz ~ 1KHz
- 8-bit Data Output
- Operating Temperature: －40 °C ~ ﹢85 °C
- 10000 g High Shock Survivability
- ECOPACK®RoHS and “Green” Compliant

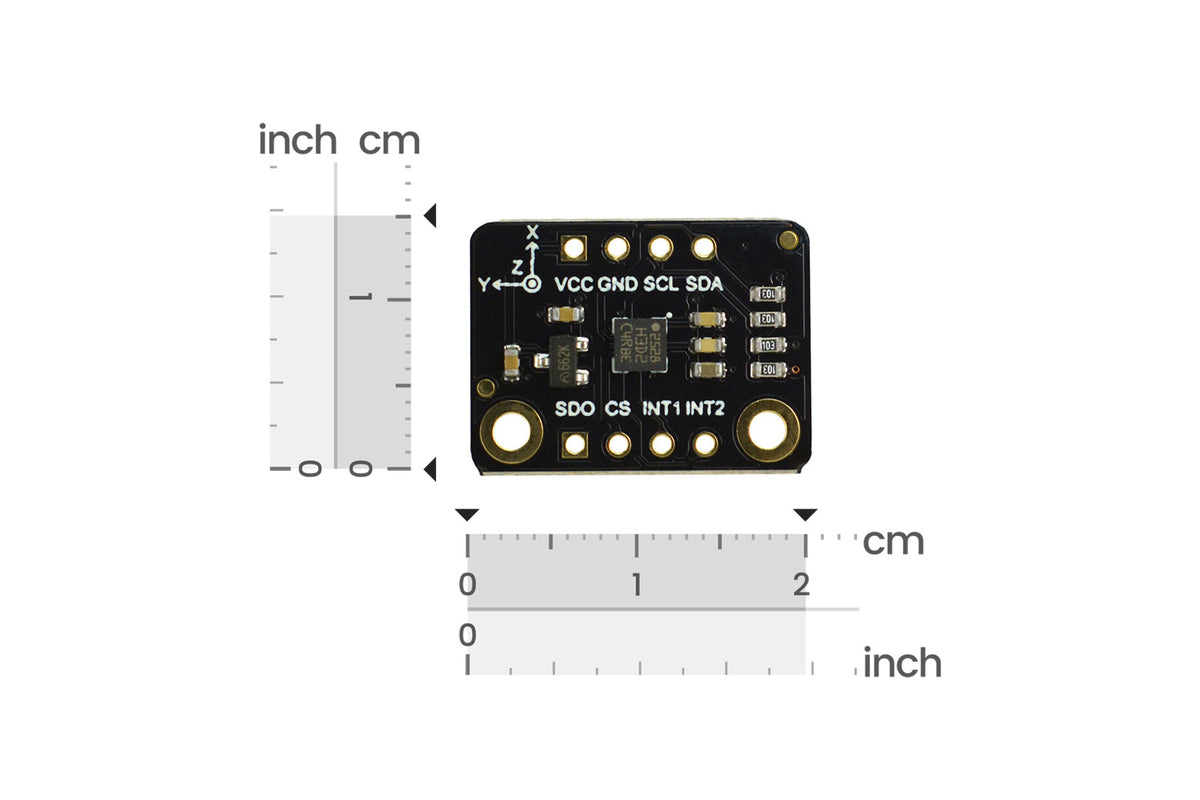

- Dimension: 15*20 (mm) / 0.59*0.79”

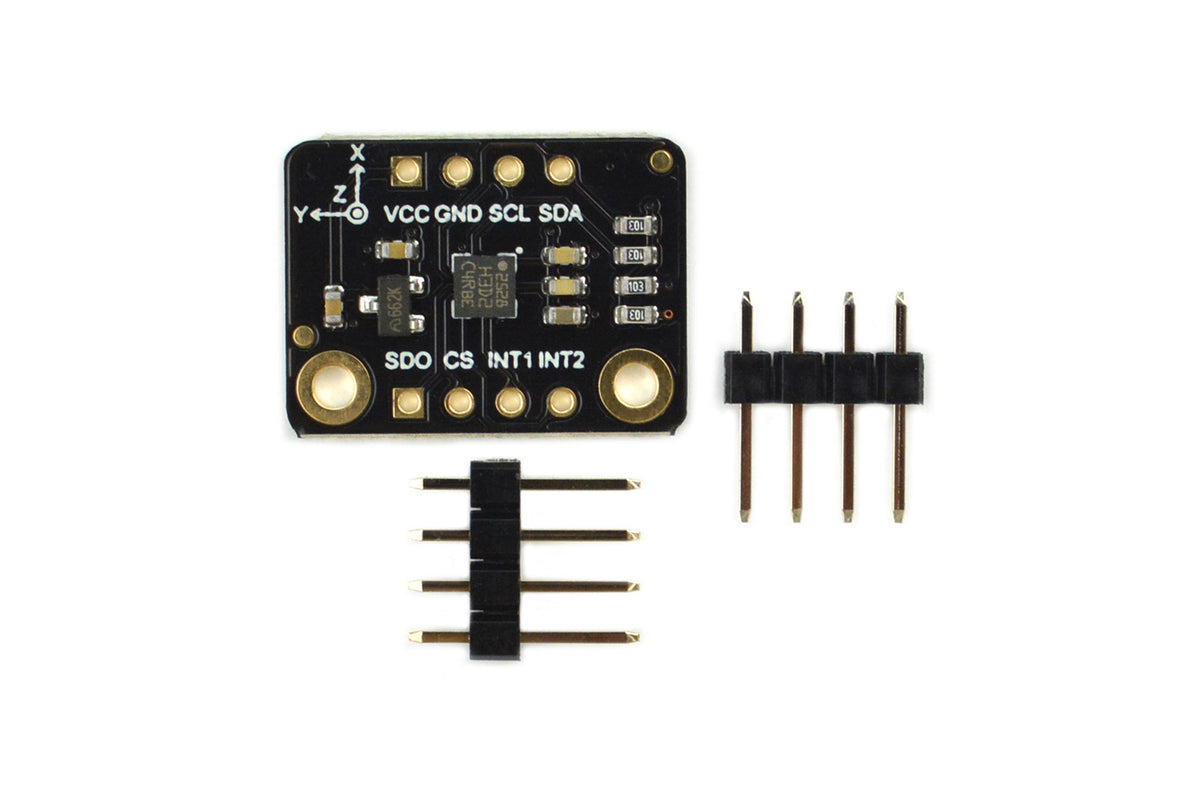

Shipping List
- Fermion: H3LIS200DL Triple Axis Accelerometer (Breakout) x1
- 2.54-4P Black Single Row Pin Header x2
