Introduction

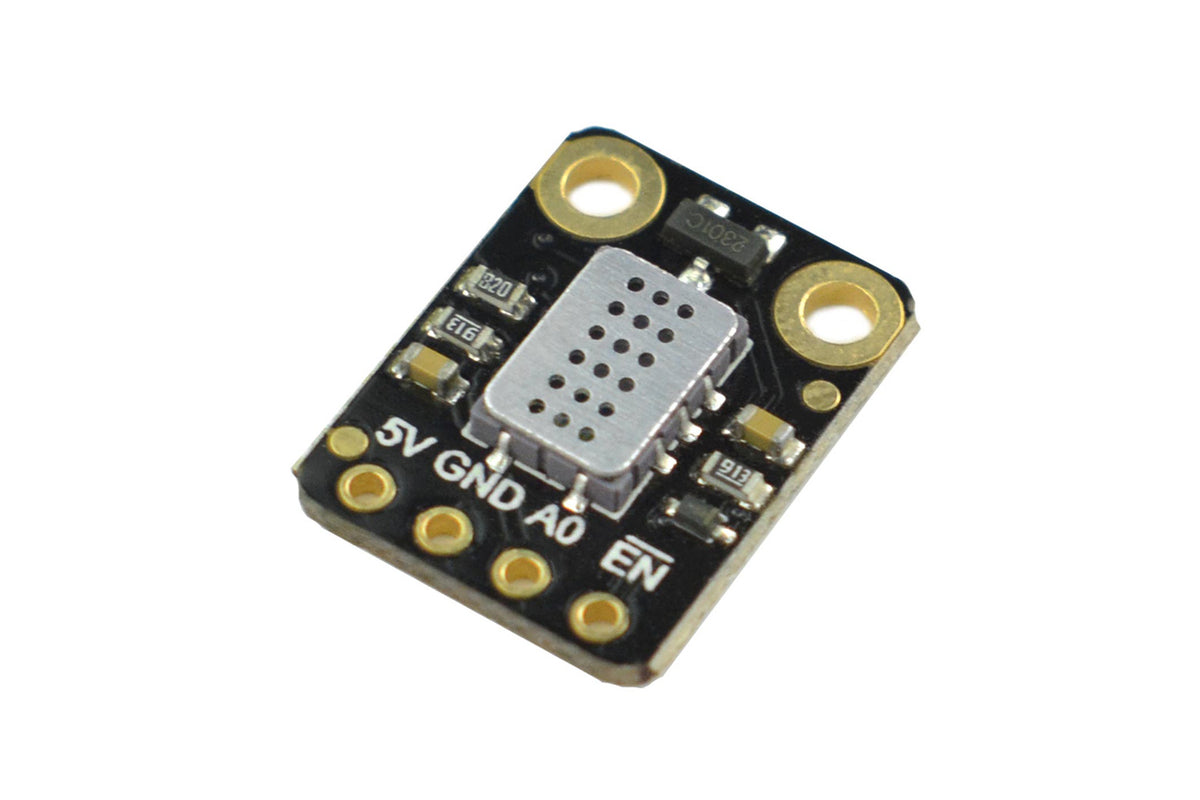

This industrial MEMS sensor detects 8+ hazardous gases including CO (1-1000ppm), CH4 (>1000ppm), and ethanol (10-500ppm) - essential for chemical plants, refineries, and air quality stations.
8-Gas Detection Capacity
Simultaneously monitors carbon monoxide, methane, ethanol, propane, butane, hydrogen, hydrogen sulfide, and ammonia - critical for complex industrial environments.
Ultra-Low Power Operation
0.45W consumption with enable/disable pin reduces energy use by 40% in continuous monitoring systems (5V DC compatible with PLCs and microcontrollers).
Smart Analog Output
Generates linear 0-5V signals proportional to gas concentrations, with pre-loaded conversion formulas for instant Arduino/Raspberry Pi integration.
Extreme Environment Ready
Withstands -30°C to 85°C temperatures and 95% humidity - 3x more durable than standard sensors in oil/gas applications.
Features
- Supports detection of 8 common gases
- Compact 16mm² footprint fits control panels
- Compatible with Fermion MEMS series (NO2, VOC, H2S)
- Sample code for IoT gateway integration
Applications
- Oil refinery gas leak detection
- Brewery/distillery ethanol monitoring
- Agricultural NH3 safety systems
- Parking garage CO/CH4 detection
- Industrial HVAC air quality control
Specification
- Detection Ranges:
CO: 1-1000ppm | CH4: >1000ppm
Ethanol: 10-500ppm | H₂: 1-1000ppm
NH3: 1-500ppm | H2S: 1-1000ppm - Output: Analog voltage (0-5V DC)
- Response Time: ＜20 seconds
- Power: 5V ±0.1V, 0.45W
- Operating Temp: -30°C to 85°C
- Lifespan: 2+ years continuous use

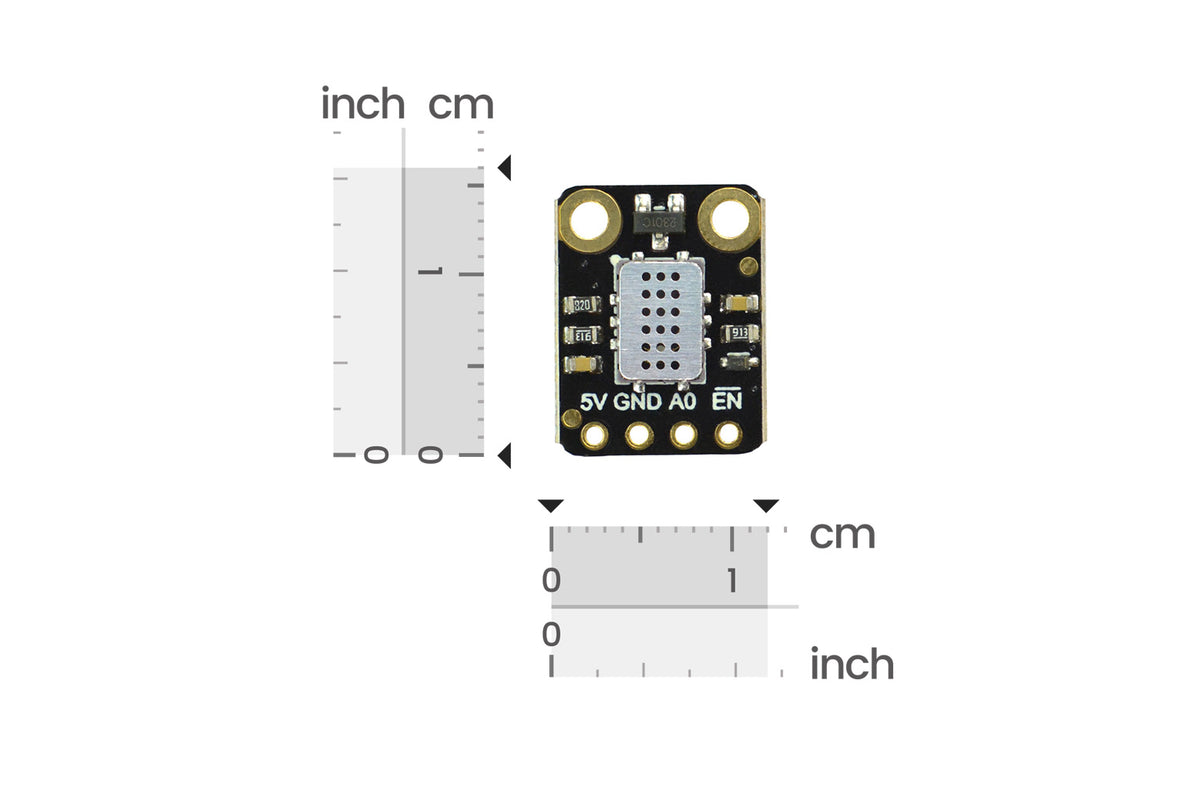

- Dimensions: 12×16mm (Breakout)
- Interface: 3-pin Gravity connector
Shipping List

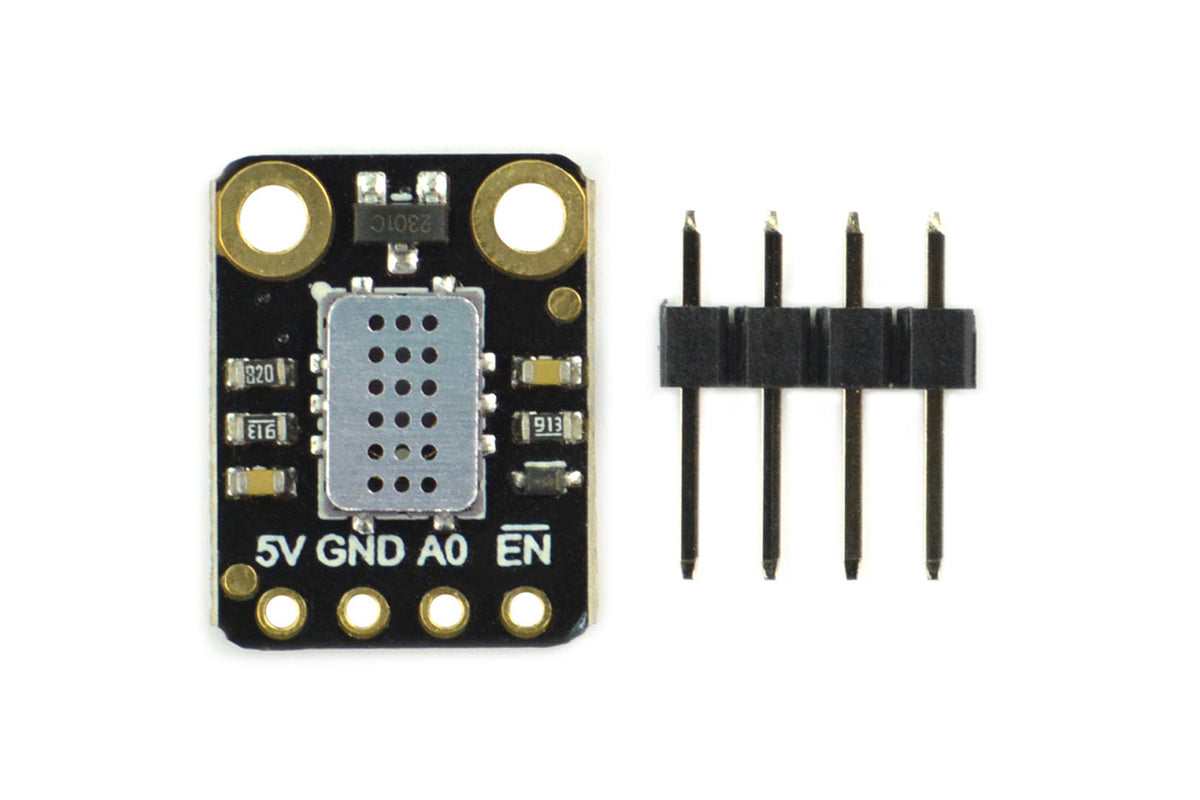

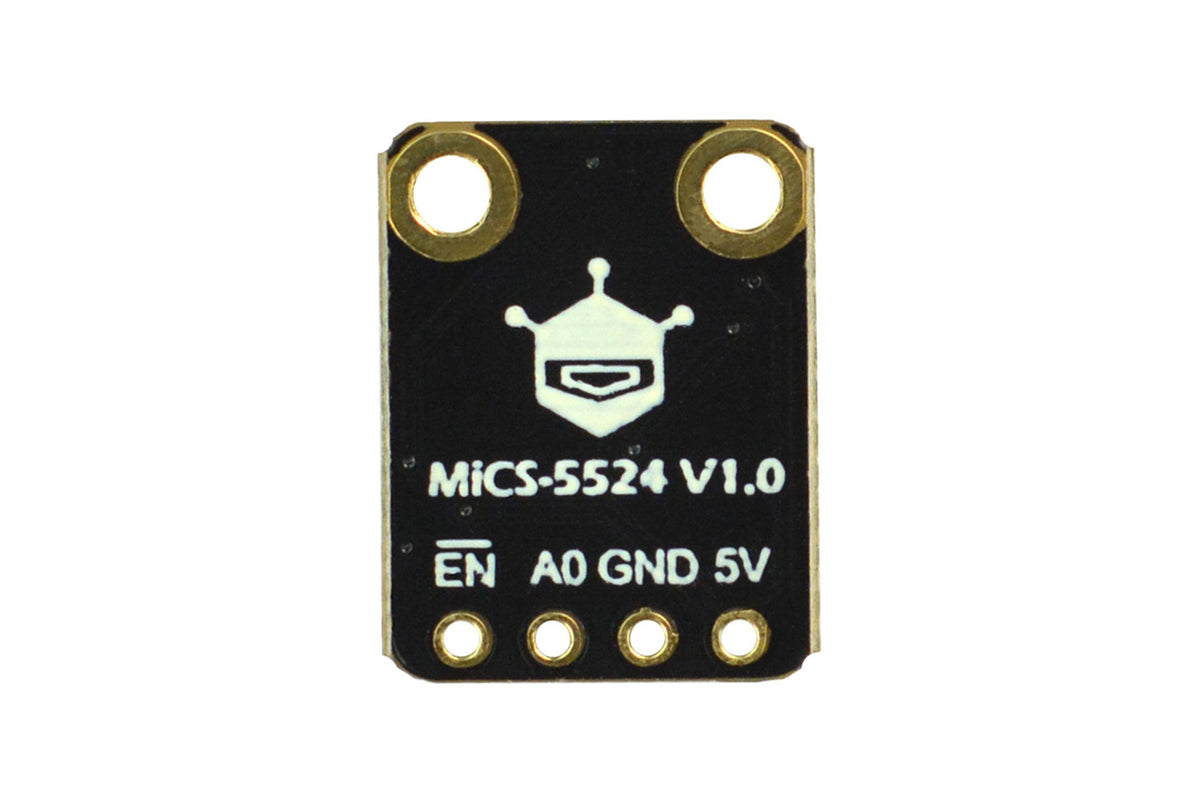

- Fermion: MEMS Gas Sensor - MiCS-5524 x1
- Black pin header-3Pin x1
Documents
Certifications
- CE CE
- RoHS RoHS
