Introduction
The Sensirion SGP40 delivers lab-quality volatile organic compound (VOC) monitoring in a compact 18mm package - providing immediate 0-500 air quality indexes without calibration.
Instant VOC Index Output
Generates ready-to-use 0-500 air quality scores (1-1000ppm ethanol equivalent) with built-in Sensirion algorithm - no complex calibration required.
Temperature-Compensated Accuracy
Integrated CMOSens® technology maintains ±15% accuracy across -10°C to 50°C environments with automatic humidity compensation.
Ultra-Fast 2-Second Response
Detects air quality changes faster than human perception - ideal for real-time ventilation control in kitchens, labs, and smart homes.
Industry-Leading Efficiency
Consumes just 2.6mA during operation - 60% less power than comparable VOC sensors for continuous IoT monitoring applications.
Note: VOC index is obtained by converting the detected ethanol equivalent in air.
Features
- Plug-and-play with Arduino/Raspberry Pi
- Compatible with Home Assistant/MQTT
- Includes Python/C library support
- Stackable with other Fermion sensors
- Ideal for retrofit applications
Applications
- Smart kitchen ventilation control
- Office building air quality dashboards
- Laboratory safety monitoring
- HVAC demand-controlled ventilation
- Air purifier performance optimization
Specification
- Measurement Range: 0-1000ppm (ethanol equivalent)
- VOC Index: 0-500 (standardized air quality score)
- Response Time: 2 seconds
- Warm-Up: 10 seconds to operational
- Power: 3.3-5V DC, 2.6mA operating current
- Interface: I2C (0x59 address)
- Operating Temp: -10°C to 50°C
- Humidity Compensation: 0-90% RH

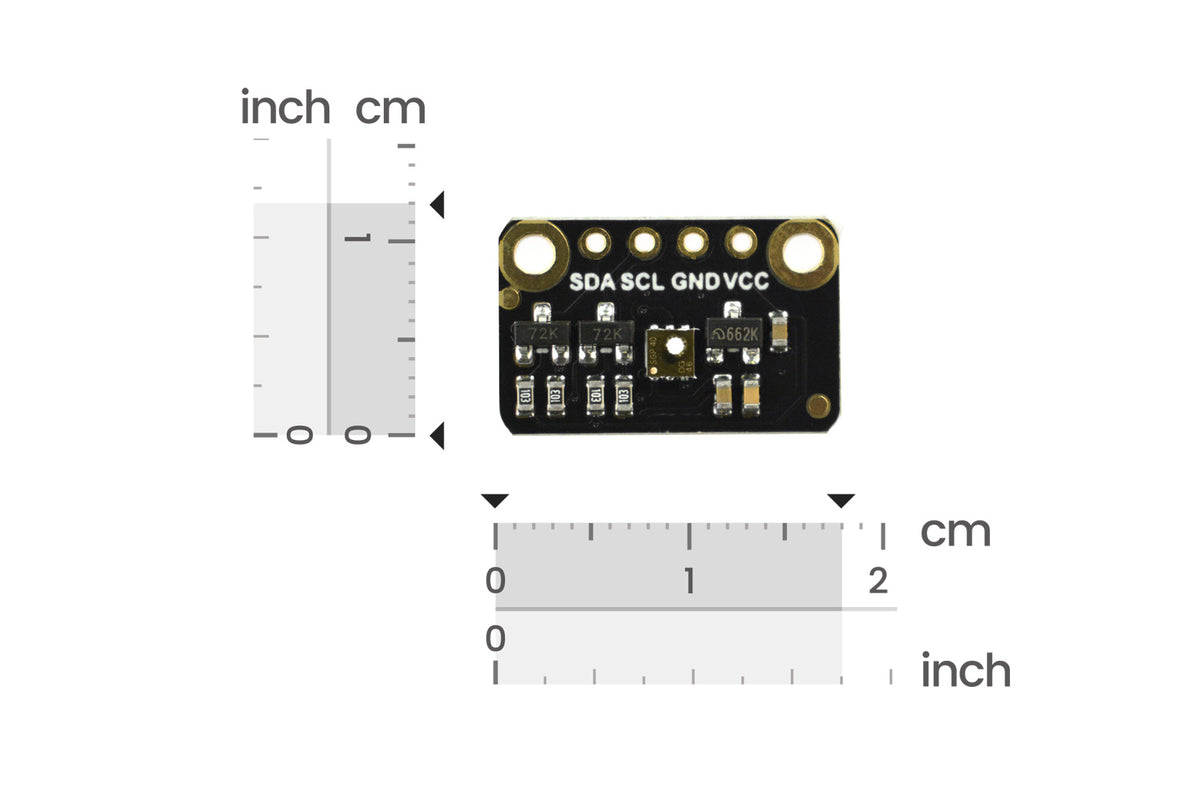

- Dimensions: 18×11.5mm

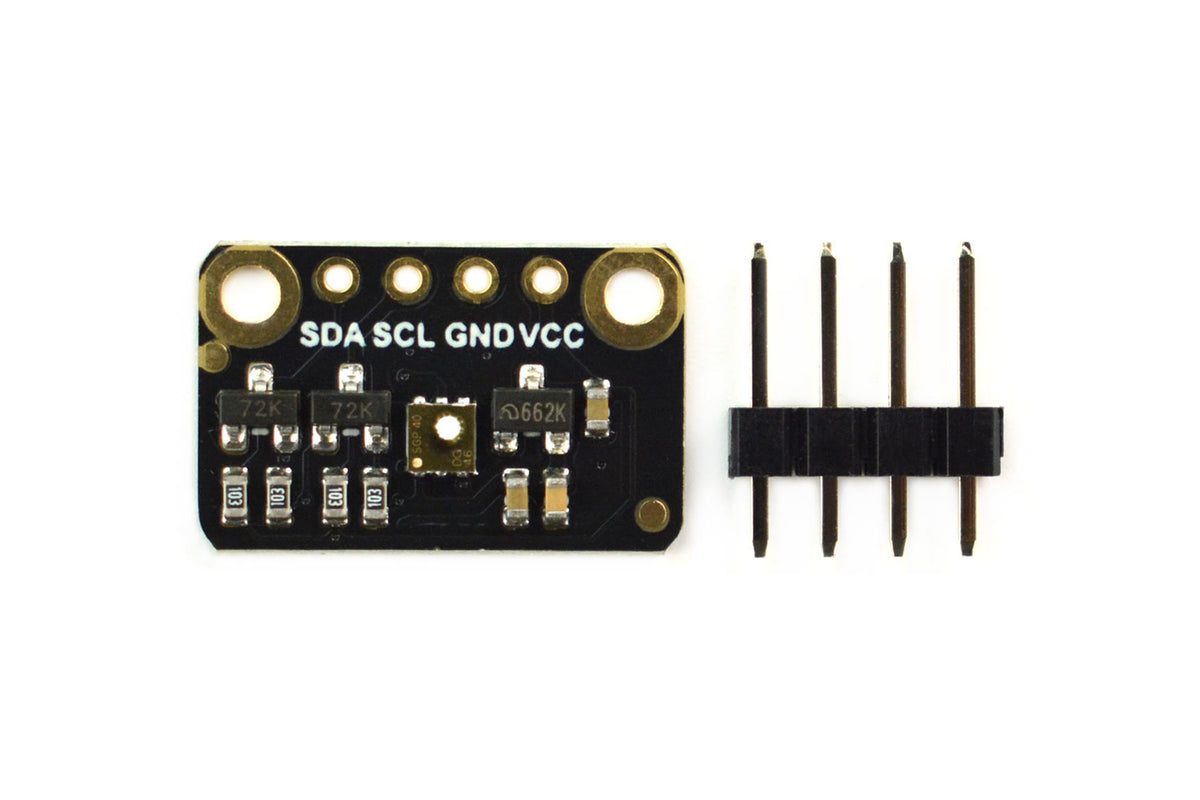

Shipping List
- SGP40 Air Quality Sensor - Breakout x1
- 2.54-4P Black Single-Row Connector x1
