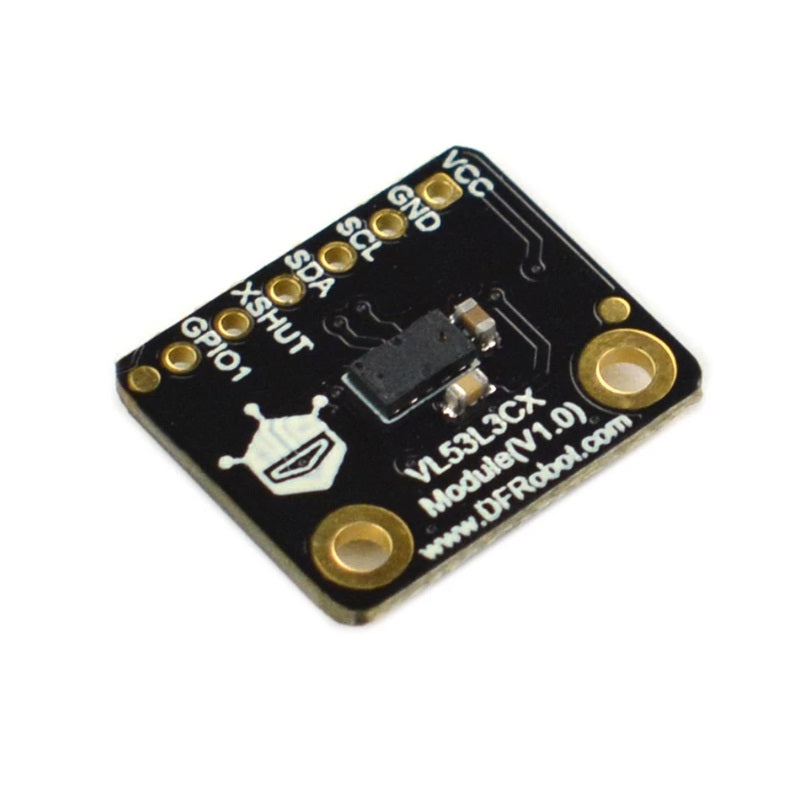

The VL53L3CX is the latest Time-of-Flight (ToF) product from STMicroelectronics and embeds ST’s third-generation FlightSense technology. With the improved detection accuracy, the sensor features a 25~3000mm sensing range, automatic smudge correction, and glass cross-talk immunity. With special algorithms and ingenious module construction, the VL53L3CX is also able to detect different objects within the field of view (FoV) with depth understanding.
Note 1: The product has only been verified on M0 and ESP32 due to the large size of its algorithm files.
Note 2: Multi-target distance measurement can only be triggered under certain conditions. Please refer to their official Web for more details.
Note3: The detection range of 25mm-3000mm comes from the datasheet of STMicroelectronics Rev 2. The actual sensing distance varies with the environment.
Features
High accuracy distance measurement
Long-distance and accurate ranging up to 300 cm
Typical full FoV 25°
Multi-target distance ranging
Immune to glass cross-talk
Smudge compensation function
Specification
Power Supply: 3.3V~5V
Operating Current: ＜20mA
Detection Range: 25-3000mm
Emitter: 940nm invisible laser(VCSEL)
FOV: 25°
I2C Address: 0x29
Operating Temperature Range: -20℃~85℃

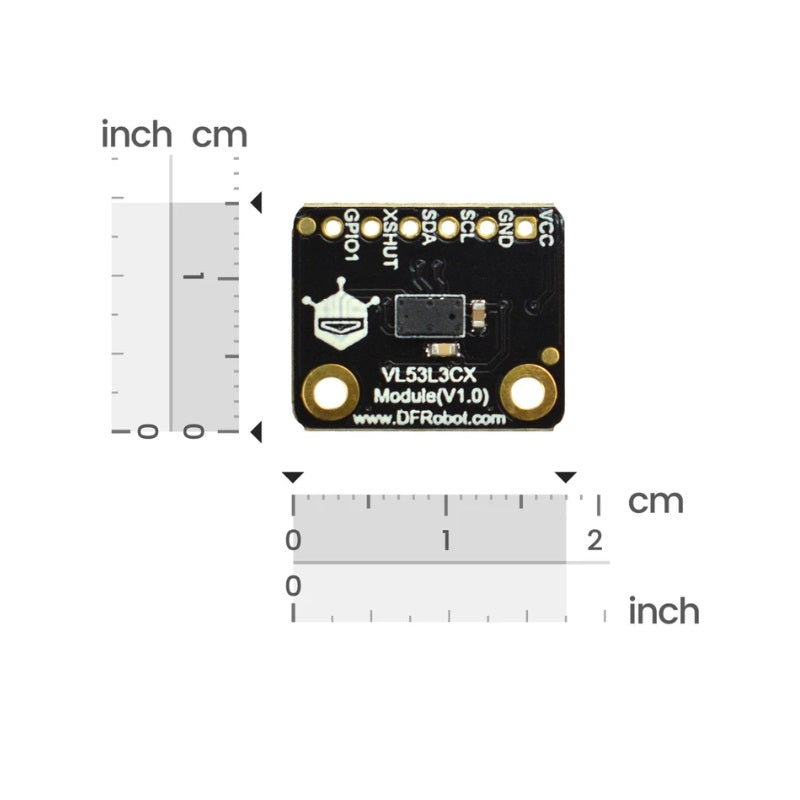

Dimension: 18x15mm/0.71x0.59"
