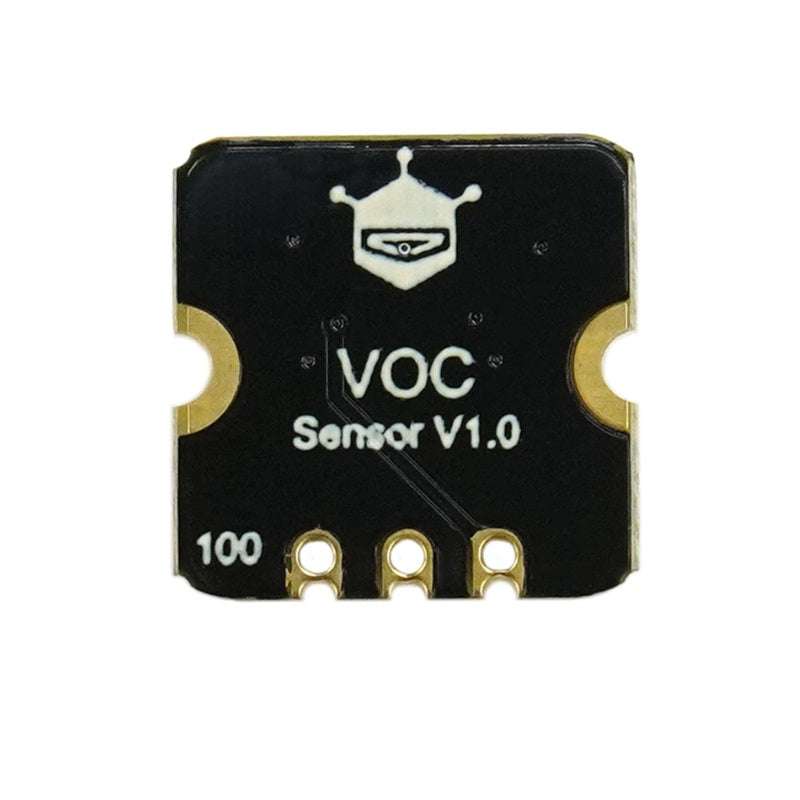

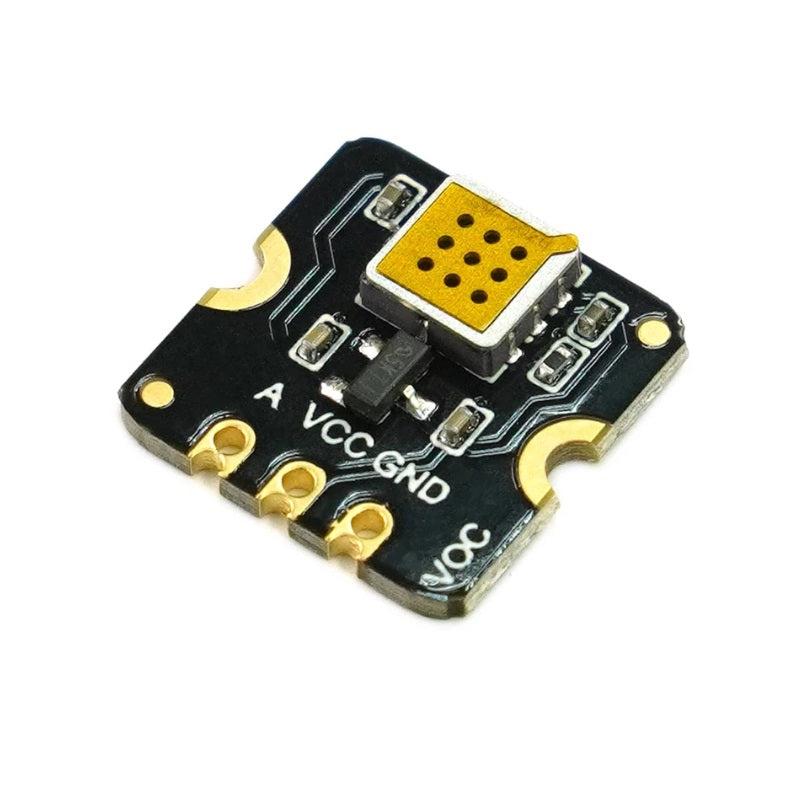

Fermion: MEMS Gas Sensor

Fermion: MEMS sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery.

The MEMS series currently encompasses 11
different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements. This sensor is capable of qualitative measurements only. For quantitative measurements, kindly consider purchasing the Factory-calibrated Gas Sensor.

Features

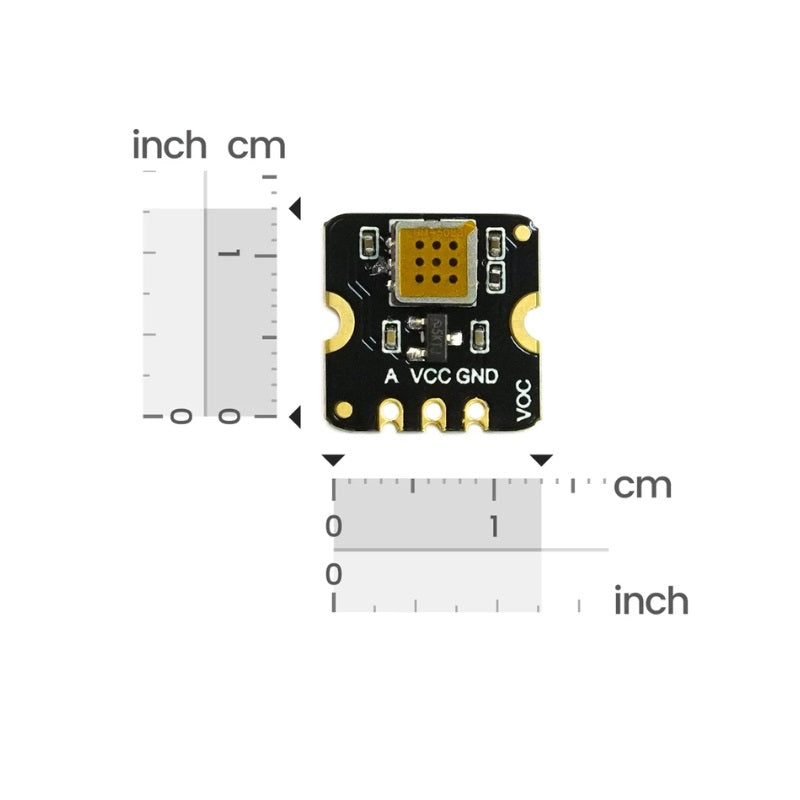

• Compact size, measuring only 13*13*2.5mm
• Low power consumption, operating current ＜20mA
• High sensitivity and rapid response recovery
• Advanced MEMS technology

Specification - CO

• Gas detected: CO
• Detection range: 5-5000ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20 mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 150ppm CO) ≥ 3
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

Specification - Smoke

• Detection Range: 10-1000ppm (qualitative)
• Target Gases: Ethanol, smoke particulates
• Output: Analog voltage (0-5V)
• Sensitivity: R0/Rs ≥3 @200ppm EtOH
• Power: 3.3-5V DC, ＜20mA
• Response Time: ＜15 seconds
• Operating Temp: -10°C to 50°C
• Humidity Range: 15-90% RH
• Lifespan: 5+ years continuous use
• Dimensions: 13×13×2.5mm

Specification - HCHO

• Gas detected: Formaldehyde (HCHO)
• Detection range: 0-3ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 0.4ppm HCHO) ≥ 1.8
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥3 years (in air)
• Dimension：13×13 x 2.5mm/ 0.0.51×0.51x0.1"

Specification - H2S

• Gas detected: Hydrogen Sulfide (H2S), Benzene
• Detection range: 0.5-50ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0 (in air)/Rs (in 50ppm H2S) ≥ 3
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension: 13×13 x 2.5mm/0.0.51×0.51x0.1”

Specification - NH3

• Gas detected: Ammonia (NH3)
• Detection range: 1-300ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 50ppm NH3) ≥ 3
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

Specification - VOC

• Gas detected: ethanol, formaldehyde, toluene, etc
• Detection range: 1-500ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0 (in air)/Rs (in 50ppm ethanol) ≥ 3
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

Specification - CH4

• Gas detected: CH4, C3H8, etc
• Detection range: 1-10000ppm (C3H8)
• Operating voltage: 5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 5000ppm CH4) ≥ 2
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

Specification -EtOH

• Detection Range: 1-500ppm EtOH
• Output: Analog voltage (0-5V)
• Sensitivity: R0/Rs ≥3 (in 50ppm EtOH)
• Power: 3.3-5V DC,＜20mA
• Response Time: ＜30 seconds
• Operating Temp: -10°C to 50°C
• Dimensions: 13×13×2.5mm
• Lifespan: 5+ years

Specification - Odor

• Gas detected: H2S, EtOH, acetone, etc
• Detection range: 0.5-50ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 5ppm H2S) ≥ 2
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

Specification - NO2

• Gas detected: NO2
• Detection range: 0.1-10ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 5ppm NO2) ≤ 0.5
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

Specification - H2

• Gas detected: Hydrogen (H2)
• Detection range: 0.1-1000ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 200ppm H2) ≥ 5
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"
