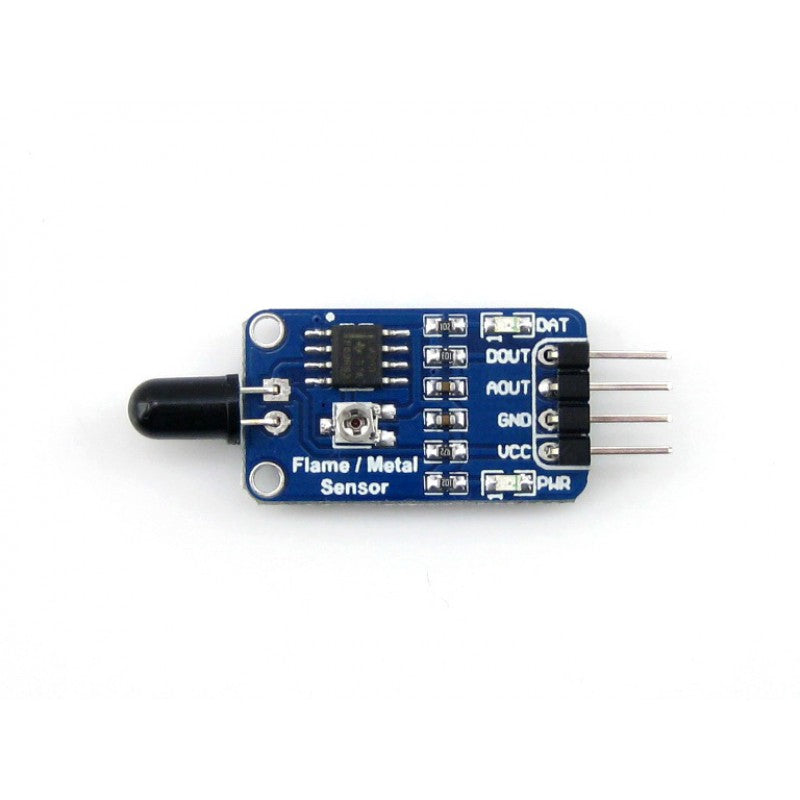

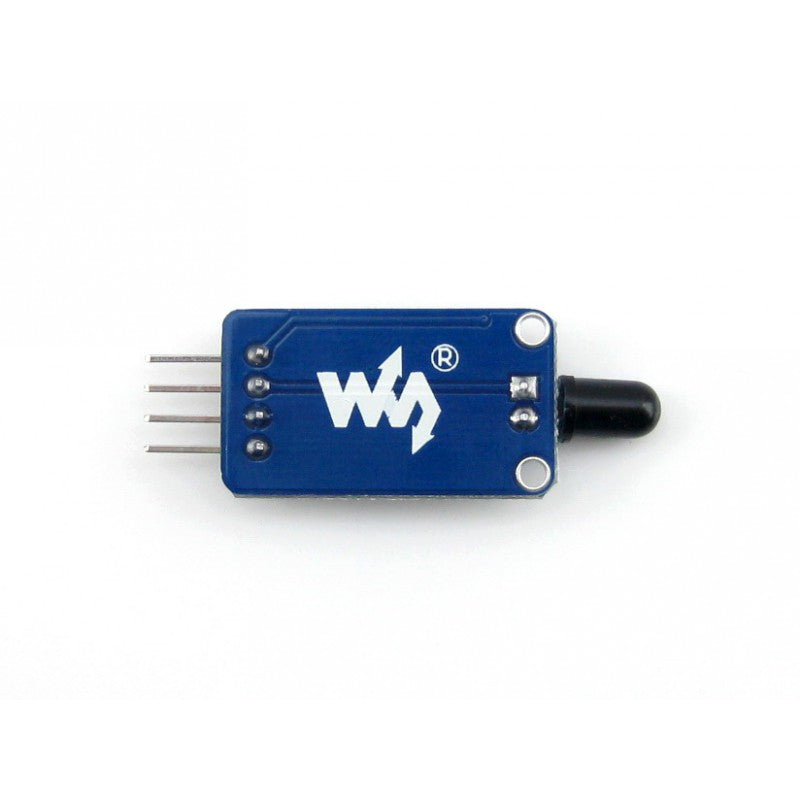

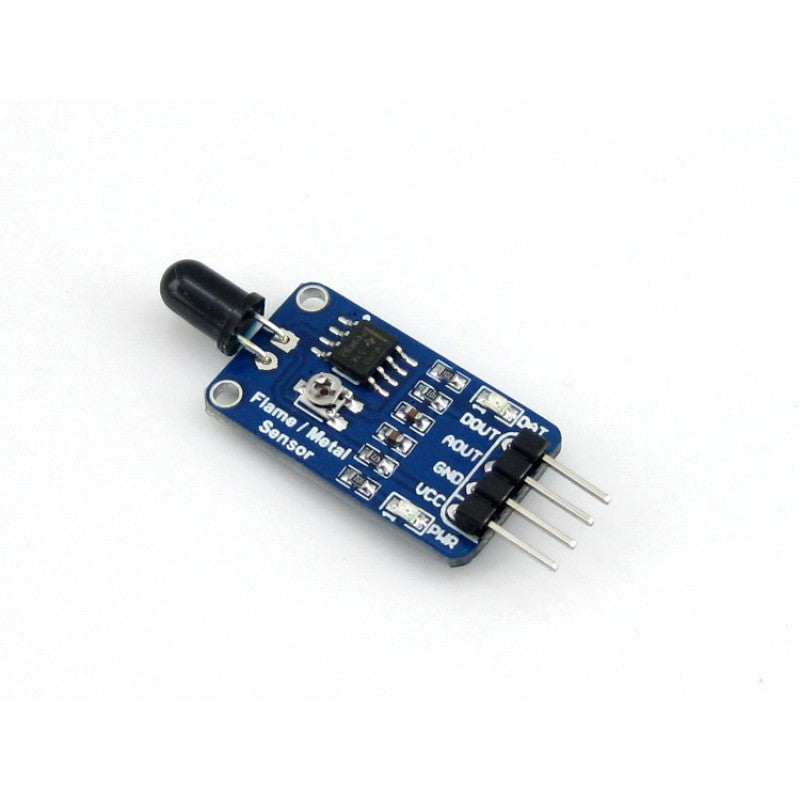

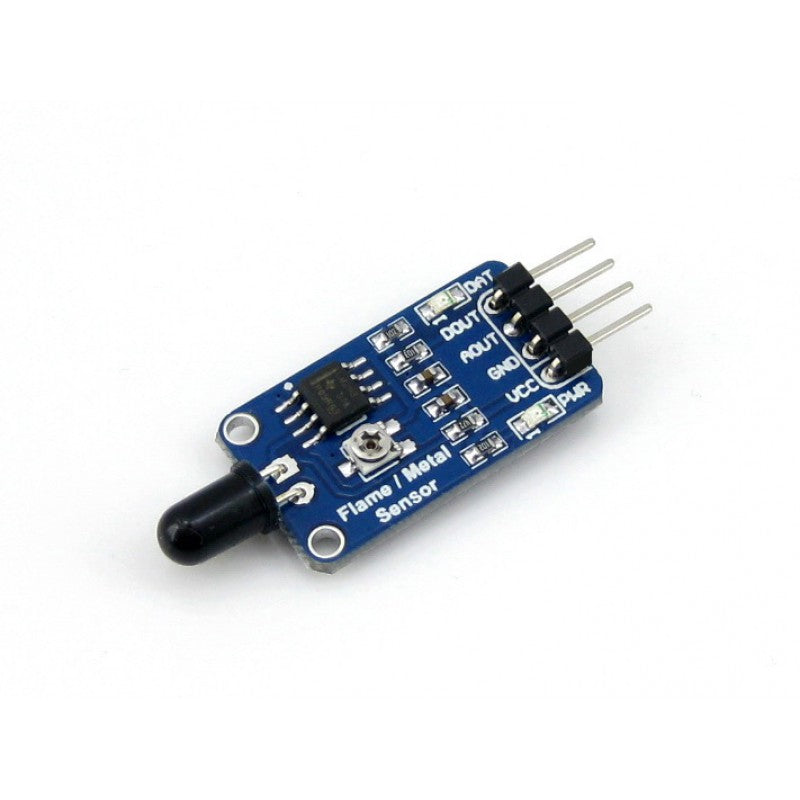

Flame Sensor

Flame Sensor

SKU:E31004-001

Regular price $5.33 AUD
Regular price Sale price $5.33 AUD
Sale Sold out
Shipping calculated at checkout.

• Free shipping in AU if oder ≥ $50

• For more shipping policy, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

Quantity

In stock

Download datasheet
Download schematic
View full details

Product Overview

Overview

  • Sensitive to flame spectrum
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator

Specifications

  • Spectrum range: 760nm ~ 1100nm
  • Detection angle: 0 - 60 degree
  • Power: 3.3V ~ 5.3V
  • Operating temperature: -25℃ ~ 85℃
  • Dimension: 27.3mm * 15.4mm
  • Mounting holes size: 2.0mm

Applications

  • Fire detection
  • Fire fighting robot
  • Fire alarm

How to Use

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
