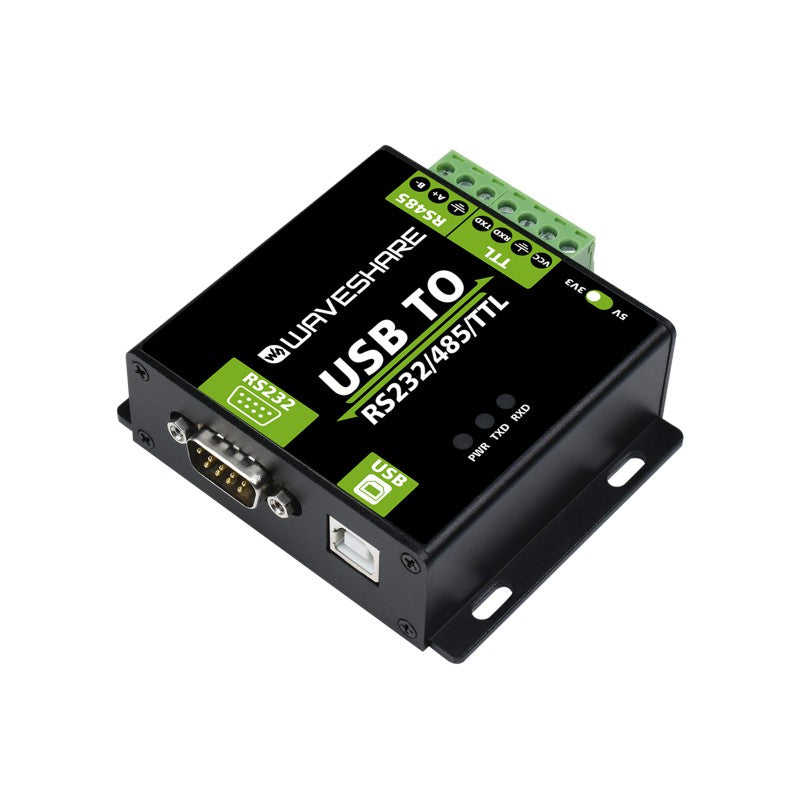

FT232RNL/CH343G USB TO RS232/485/TTL Interface Converter

FT232RNL/CH343G USB TO RS232/485/TTL Interface Converter

SKU:E21002-001

$41.96 AUD
$41.96 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.
View full details

Description

  • Adopt original FT232RNL inside, fast communicating, stable and reliable, better compatibility
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
  • Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
  • Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
  • 3 LEDs for indicating the power and transceiver status

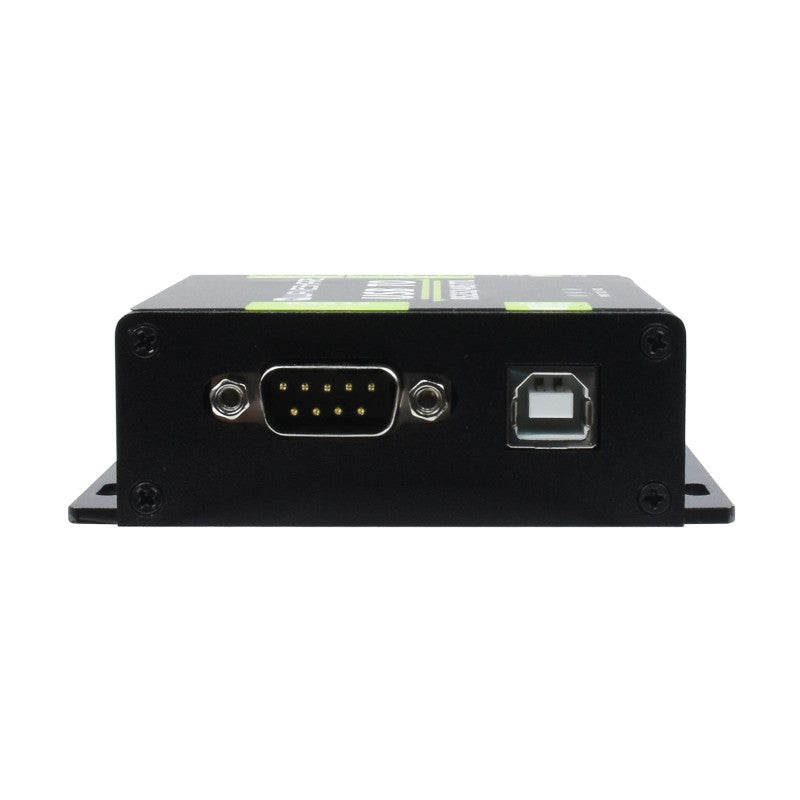

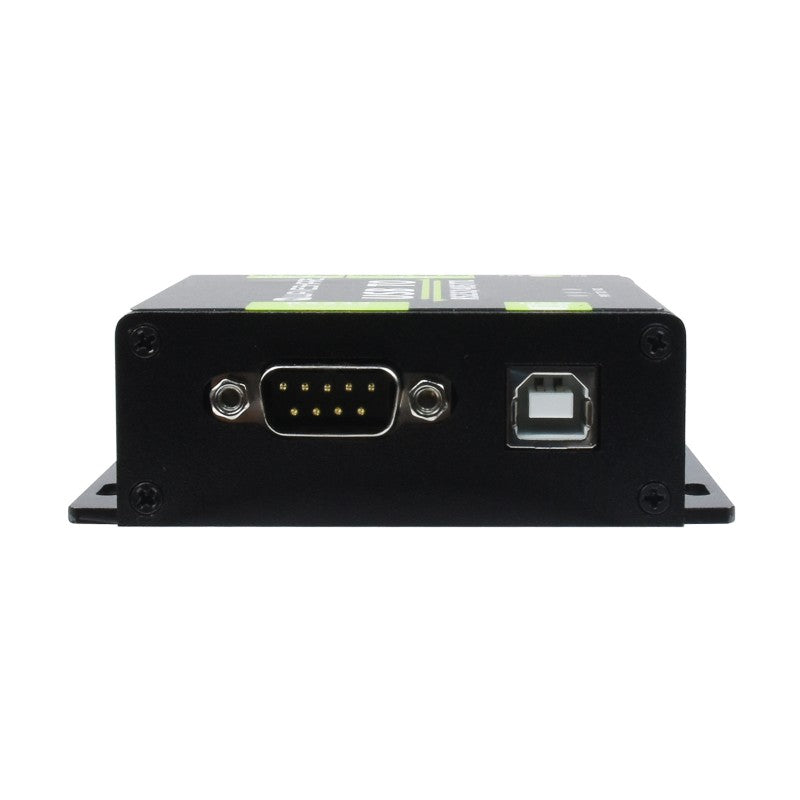

  • High quality USB-B and RS232 connectors, smoothly plug/pull

Specification

PRODUCT TYPE Industrial grade digital isolated converter
USB Operating voltage 5V
Connector USB-B
Protection 200mA self-recovery fuse, isolated output
RS232 Connector DB9 male
Protection TVS diode, surge protection & ESD protection
Transmission mode Point-to-point
Baud rate FT232RNL: 300bps ~ 921600 bps
CH343G: up to 600000 bps (not full band)
RS485 Connector Screw terminal
Pins A+/B-/GND
Direction control Hardware automatically discriminates and controls the direction of data transmission
Protection 600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads
Transmission mode Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate FT232RNL: 300bps ~ 2 Mbps
CH343G: up to 2 Mbps (not full band)
TTL (UART) Operating voltage 3.3V / 5V

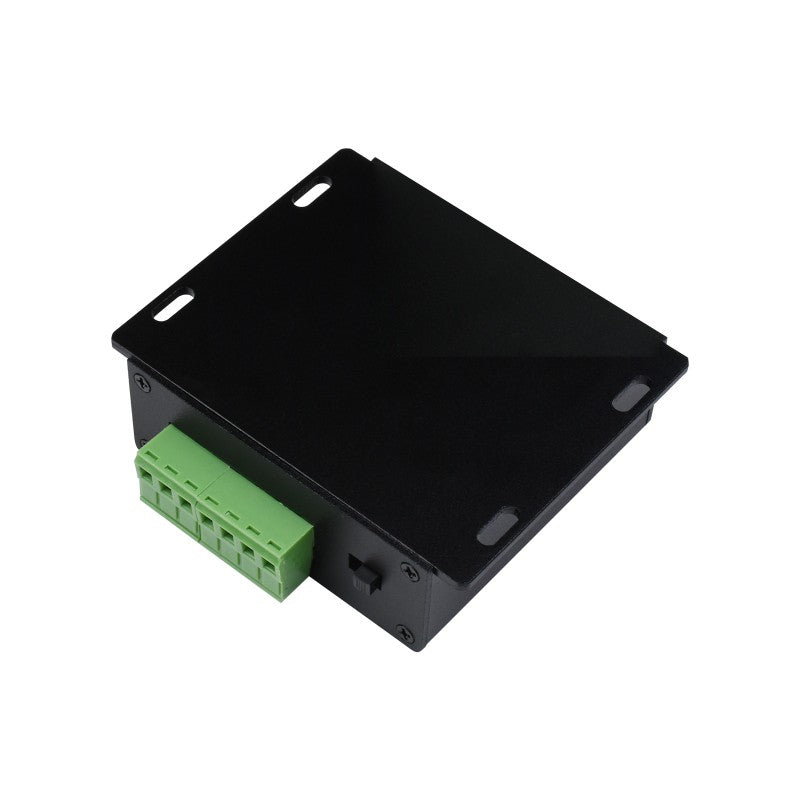

Connector Screw terminal
Pins TXD, RXD, GND, 5V
Protection clamp protection diode, over-voltage/negative-voltage proof, shock proof
Transmission mode Point-to-point
Baud rate FT232RNL: 300 bps ~ 2 Mbps
CH343G: up to 2 Mbps (not full band)
Indicators PWR Red power indicator, light up when there is USB connection and voltage is detected
TXD Green TX indicator, light up when the USB port sends data
RXD Blue RX indicator, light up when the device ports send data back
Operating environment Temperature -15℃ ~ 70℃
Humidity 5%RH ~ 95%RH
Operating system Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
