WaveShare

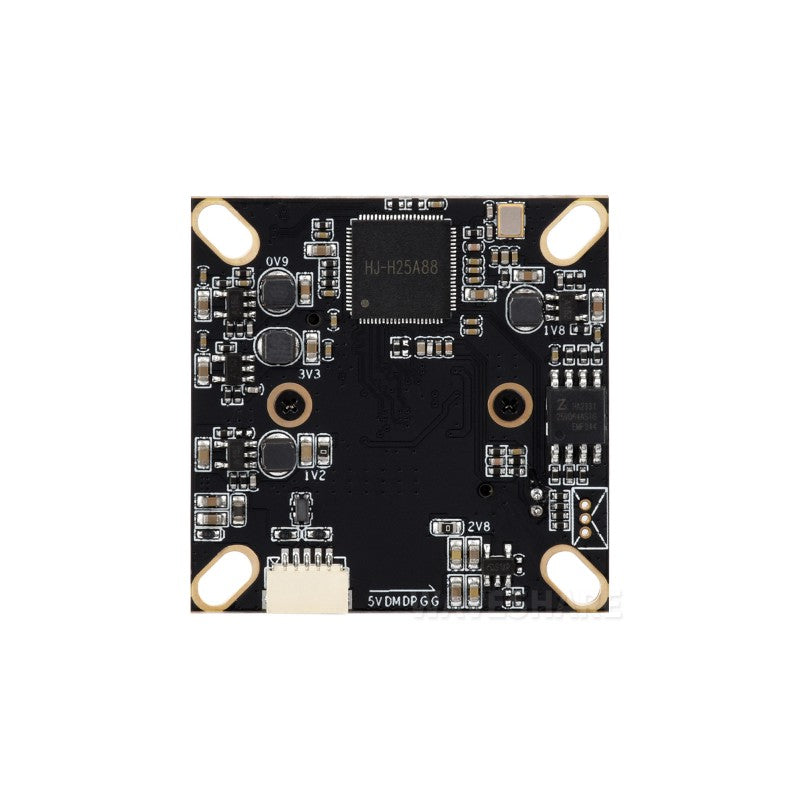

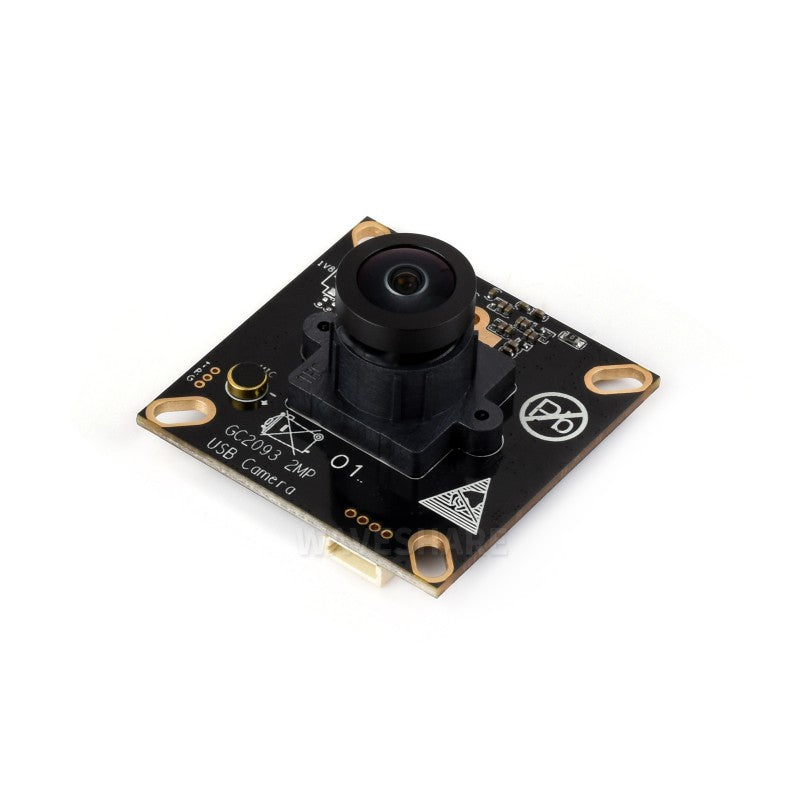

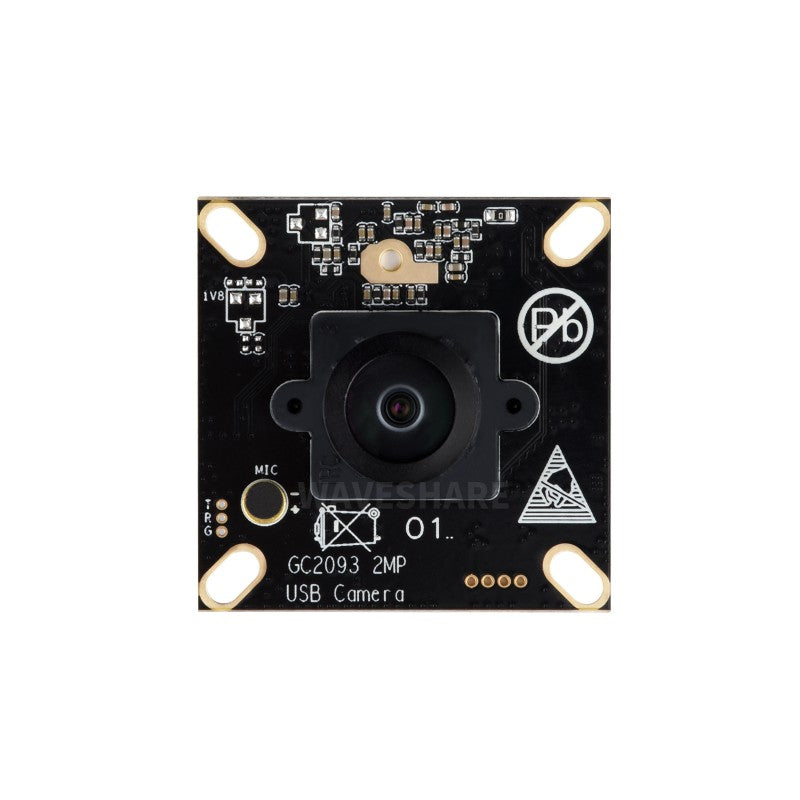

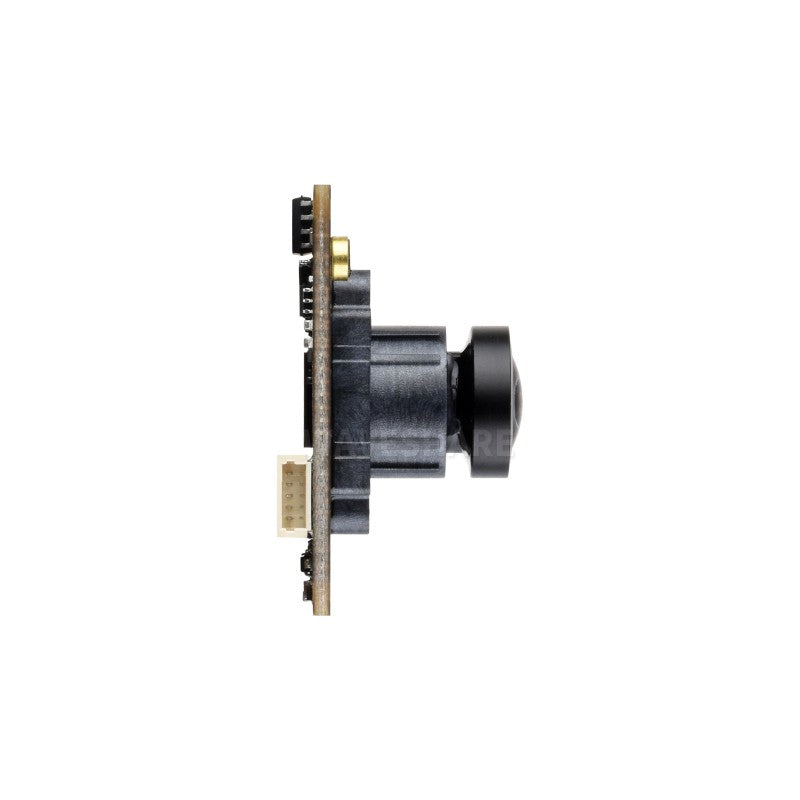

GC2093 2MP USB Camera, 170°FOV, F2.2 aperture, 2.28mm focal length, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone

GC2093 2MP USB Camera, 170°FOV, F2.2 aperture, 2.28mm focal length, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone

E43001-001

$40.00 AUD
$40.00 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

In stock
View full details

Product Overview

Description

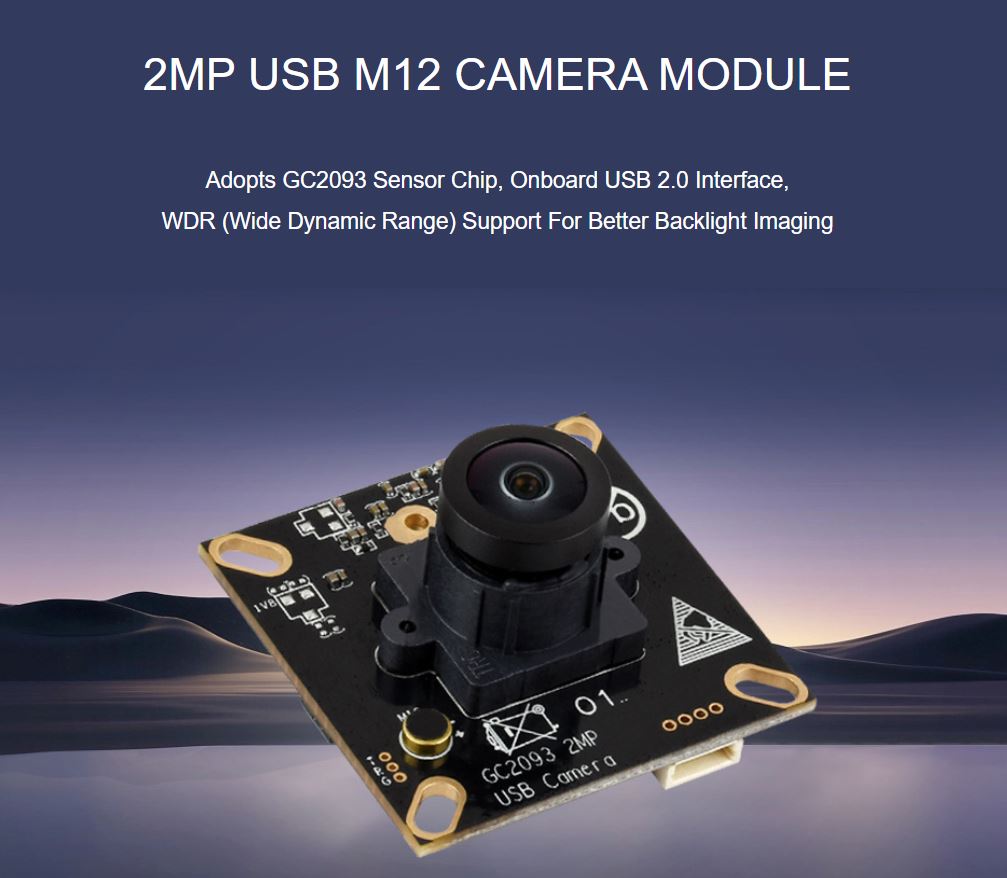

GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone

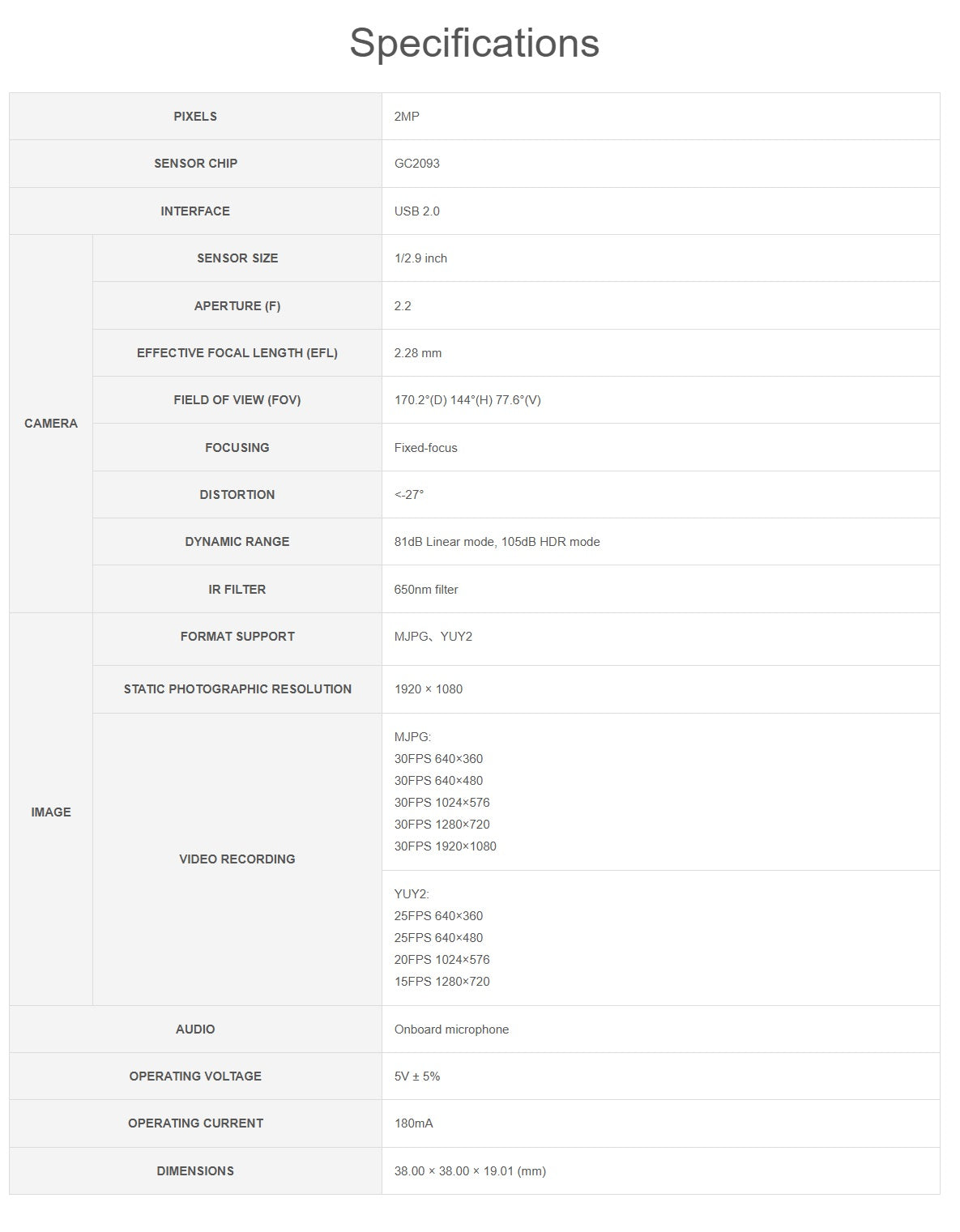

Specification

  • Pixels: 2MP
  • Sensor chip: GC2093
  • DSP: Auto gain/exposure/white balance
  • Camera:
    CCD size: 1/2.9inch
    Aperture (F): 2.2
    Focal length (EFL): 2.28mm
    Field of View (FOV): 170.2°(D) 144°(H) 77.6°(V)
    Distortion: < -27%
  • Focus mode: Fixed focus
  • Interface type: USB2.0
  • Image:
    Supported image formats: MJPG, YUY2
    Static image resolution: 1920 × 1080
    Video recording (MJPG):
    - 30 FPS 1920 × 1080
    - 30 FPS 1280 × 720
    - 30 FPS 640 × 480
    - 30FPS 1024×576
    - 30FPS 640×480
    - 30FPS 640×360
    Video recording (YUY2):
    - 15 FPS 1920 × 1080
    - 20 FPS 1280 × 720
    - 25FPS 640×480
    - 25FPS 640×360
  • Operating voltage: 5V ± 5%
  • Operating temperature: 0°C ~ 50°C
  • Dimensions: 38.00 × 38.00 × 19.01 (mm)
  • Supported systems: Windows, Linux, macOS
