Introduction

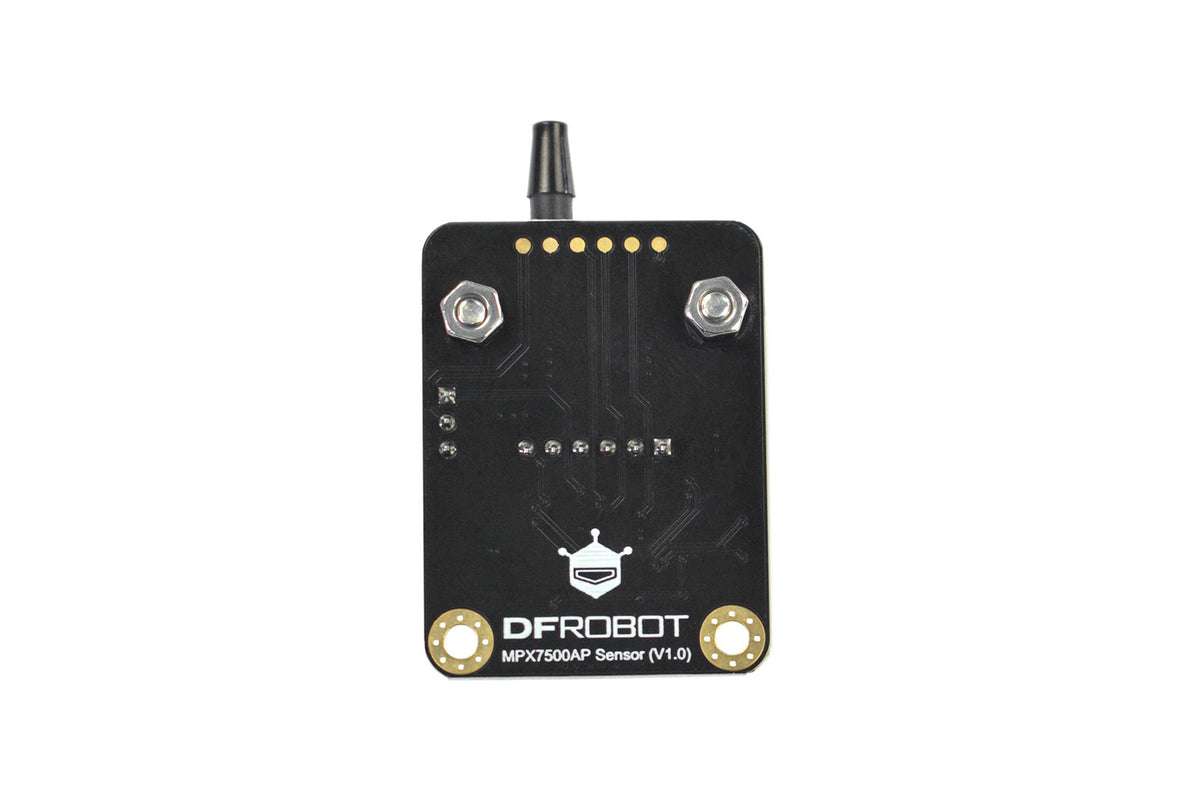

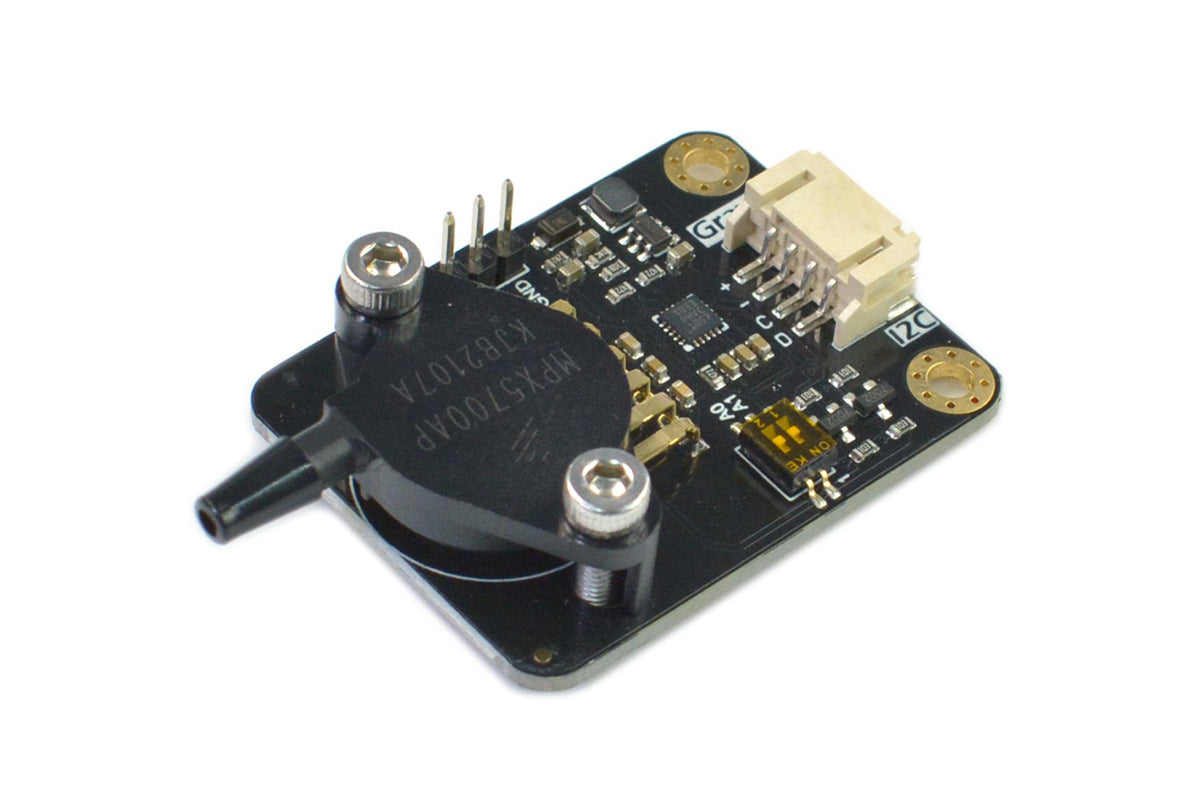

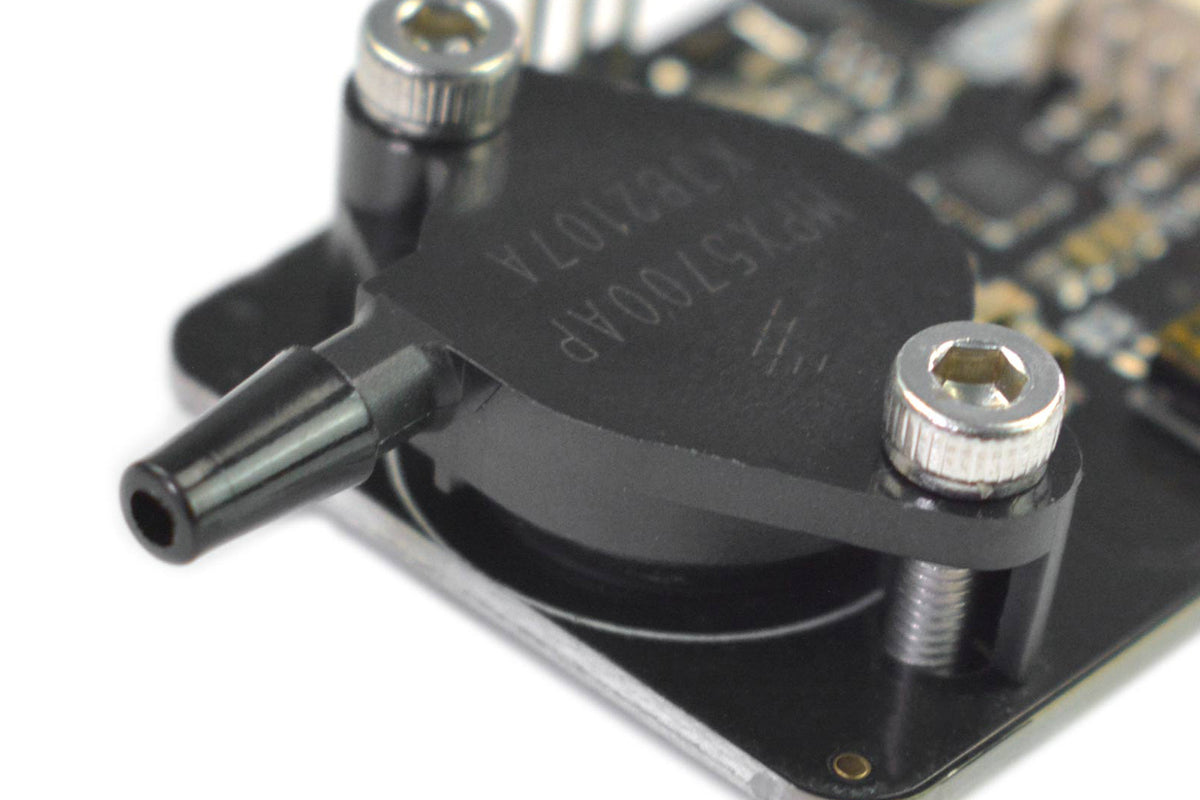

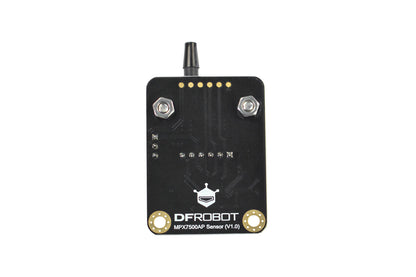

This is a Arduino compatible pressure sensor module with a measuring range of 15-700kPa, which supports I2C digital output and can be calibrated according to known pressure values and allows fast and accurate measurement of pressure values in pipelines or other environments.
It is suitable for pipeline air pressure detection, natural science experiments and other scenarios.
Features
- Supports I2C digital output
- Can fast and accurate measurement of pressure values
Applications
- Pipeline air pressure detection
- Natural science experiments
Specification
- Detection of physical quantities: Air pressure
- Working voltage: 3.3～5.5V DC
- Power dissipation: 0.06W（5V）
- Output signal: I2C output（0~3V）
- Measuring range: 15-700kPa
- Deviation:＜2.5%
- Resolution ratio: ≤1kPa
- Working temperature: 0～85℃

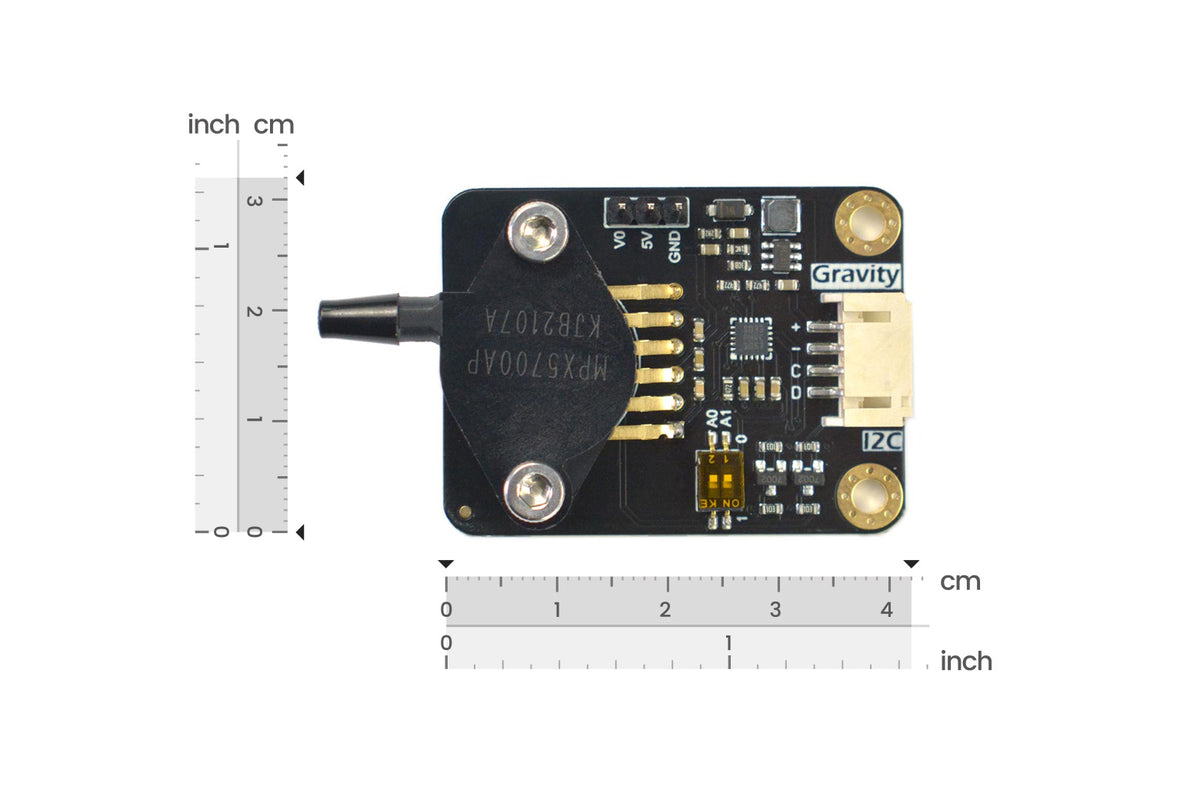

- Circuit board size: 32mm*43mm
Shipping List

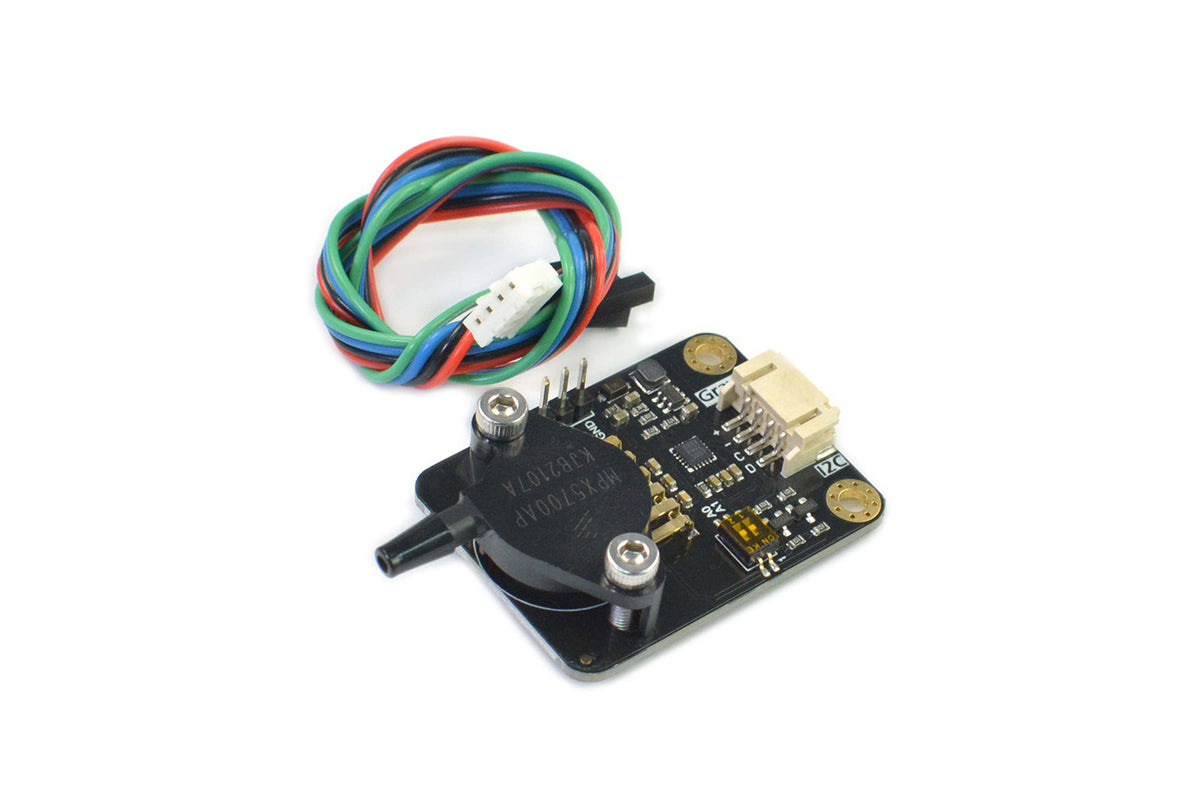

- Gravity: Pressure sensor(15-700kPa) x1
- Gravity-4pin I2C Cable x1
