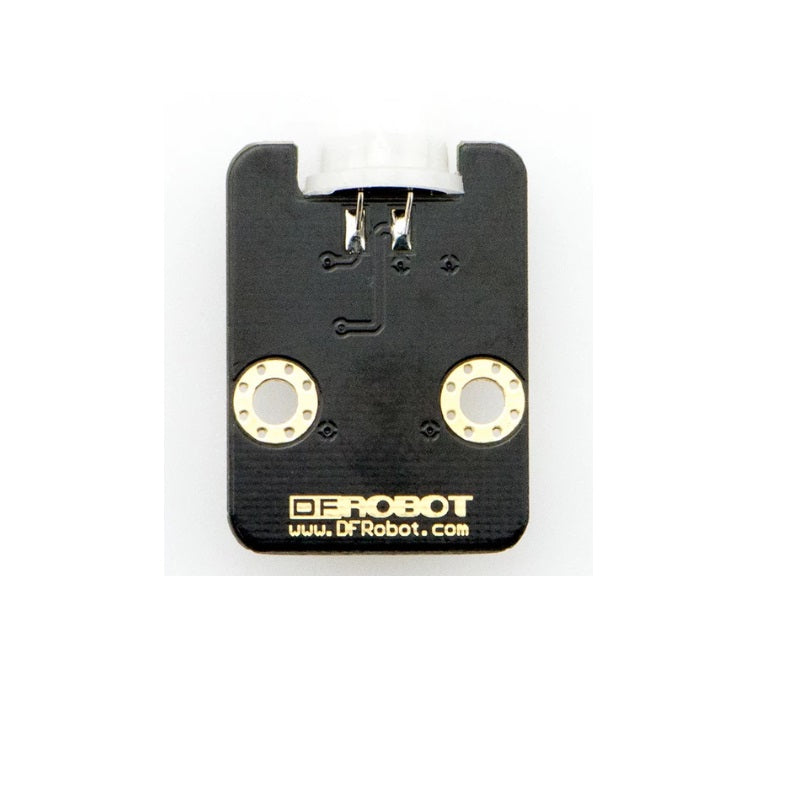

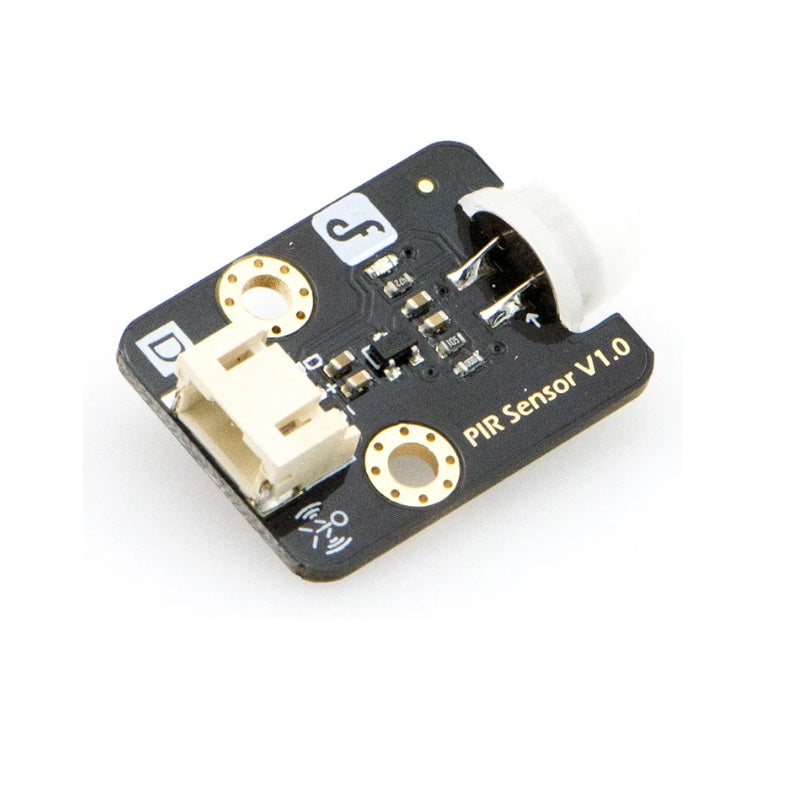

Gravity: Digital PIR (Motion) Sensor for Arduino / Raspberry Pi

The Gravity: Digital PIR Motion Sensor is designed for precise motion detection by sensing infrared radiation emitted from humans and animals. Utilizing passive infrared (PIR) technology, it effectively identifies changes in heat signatures within itsdetection range of up to 7 metersand awide 100-degree angle. Operating at a voltage range of 3.3 to 5V, this sensor is perfect forhome automation, including occupancy detection, security systems to trigger alarms, and energy conservation solutions that optimize power usage based on presence. Its compact design and seamless integration withArduinoandRaspberry Pimake it a versatile choice for developers and DIY enthusiasts.

High Sensitivity and Precision

With a detection range of up to 7 meters and a wide 100-degree angle, this sensor effectively monitors larger spaces for precise motion detection.

When the PIR sensor detects motion, it outputs a high-level signal (the OUT terminal is at a high level). This high-level signal persists for a specified duration (High duration) before returning to a low level (the OUT terminal is at a low level). In continuous trigger mode (effective continuous trigger), the sensor maintains a high-level output as long as motion is detected. This immediate responsiveness is ideal for applications such as occupancy detection, where real-time monitoring is crucial.

Easy Integration

The Gravity: Digital PIR Motion Sensor employs a Gravity Interface, facilitating quick and straightforward connections to Arduino and Raspberry Pi. This plug-and-play capability simplifies the setup process, eliminating the need for complex wiring and configurations.

Low Power Consumption

Operating at a voltage range of 3.3 to 5V, this sensor is designed for energy efficiency, drawing only 15µA of current during operation. This low power consumption is especially beneficial for battery-powered applications, ensuring long-lasting performance without the need for frequent battery replacements.

Applications

• Smart home systems: automatically adjust lighting or HVAC based on room occupancy.
• Security Systems: Integrating motion detection enhances security measures by triggering alarms when movement is detected.

Specification

• Input Voltage: 3.3 ~ 5V
• Working Current: 15µA
• Working Temperature: -20 to 85°C
• Output Voltage: High 3V, Low 0V
• Output Delay Time (High Level): Approximately 2.3 to 3 seconds
• Detection Angle: 100°
• Detection Distance: Up to 7 meters
• Output Indicator LED: Lights up when the output is HIGH
• Pin Limit Current: 100mA
• Connection Interface: PH2.0-3

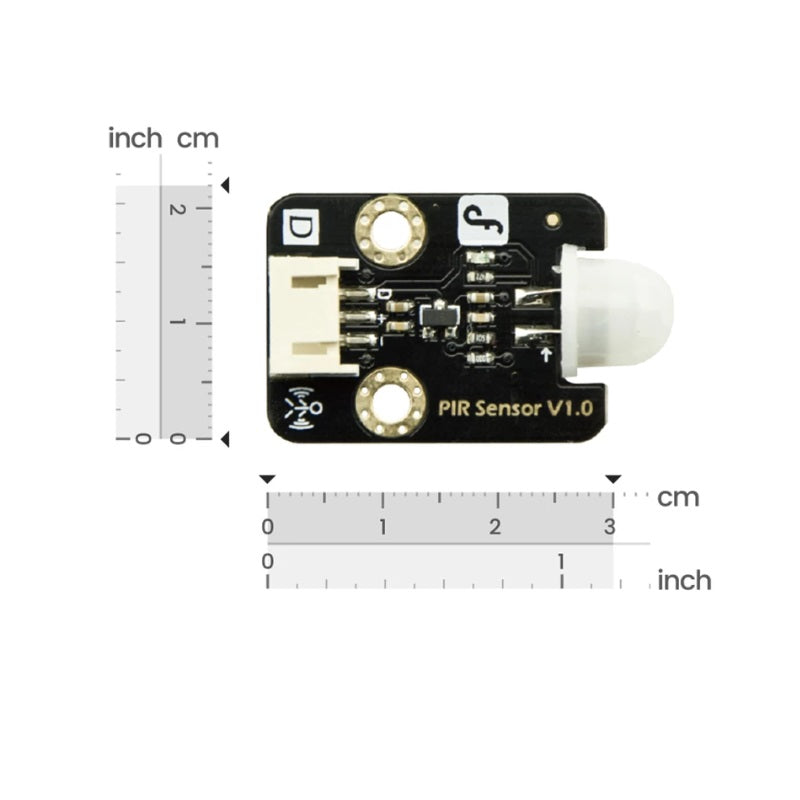

• Module Size: 30mm x 22mm (1.18" x 0.87")
