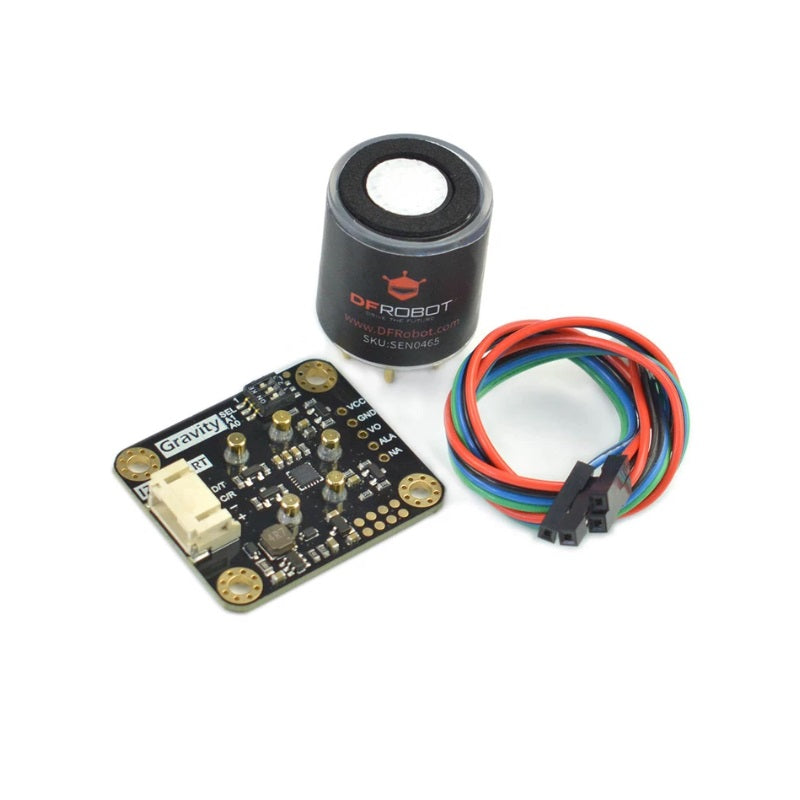

The gas sensor series is designed to detect various flammable, combustible, and toxic gases in the environment. With pre-calibrated sensors, it can measure the concentration of specific gases quickly and accurately. Supporting multiple output modes, including Analog, I2C, UART, and digital alarm signals, it offers flexibility in different applications. The probes in this series use electrochemical principles, providing strong stability and sensitivity with a lifespan of up to two years.
Using the simple and user-friendly Gravity interface, you can easily build various gas concentration detectors. This sensor series has widespread applications in safety production, industrial manufacturing, and environmental protection, making it the ideal choice for settings such as coal mines, chemical industries, chemical laboratories, and environmental management.
Features
Factory calibrated, accurate measurement
High sensitivity, low power consumption
Excellent stability and anti-interference
Three output modes: I2C, UART and analog
Long service life(2 years)
Compatible with 3.3~5.5V main controllers
32 modifiable I2C addresses
Reverse connection protection
Temperature compensation
Threshold alarm
Applications
Air quality monitoring device
Mining air detection
Environmental protection
Smart Farming
Specification
Detection Gas: CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF(Need to change different probe)
Working Voltage: 3.3～5.5V DC
Working Current: <5mA
Output Signal: I2C, UART output (0~3V), analog voltage (see the characteristic parameters of specific probe)
Detection error: ±10% of output value or ±5% of full scale (whichever is greater)
Working Temperature: -20～50℃
Working Humidity: 15～90%RH (non-condensing)
Storage Temperature: -20～50℃
Storage Humidity: 15～90%RH (non-condensing)
Lifespan: >2 years (in the air)

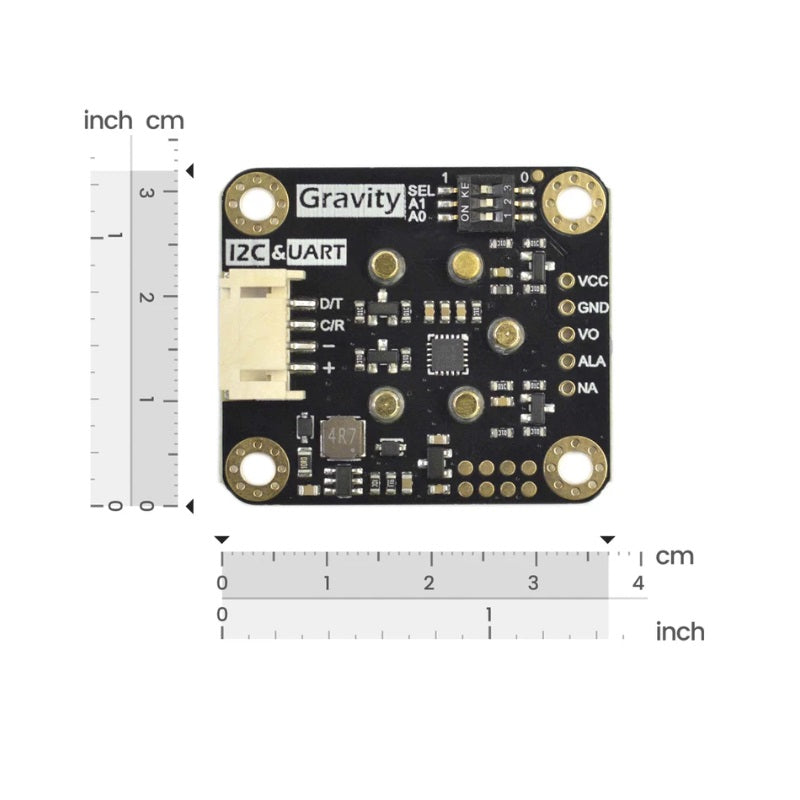

Adapter Plate Size: 37×32mm
Operating Pressure Range: 0.5~2.0 bar
(Using in an environment that is not in the operating pressure range may result in inaccurate measurement readings.)
