Introduction

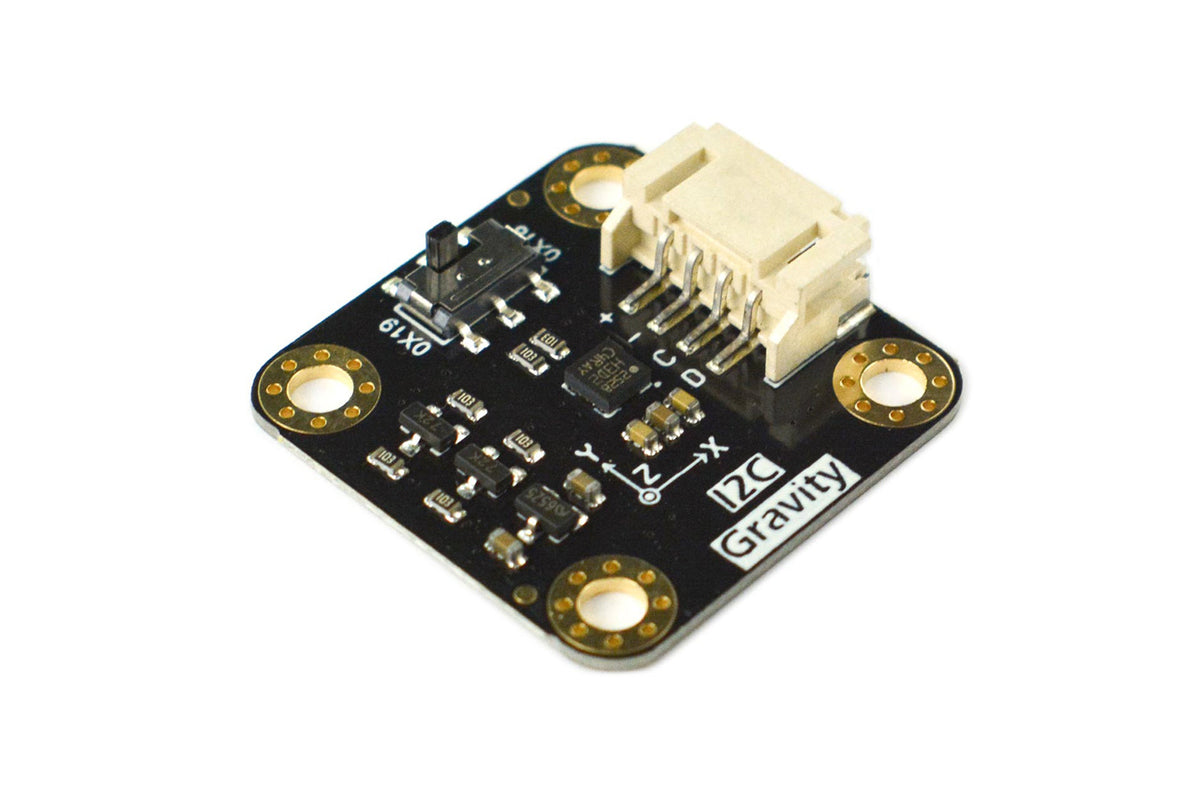

The H3LIS200DL is a high-performance triple-axis linear accelerometer with an ultra-low power consumption of 10uA. It offers user-selectable scales of ±100g/±200g and is capable of measuring accelerations with output data rates from 0.5Hz to 1KHz.
Connection Diagram
Features
- Selectable scales: ±100g/±200g
- Change I2C address by the toggle switch
- Easy-to-use Gravity interface, no need to solder
Applications
- Shock detection and record
- Free-fall detection
- Vehicle crash test
Specification
- Operating Voltage: 3.3V~5V
- Operating Current: 10uA(low power mode)/0.3mA-0.4mA(Normal mode)
- Interface: Gravity-I2C
- I2C Address: 0x19 (Default)/0x18 (Optional)
- Selectable Scale: ±100g/±200g
- Frequency: 0.5Hz~1KHz
- 8-bit Data Output
- Operating Temperature: -40℃~+85℃
- 10000g High Shock Survivability
- ECOPACK, RoHS and “Green” compliant

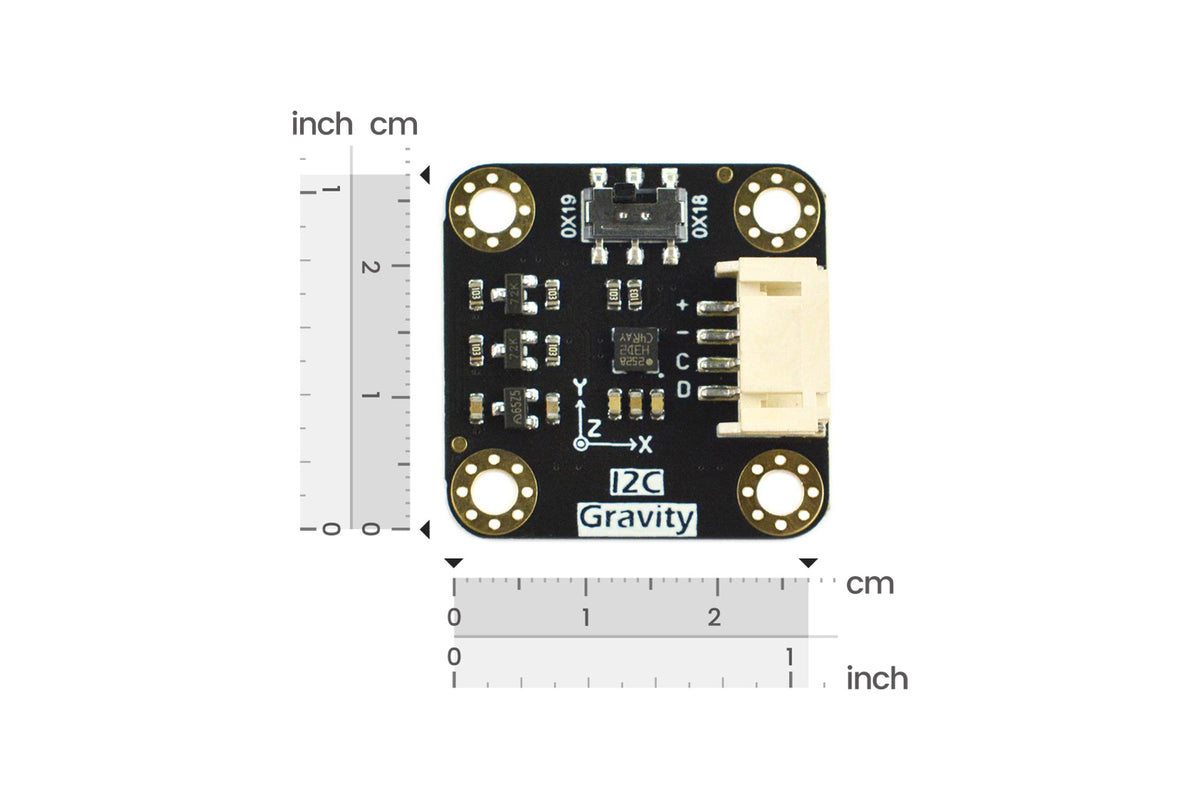

- Module Size: 27*27mm/1.06*1.06”
- Mounting Hole Size: inner diameter 3mm/outer diameter 6mm
Shipping List

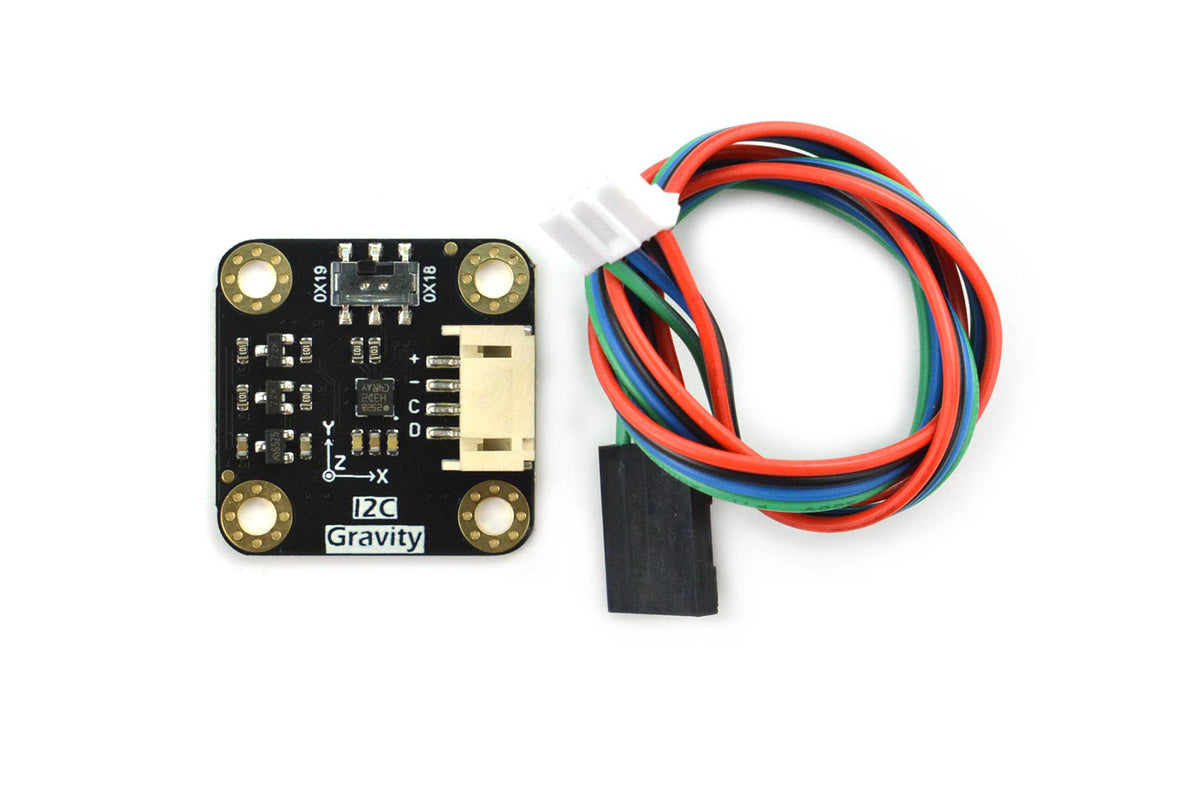

- Gravity: I2C H3LIS200DL Triple Axis Accelerometer x1
- Gravity-4P I2C/UART Sensor Connector x1
