Introduction

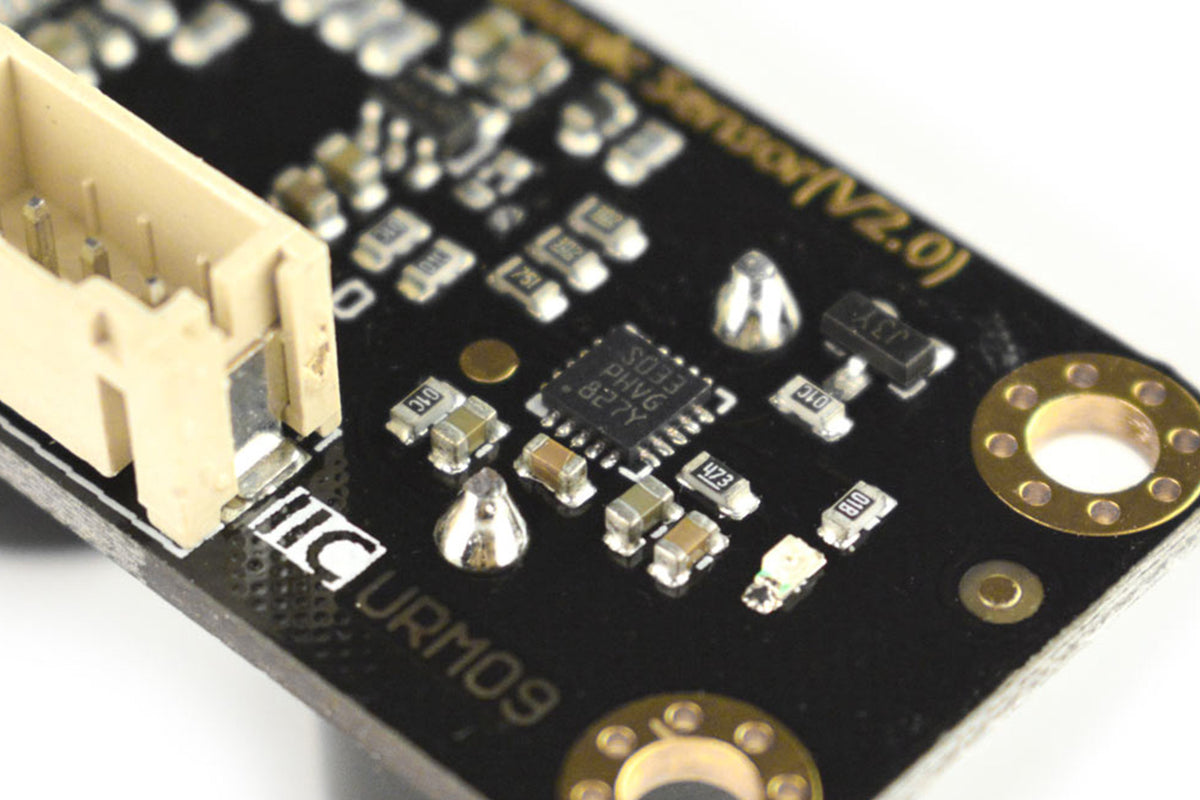

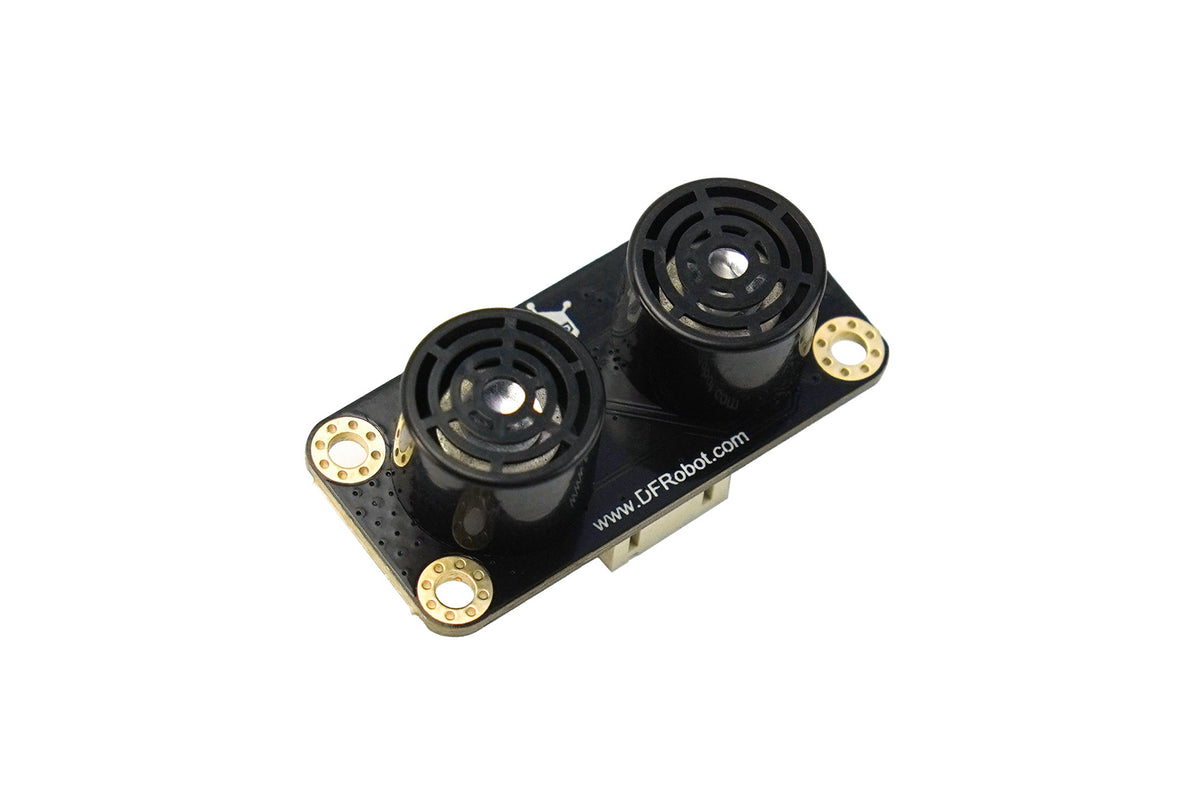

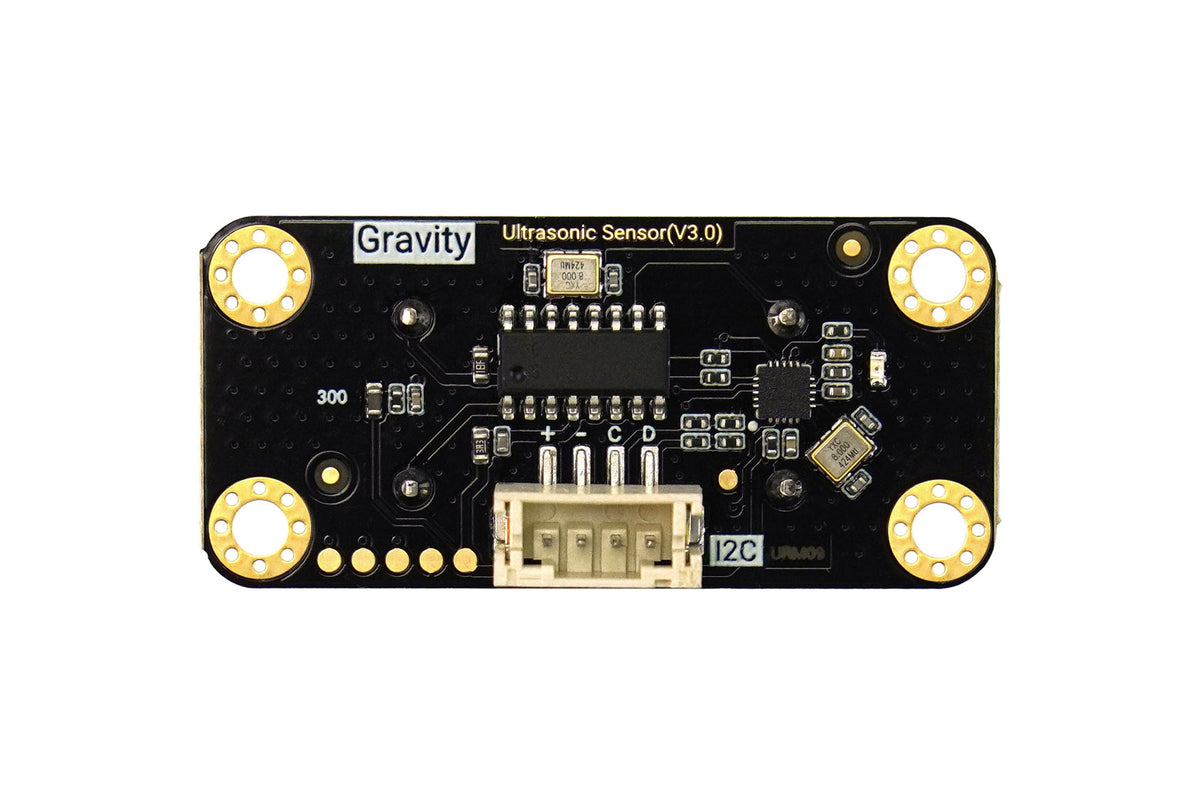

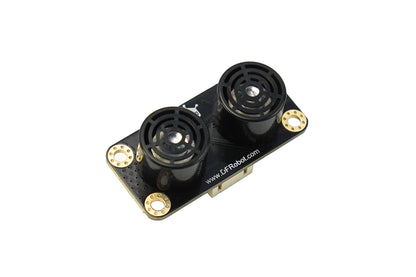

DFRobot URM09 is an ultrasonic sensor specifically designed for fast ranging and obstacle avoidance application. Its measuring frequency can reach up to 50Hz. The sensor adopts built-in temperature compensation and I2C communication. There are three measurement ranges designed for programs to select: 150cm, 300cm and 500cm. Please note that shorter range will provide shorter ranging cycle and lower sensitivity. You may need to set it according to your actual use. Besides, the sensor is equipped with on-board LDO, which is able to avoid performance attenuation within power supply range.
URM09 Beam Angle
If you need want to learn more about ultrasonic sensors, please click here to check DFRobot Ultrasonic Sensor Selection Guide.
Specification
- Supply Voltage: 3.3~5.5V DC
- Operating Current: 20mA
- Operating Temperature Range: -10℃～＋70℃
- Measurement Range: 2cm～500cm (can be set)
- Resolution: 1cm
- Accuracy: 1%
- Frequency: 50Hz Max

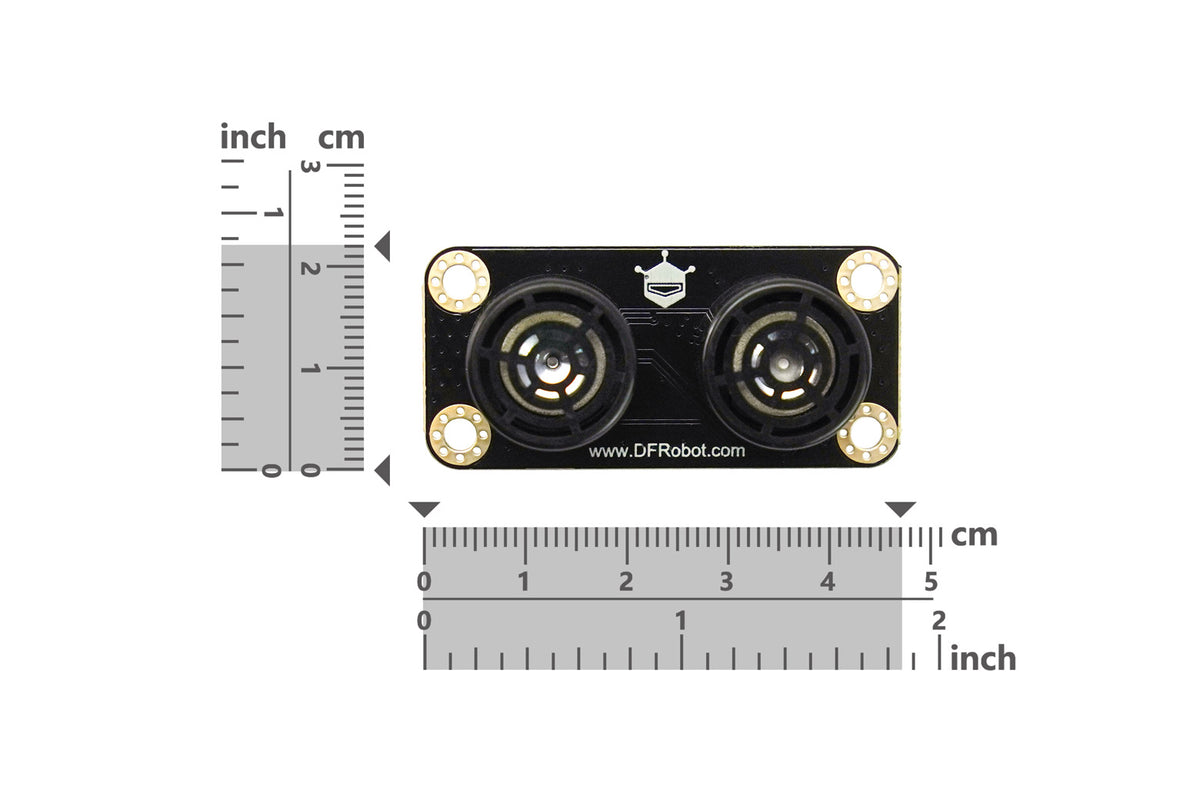

- Dimension: 47mm × 22 mm/1.85”× 0.87”

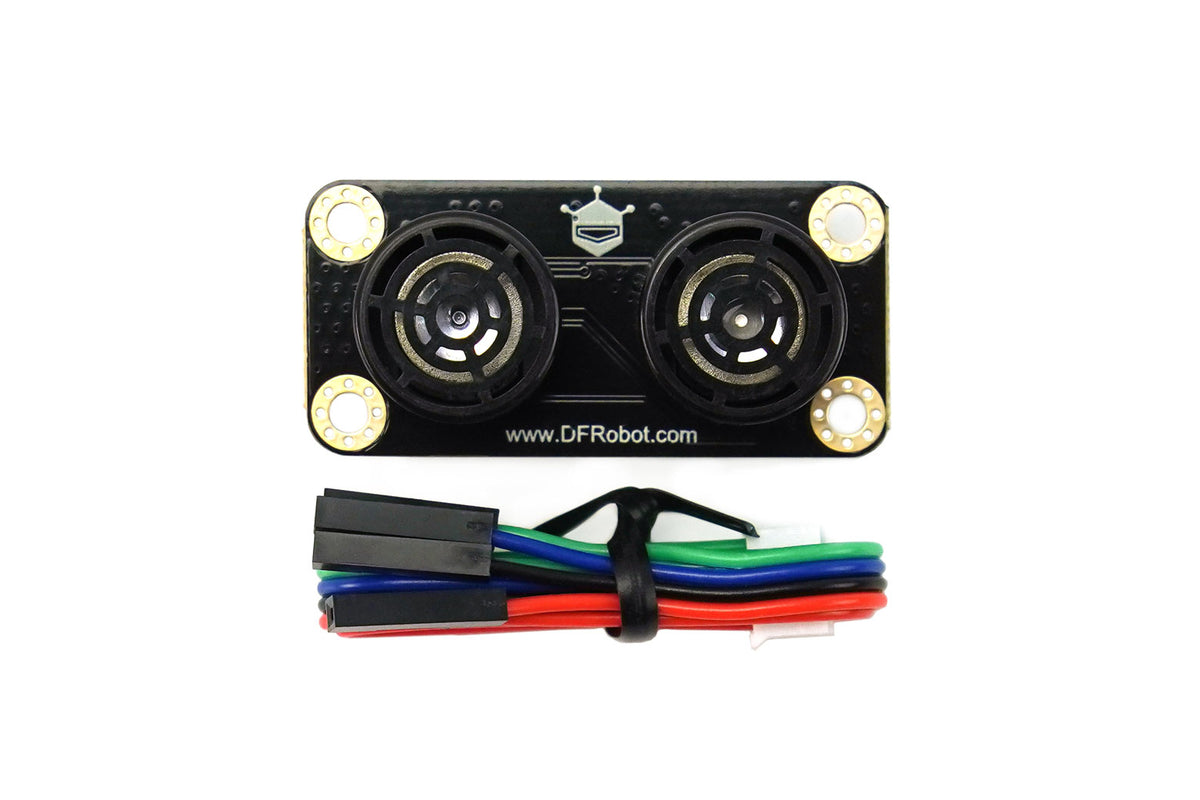

Shipping List
- URM09 Ultrasonic Sensor(Gravity I²C)(V1.0) x1
- PH2.0-4P Connector x1
Documents
Certifications
- CE CE
- RoHS RoHS
