WaveShare

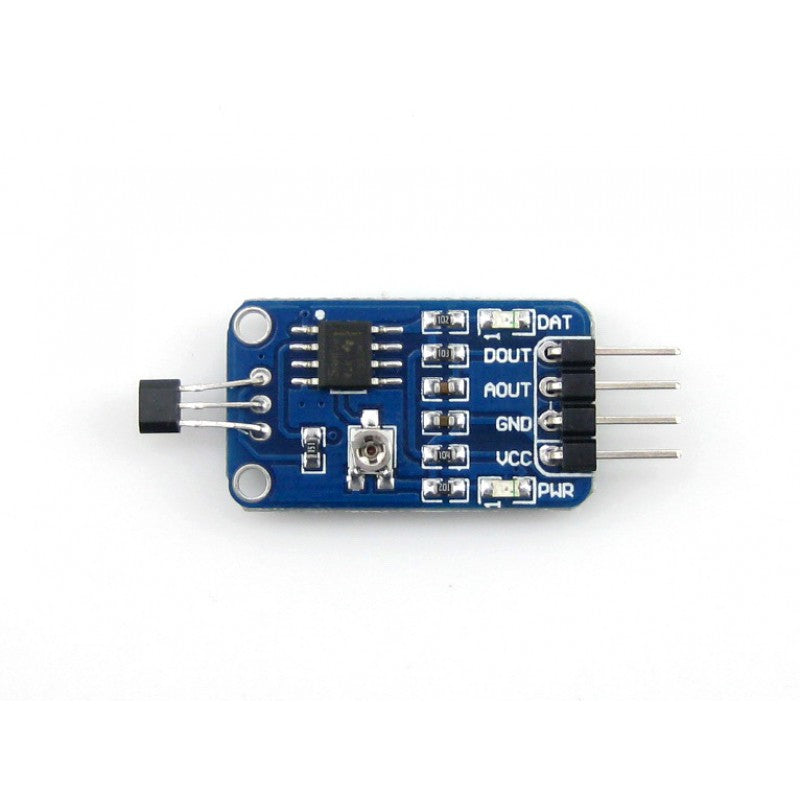

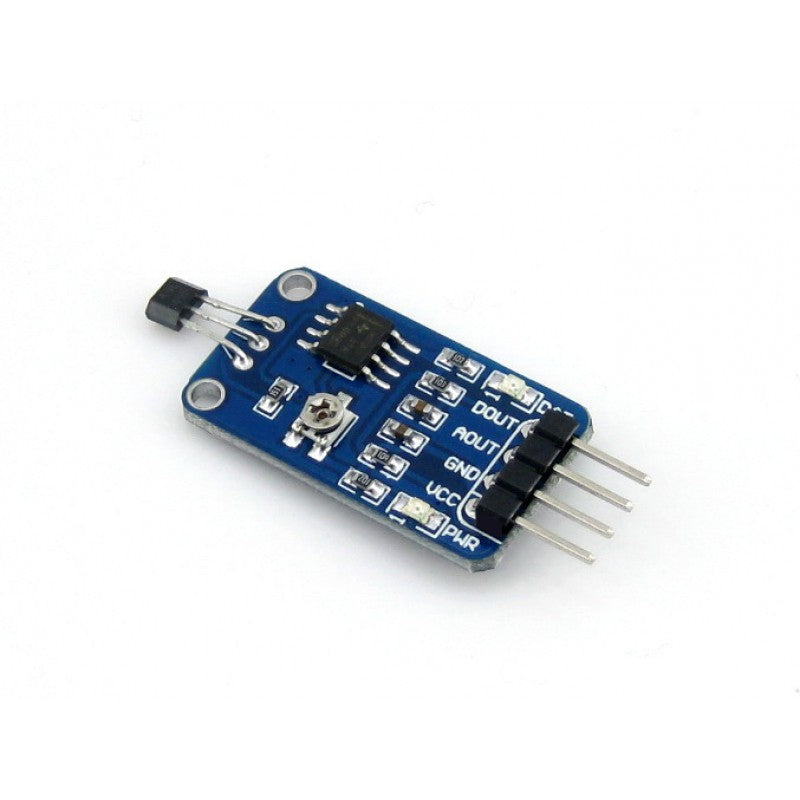

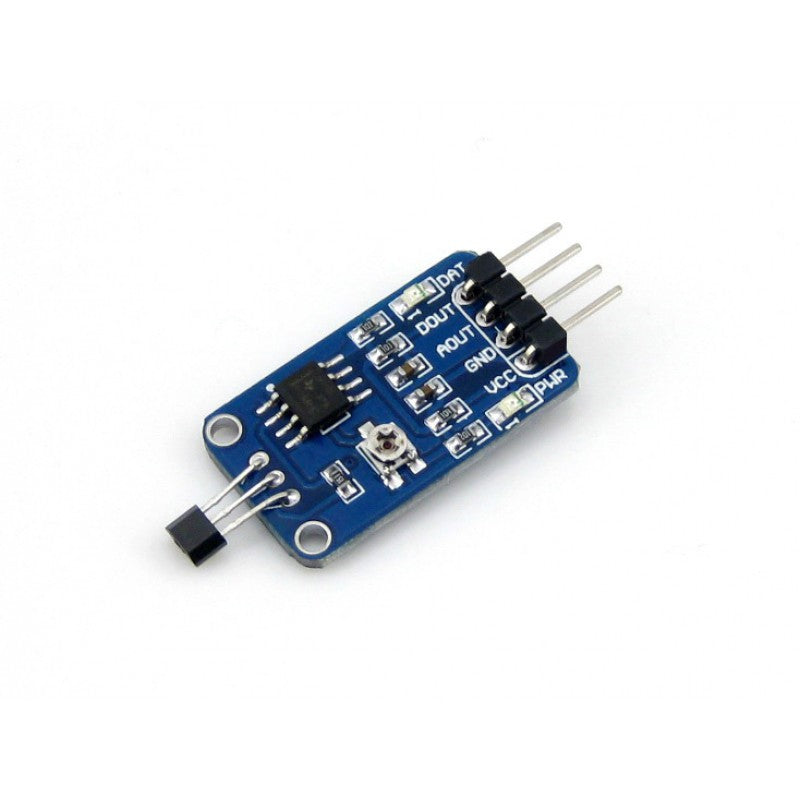

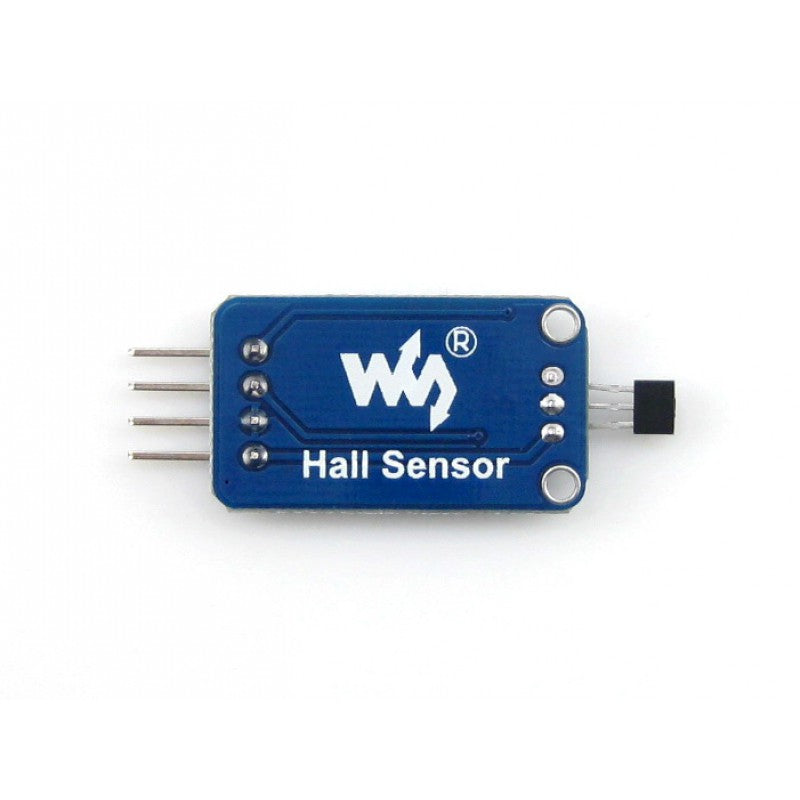

Hall Sensor

Hall Sensor

SKU:E35001-001

Regular price $5.38 AUD
Regular price Sale price $5.38 AUD
Sale Sold out
Shipping calculated at checkout.

• Free shipping in AU if oder ≥ $50

• For more shipping policy, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

Quantity

In stock

Download datasheet
Download schematic
View full details

Product Overview

Overview

  • 49E hall sensor
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator

Specifications

  • Power: 2.3V ~ 5.3V
  • Dimension: 27.0mm * 15.5mm
  • Mounting holes size: 2.0mm

Applications

  • Motor speed measurement
  • Object position detection
  • Smart car
  • Electronic bricks

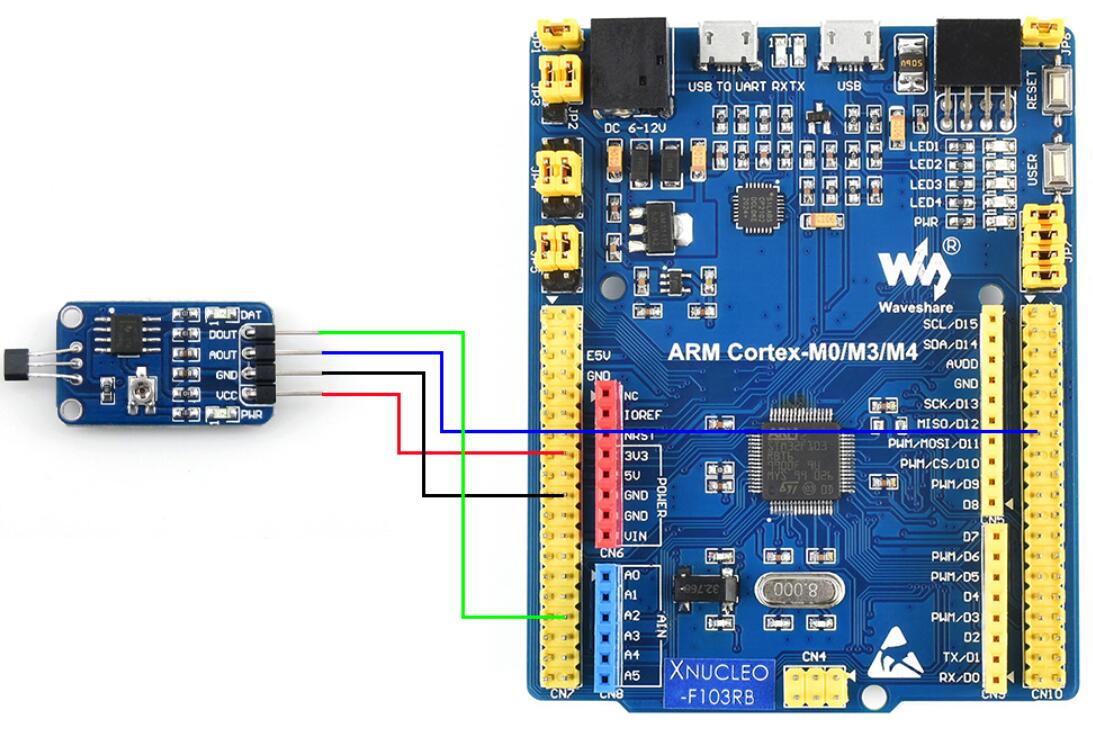

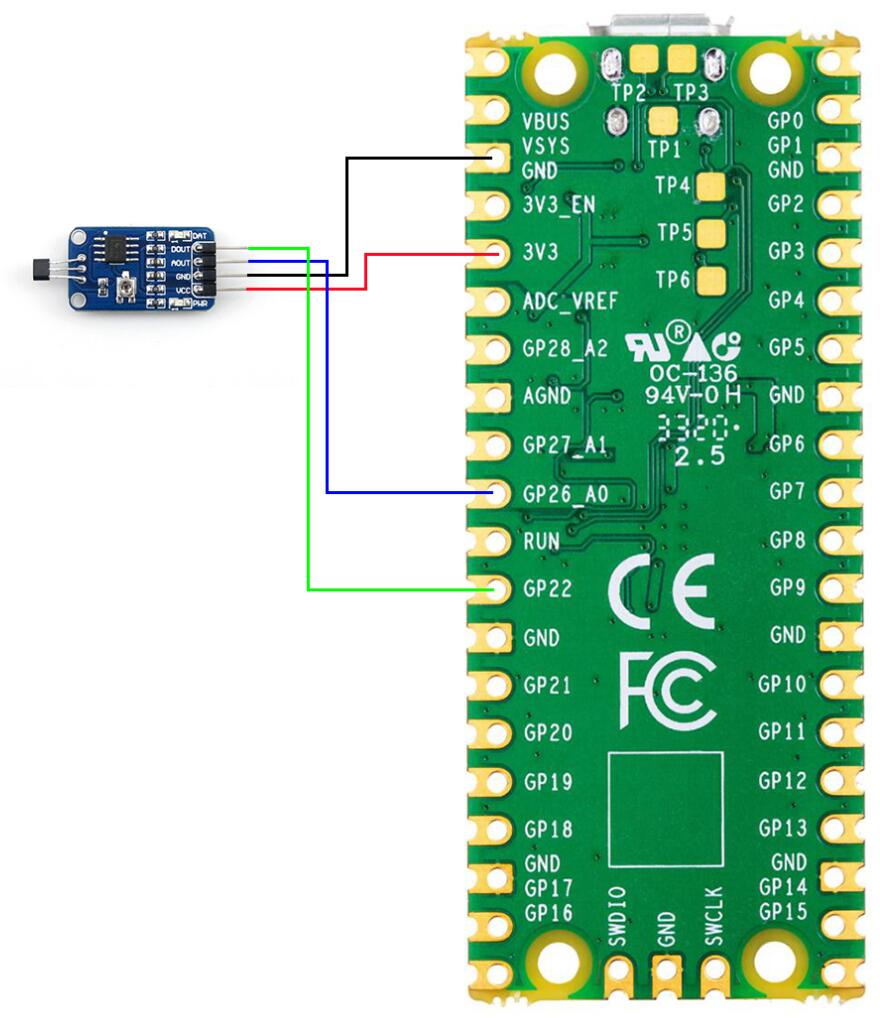

How to Use

In the case of working with a MCU:

  • VCC ↔ 2.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
