Introduction
This I2C digital temperature & humidity sensor and features a user-programmable humidity & temperature alarm function.

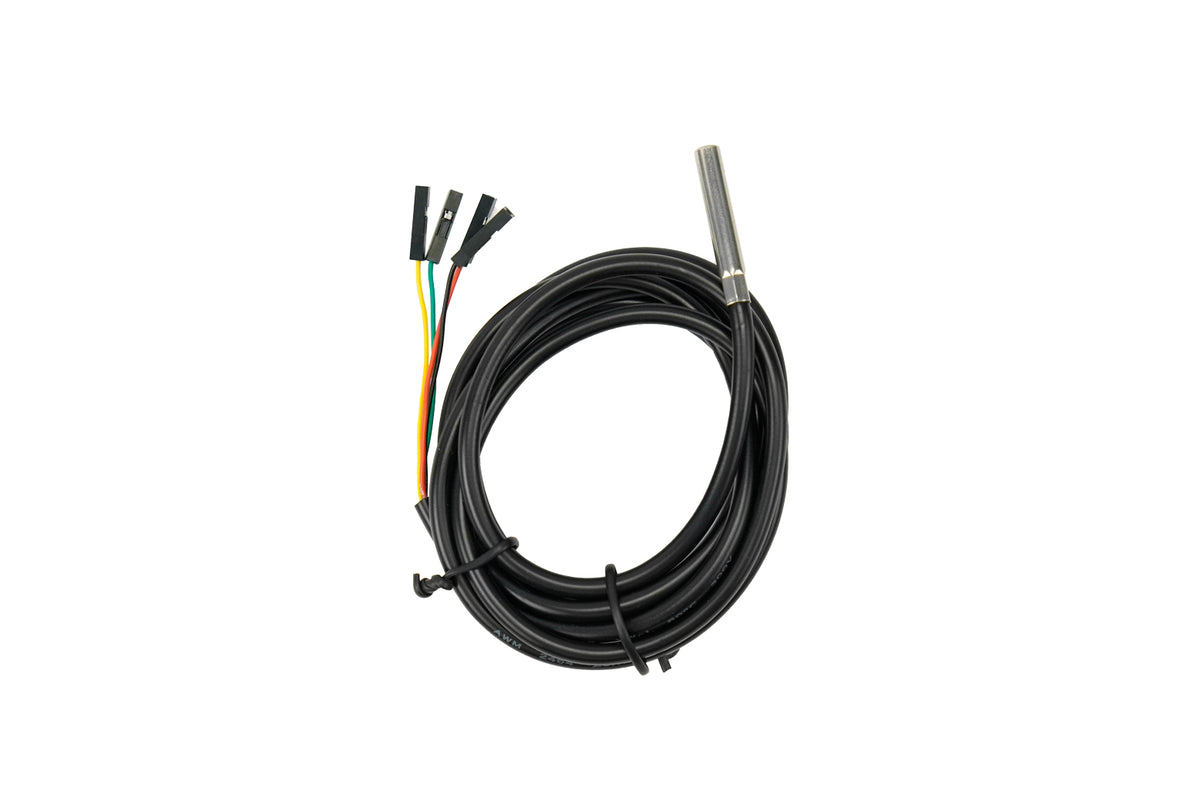

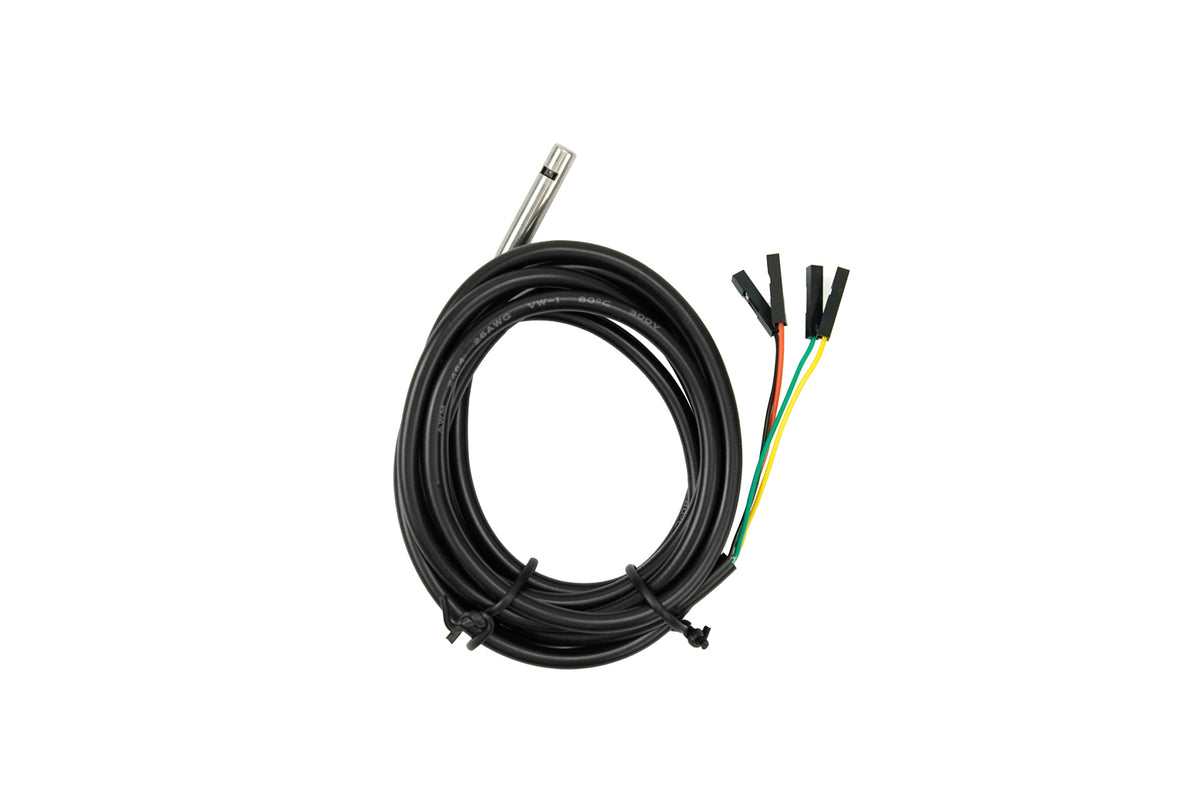

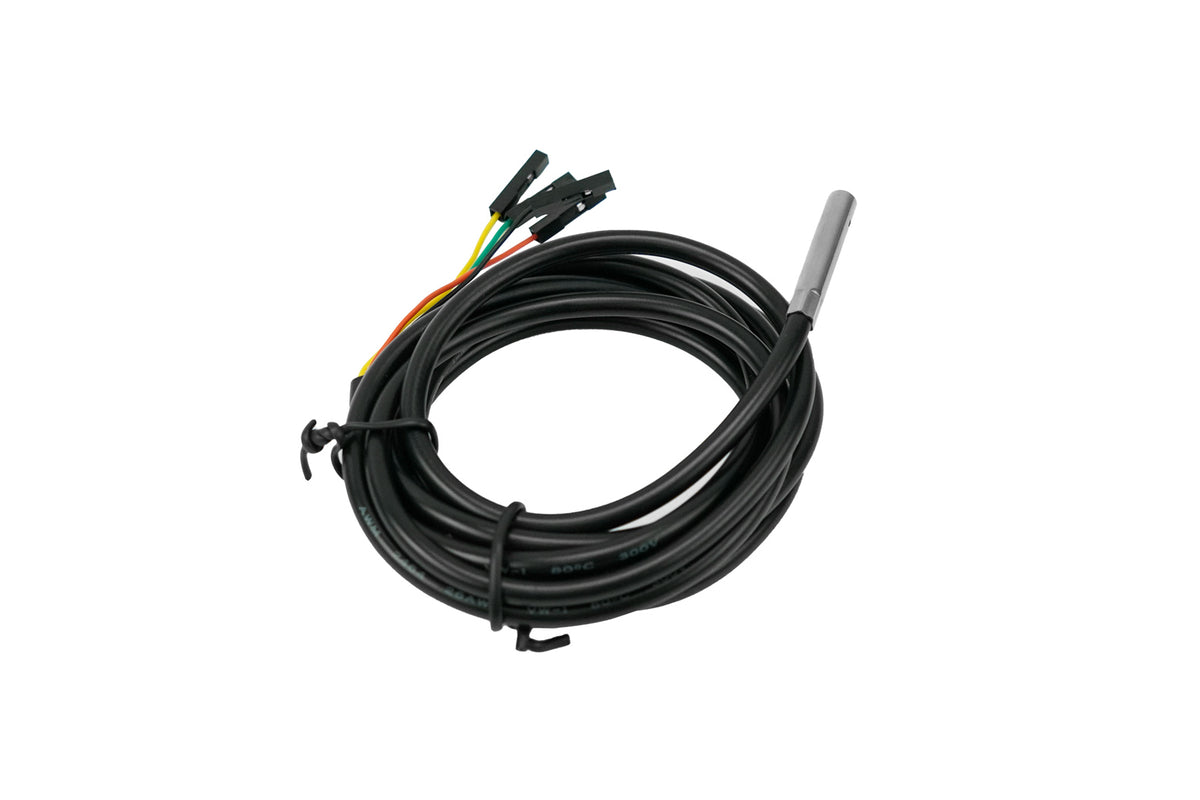

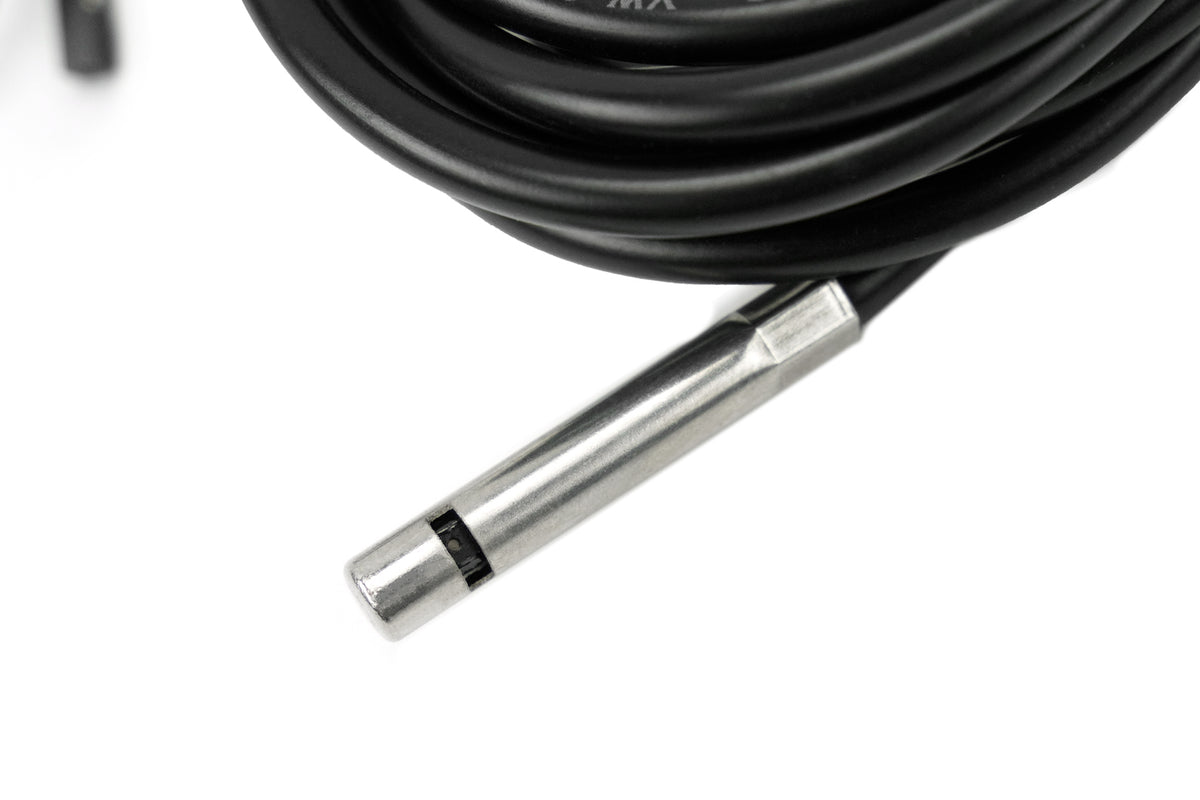

Its housing is made of 304 stainless steel to ensure good impact resistance, heat resistance, low temperature, and chemical resistance. The sensor output is designed as DuPont 2.54 connector for easy wiring. Also, there are two built-in 4.7K pull-up resistors and one 100nF filtering capacitor so the sensor can be directly used with microcontrollers like Arduino.
This temperature & humidity sensor can be applied to electronic, medical, automotive, industrial, weather, and other fields, including home appliances like HVAC, dehumidifiers and refrigerators, testing & inspection equipment, and other relevant temperature & humidity measurements and controls.
Applications
- Smart HVAC System
- Washer & dryer
- Refrigerator & freezer
- Cold Chain asset tracking & data logger
- Environment Monitor
- Portable/Wearable Weather Monitor
- IP Camera
Specification
- Operating Voltage: 1.8V~5.5V
- Average Operating Current: 5.5uA (Typ.)@3.3V,1Con/s for Both temperature and humidity Conversion
- Standby Current: 0.36uA (Typ.)
- Temperature Accuracy with calibration:
±0.1℃(Typ.), ±0.3℃(Max.) from 10℃ to 50℃
±0.2℃(Typ.), ±0.6℃(Max.) from 0℃ to 85℃
±0.5℃(Typ.), ±1.0℃(Max.) from -40℃ to 125℃ - Humidity Accuracy with calibration
±1.5%RH@20%RH~80％RH - Digital Interface compatible with SMB us and I2C,support:
Packet Error Checking feature to improve communication
Reliability and robustness
Speed up to 1.0MHz
SMB us General Call - Supports One-shot or continuous measurement
- NIST traceability
- Temperature Range: -40℃ to 125℃
- Humidity Range: 0%RH~100%RH
