Introduction

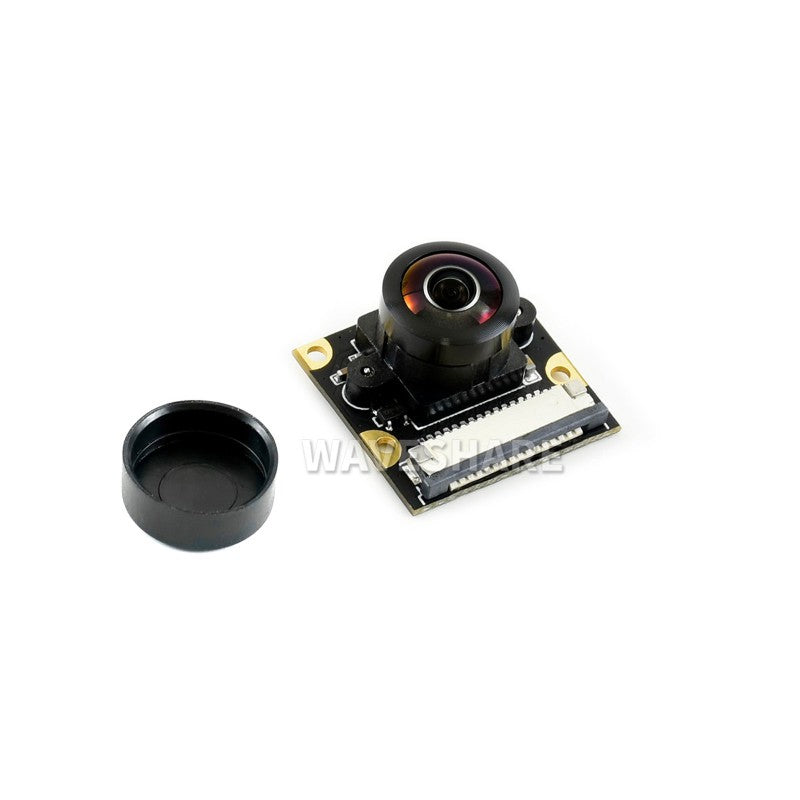

IMX219 Camera, with 8 megapixels and 200 FOV, compatible with Jetson Nano. You can also use it with CM3/CM3+ expansion boards like Raspberry Pi Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of Waveshare, and the StereoPi board.
Specification
- 8 megapixels
- Sensor chip: IMX219
- Resolution: 3280 x 2464
- Camera parameters:
- CMOS size: 1/4 inch
- Aperture (F): 2.0
- Focal Length: 0.87mm
- Diagonal Field of View (FOV): 200 degrees
- Distortion: < 11%

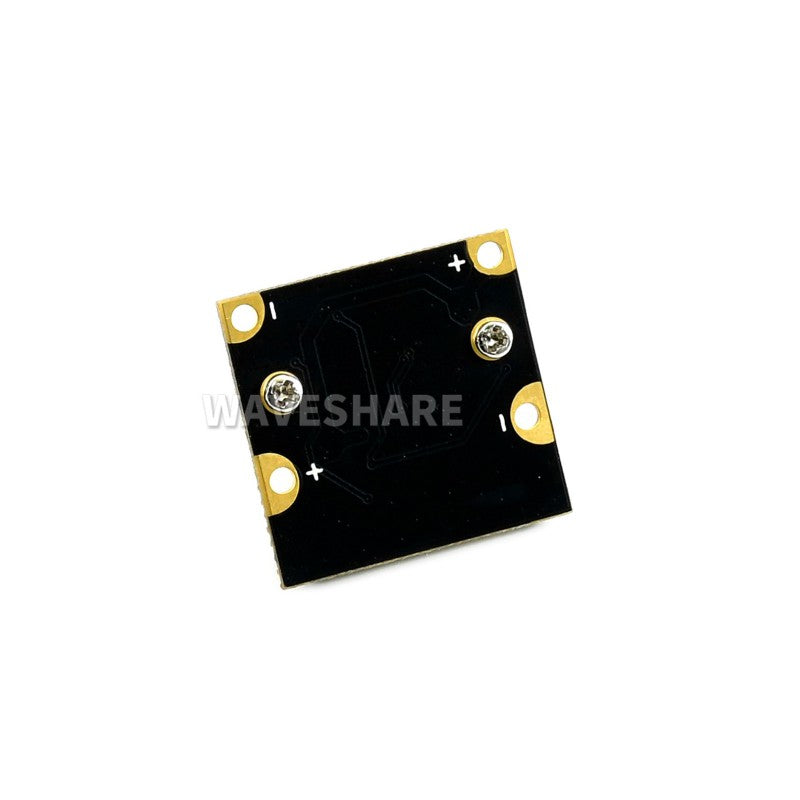

- 4 screw holes:
- Available in fixed position
- Support 3.3V external power supply
- Dimensions: 25mm × 24mm
