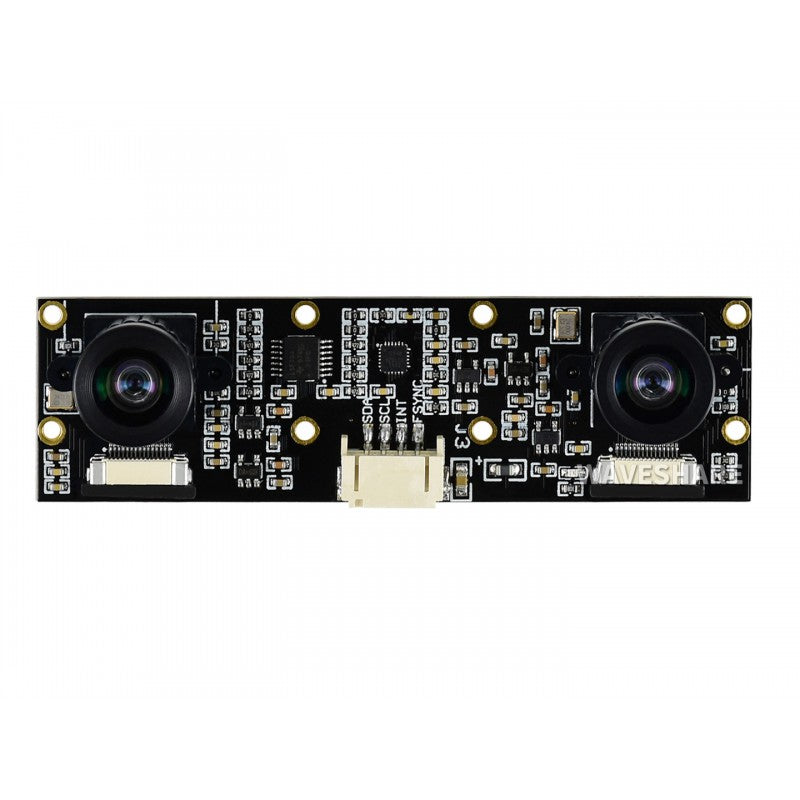

IMX219 8MP Binocular Camera, 83°(D) 73°(H) 50°(V), F2.4 aperture, 2.6mm focal length, Stereo Vision, Depth Vision

Description

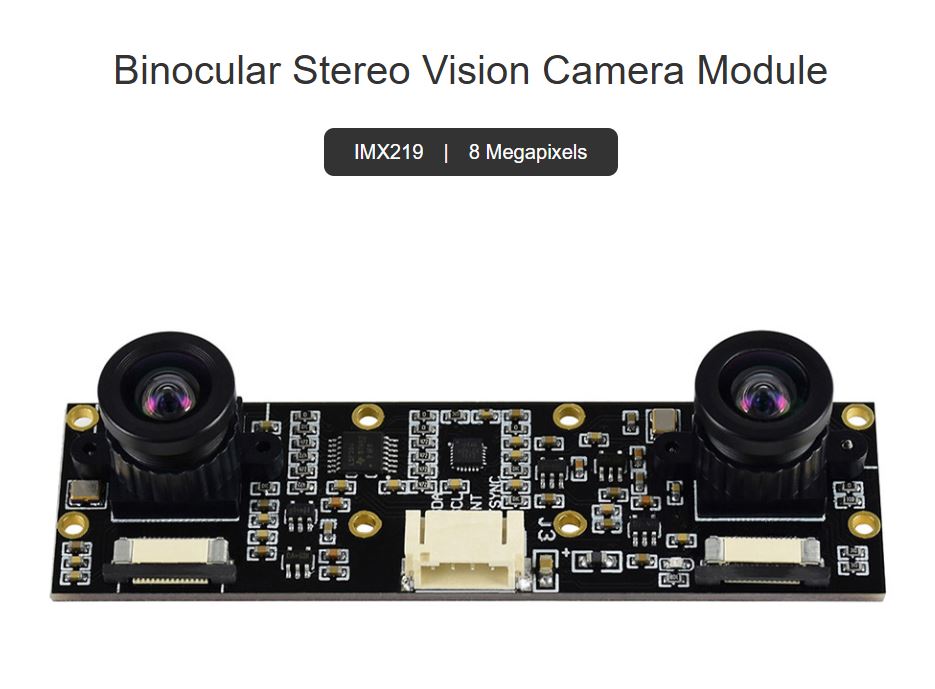

Binocular Camera Module, Dual IMX219, 8 Megapixels, Applicable for Jetson Nano and Raspberry Pi, Stereo Vision, Depth Vision

Feature

• Adopts IMX219 chip, onboard dual 8Megapixels cameras
• Suitable for AI vision applications like depth vision and stereo vision

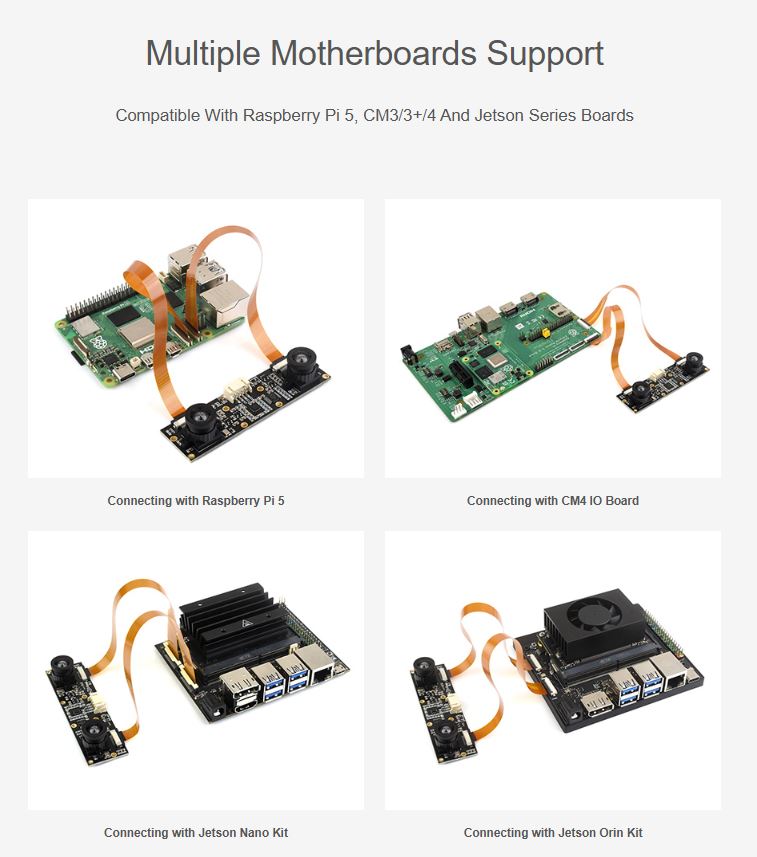

• Supports Raspberry Pi 5 and Raspberry Pi CM3/CM3+/CM4 base boards like Compute Module IO Board Plus, Compute Module POE Board, etc
• Supports Jetson Nano, Jetson Xavier NX, Jetson Orin NX, and Jetson Orin Nano, etc.

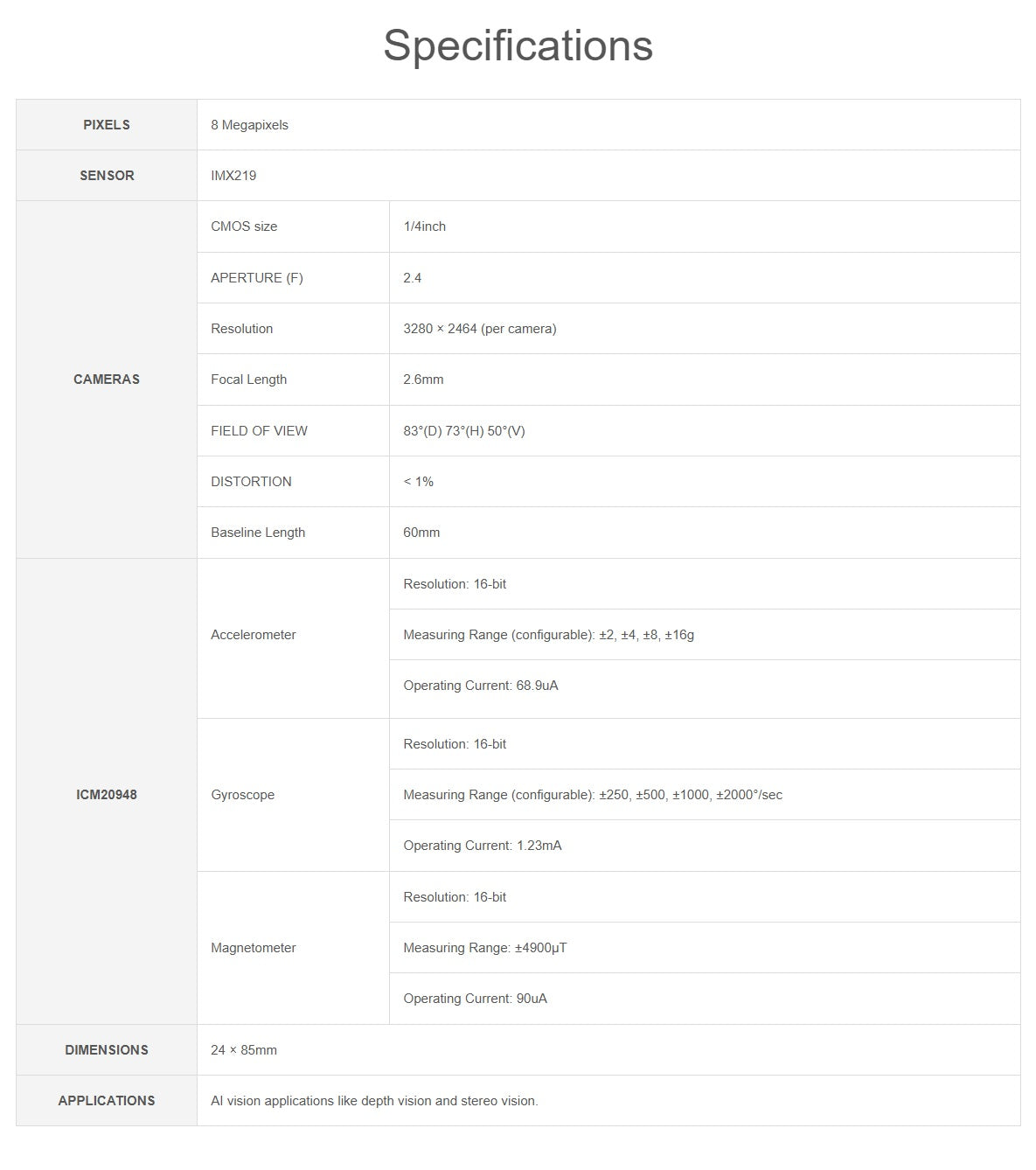

Specification

• 8 Megapixels
• Sensor: Sony IMX219
• Resolution: 3280 × 2464 (per camera)
• Lens specifications:CMOS size: 1/4inchFocal Length: 2.6mmAngle of View: 83/73/50 degree (diagonal/horizontal/vertical)Distortion: <1%Baseline Length: 60mm
• ICM20948:Accelerometer:Resolution: 16-bitMeasuring Range (configurable): ±2, ±4, ±8, ±16gOperating Current: 68.9uAGyroscope:Resolution: 16-bitMeasuring Range (configurable): ±250, ±500, ±1000, ±2000°/secOperating Current: 1.23mAMagnetometer:Resolution: 16-bitMeasuring Range: ±4900μTOperating Current: 90uA
• Dimension: 24mm × 85mm

Documentation

• Datasheet
• Dimension
• IMX210-83 Stereo Camera 3D Drawing
• ICM20948 datasheet

Demo

• Demo codes
• mpu9250 demo
• Demo codes with calibration example
