Introduction

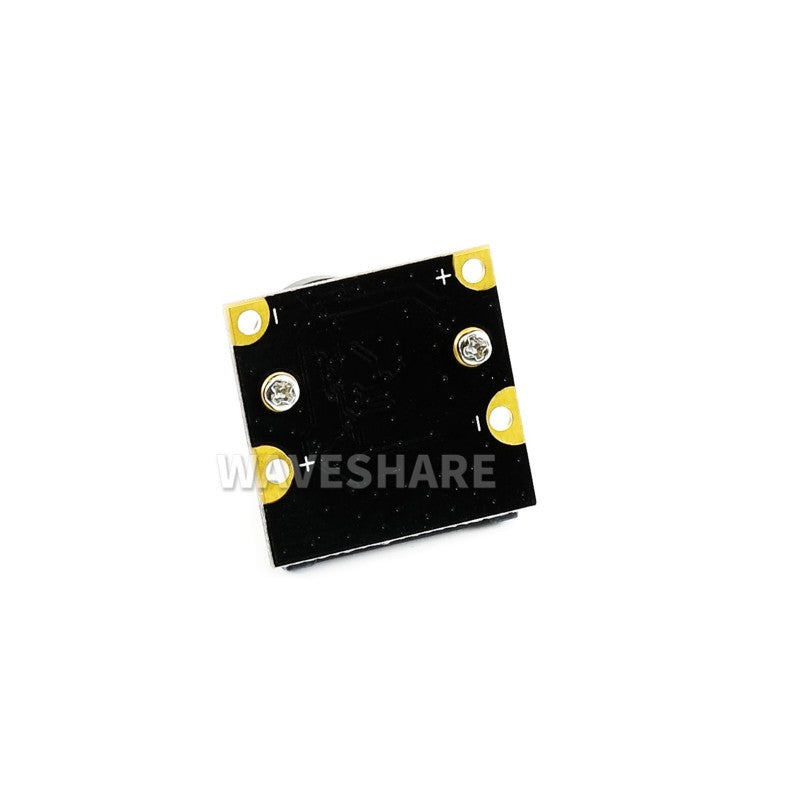

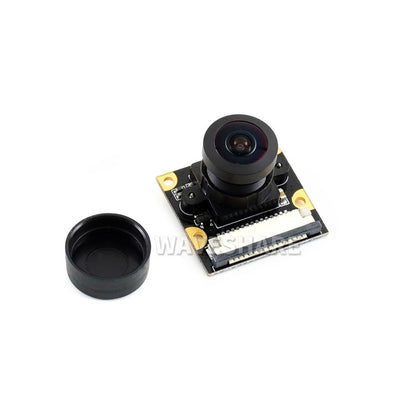

IMX219 Camera, 8 megapixels and 160 FOV. Compatible with Jetson nano, supports night vision. You can also use it with CM3/CM3+ expansion boards like the Raspberry Pi Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of Waveshare, and the StereoPi board.
Parameters
- 8 megapixels
- Sensor chip: IMX219
- Resolution: 3280 x 2464
- Camera parameters:
- CMOS size: 1/4 inch
- Aperture (F): 2.35
- Focal Length: 3.15mm
- Diagonal Field of View (FOV): 160° degrees
- Distortion: <14.3%
- Lens size: 6.5mm x 6.5mm
- 4 screw holes:
- Available in a fixed position
- Support 3.3V external power supply
- Dimensions: 25mm × 24mm
