WaveShare

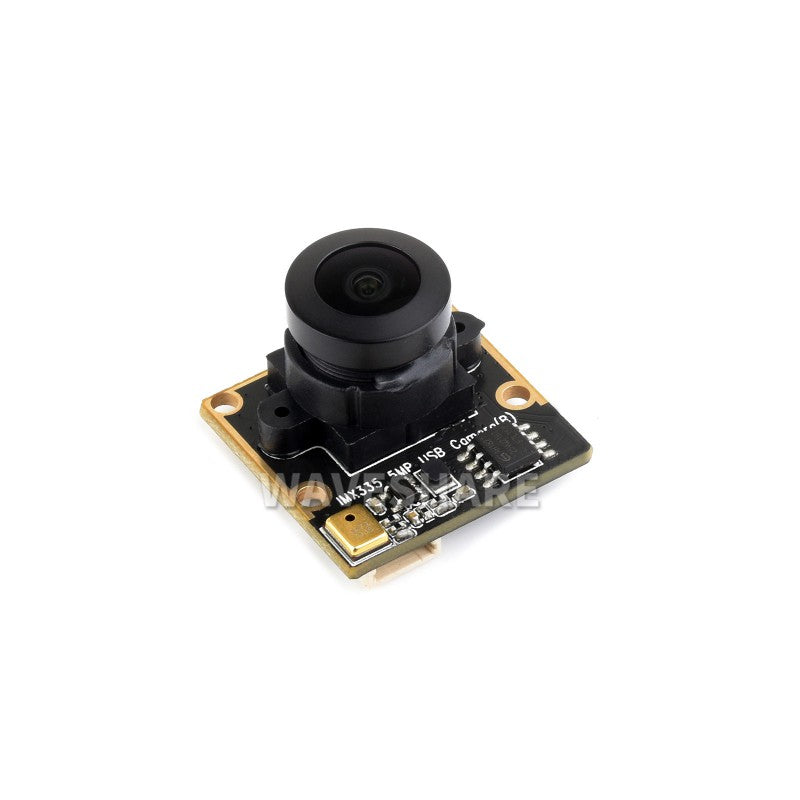

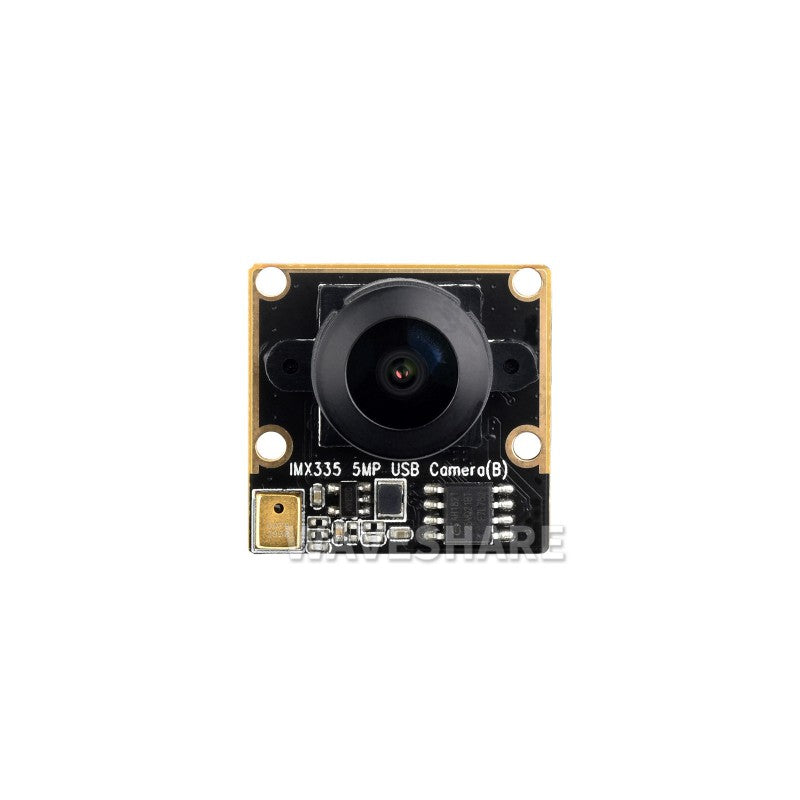

IMX335 5MP USB Camera, 175°FOV, fixed-focus, wide angle, low-light sensitivity, wide dynamic range

IMX335 5MP USB Camera, 175°FOV, fixed-focus, wide angle, low-light sensitivity, wide dynamic range

E42002-001

$57.44 AUD
$57.44 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

In stock
View full details

Product Overview

Description

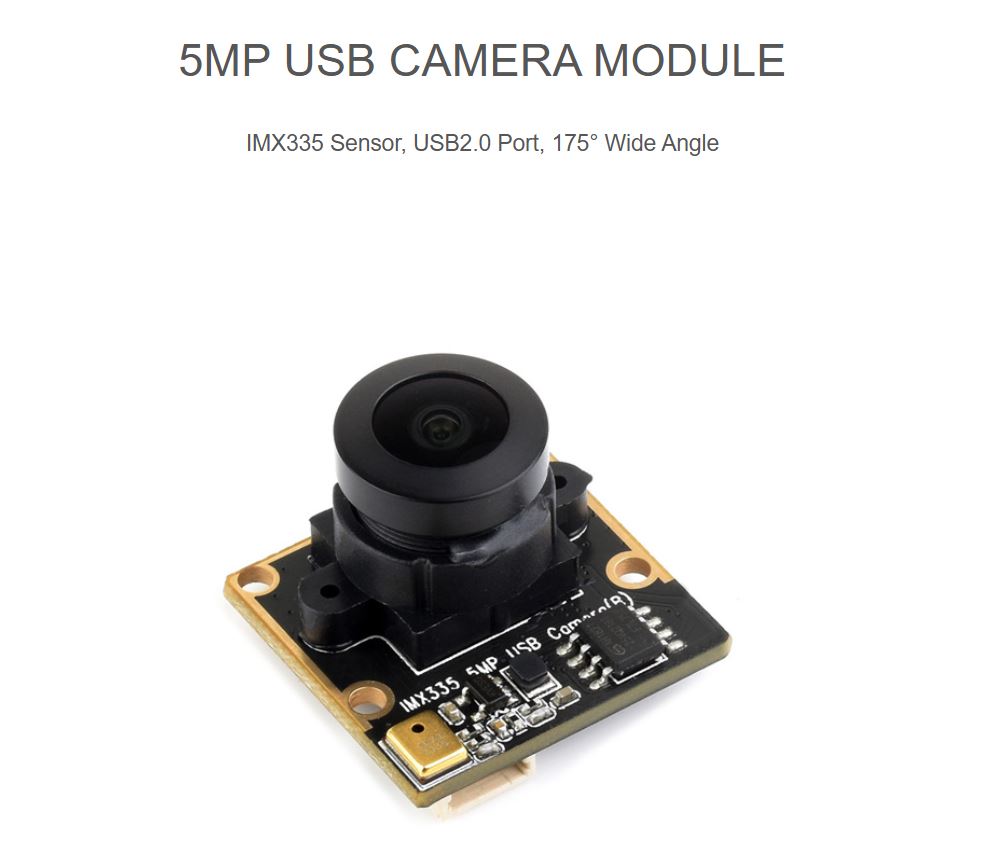

IMX335 5MP USB Camera (B), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range.

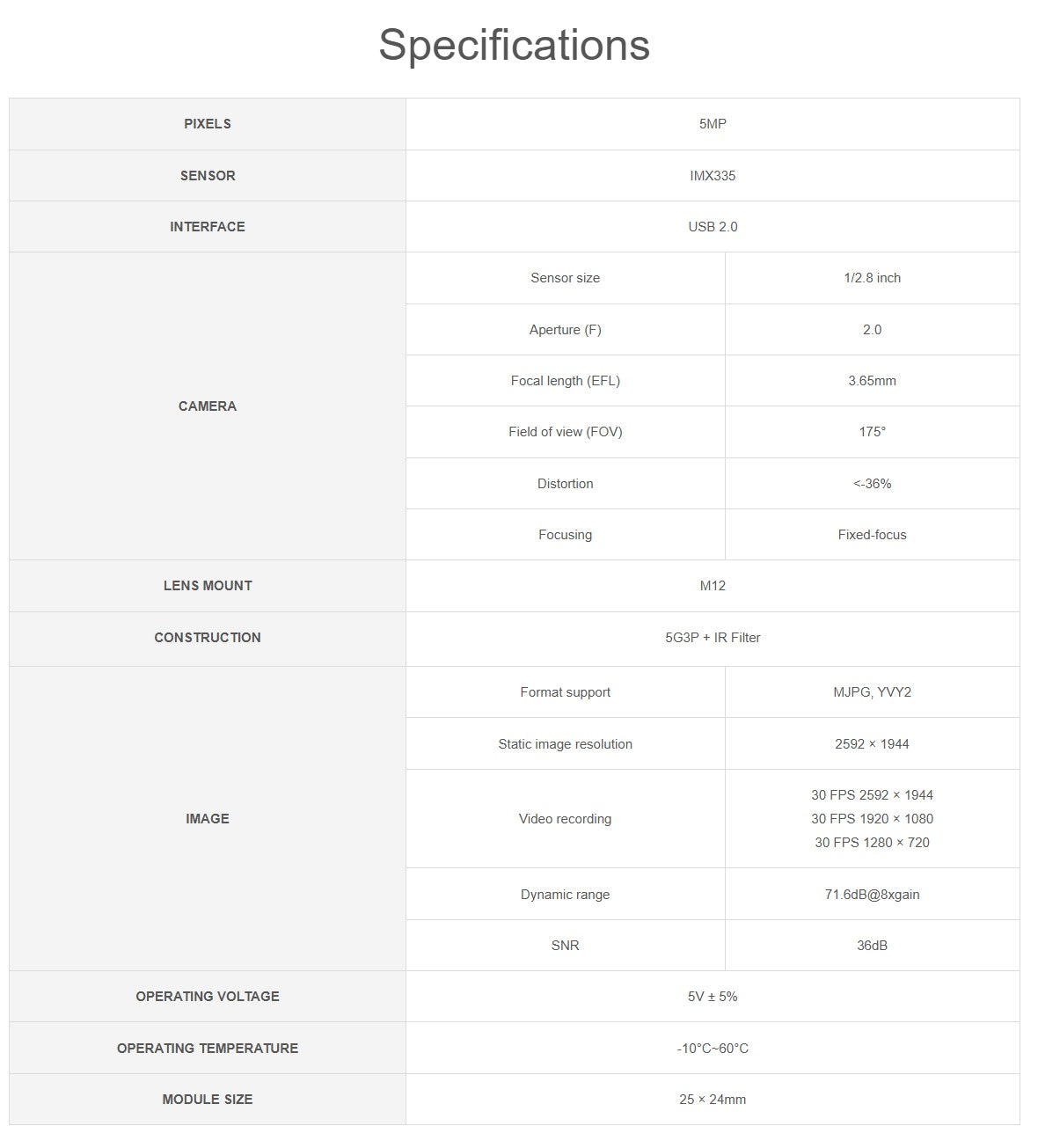

Specification

  • Pixels: 5MP
  • Resolution: 2592 × 1944
  • Sensor chip: IMX335
  • DSP: Auto gain/exposure/white balance
  • Camera:CCD size: 1/2.8 inchAperture (F): 2.0Focal length (EFL): 3.65 mmField of View (FOV): 175° (D)Distortion: < -36%Focus mode: Fixed focus
  • Interface type: USB2.0
  • Image:Supported image formats: MJPG, YVY2Static image resolution: 2592 × 1944Video recording:30 FPS 2592 × 194430 FPS 1920 × 108030 FPS 1280 × 720Dynamic range: 71.6dB@8xgainSignal-to-noise ratio (SNR): 36dB
  • Audio: Onboard microphone
  • Operating voltage: 5V ± 5%
  • Operating temperature: 10°C ~ 60°C
  • Lens size: 23.50 × 19.50 × 36.94 (mm)
  • Outline dimensions: 25.00 × 24.00 (mm)
  • Supported systems: Windows, Linux, macOS
