WaveShare

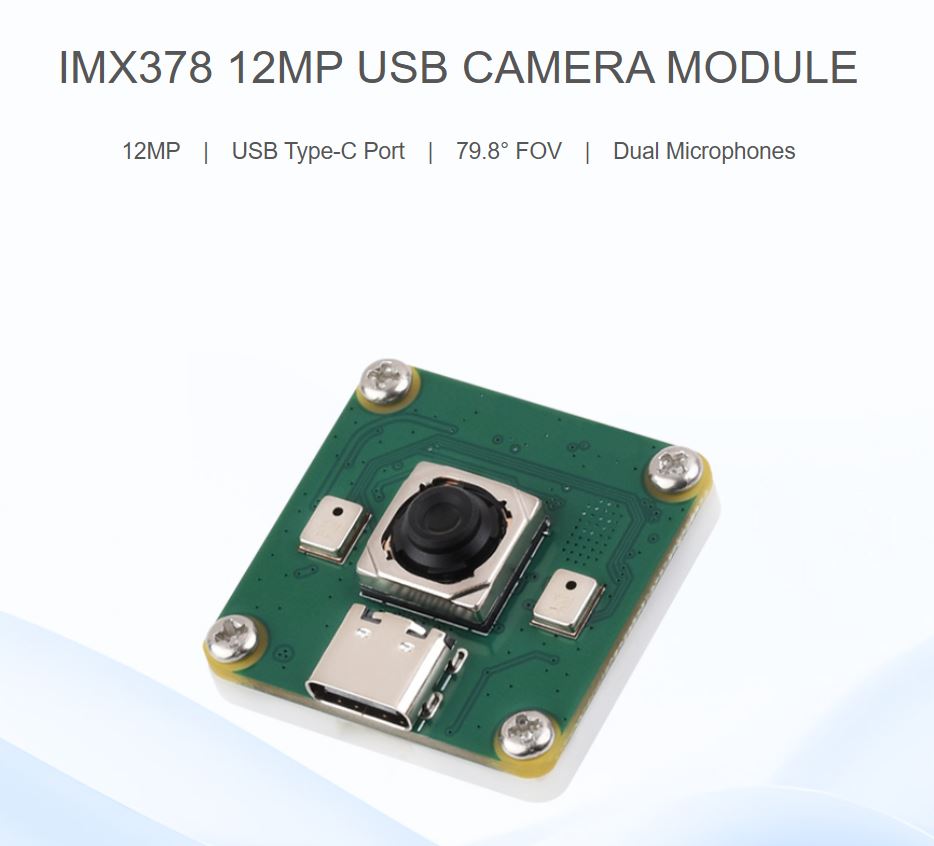

IMX378 12MP USB Camera, Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

IMX378 12MP USB Camera, Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

E40002-001

$64.00 AUD
$64.00 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

In stock
View full details

Product Overview

Description

IMX378 12MP USB Camera, Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones.

Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes.

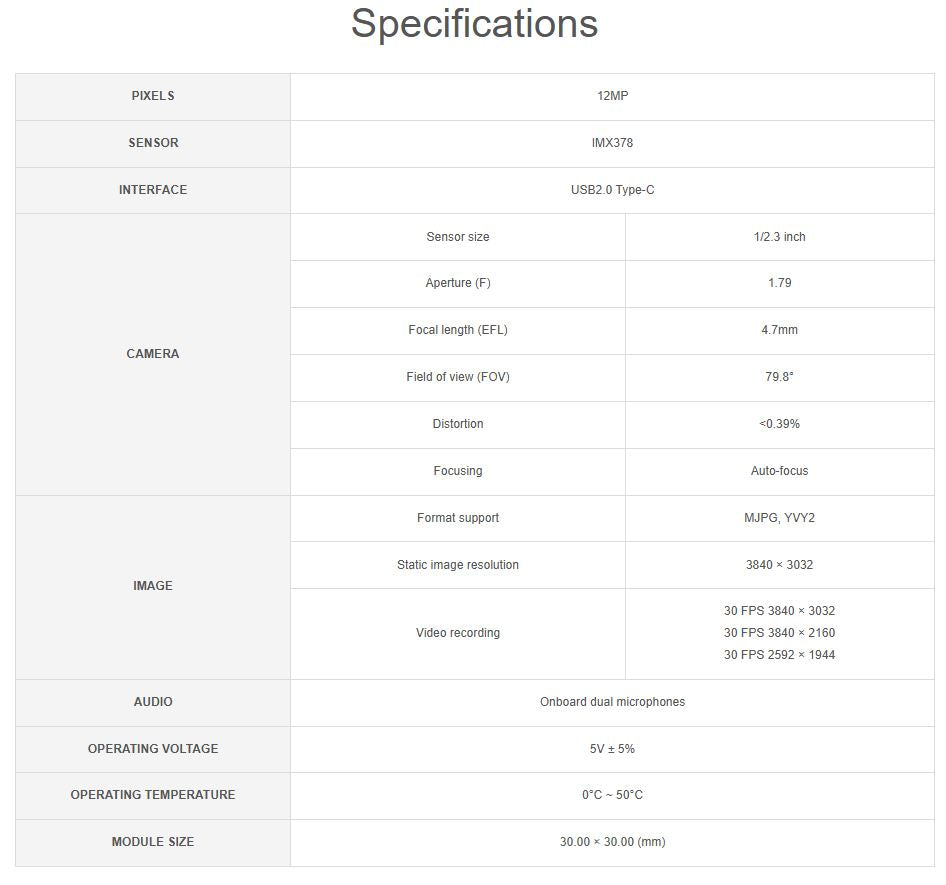

Specification

  • Pixels: 12MP
  • Resolution: 3840 × 3032
  • Sensor chip: IMX378
  • DSP: Auto gain/exposure/white balance
  • Camera:CCD size: 1/2.3 inchAperture (F): 1.79Focal length (EFL): 4.7 mmField of View (FOV): 79.8° (D)Distortion: < 0.39%Focus mode: Fixed focus
  • Interface type: USB2.0
  • Image:Supported image formats: MJPG, YVY2Static image resolution: 3840 × 3032Video recording:30 FPS 3840 × 303230 FPS 3840 × 216030 FPS 2592 × 1944
  • Audio: Onboard microphone
  • Operating voltage: 5V ± 5%
  • Operating temperature: 0°C ~ 50°C
  • Lens size: 10.80 × 10.80 × 5.9 (mm)
  • Outline dimensions: 30.00 × 30.00 (mm)
  • Supported systems: Windows, Linux

Documentation

Software
