Intel/Altera EP4CE10F17C8N pioneer v2

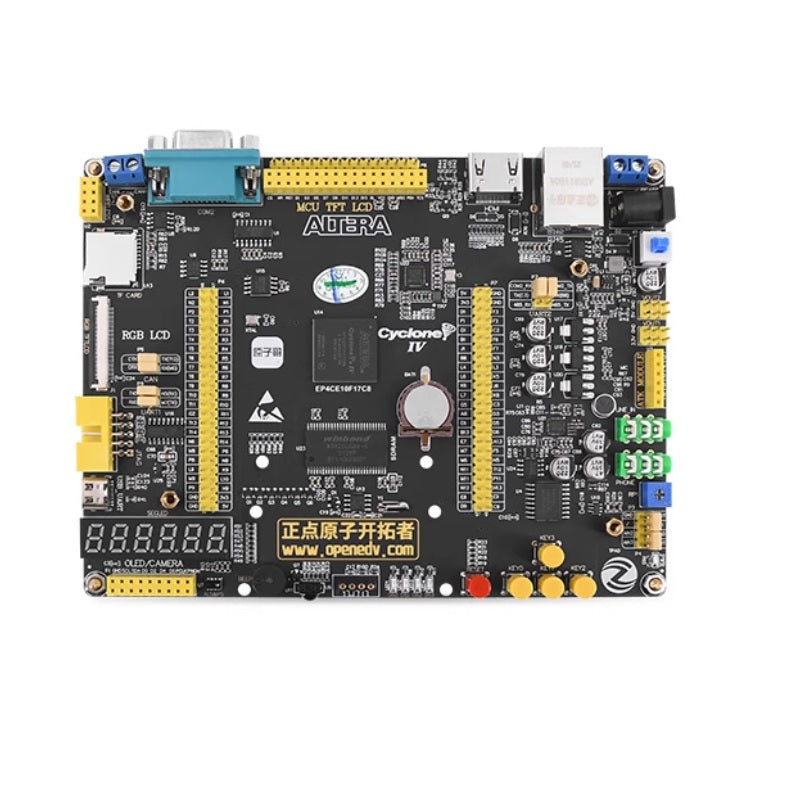

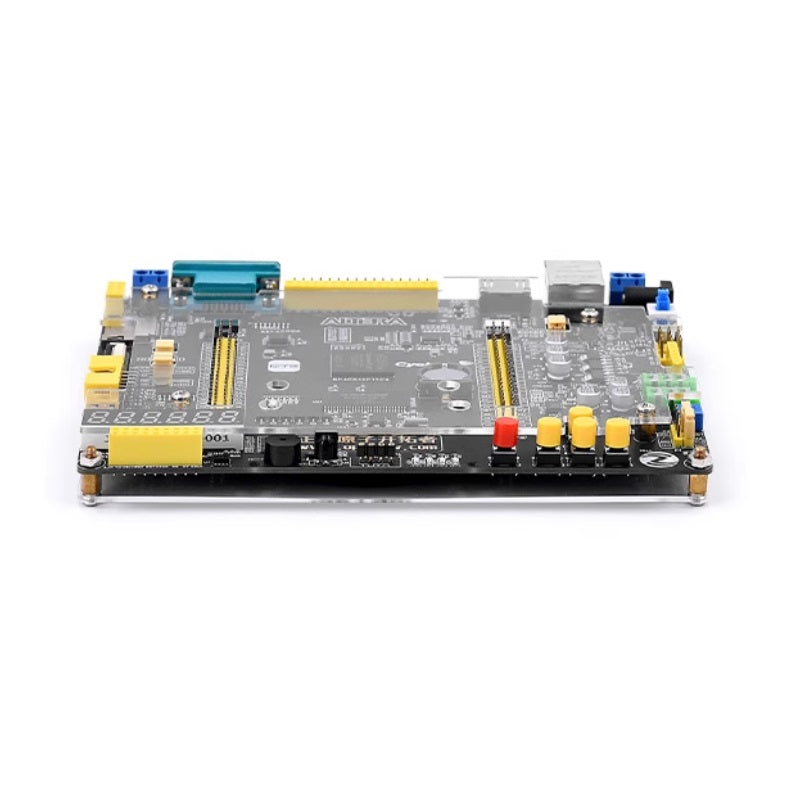

This development board is based on
EP4CE10F17C8N, BGA256 package.

•Abundant
interfaces. The board provides a rich set of standard peripheral interfaces,
enabling convenient experimentation and development with various
peripherals.•

•Flexible
design. The board adopts a core board plus baseboard structure, with many
resources configurable to meet different usage scenarios. Two rows of 24x2
expansion ports are exposed along the edges, providing a total of 88 extended
I/O pins.•

•Sufficient
resources. The board features 1 HDMI port, 1 RGB LCD interface, 1 Gigabit
Ethernet port, 1 USB 2.0 SLAVE interface, and various interface chips to meet
diverse application requirements.•

•User-friendly
design. All interfaces are clearly marked with silkscreen labels and outlined
with frames for intuitive use. Frequently used peripherals are highlighted with
larger silkscreen labels for easy identification. The interface layout is
ergonomically designed for convenient access, and resources are rationally
allocated to maximize utility.

Core Specifications:

• Main Control Chip: EP4CE10F17C8N, Package: BGA256
• Crystal Oscillator: 50MHz
• FLASH: W25Q16, Capacity: 16Mbit (2MB)
• SDRAM: W9825G6KH-6, Capacity: 256Mbit (32MB)
• EEPROM: AT24C64, Capacity: 64Kbit (8KB)

Indicators & Basic Components:

• 1 x Power Indicator (Blue)
• 4 x Status LEDs (DS0~DS3: Red)
• 1 x IR Receiver, bundled with a compact infrared remote control
• 1 x High-Performance Audio Codec Chip: ES8388
• 1 x Reset Button (can serve as a reset signal for FPGA program execution)
• 4 x Function Buttons
• 1 x Capacitive Touch Button
• 1 x Power Switch (controls power for the entire development board)

Communication & Connectivity Interfaces:

• 1 x Wireless Module Interface (supports NRF24L01 wireless modules)
• 1 x CAN Interface (Chip: TJA1050)
• 1 x 485 Interface (Chip: TP3485)
• 1 x RS232 Serial Port (Female) Interface (Chip: TP3232)
• 1 x 1-Wire Interface (supports sensors like DS18B20/DHT11)
• 1 x ATK Module Interface (supports Alpha & Omega Bluetooth/GPS/MPU6050/RGB LED modules)
• 1 x USB Serial Port
• 1 x SD Card Interface (on the front of the board)
• 1 x Gigabit Ethernet Interface (Chip: YT8531)
• 1 x HDMI Interface
• 1 x Standard JTAG Debug/Download Port
• 1 x RS232/RS485 Select Interface
• 1 x USB Serial Port Select Interface
• 1 x CAN Select Interface

Sensors & Displays:

• 1 x Ambient Light Sensor (Chip: AP3216C)
• 1 x Standard 2.4/2.8/3.5/4.3/7-inch MCU TFT-LCD Interface (supports resistive/capacitive touchscreens)
• 1 x Standard RGB TFT-LCD Interface
• 1 x OLED/Camera Module Interface

Audio Components:

• 1 x Microphone (MIC)
• 1 x Audio Input Interface
• 1 x Audio Output Interface

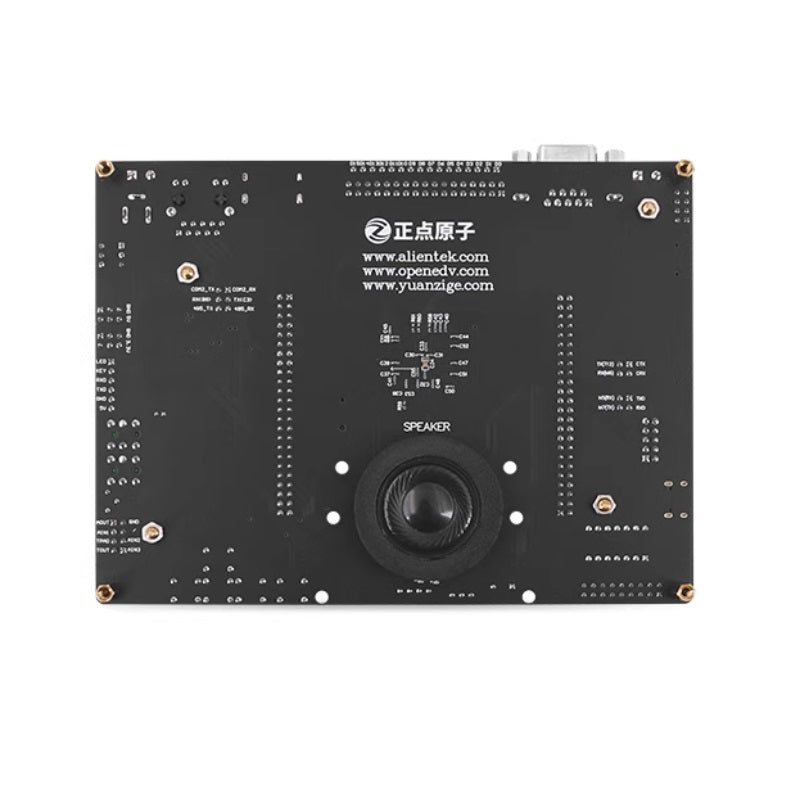

• 1 x Small Speaker (on the back of the board)

Power & Expansion:

• 1 x Set of Multi-function Ports (DAC/ADC/TPAD)
• 1 x Set of 5V Power Supply/Input Ports
• 1 x Set of 3.3V Power Supply/Input Ports
• 1 x DC Power Input Interface (Input Voltage Range: DC 6~16V)
• 1 x RTC Backup Battery Holder, includes battery (on the back of the board)

Additional ICs:

• 1 x RTC Real-Time Clock (Chip: PCF8563)
• 1 x ADC/DAC Conversion Chip (PCF8591)
• 1 x Active Buzzer

Expansion:

Two 24x2 expansion ports, providing a total of 88 extended I/O pins (excluding power and ground)
