Description

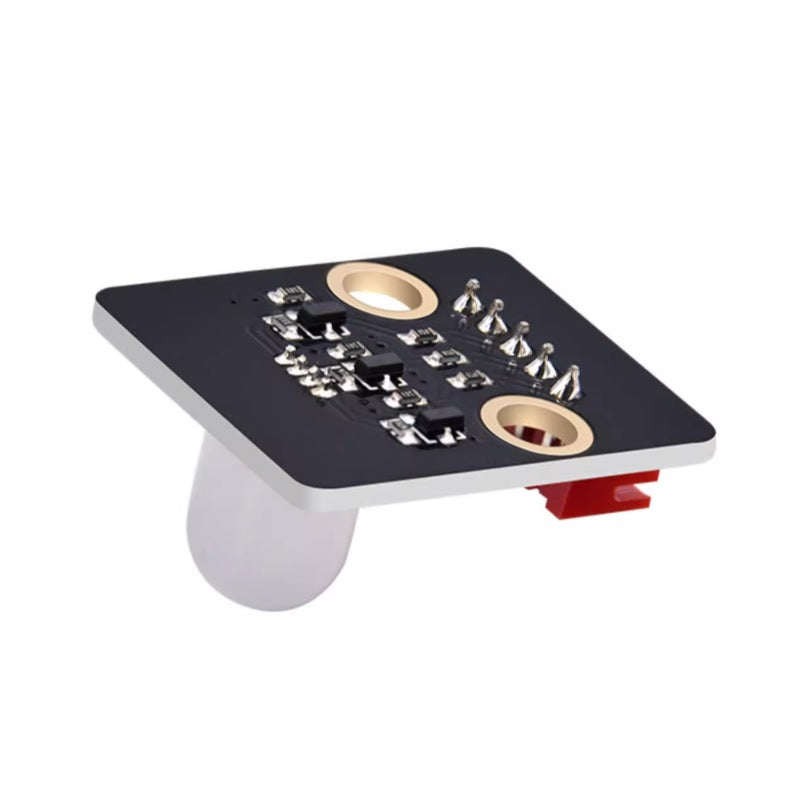

KE4007 Keyes DIY Electronic Brick RGB LED Module
The Keyes 2021 New DIY Electronic Brick RGB LED Module is a high-quality LED module designed for electronics enthusiasts and educators. Manufactured with eco-friendly materials, it ensures safety and durability. This module supports red, green, and blue color mixing, making it ideal for educational, experimental, and DIY creative activities.
Features
- Environmentally friendly materials : The module is made of black environmentally friendly materials that meet modern safety standards and are suitable for various usage environments.
- RGB color mixing : The module has built-in RGB LEDs, which can create a variety of color effects by controlling the brightness of different colors.
- Anti-reverse insertion interface : Equipped with a 2.54mm red anti-reverse insertion terminal to improve the safety and reliability of the connection.
- Compatibility : The module is compatible with a variety of microcontroller control boards (such as Arduino, Raspberry Pi, etc.), making it easy to implement different projects.
- Easy to install : Includes a 3-pin white reverse-insertion-proof connector, making wiring simple and suitable for beginners.
- Mounting holes : Includes two LEGO-compatible mounting holes with a diameter of 3mm, making it easy to mount modules on LEGO or other devices.
Specification
- Model : KE4007
- LED type : RGB LED (red, green, blue)
- Wire length : 200mm
- Operating voltage : DC 3.3V - 5V
- Interface type : 3-pin anti-reverse connector with a 2.54mm pitch
- Positioning hole size : 3mm in diameter
- Control signals : Digital signals (high and low levels)
- Dimensions : 32mm x 23.5mm x 12mm
- Power consumption : Approximately 20mA (when operating at 5V)
Working Principle
This module is also based on digital signal control, and its working principle is as follows:
- Power connection : The module is connected to the power supply through the GND and VCC ports. The operating voltage range is 3.3V to 5V to ensure that the LED works normally.
- Signal control : The signal terminal (S) receives input signals from the controller and controls the states of red, green and blue LEDs to achieve different color outputs.
- PWM dimming function : Supports PWM (Pulse Width Modulation) technology, allowing users to adjust the brightness of each color to achieve a mixing effect and thus produce multiple colors.
- Connection configuration : The modular design facilitates quick assembly and disassembly, while red anti-reverse insertion terminals and wires ensure safe connections and reduce the risk of incorrect connections.

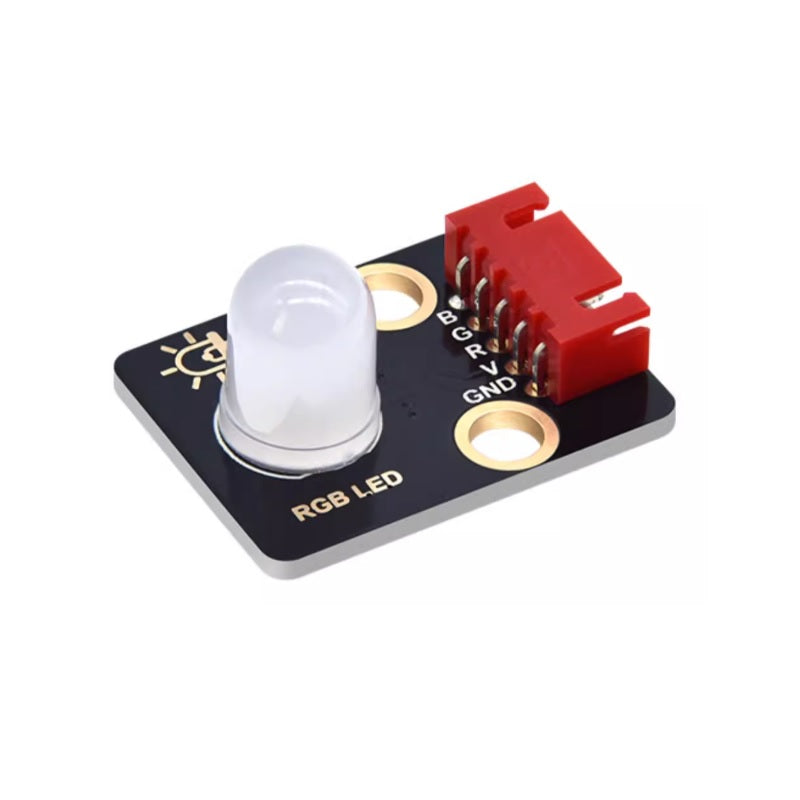

Pin Definition
- VCC : Connect to the positive terminal of the power supply to provide the required voltage to the module. Ensure the power supply is between 3.3V and 5V to avoid damage.
- GND : Connects to the negative terminal of the power supply to ensure the module functions properly and provides a stable reference power.
- R (Red signal terminal) : Controls the state of the red LED; it lights up when the signal is high.
- G (Green Signal Terminal) : Controls the state of the green LED; it lights up when the signal is high.
- B (Blue Signal Terminal) : Controls the state of the blue LED; it lights up when the signal is high.
Application Scenario
Keyes' new 2021 DIY electronic building block RGB LED module is widely used in:
- Education : Helps students understand the principles of RGB color mixing, applicable to electronic courses and practical activities.
- Home Decor : As a creative lighting or decorative lamp, the color can be adjusted as needed.
- DIY projects : Suitable for a variety of creative projects, such as making your own lamps or electronic toys.
-
Experiment : Used in experiments to test and demonstrate LED color changes, facilitating observation of project effects.
