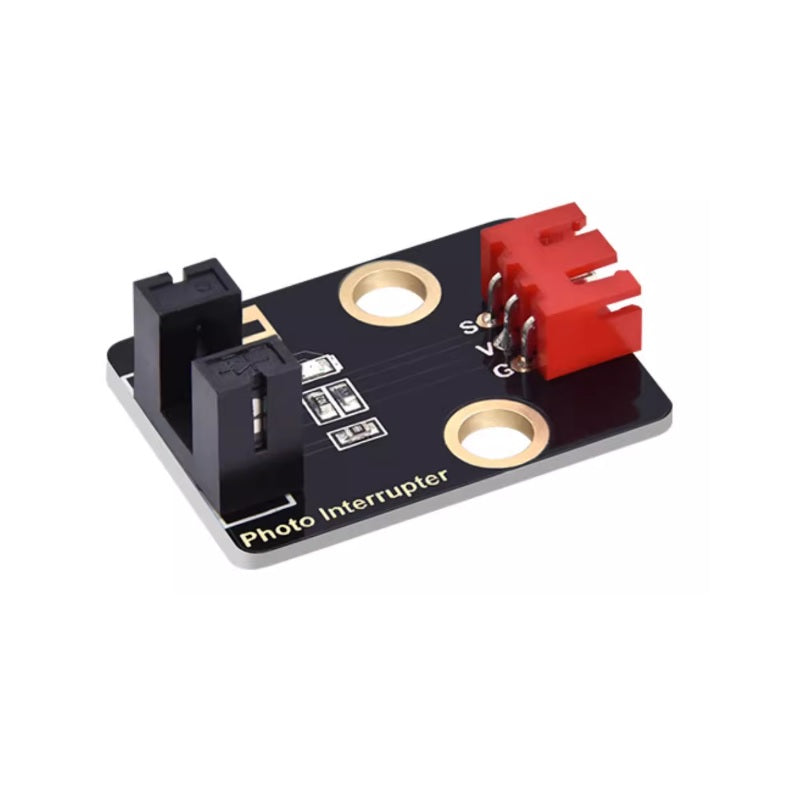

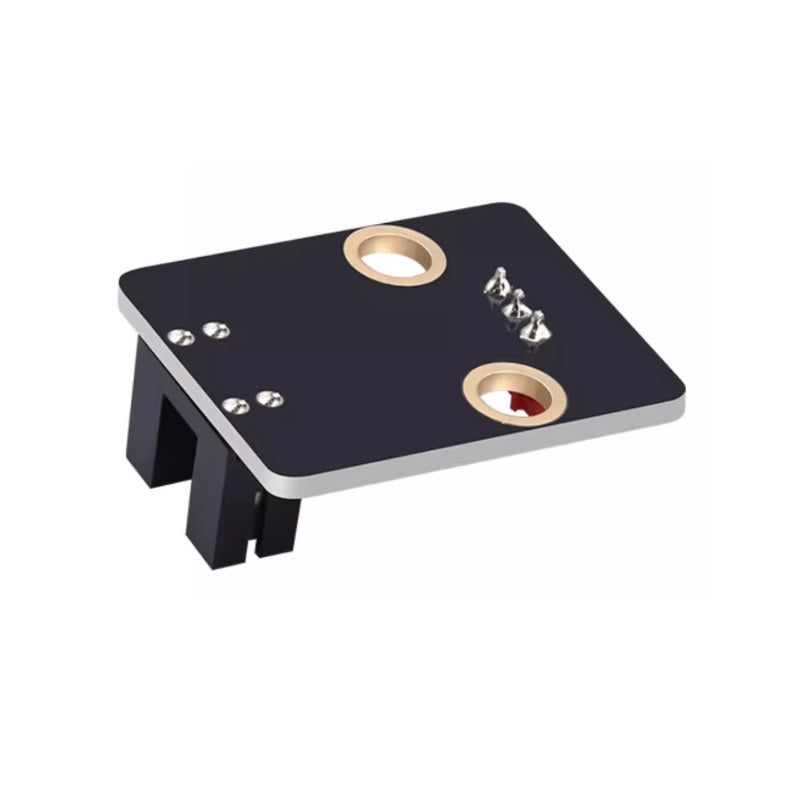

KE4014 Keyes DIY Electronic Brick Photo Interrupter Module

1. Introduction

The Keyes 2021 new DIY electronic building block light-breaking module is a high-quality module designed for electronics enthusiasts and educators. Made with environmentally friendly materials, it ensures safety and durability. The light-breaking module can be used to detect changes in light and is suitable for a variety of electronic projects and experiments.

2. Features

• Environmentally friendly materials : Made of black environmentally friendly materials, meeting modern safety standards and suitable for various usage environments.

• Light detection : The module can detect changes in light and realize the light-sensitive function.

• Anti-reverse insertion interface : Equipped with a 2.54mm red anti-reverse insertion terminal to ensure the safety and reliability of the connection.

• Compatibility : This module is compatible with a variety of microcontroller control boards (such as Arduino, Raspberry Pi, etc.), making it easy to implement different projects.

• Easy to install : Equipped with a 3-pin white reverse-insertion-proof connector, making wiring simple and suitable for beginners.

• Mounting holes : The module is designed with two LEGO-compatible mounting holes with a diameter of 3mm, making it easy to mount the module on LEGO or other devices.

3. Specifications

• Model : KE4014

• Sensor type : Optical refraction sensor

• Wire length : 200mm

• Operating voltage : DC 3.3V - 5V

• Interface type : 3-pin anti-reverse connector with a 2.54mm pitch

• Positioning hole size : 3mm in diameter

• Dimensions : 32mm x 23.5mm x 12mm

• Power consumption : Approximately 20mA (when operating at 5V)

4. Working Principle

This light-dissipating module is based on the principle of light change, and its working principle is as follows:

• Power connection : The module is connected to the power supply through the GND and VCC ports, and supports an operating voltage range of 3.3V to 5V to ensure normal operation of the module.

• Signal control : When light passes through the sensor and is broken, the module outputs a high-level signal; when it is not broken, it outputs a low-level signal.

• Connection configuration : The modular design facilitates quick assembly and disassembly, while the red anti-reverse insertion terminals and wires ensure safe connection and reduce the risk of incorrect connection.

5. Foot position description

The module's pin definitions are as follows:

• VCC : Connect to the positive terminal of the power supply to provide the required voltage to the module. Ensure it is between 3.3V and 5V to avoid damage.

• GND : Connects to the negative terminal of the power supply to ensure the module works properly and provides a stable reference power.

• S (Signal Terminal) : Outputs a signal when the light is broken. The sensor outputs a high level when the light is broken and a low level when the light is not broken.

6. Application Scenarios

Keyes' new 2021 DIY electronic building block light-breaking module is widely used in:

• Education : Used for teaching and experiments in photosensitive sensing to help students understand optical principles and signal control.

• DIY Projects : Suitable for creating photosensitive devices and interactive electronic projects.

• Experiment : Used in experiments to test and demonstrate the response to light-breaking signals.
