1. Introduction

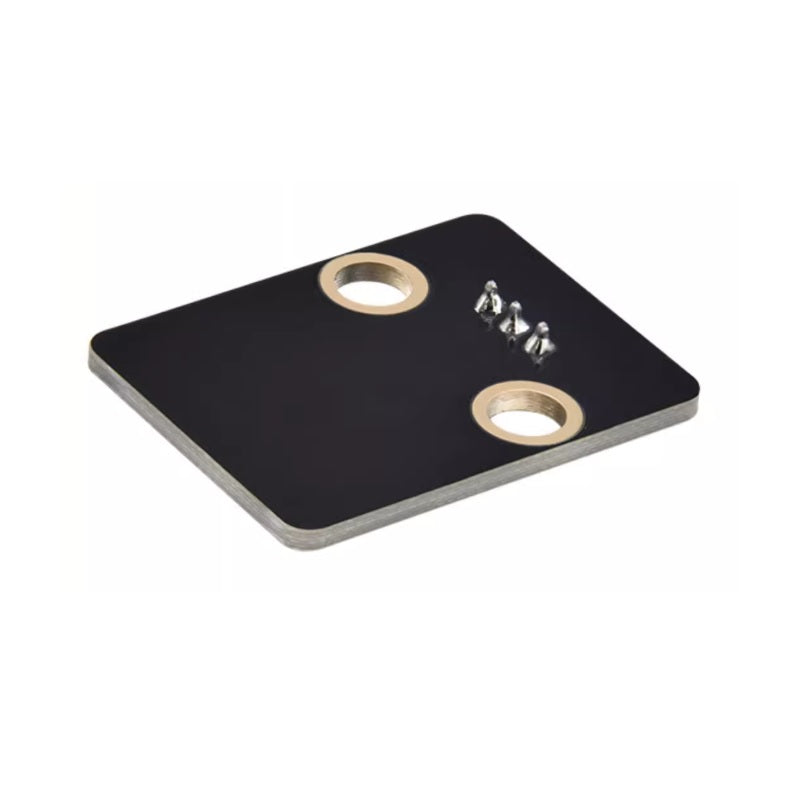

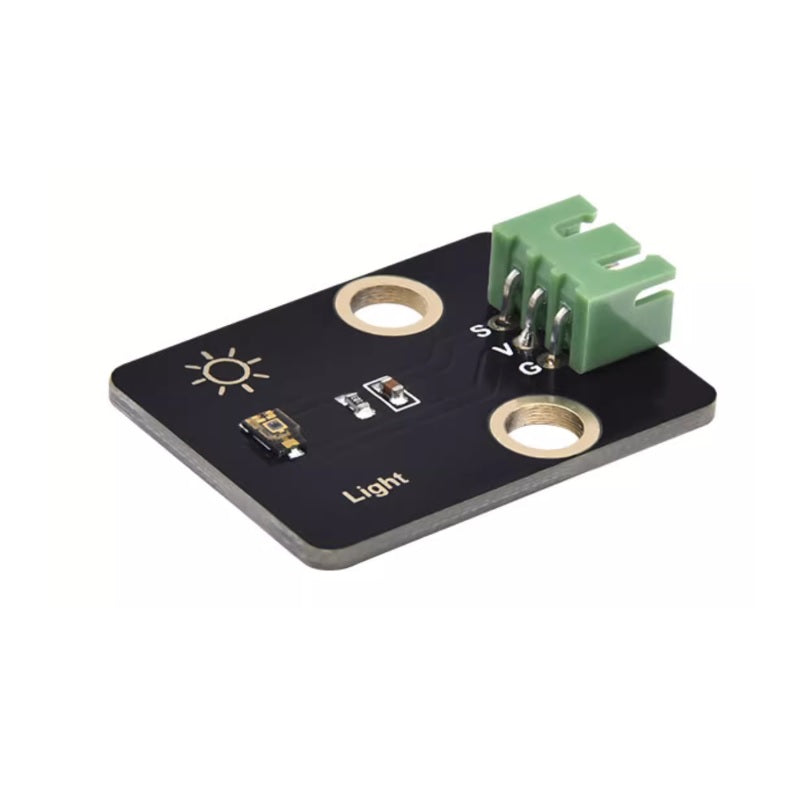

The Keyes 2021 DIY electronic building block TEMT6000 light sensor is a high-sensitivity photoelectric sensor capable of detecting the ambient light intensity. This module is widely used in automatic dimming, light monitoring, and smart home systems.
2. Features
-
Environmentally friendly materials : Made of black environmentally friendly materials that meet safety standards.
-
High sensitivity : It can accurately detect changes in light intensity and has a fast response speed.
-
Anti-reverse insertion interface : Equipped with green anti-reverse insertion terminals to ensure safe and reliable connection.
-
Wide compatibility : Compatible with microcontrollers such as Arduino and Raspberry Pi, facilitating various project applications.
-
Easy to install : Simple wiring design, suitable for beginners.
3. Specifications
|
parameter |
describe |
|---|---|
|
model |
KE4031 |
|
Sensor type |
TEMT6000 Light Sensor |
|
Wire length |
200mm |
|
Operating voltage |
DC 5V |
|
Interface type |
Anti-reverse interface with a spacing of 2.54mm |
|
Photosensitive range |
0-1000 Lux |
|
Power consumption |
Approximately 20mA (when operating at 5V) |
4. Working Principle
The TEMT6000 light sensor senses ambient light through its internal photodiode and converts it into a corresponding electrical signal. The specific workflow is as follows:
-
Power connection : The module is connected to the power supply via VCC and GND, and supports DC 5V operation.
-
Signal output : The voltage output by the sensor changes with the light intensity; the output voltage increases when the light intensity is strong.
5. Foot position description
|
Pin Name |
describe |
|---|---|
|
VCC |
Connect the positive power supply terminal; supports DC 5V input. |
|
GND |
negative power connection |
|
S |
The analog output signal represents the change in light intensity. |
