1. Introduction

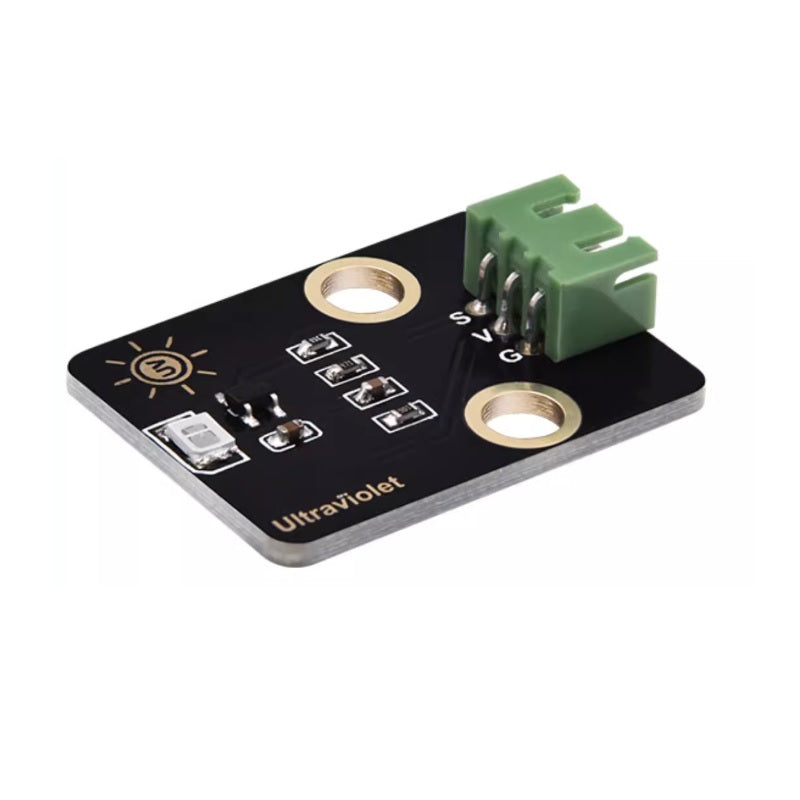

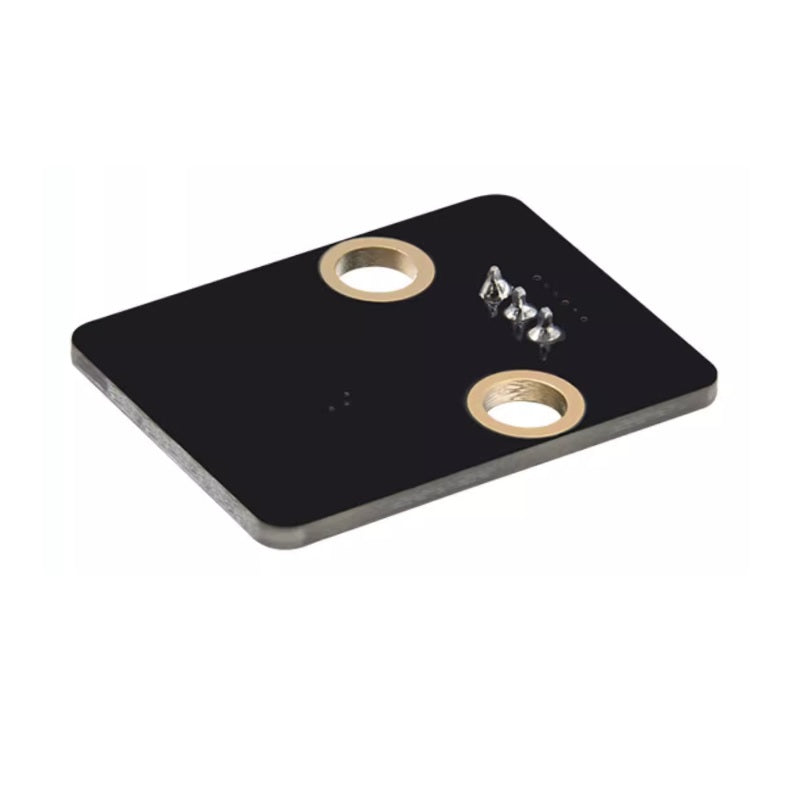

The Keyes 2021 new DIY electronic building block GUVA-S12SD ultraviolet sensor module is a high-sensitivity UV (ultraviolet) sensor capable of detecting the intensity of ultraviolet radiation in the environment. Suitable for sunlight intensity monitoring and lighting system adjustment, it is ideal for outdoor and smart home applications.
2. Features
-
Environmentally friendly materials : The modules are made of black environmentally friendly materials that meet modern safety standards.
-
High sensitivity : It can accurately measure UV radiation and provide real-time feedback.
-
Anti-reverse insertion interface : Equipped with green anti-reverse insertion terminals to provide a stable connection.
-
Wide compatibility : Compatible with various control boards such as Arduino and Raspberry Pi, making it convenient for various project applications.
-
Easy to install : Simplified wiring design, suitable for beginners and DIY projects.
3. Specifications
|
parameter |
describe |
|---|---|
|
model |
KE4032 |
|
Sensor type |
GUVA-S12SD Ultraviolet Sensor |
|
Wire length |
200mm |
|
Operating voltage |
DC 3.3V to 5V |
|
Interface type |
Anti-reverse interface with a spacing of 2.54mm |
|
Response wavelength |
240-370nm |
|
Power consumption |
Approximately 20mA (when operating at 5V) |
4. Working Principle
The GUVA-S12SD ultraviolet sensor measures the ultraviolet intensity per unit area and outputs a corresponding voltage signal. Its workflow is as follows:
-
Power connection : Connect to the power supply via VCC and GND, supporting DC 3.3V to 5V.
-
Signal output : The sensor's output voltage changes with the intensity of ultraviolet light, outputting an analog signal.
5. Foot position description
|
Pin Name |
describe |
|---|---|
|
VCC |
Connect to the positive power supply; supports DC 3.3V to 5V. |
|
GND |
negative power connection |
|
S |
The analog output signal represents the change in ultraviolet radiation intensity. |
