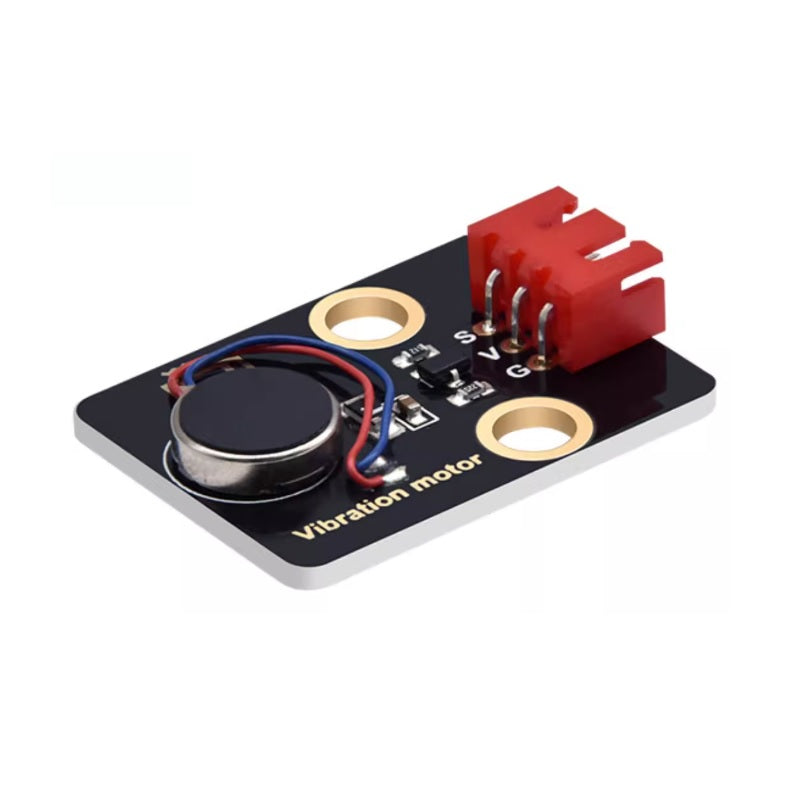

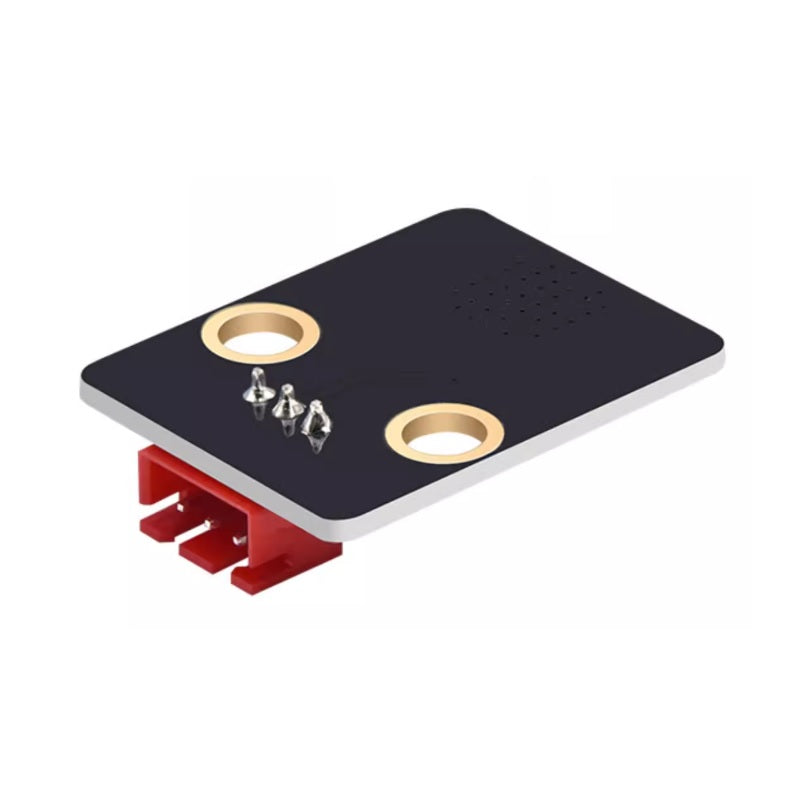

KE4044 Keyes DIY Electronic Brick Vibration Motor Module

KE4044 Keyes DIY Electronic Brick Vibration Motor Module

1. Introduction
The Keyes 2021 New DIY Electronic Brick Vibration Motor Module is designed to generate vibrations, making it widely applicable in wireless control systems, smart devices, and alarm systems. Manufactured with eco-friendly materials, it ensures both safety and durability.

2. Features
- Eco-Friendly Material: The module uses black eco-friendly materials compliant with modern safety standards.
- Efficient Vibration: Capable of producing noticeable vibrations suitable for diverse applications.
- Anti-Reverse Interface: Equipped with a red anti-reverse connector for secure connections.
- Wide Compatibility: Compatible with various controllers like Arduino and Raspberry Pi for easy project integration.
- Ease of Use: Simple wiring design suitable for beginners.

3. Specifications
| Parameter | Description |
|-------------------|--------------------------------------|
| Model | KE4044 |
| Module Type | Vibration Motor Module |
| Cable Length | 200mm |
| Operating Voltage | DC 3.3V-5V |
| Interface Type | 2.54mm 3-pin anti-reverse interface |
| Power Consumption | Approx. 20mA (at 5V operation) |

4. Working Principle
The vibration motor module operates by converting electrical energy into mechanical vibration:
- Power Connection: The module connects to a power supply via VCC and GND pins, supporting DC 3.3V-5V operation.
- Signal Control: When the signal pin (S) receives a high-level input, the motor activates and generates vibrations.

5. Pin Description
| Pin Name | Description |
|----------|-----------------------------------------------|
| VCC | Positive power supply (DC 3.3V-5V) |
| GND | Negative power supply connection |
| S | Control signal input (high level activates vibration) |

6. Application Scenarios
- Smart Notifications: Haptic feedback in wearable devices or smart systems.
- Alarm Systems: Vibration alerts in security or monitoring devices.
- Interactive Projects: Tactile feedback in DIY electronic projects and gaming controllers.
