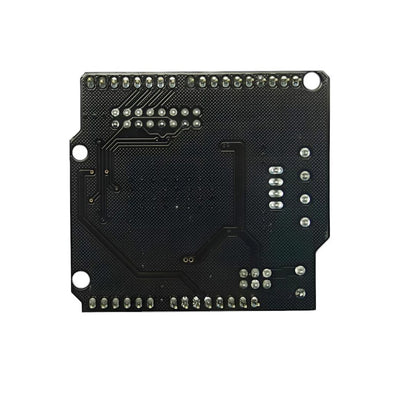

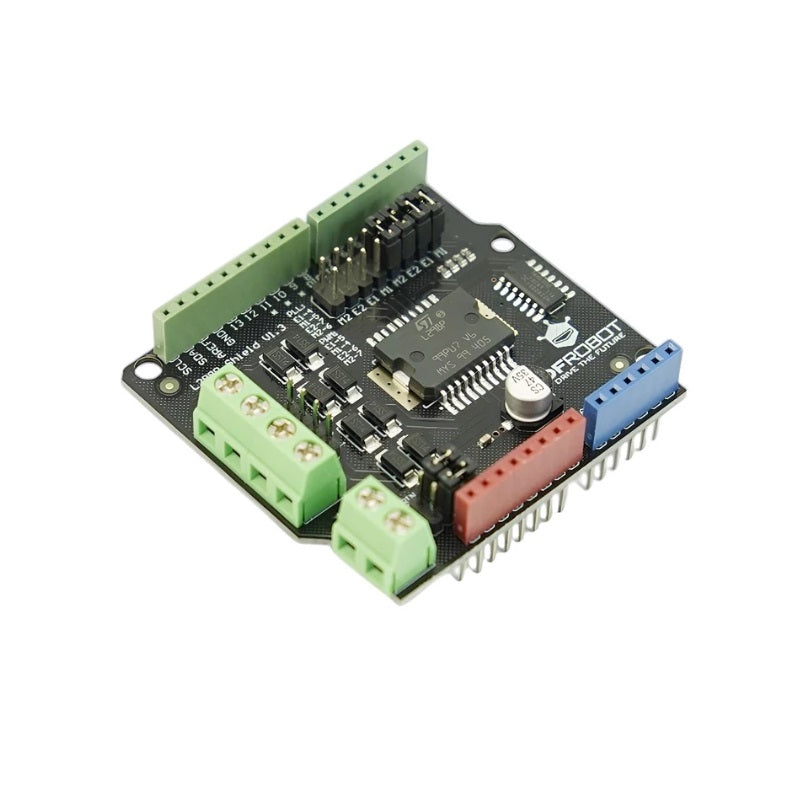

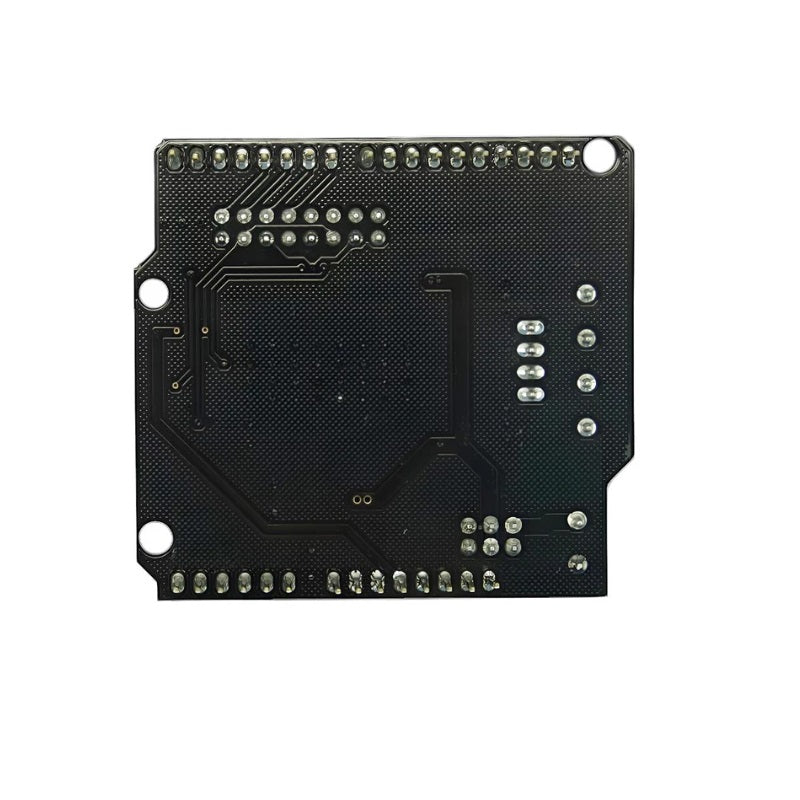

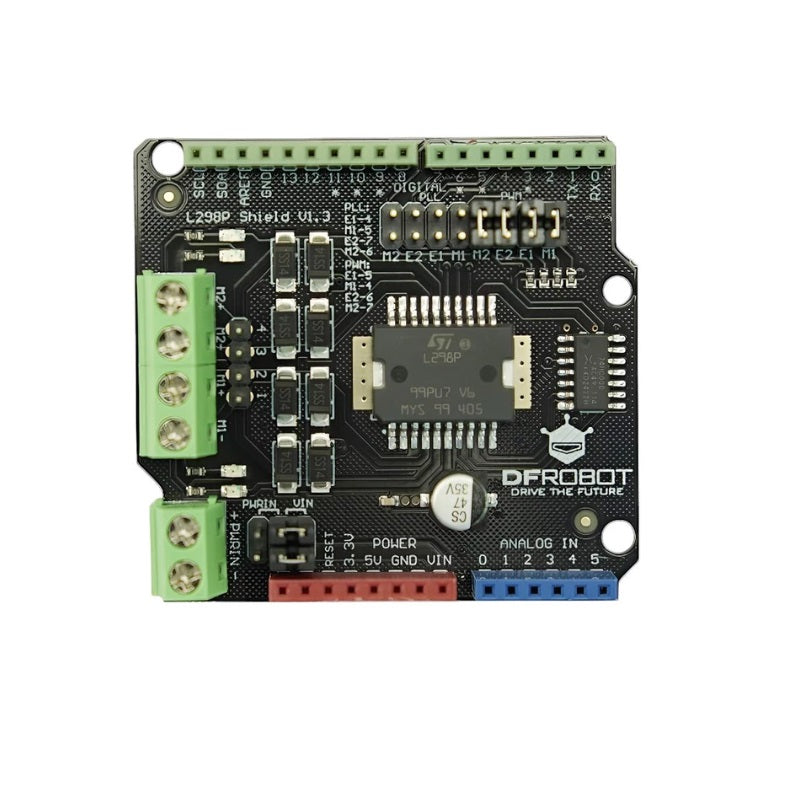

L298 2x2A DC Motor Shield for Arduino

Description

Arduino product family is a great learning platform for electronics, programming and robotics. But most projects at some point require mobility. ThisArduino motor shieldallows for motor control with Arduino right away. Stack up this shield on your controller and drive 2 DC motors with  higher power requirements. Depending on the motor of choice, you can make it fast or handle a higher payload. This Arduino Motor Shield (2A) uses L298P chip which allow to drive two 7-12V DC motors with maximum 2A current. This arduino motor shield can be directly mounted onto standardArduino Uno and Arduino Mega.Speed control is achieved through conventional PWM which can be obtained from Arduino’s PWM output Pin 5 and 6. The enable/disable function of the motor control is signaled by Arduino Digital Pin 4 and 7. The Motor shield can be powered directly from Arduino or from external power source. It is strongly encouraged to use external power supplyto power the motor shield.This arduino motor shield is ideal for building Arduino robotor other Arduino motor control projects. There is another version of 2x2A motor shield (Twin) which uses different pins to avoid conflicting pin allocation.

Compatibility

• Arduino UNO R3
• DFRduino UNO R3
• Bluno Mega 1280/2560

Specification

• Logic Control Voltage：5V (From Arduino)
• Motor Driven Voltage：6.5~12v(VIN Power Supply),4.8~35V (External Power Source)
• 2 way motor drive
• Logic supply current Iss：≤36mA
• Motor Driven current Io：≤2A
• Maximum power consumption：25W（T=75℃）
• Up to  2A current each way
• Pin 4,5,6,7 are used to drive two DC motor
• Support PWM speed control
• Support PLL advance speed control
• Size: 55x55mm (2.2x2.2 in)

Documentation

• Schematic
• Datasheet
• L298N datasheet
