Description

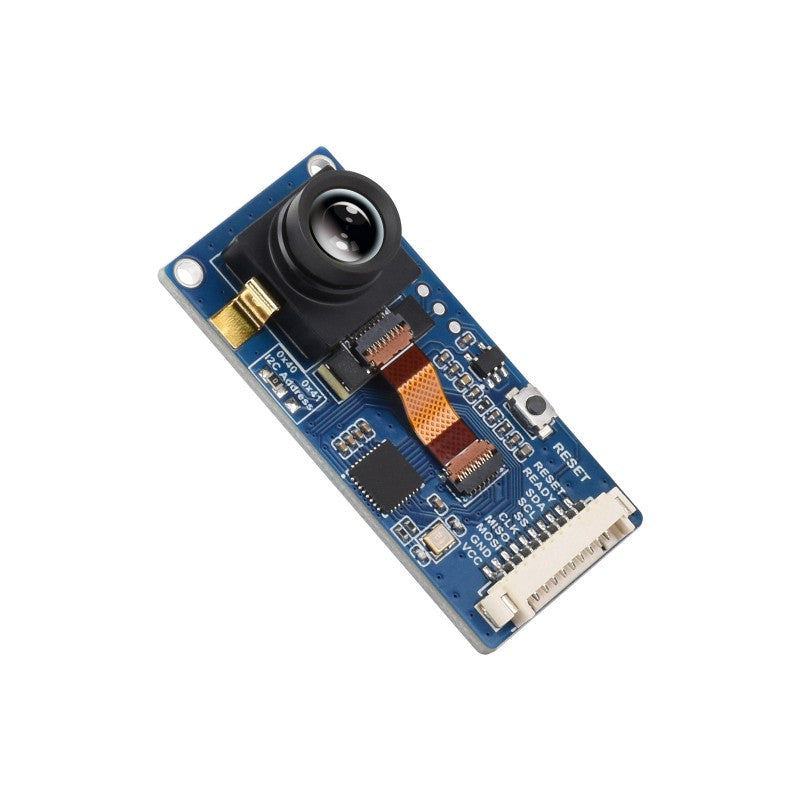

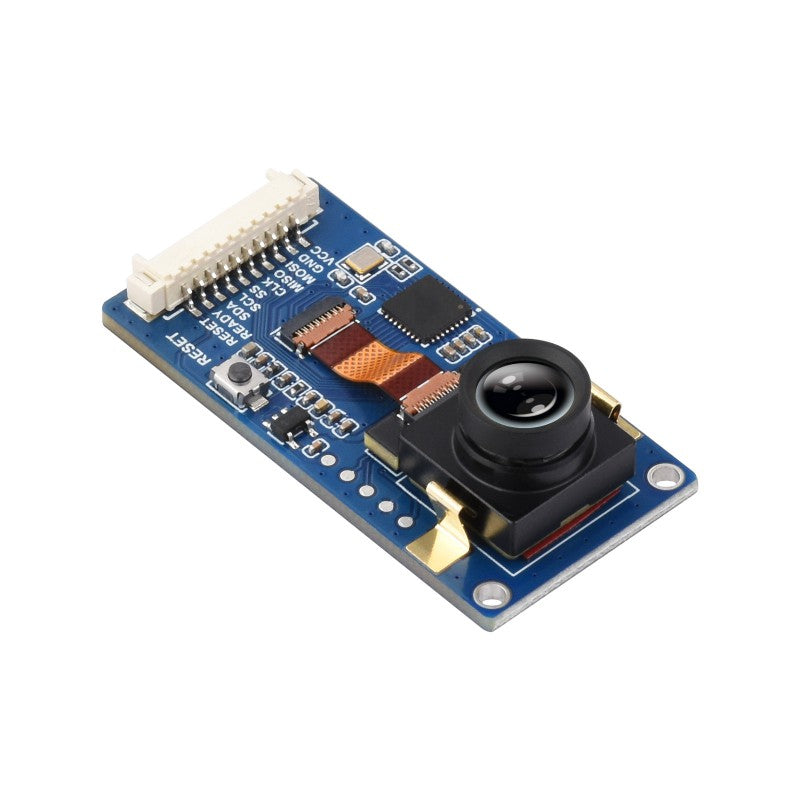

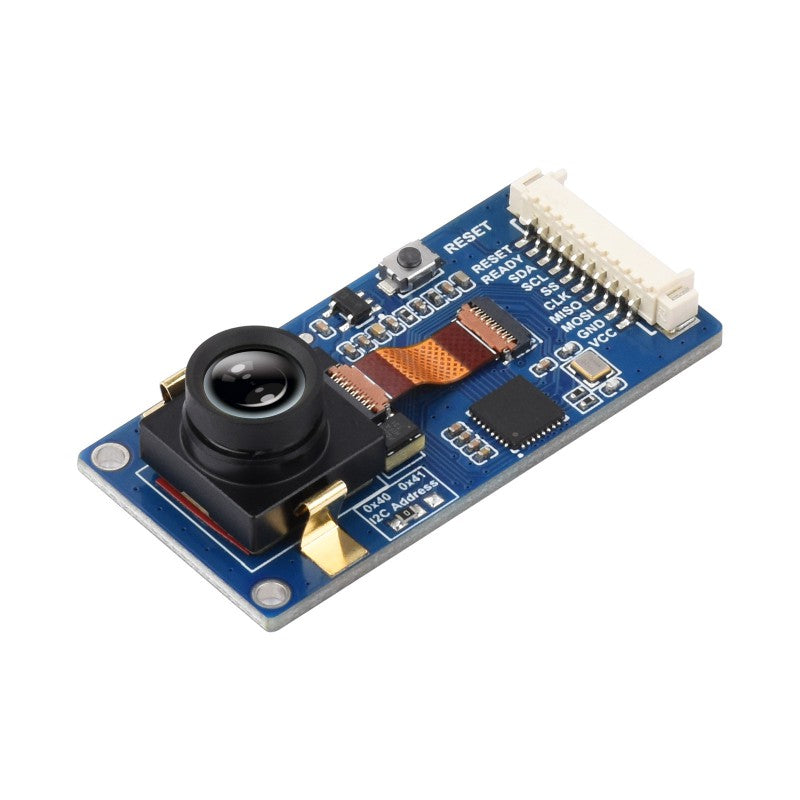

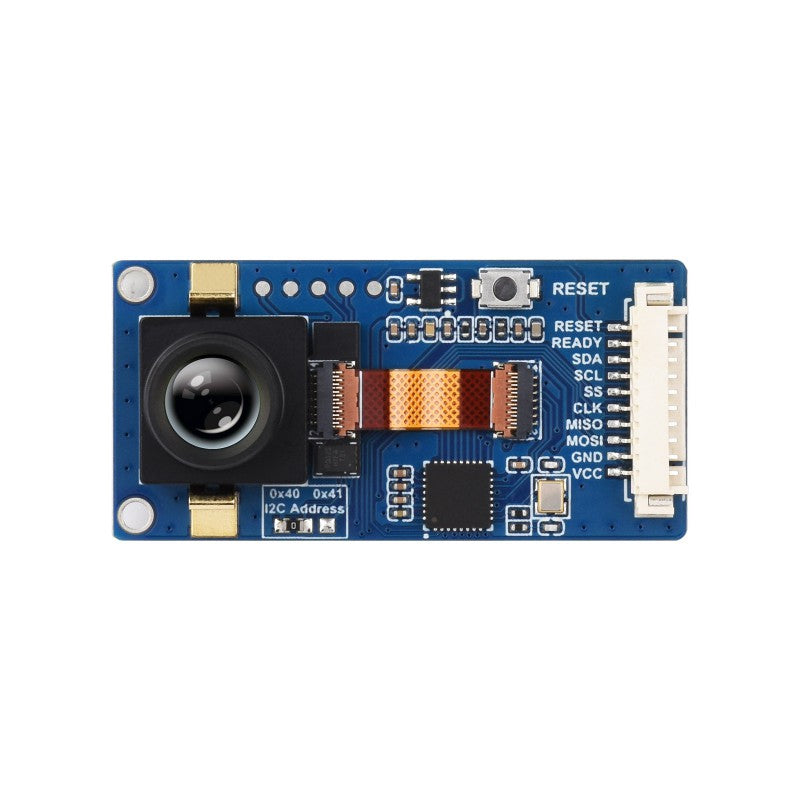

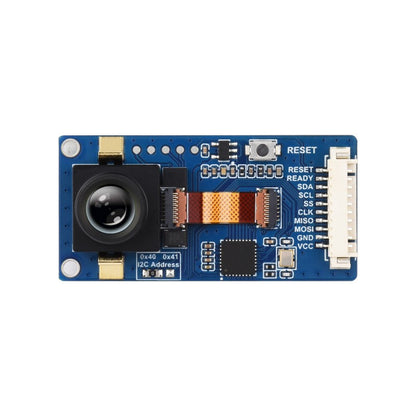

This is a long-wave IR thermal imaging camera module that adopts the hybrid technology of microbolometer and thermopile pixel, featuring 80 × 62 array pixels. It overcomes the limitations of traditional temperature measurement devices, such as single-point detection and light dependency. By capturing infrared radiation signals from objects, it enables the core capability of "visualizing temperature distribution" for devices in the fields of industry, consumer electronics, security, and healthcare, serving as the hardware foundation for intelligent temperature monitoring and risk early warning.
Features

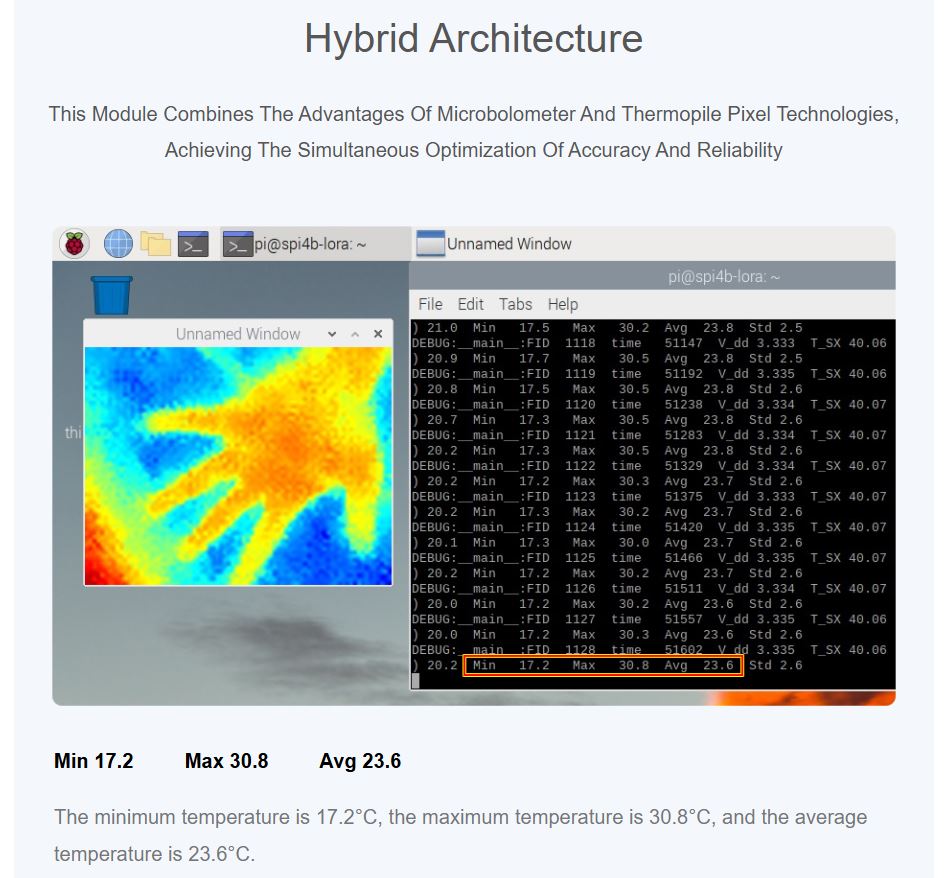

- Adopts the hybrid technology of microbolometer and thermopile, 80 (H) × 62 (V) array pixels
- Continuous operation and thermal imaging video stream due to shutterless design
- Each pixel is calibrated before shipment to ensure uniformity and accuracy of temperature reading
- Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
- Up to 25FPS (Max) thermal imaging video stream output

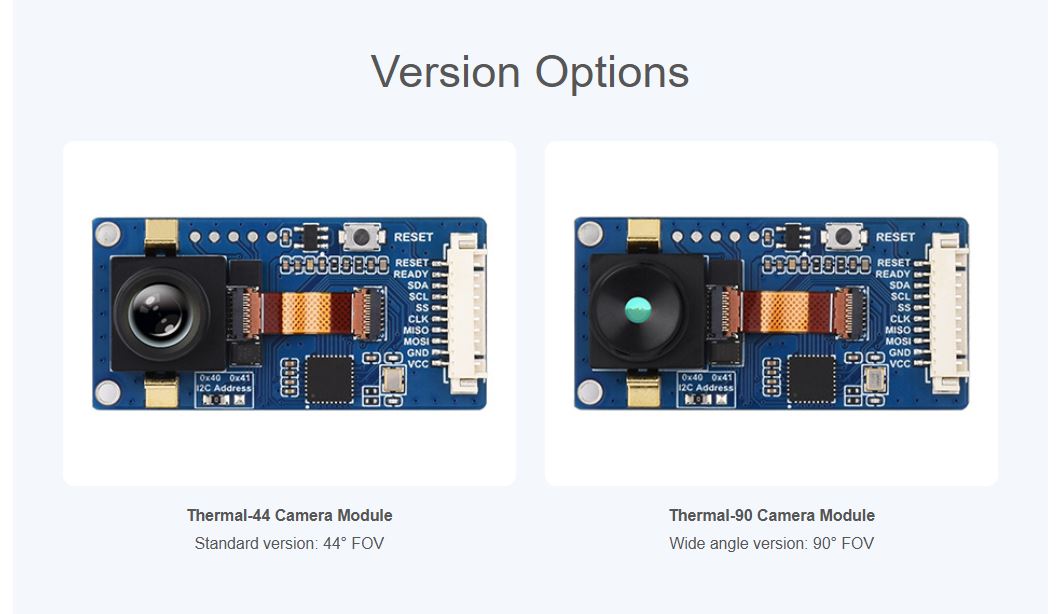

- Provides lens options of 44° / 90° FOV
- Comes with online resources and manuals (Python demo for Raspberry Pi, etc.)
Application
- Long-term non-contact temperature online monitoring
- IR thermal imaging devices, IR thermometers
- Smart home, intelligent building, intelligent lighting
- Infant and elderly care
- Fever detection
- Industrial temperature control, security & safety, intrude/motion detection
- Small Target Thermal Analysis, Heat Trend Analysis and Solutions
Specifications
- Operating voltage: 3.3V/5V
- Operating voltage: 20mA@5V
- Wavelength range: 8~14μm
- Field of View (FOV):Standard version: 55°(D) × 44°(H) × 35°(V)Wide angle version: 143°(D) × 90°(H) × 66°(V)
- Operating temperature: -20℃～85℃
- Target temperature: -20℃～400℃
- Detection accuracy: ±2℃
- Refresh rate: 25 FPS(Max)
- Dimensions: 45.00 x 22.00 (mm)
- Noise Equivalent Temperature Difference (NETD): 150mK
