Introduction

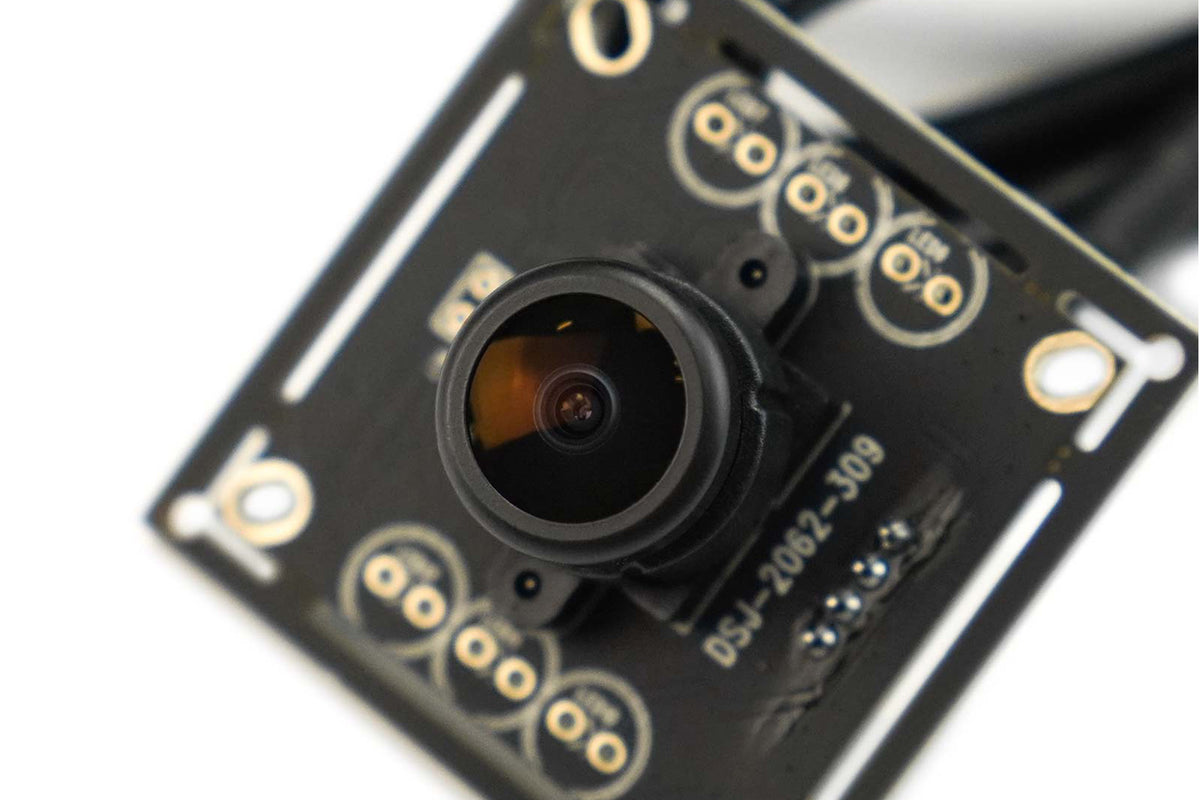

This megapixel USB wide-angle camera with a resolution of 1280*720 supports a 140-degree viewing angle and standard UVC communication protocol.
Plug and play, it is compatible with Raspberry Pi and NVIDIA Jetson Nano series. The wide viewing angle provides you with a better photo experience.

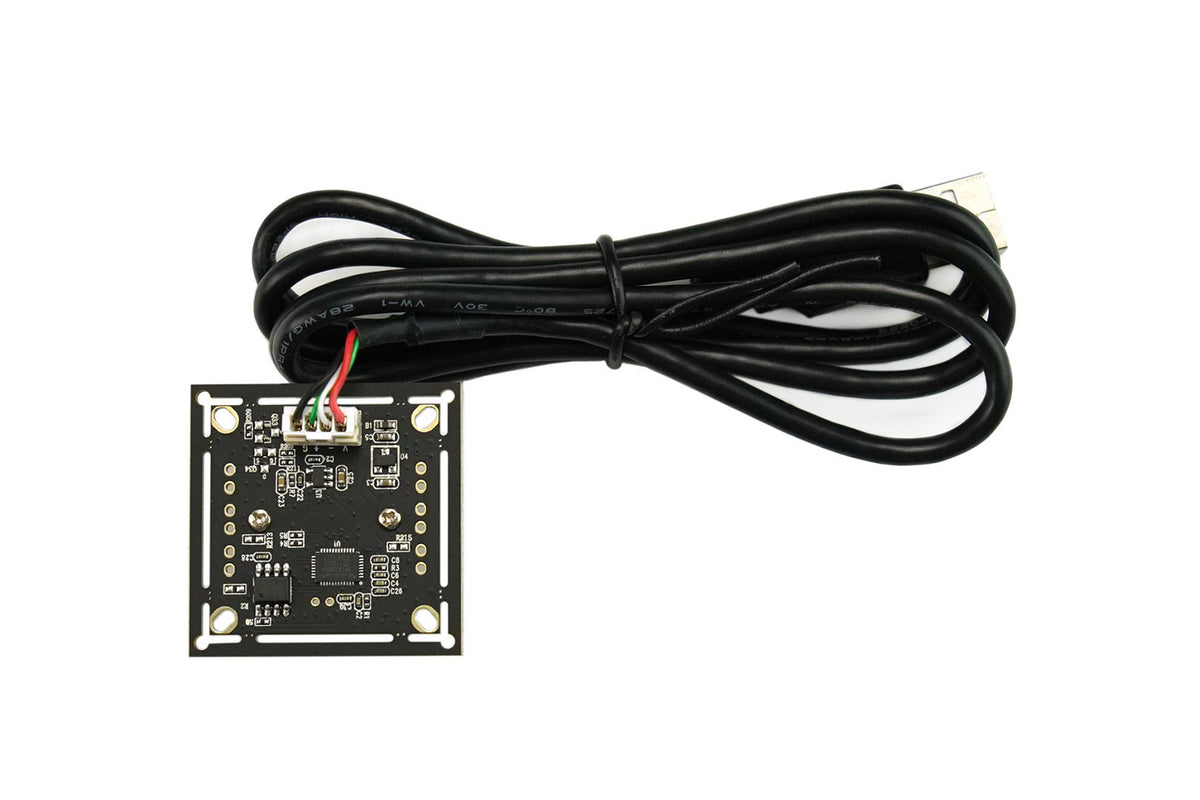

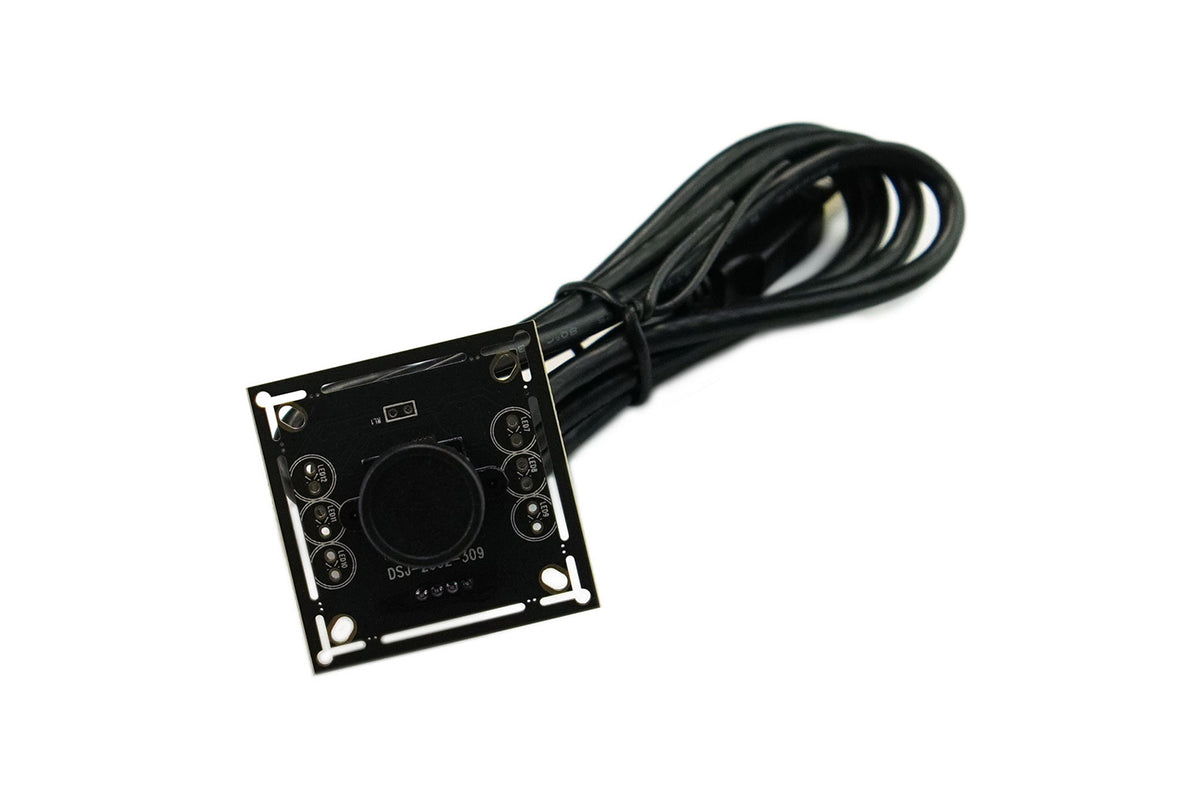

The module has a very small size of 38mm*38mm, which can be embedded in various devices for face recognition, image recognition, security, remote teaching, and other projects.
Features
- Plug and play
- Compatible with Raspberry Pi and NVIDIA Jetson Nano
Application
- Face recognition
- Image recognition
- Security
- Remote teaching
Specification
- Lens Size: 1/4 inch
- Pixel Size: 3μm x 3μm
- Maximum Effective Pixels: FULL HD 1280(H)*720(V)
- Field of View (FOV): 140°
- Output Image Format: MJPEG/YUV2 (YUYV)
- Supported Resolutions:
320*240 MJPEG@30fps;
352*288 YUV2@30fps;
352*288 MJPEG@30fps;
640*480 YUV2@25fps;
800*600 MJPEG@30fps
320*240 YUV2@30fps;
1280*720 MJPEG @25fps;
800*600 YUV2@15fps;
640*480 MJPEG@25fps;
1280*720 YUV2@10fps - Special Function: Lens correction/Defective pixel correction/Black sun cancellation
- Minimum Illumination: 0. 051lux
- Shutter Type: Electronic rolling shutter / Frame exposure
- USB Protocol: USB2.0 HS/FS
- Interface Type: USB2.0 High Speed
- Support OTG Protocol: USB2.0 OTG
- Support Driver-free Protocol: USB Video Class (UVC)
- Automatic Exposure Control AEC: support
- Automatic White Balance AEB: support
- Automatic Gain Control AGC: support
- Adjustable Parameters: brightness / contrast / color saturation / hue / sharpness / gamma / white balance / backlight / contrast / exposure
- Night Vision Function: support, need to cooperate with infrared lens 850 or 940nm, and infrared light board
- Infrared Light Board-Power Supply Interface: support, 2P-2.0mm socket
- Power Supply Mode: USB BUS POWER 4P-2.0mm socket
- Working Voltage: DC 5V
- Working Current: 120mA~220mA
- Working Temperature: 0～60℃
- Storage Temperature: -20～75℃
- Size/Weight: 38x38mm/1.50x1.50 inch (Compatible with 32x32mm/1.26x1.26 inch) / about 30g
- Support Operating System: Windows, iOS, Android, Linux, etc.
