Overview

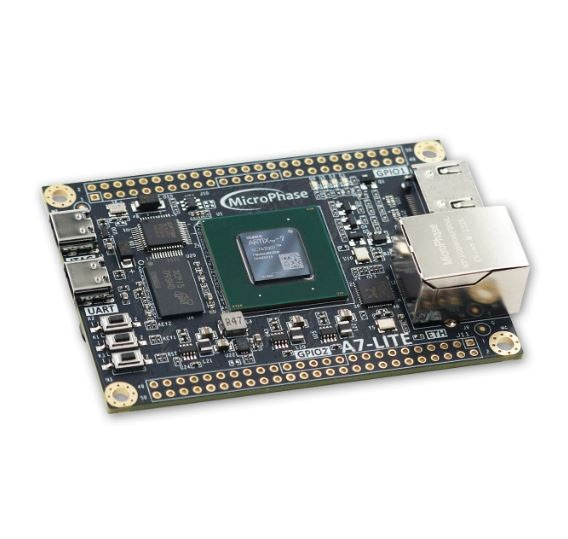

A7 Lite is a Commercial-grade SoM (System on Module) based on Xilinx Artix-7 (XC7A35T-2FGG484L, XC7A100T-2FGG484L and XC7A200T-2FGG484L) with up to 4Gb of DDR3/L SDRAM,128MB of SPI flash memory, Gigabit Ethernet PHY transceiver, a USB PHY transceiver and a simple way to support power.
Board Layout
Key Features
- Xilinx Artix-7 XC7A35T-2FGG484
- DDR3: 1 4Gbit,1066Mbs DDR3.
- KEY: 2 users key.
- LED: 2 users LED.
- GPIO: 2*50 pin expansion ports (2.54mm pitch).
- USB JTAG: 1 on board JTAG circuit, can debug and download the FPGA system through the USB cable.
- HDMI: 1 HDMI video output interface, can realize 1080P video image.
- PHY ETH: 10/100/1000M Ethernet RJ45 interface, which can be use for Ethernet data exchange or other application.
- SD Card: 1 SD Card is provided to store the operating system image and file system.
- USB UART:1 USB UART interface, using for serial communication with PC.
- CLOCK: 1 50Mhz active crystal oscillator provides a stable clock for the system.
Block Diagram
Related Documents
- A7-Lite_R11 Schematic (PDF)
- A7-Lite_R11 Dimensions (PDF)
- A7-Lite_R11 Dimensions source file (DXF)
