Overview

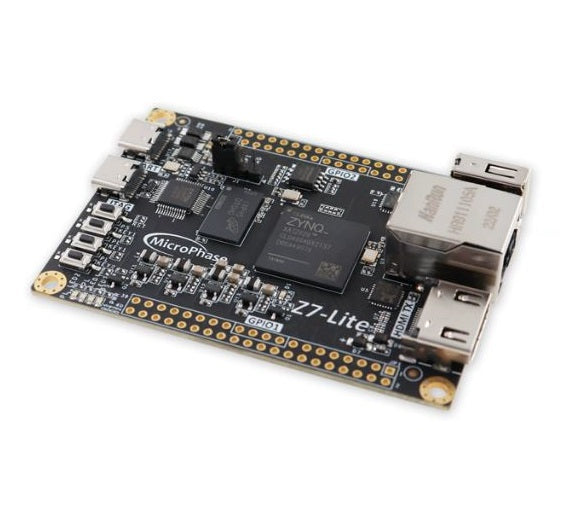

Z7 Lite is a commercial-grade development board based on Xilinx Zynq-7000 SoCs (XC7Z010 or XC7Z020) with up to 4Gb of DDR3/L SDRAM, 128MB of SPI flash memory, Gigabit Ethernet PHY transceiver, a USB PHY transceiver and an easy way to support power.
Board Layout
Key Features
- Xilinx Zynq™ XC7Z010-1CLG400C (7010 Version Only),
Xilinx Zynq™ XC7Z020-1CLG400C (7020 Version Only). - DDR3: 1 4Gbit,DDR3.(MT41J256M16HA-125:K or equivalent)
- KEY: 3 user’s keys, 1 PS control, 2 PL control.
- LED: 3 user’s LEDs, 1 PS control, 2 PL control.
- GPIO: 2 40 pin expansion ports (2.54mm pitch), 72 IOs of 3.3V voltage.
- USB JTAG: 1 on board JTAG circuit, can debug and download the ZYNQ system through the USB cable.
- HDMI: 1 HDMI video output interface, can realize 1080P video image.
- PHY ETH: 1 10/100 Ethernet RJ45 interface, which can be use for Ethernet data exchange or other application.
- USB Host: 1 USB Host.
- SD Card: 1 SD Card is provided to store the operating system image and file system.
- USB UART: 1 USB UART interface, using for serial communication with PC.
- CLOCK: 1 33.33Mhz active crystal oscillator provides a stable clock for the PS system.
1 50Mhz active crystal oscillator provides additional clocks for the PL logic.
Block Diagram
Related Documents
- Z7-Lite_R11 Schematic (PDF)
- Z7-Lite_R11 Dimensions (PDF)
- Z7-Lite_R11 Dimensions source file (DXF)
