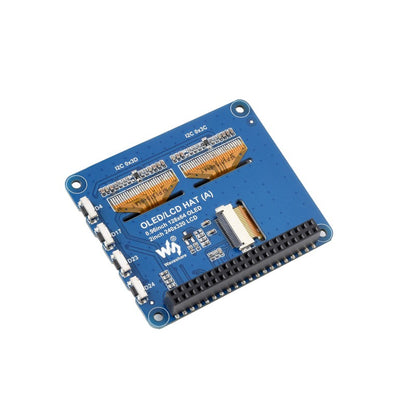

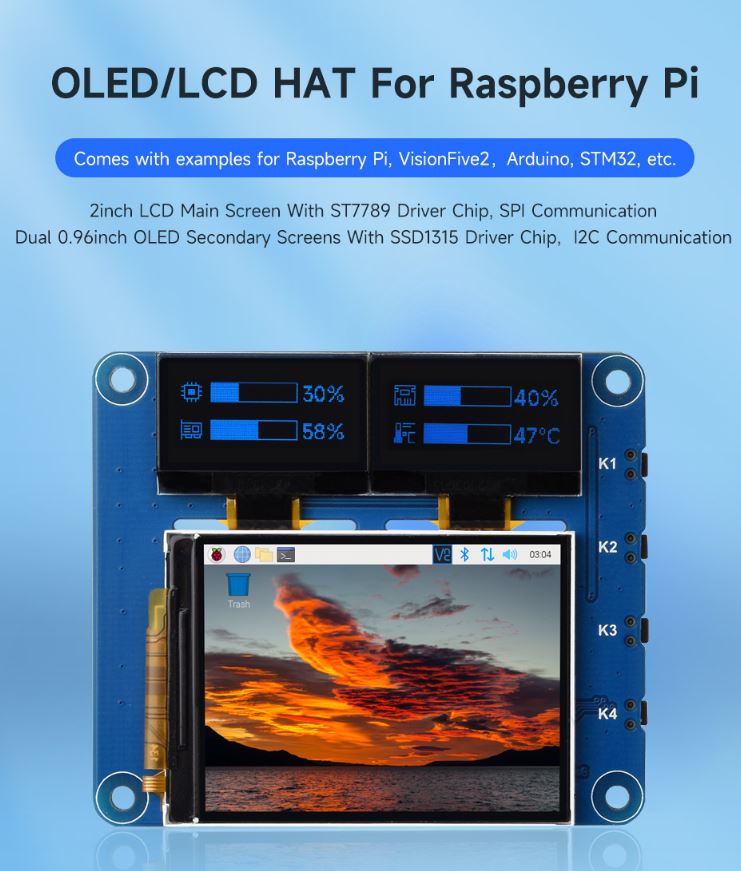

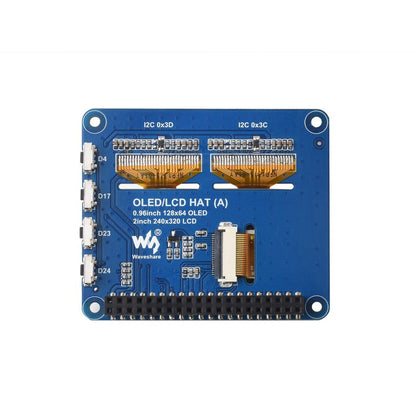

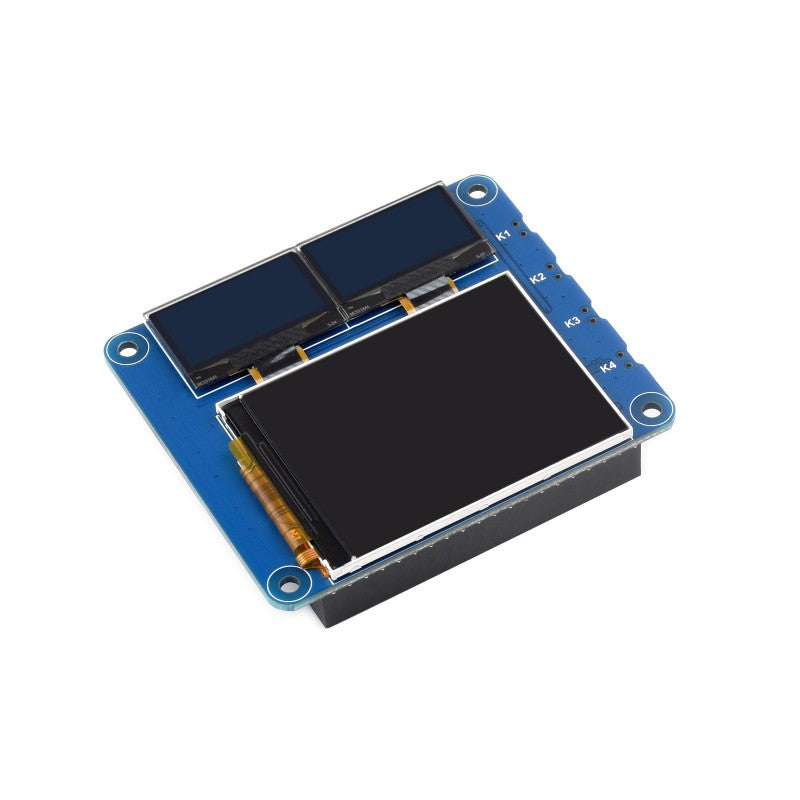

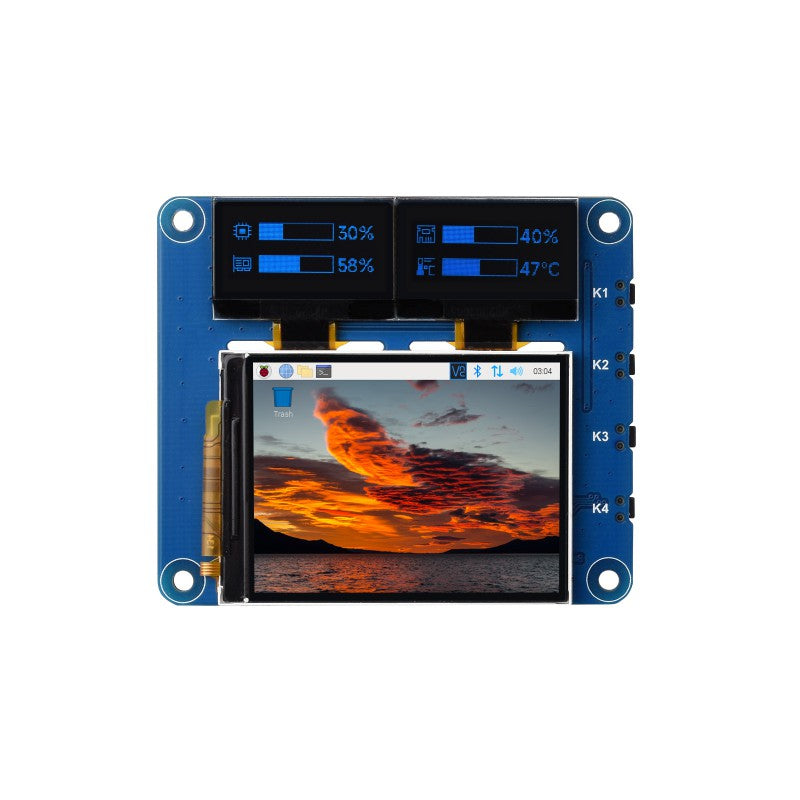

Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards
Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
2inch IPS LCD Main Screen with built in ST7789VW driver chip, SPI interface communication, wide viewing angle, supports 262K color display, 240×320 resolution
Dual 0.96inch OLED secondary screens with built in SSD1315 driver chip, I2C interface communication, blue display color, 128×64 resolution, can be used to display key informations, status indicator messages or small graphics
Onboard 4x user-defined keys for extended applications
Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)
