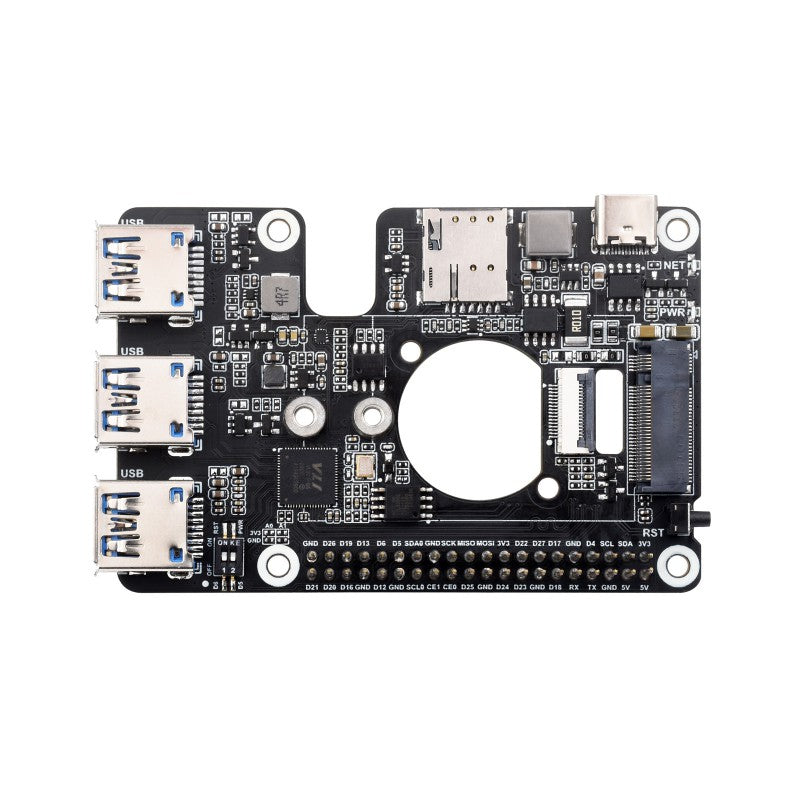

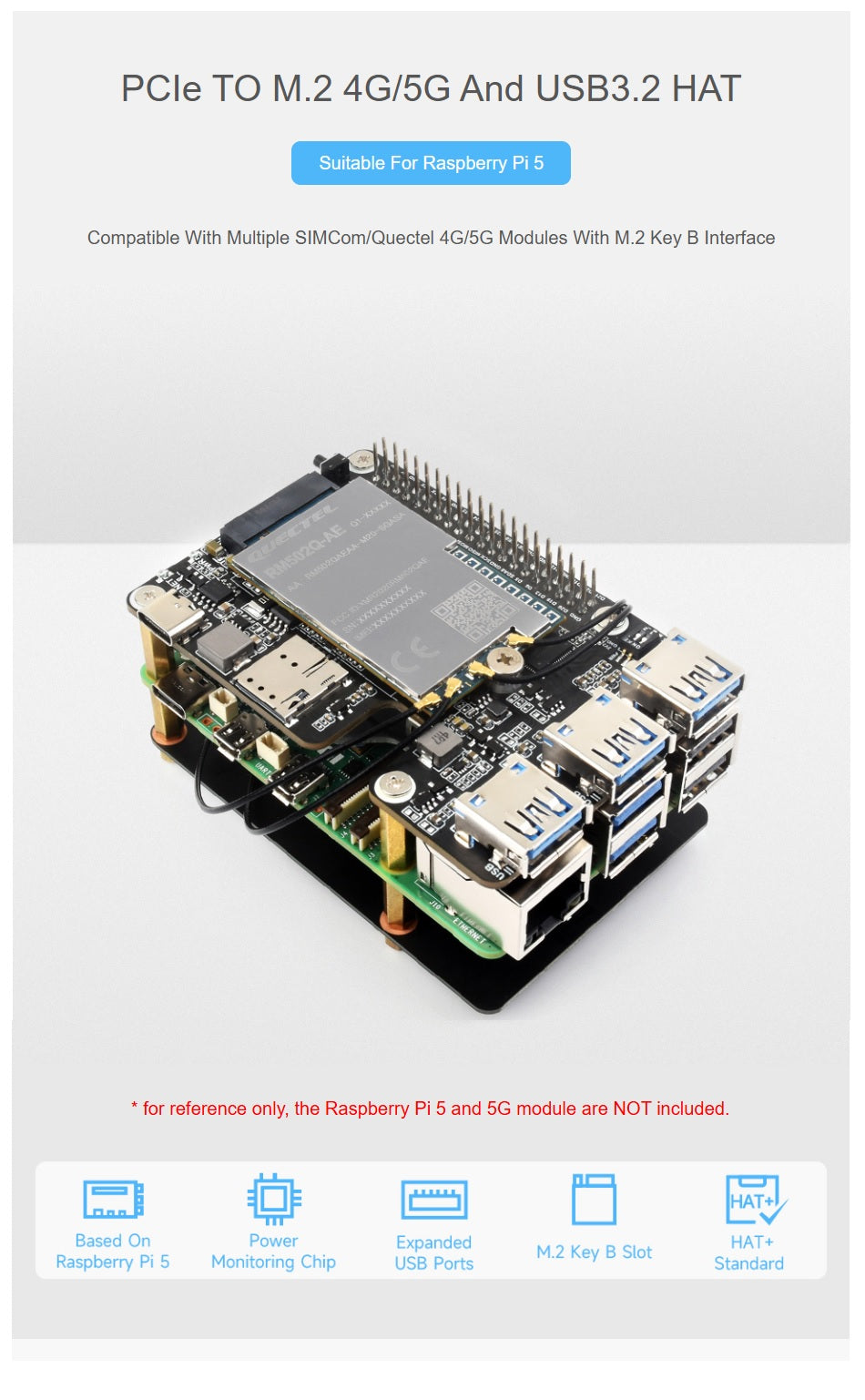

PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, Compatible with SIMCom/Quectel 4G/5G modules, Comes With 5G-4IN1-PCB Antenna, Raspberry Pi 5 HAT, High-speed Networking
Features and Spec

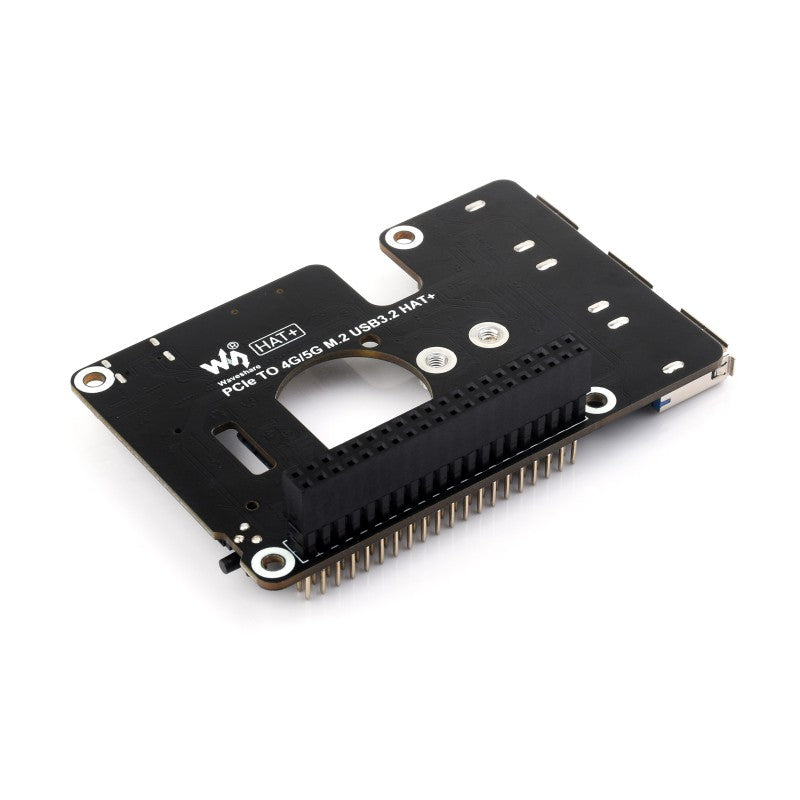

- Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion

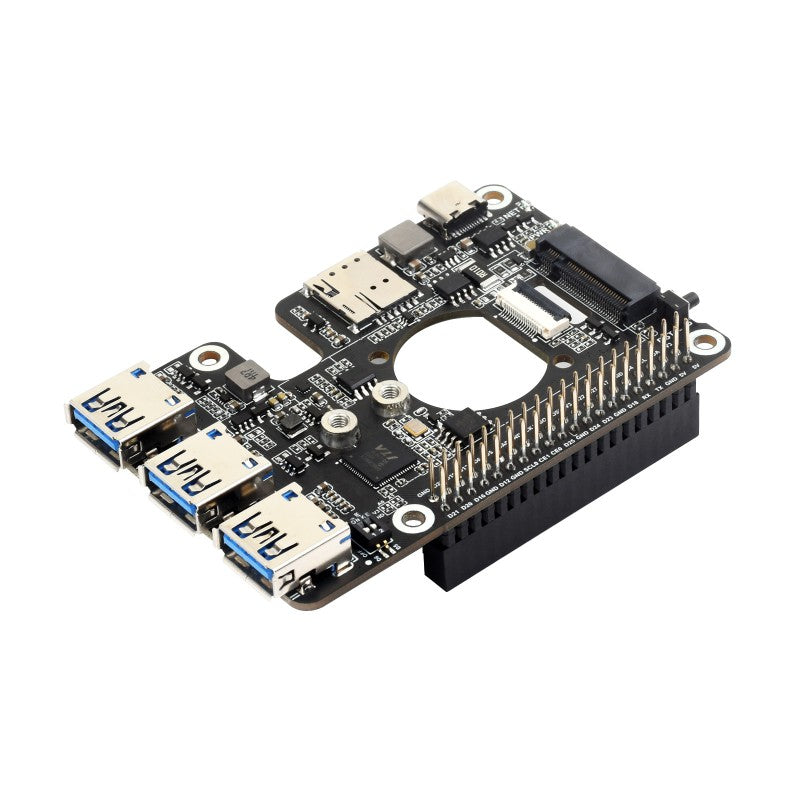

- Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals

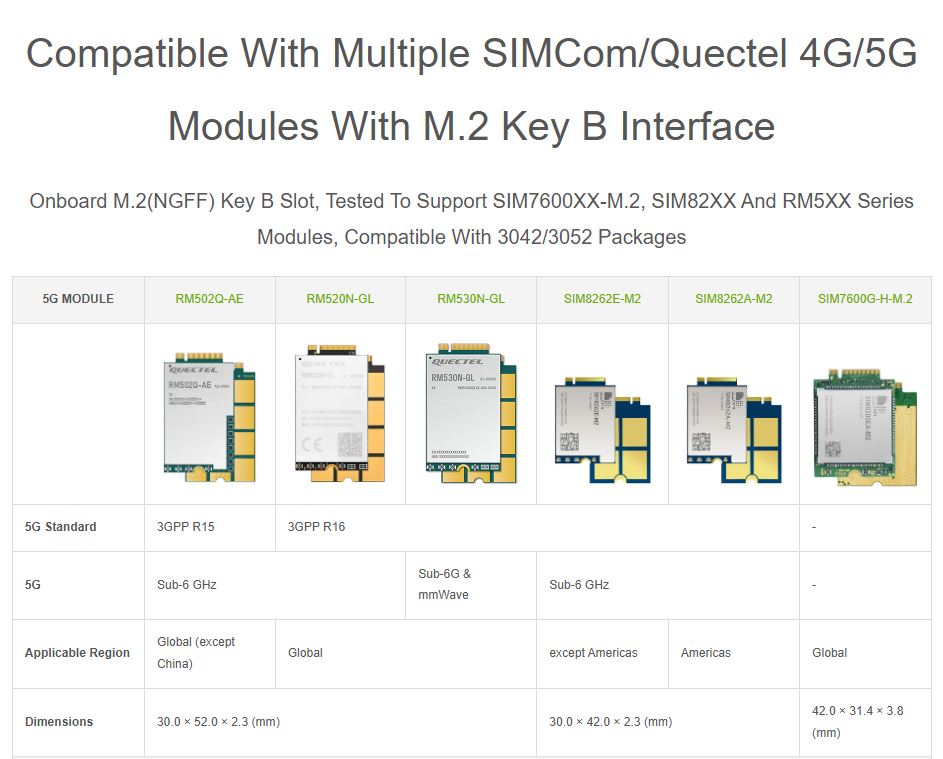

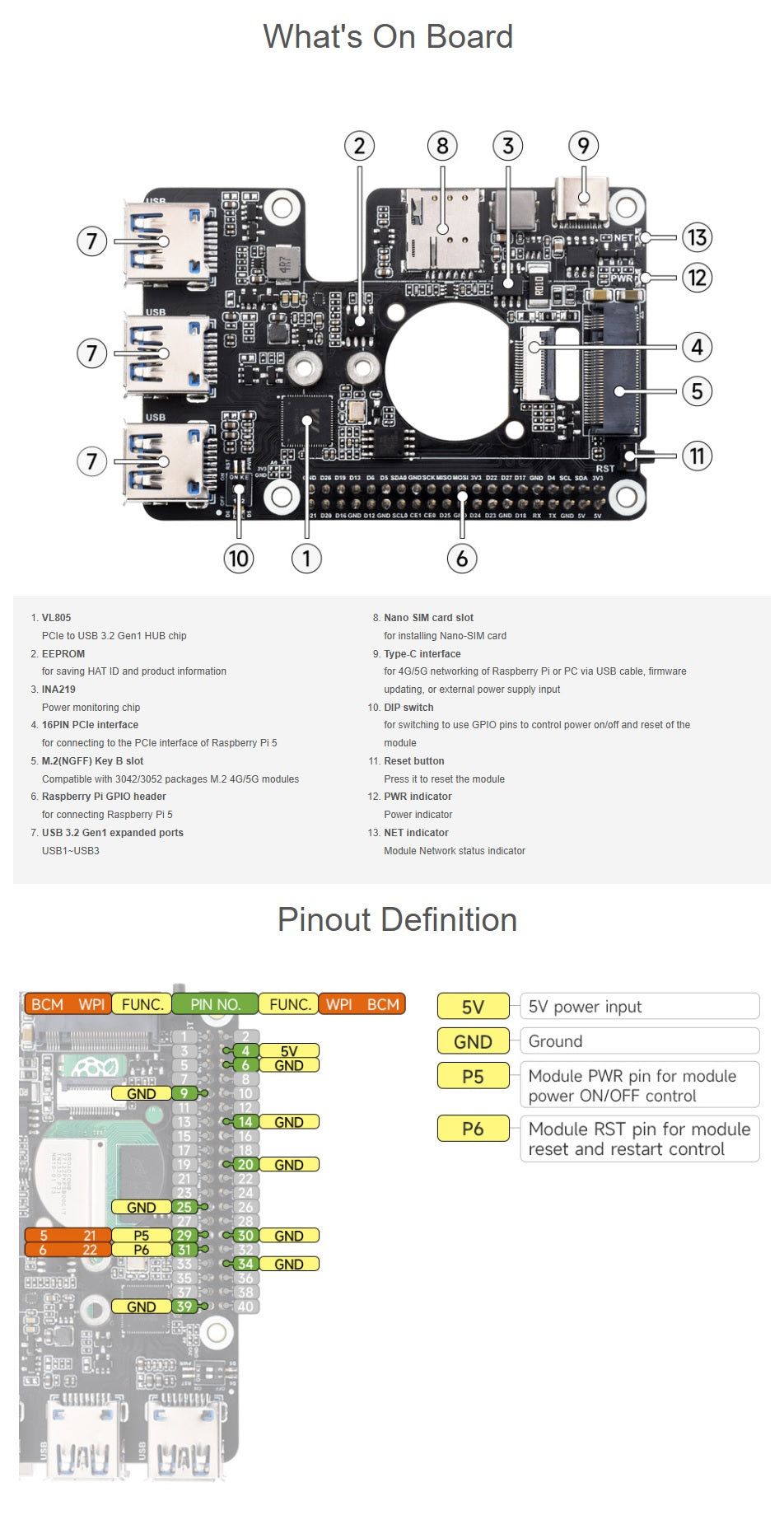

- Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
- Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input
- Onboard power monitoring chip for real-time measurement of voltage, current and power
- Onboard SIM card slot for NANO-SIM card
- Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status
- Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
- Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation
