Raspberry Pi Zero

Raspberry Pi Zero

SKU:E03005-001

$45.51 AUD
$45.51 AUD
Sale Sold out
Shipping calculated at checkout.
Options

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.

Out of stock
View full details

Description

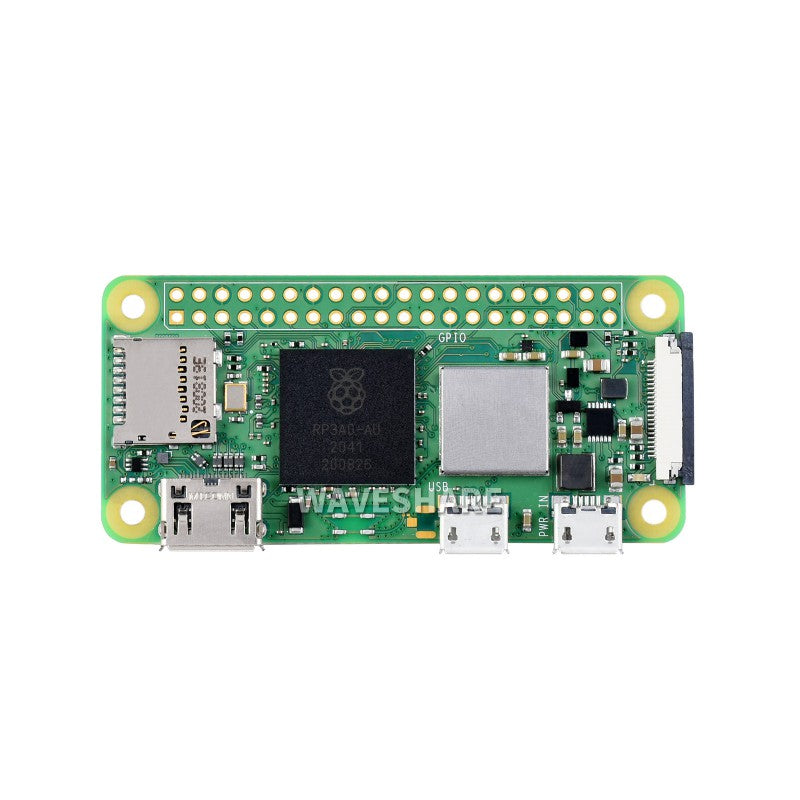

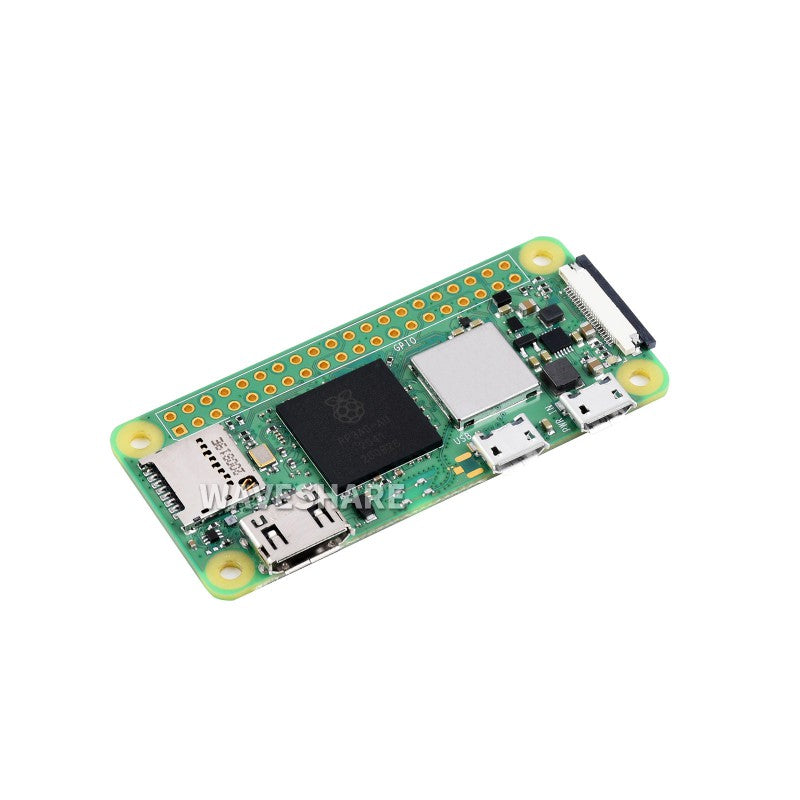

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. As for heat dissipation concern, Zero 2 W uses thick internal copper layers to conduct heat away from the processor, sustaining higher performance without higher temperature.

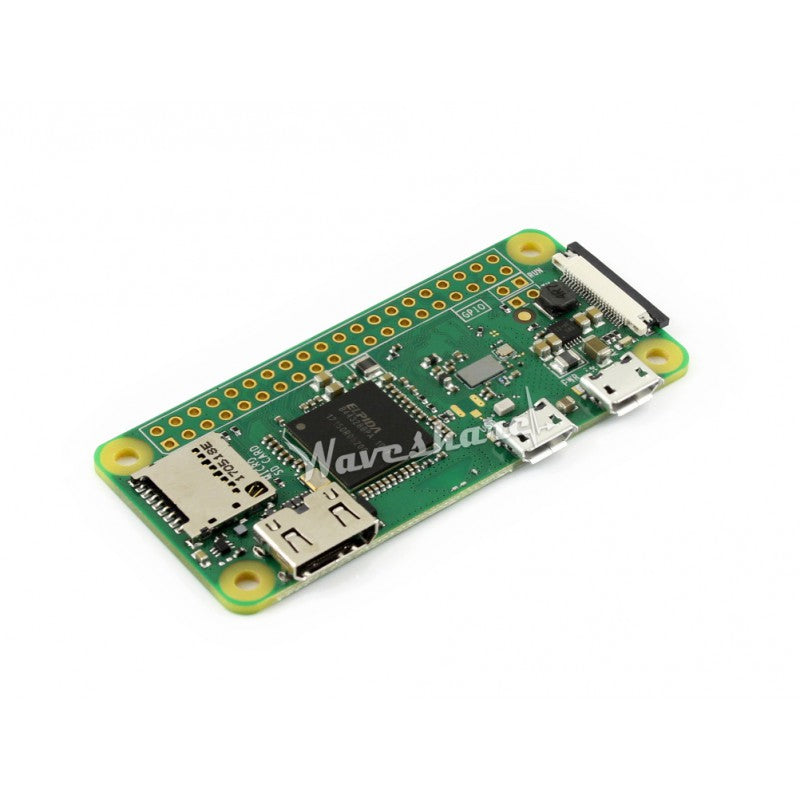

Raspberry Pi Zerois a cost-effective, small-to-medium-size board in the Raspberry Pi family, adapts BCM2835 processor with ARM11 single-core. TheRaspberry Pi Zero Zero Whas all the functionality of the original Pi Zero, but comes with added WiFi and Bluetooth connectivity.Zero WHadds a 40PIN pre-soldered GPIO header, making it more convenient for users to debug and use.

Features of Raspberry Pi Zero 2W

  • Broadcom BCM2710A1, 1GHz quad-core 64-bit Arm Cortex-A53 CPU
  • 512MB LPDDR2 SDRAM
  • 2.4GHz 802.11 b/g/n wireless LAN
  • Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna
  • Mini HDMI port and micro USB On-The-Go (OTG) port
  • microSD card slot
  • CSI-2 camera connector
  • HAT-compatible 40-pin header footprint (unpopulated)
  • Micro USB power
  • Composite video and reset pins via solder test points
  • H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)
  • OpenGL ES 1.1, 2.0 graphics

Features of Raspberry Pi Zero /W

  • Broadcom BCM2835, 1GHz ARM11 single-core
  • 512MB LPDDR2 SDRAM
  • 2.4GHz IEEE 802.11 b/g/n wireless LAN, Bluetooth 4.1, Bluetooth Low Energy (BLE)
  • Onboard 1x Mirco USB 2.0 interface with OTG
  • HAT-compatible 40-pin header
  • TF card slot
  • Mini HDMI output interface with HDMI (1.3 and 1.4) support, 640 × 350 to 1920 × 1200 resolution, PAL and NTSC support
  • Composite video and reset headers
  • CSI-2 camera connector
