Introduction

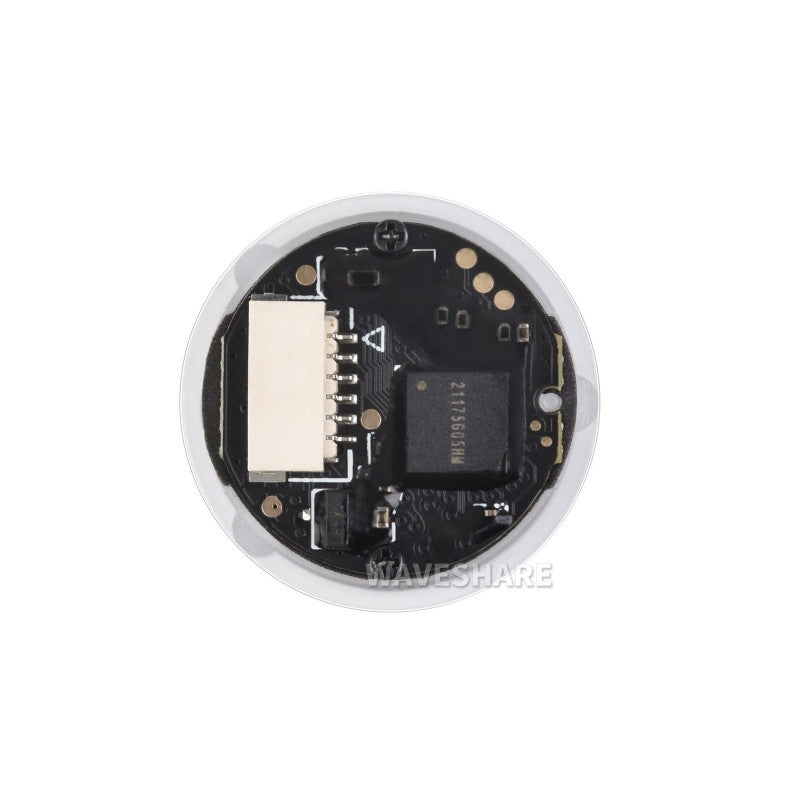

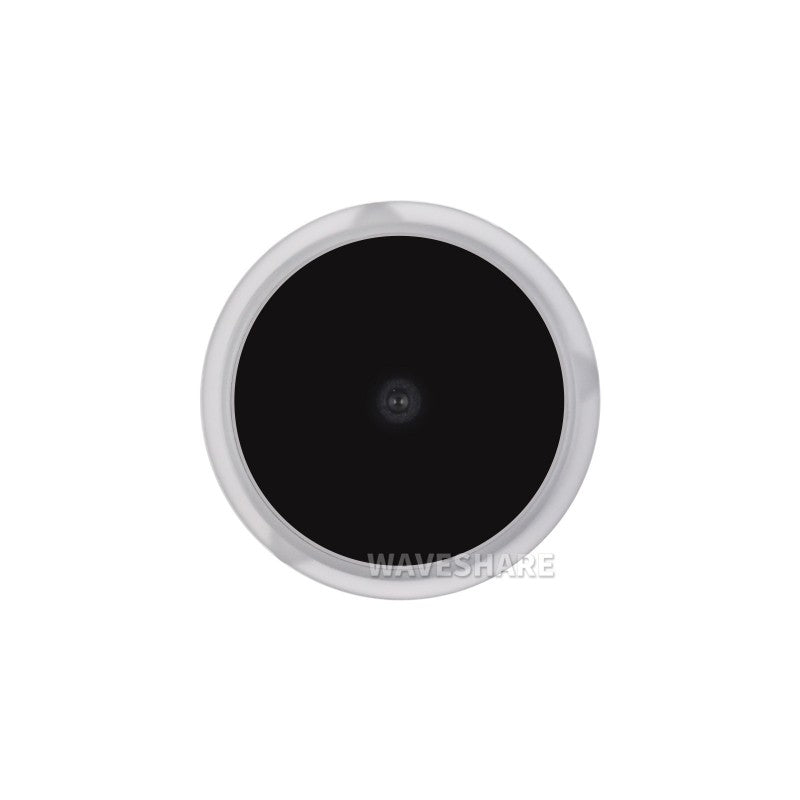

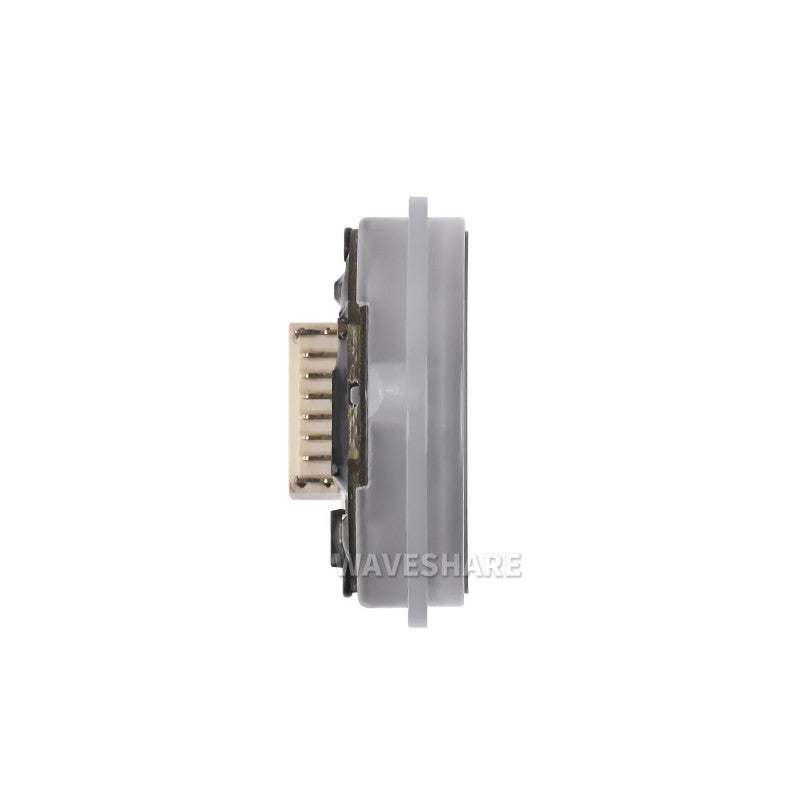

The Barcode Scanner Module (D) is a round 2D barcode scanner module with a round LED indicator, highly integrated and compact size, suitable for elevator and other code scanning applications. Adopts advanced image recognition algorithms, easy to decode various 1D or 2D codes. Onboard UART interface, can be easily integrated into kinds of embedded devices.

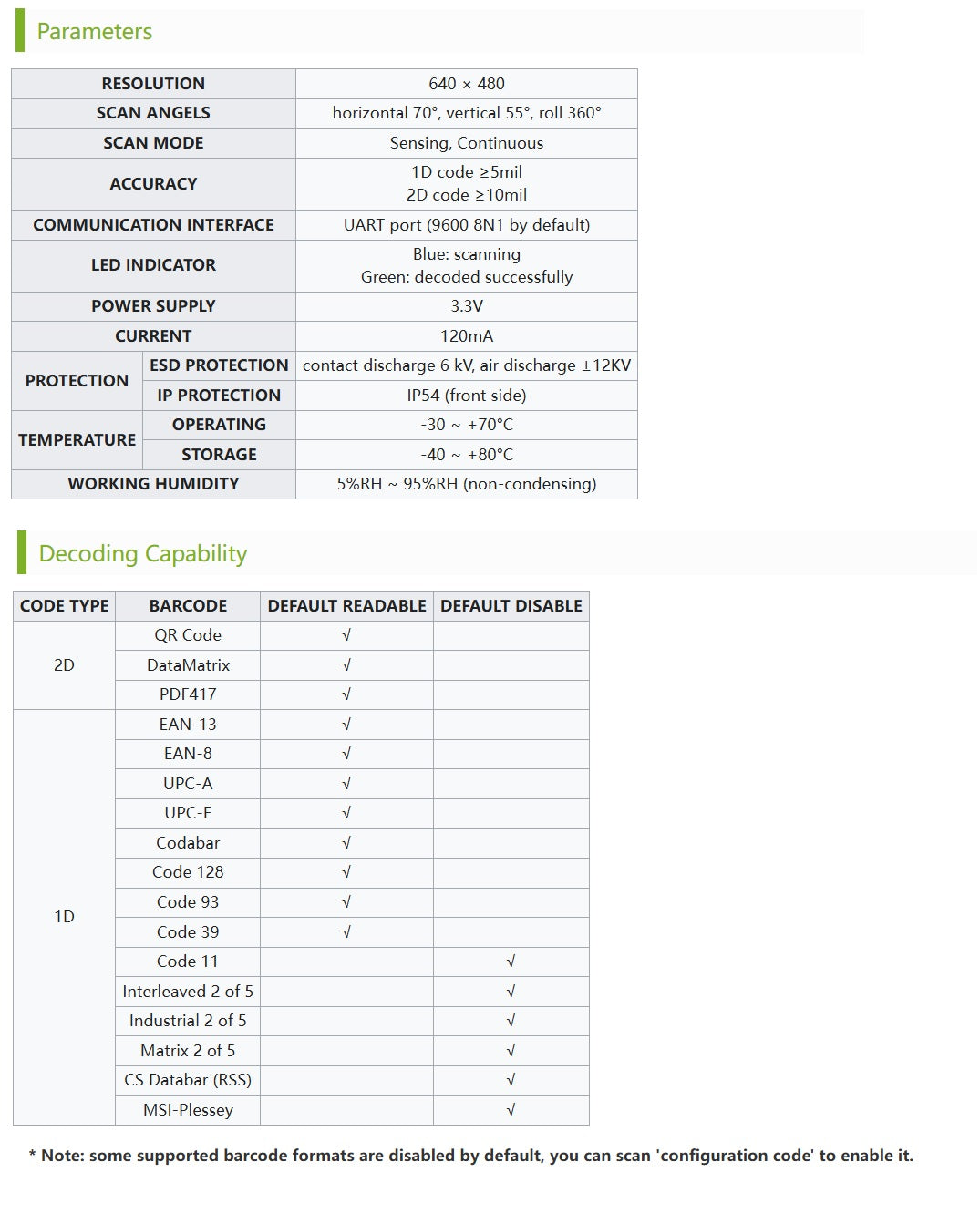

Parameter
- RESOLUTION 640 × 480
- SCAN ANGELS horizontal 70°, vertical 55°, roll 360°
- SCAN MODE Sensing, Continuous
- ACCURACY 1D code ≥5mil
- 2D code ≥10mil

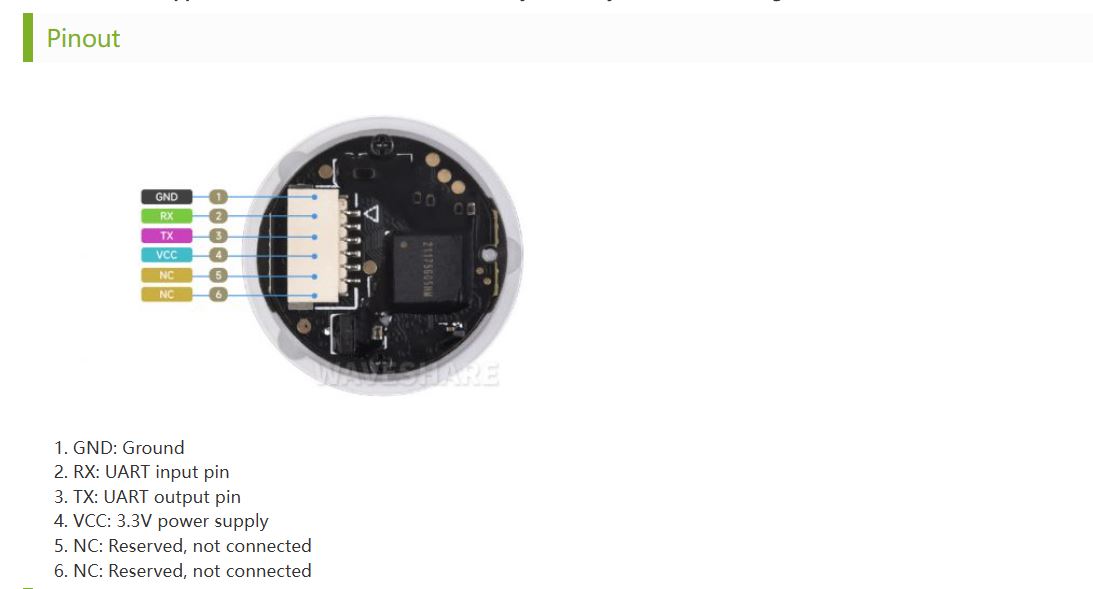

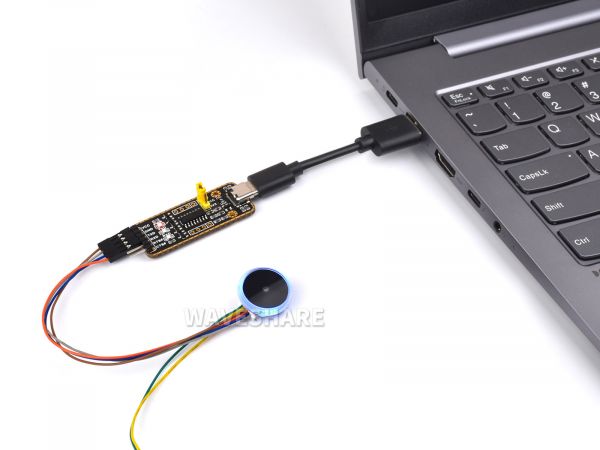

- COMMUNICATION INTERFACE UART port (9600 8N1 by default)
- LED INDICATOR Blue: scanning
- Green: decoded successfully
- POWER SUPPLY 3.3V
- CURRENT 120mA
- PROTECTION ESD PROTECTION contact discharge 6 kV, air discharge ±12KV
- IP PROTECTION IP54 (front side)
- TEMPERATURE OPERATING -30 ~ +70°C
- STORAGE -40 ~ +80°C
- WORKING HUMIDITY 5%RH ~ 95%RH (non-condensing)
