Description

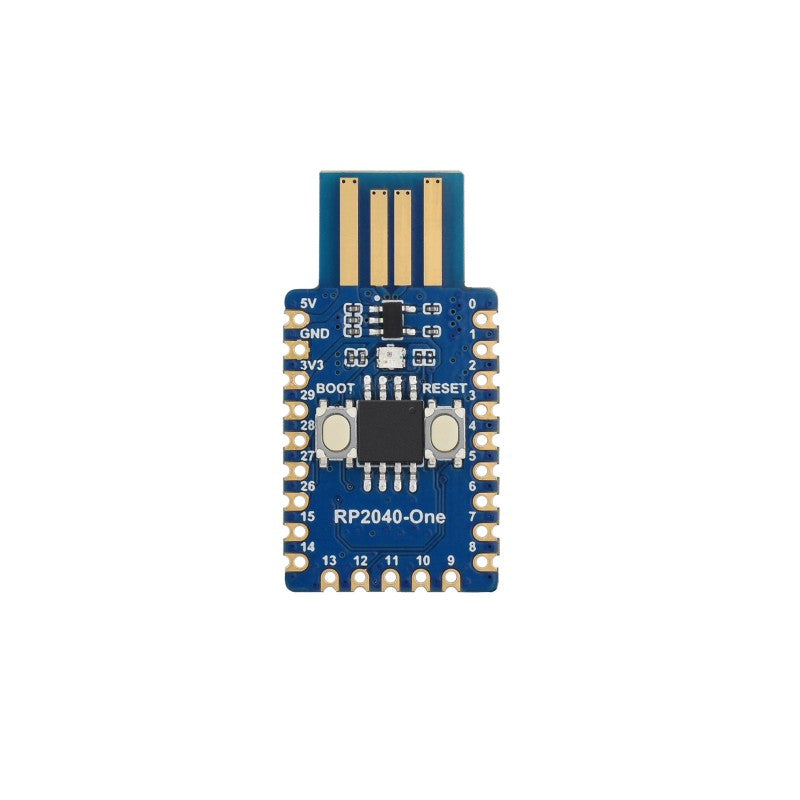

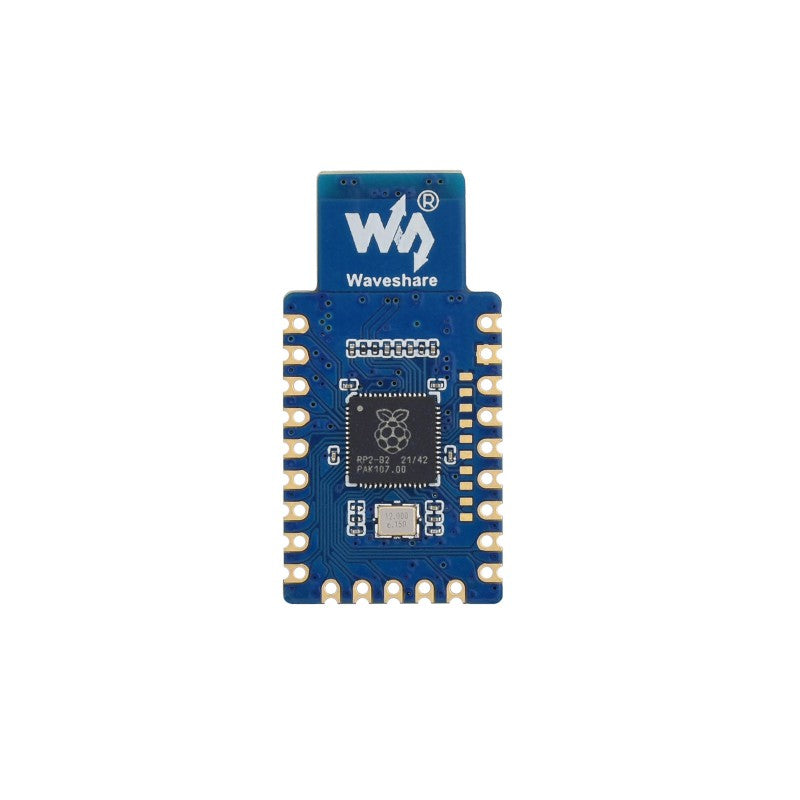

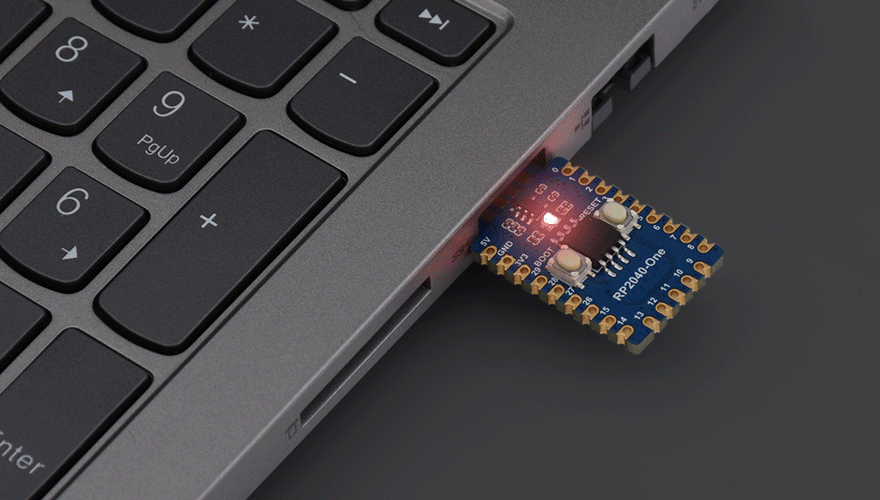

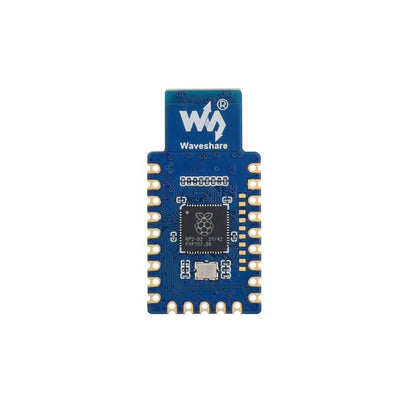

RP2040-One is a mini RP2040 development board. The onboard PCB USB-A connector makes it plug-and-play instantly. Mini body, 29 x multi-function GPIO pins (20 x via edge pinout, others via solder points), and the edge of the PCB adopt the castellated design, which can be easily and quickly integrated into your project.
Features
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133MHZ.
- 246KB of SRAM, and 4MB of onboard Flash memory.
- The castellated module allows soldering directly to carrier boards.
- USB1.1 with device and host support.
- Low-power sleep and dormant modes.
- Drag-and-drop programming using mass storage over USB.
- 29 x multi-function GPIO pins (20x via edge pinout, others via solder points).
- 2 x SPI, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels.
- Accurate clock and timer on-chip.
- Temperature sensor.
- Accelerated floating-point libraries on-chip.
- 8 x Programmable I/O (PIO) state machines for custom peripheral support.
Documentation
- RP2040-One Schematic Diagram
- RP2040-One Datasheet
- RP2040-One 3D Model
- Rp2040 datasheet.pdf
- Hardware design with rp2040.pdf
