Description

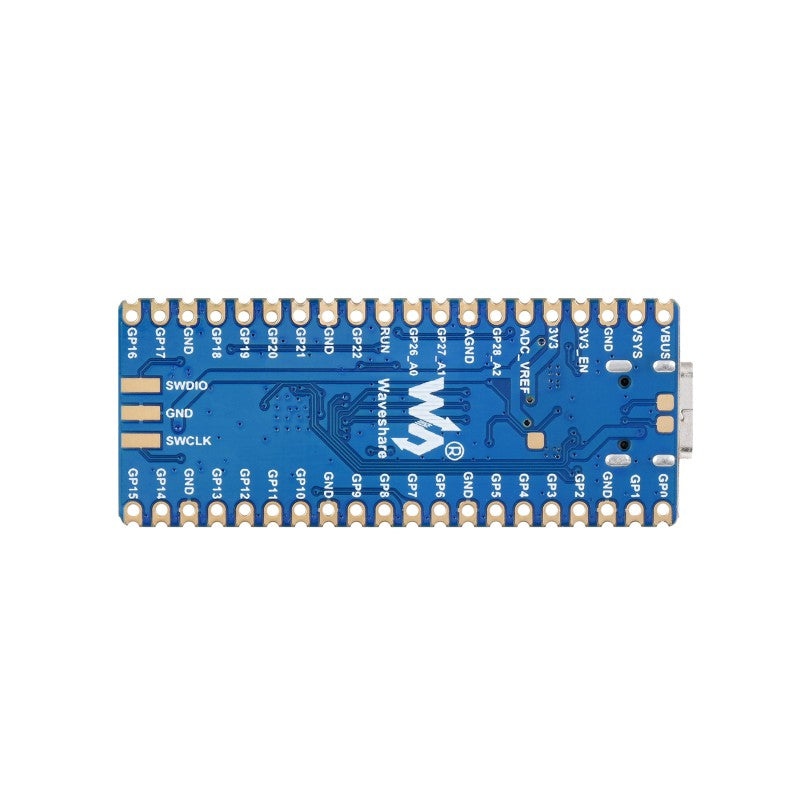

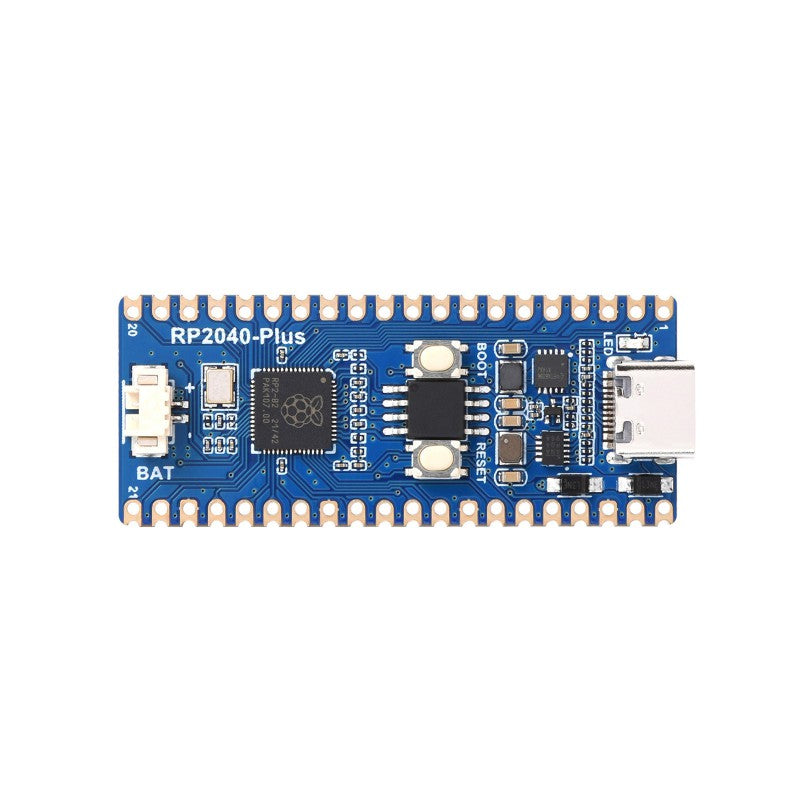

This product is developed based on the RP2040 development board, which is an enhanced version of the Raspberry Pi Pico.
In addition to being compatible with most Raspberry Pi Pico modules, it enhances or adds additional features.
Features
- RP2040 microcontroller chip designed by Raspberry Pi
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- Built-in 264KB SRAM and 4MB/16MB onboard Flash
- Castellated module allows soldering directly to carrier boards
- Supports USB1.1 hosts and slave devices
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-functional GPIO pins
- Multiple hardware peripheralsSPI × 2I2C × 2UART × 212-bit ADC × 3Controllable PWM channel × 16
- Accurate clock and timer on-chip
- Temperature sensor
- On-chip accelerated floating-point library
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
