Description

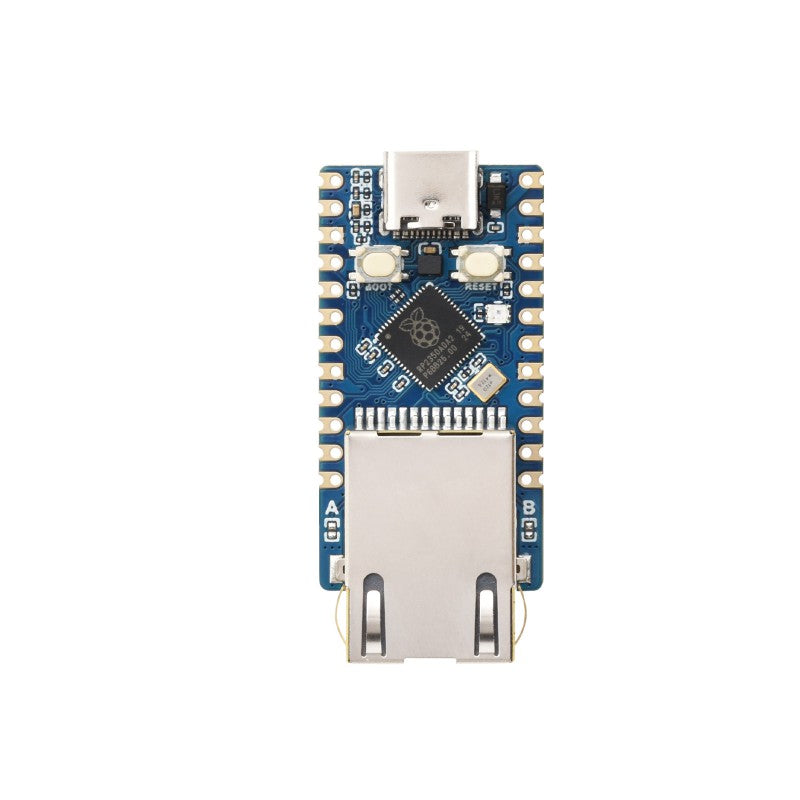

The RP2350-ETH is a mini RP2350 development board that allows you to have an integrated TCP/IP protocol stack for network communication.
On a very small board, 14 multi-functional GPIO pins are brought out, and the PCB edge uses half-hole processing, making it easy and quick to integrate into projects.

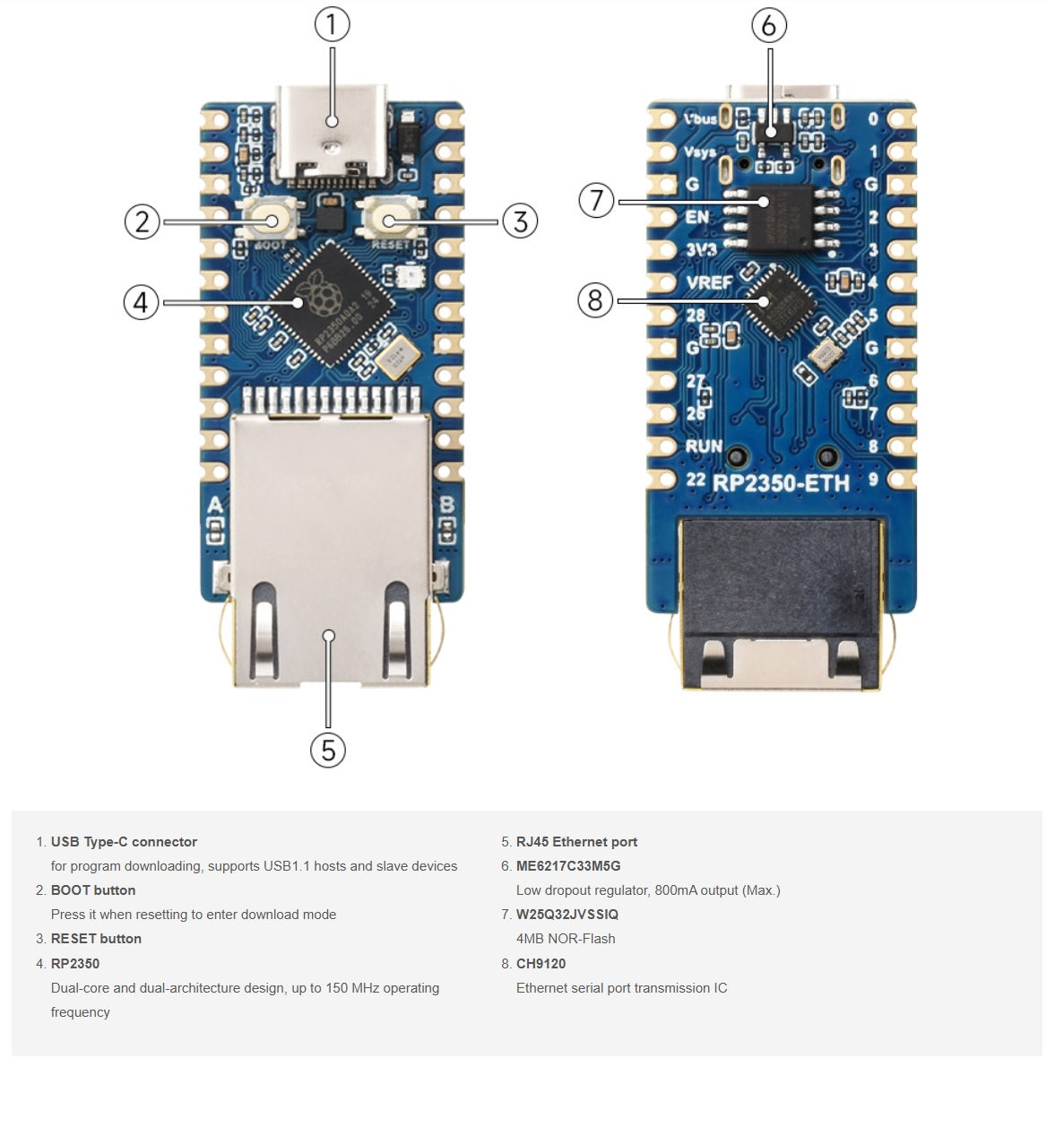

Features
- RP2350 microcontroller chip officially designed by Raspberry Pi
- Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz
- Built-in 520KB of SRAM and 4MB of on-chip Flash
- Onboard CH9120 with integrated TCP/IP protocol stack
- Set network parameters such as chip working mode, port, and IP through host computer software and serial port commands
- Castellated module allows soldering directly to carrier boards
- Drag-and-drop downloads can be made by USB recognition as mass storage
- 14 × multi-function GPIO pins of RP2350
- Multiple hardware peripheralsSPI(SPI0) × 1I2C × 2UART × 212-bit ADC × 3Controllable PWM channel × 13
- Built-in temperature sensor on chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Documentation
- RP2350-ETH Schematic diagram
- RP2350-ETH Datasheet
- RP2350-ETH-STEP file (3D model)
- CH9120 Datasheet
- CH9120 Serial port instruction set
- RP2350 Datasheet
- RP2350 Hardware Design Reference Manual
