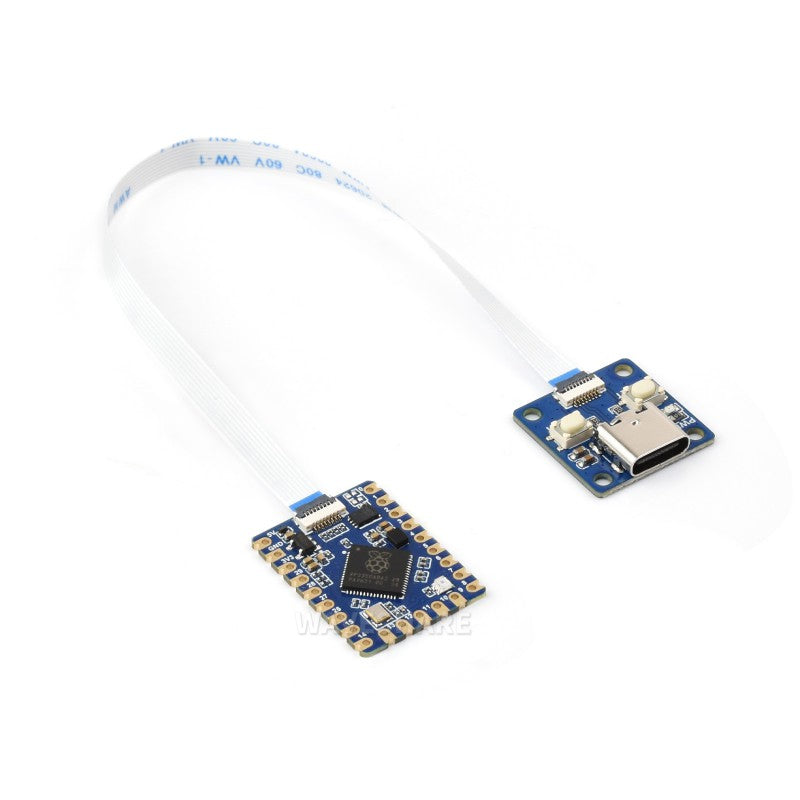

The RP2350-Tiny micro development board uses the RP2350A developed by Raspberry Pi as the core
The split design separates the USB and button circuits, reducing the overall thickness and volume of the PCB, making it easier for users to integrate into the project
With a split design, compact size, and very thin thickness, this board is ideal for projects that require a small size
Whether you're a beginner or an experienced developer, the RP2350-Tiny is a great choice for your next project
Features
RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz
520KB of SRAM, and 4MB of on-board Flash memory
Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
28 × multi-function GPIO pins (20 via edge pinout, others via solder points)
