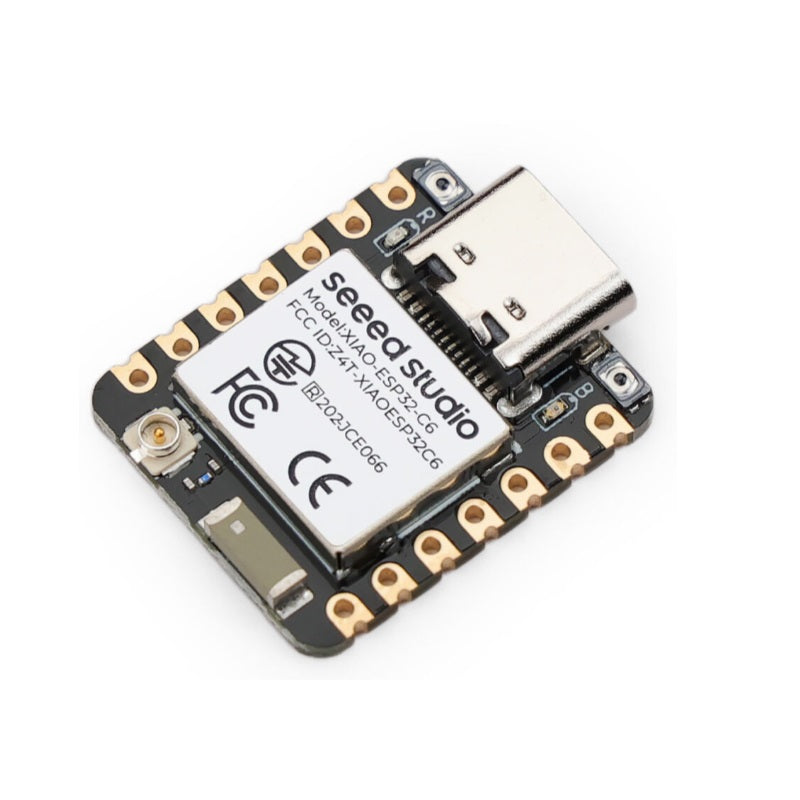

Seeed Studio XIAO ESP32-C6

Description

XIAO ESP32C6 is a cost-effective MCU based on Espressif’s ESP32-C6. This compact MCU excels in Matter-compliant smart home applications with its support for various wireless connectivity (2.4GHz Wi-Fi 6, BLE 5,Zigbee, and Thread). Designed with the thumb-size footprint and a single-sided mount of the XIAO Series, it's perfect for space-limited projects. Encrypted on the chip, the XIAO ESP32C6 ensures a desired level of security streamlined development experience, and swift market entry by integrating easily with major IoT Cloud platforms.

Features

• Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols.
• Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability
• Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)
• Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna
• Leveraging Power Consumption: Comes with 4 working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.
• Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz
• Classic XIAO Designs: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
• Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud

Specification

• Espressif ESP32-C6 SoC
• Two 32-bit RISC-V processors, with the high-performance one
  running up to 160 MHz, and the low-power one clocking up to 20 MHz
• Complete 2.4GHz Wi-Fi 6 subsystem
• BLE: Bluetooth 5,Bluetooth mesh
• Zigbee,Thread,IEEE802.15.4
• 512KB SRAM & 4MB Flash

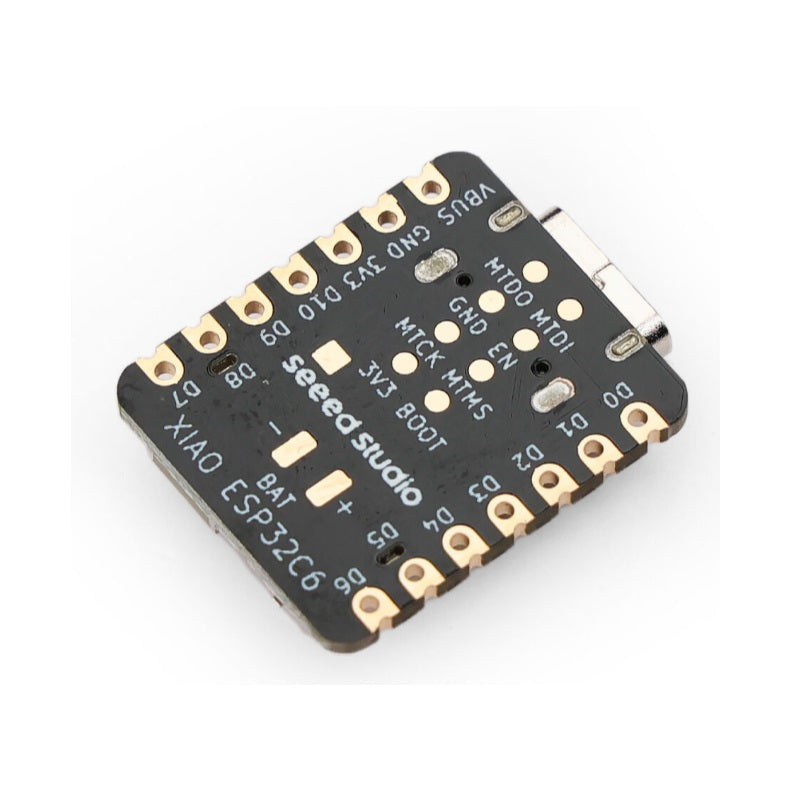

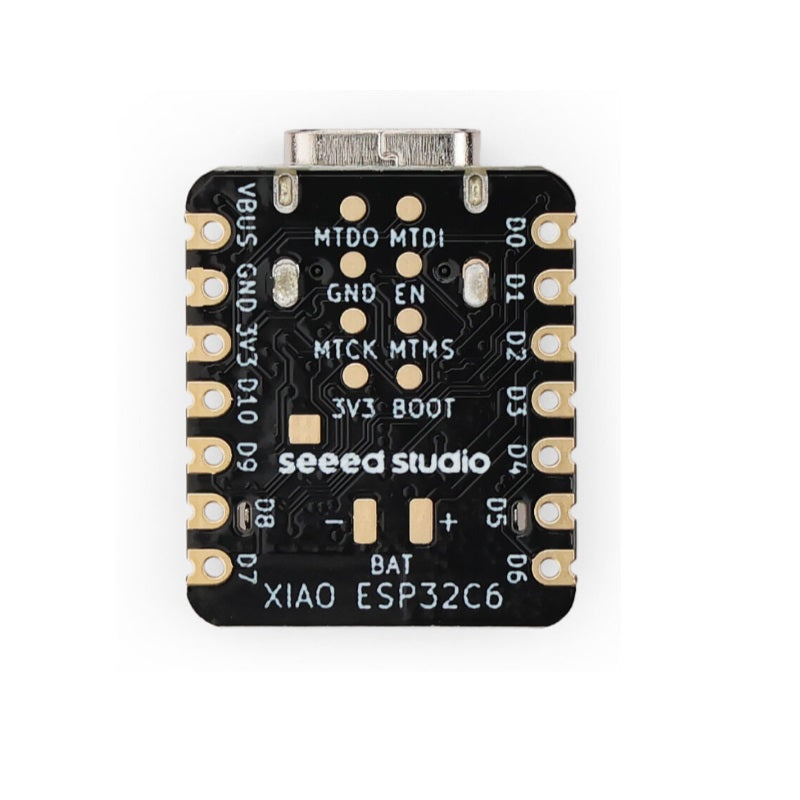

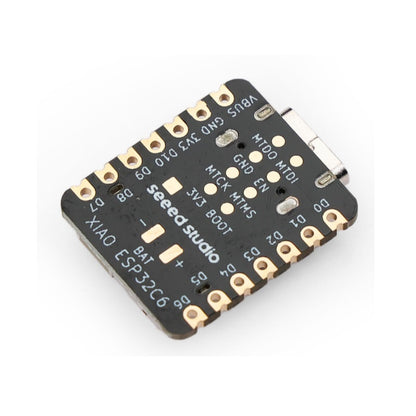

• 1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO

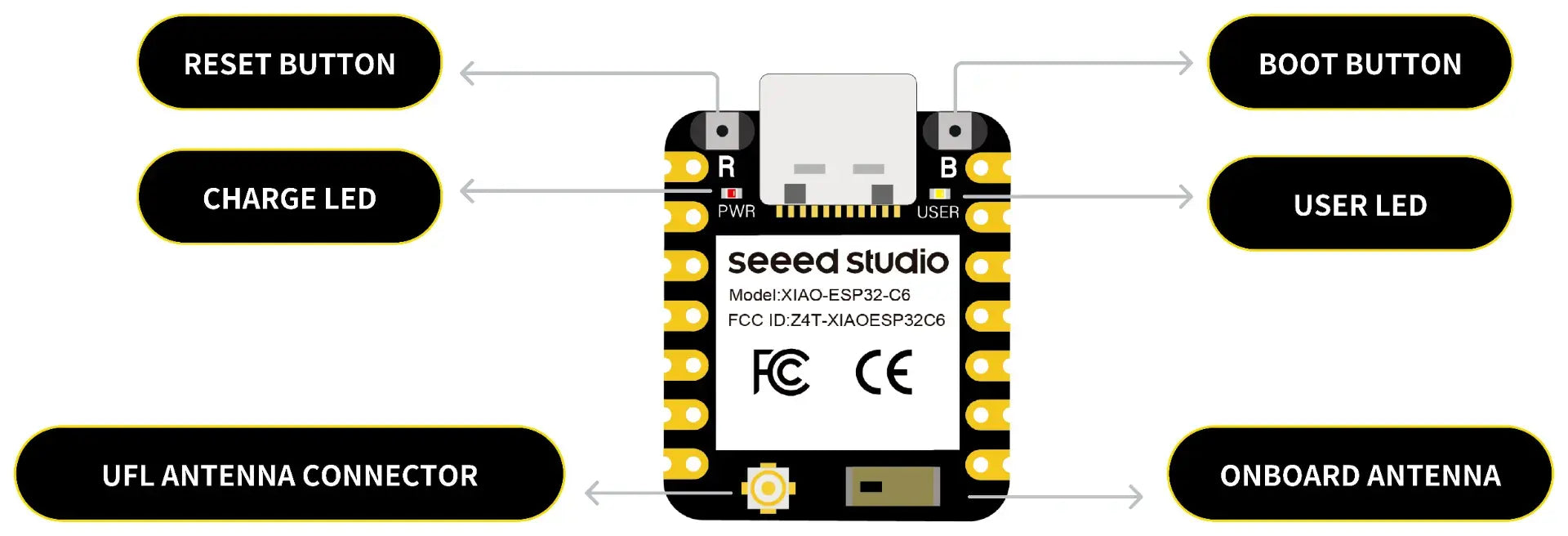

• 1x Reset button, 1xBoot button
• Size: 21 x 17.8mm
• Input voltage (Type-C): 5V Input voltage (BAT): 4.2V
• Circuit operating Voltage (ready to operate):
• - USB:5V@9mA
• - BAT:3.8V@9mA
• Charging battery current: 100mA
• Modem-sleep Model: ~ 30 mA
• Light-sleep Model: ~ 2.5 mA
• Deep Sleep Model: ~15 μA
• Working Temperature: -40°C ~ 85°C

Documentation

• PCN-XIAO Series Packaging Upgrade.pdf
