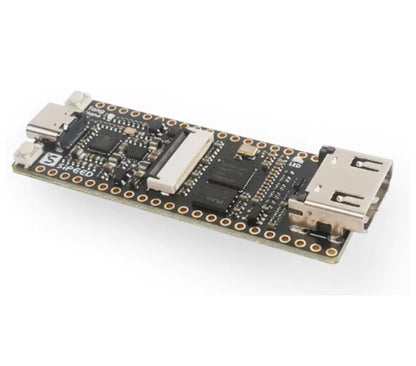

Sipeed Lichee Tang Nano 4K Gowin Minimalist FPGA GoAI Develop-ment Board HDMI Camera

Introduction

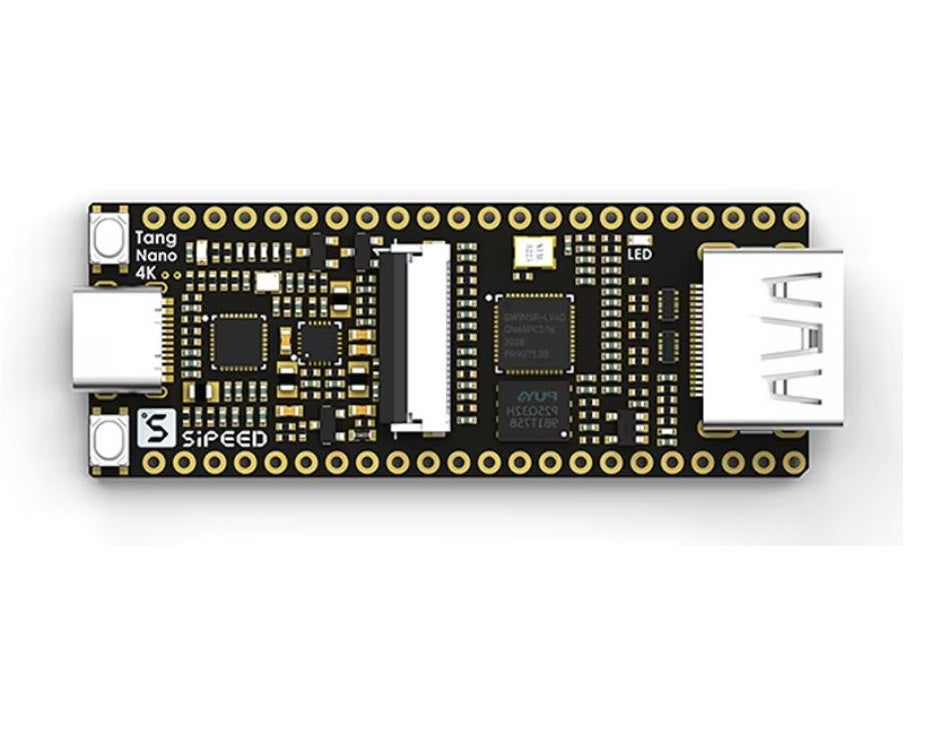

Tang Nano 4K is a development board designed based on Gowin little-bee GW1NSR-LV4CQN48PC6/I5 FPGA chip. The board is equipped with camera interface and HDMI interface. There is also an onboard USG-JTAG debugger, which make it convenient for users to use. Its Cortex-M3 hardcore can help users study mcu.

Parameter

The GW1NSR-LV4CQN48PC6/I5 on the Tang Nano 4K development board is a System-in-Package (SiP) chip, which integrates a GW1NS series FPGA (Field Programmable Gate Array) and a PSRAM memory chip.

• The sheet below shows difference with previous product

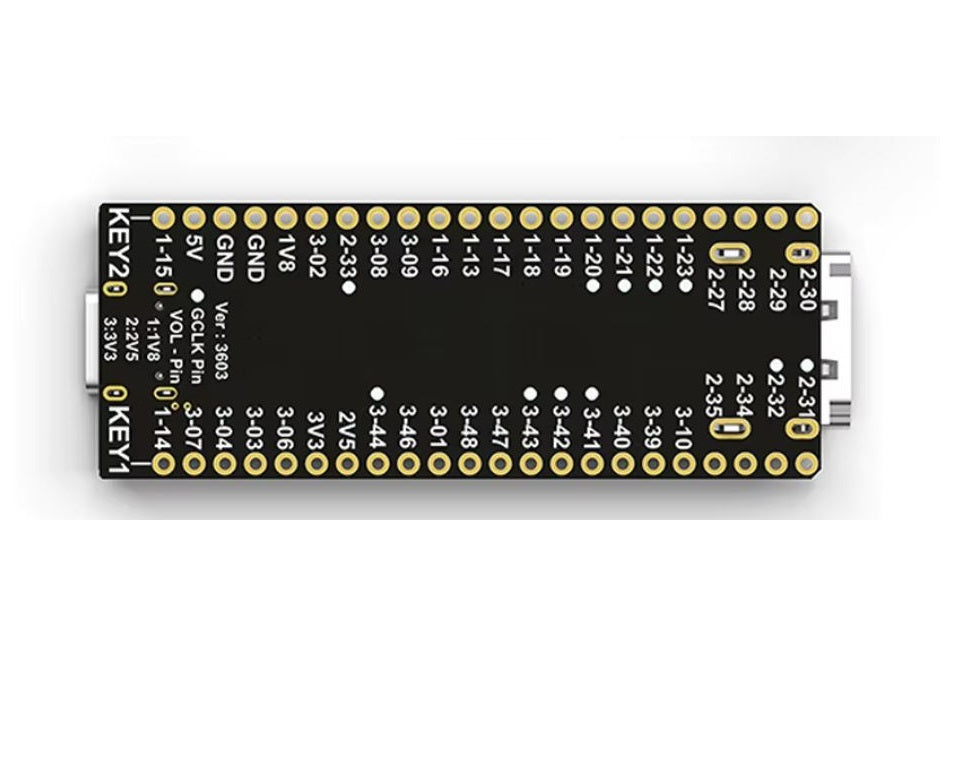

Pinmap

Related Links

• Datasheet
• Schematic
• Bit number map
• Dimensional drawing
• 3D File
• hip Manual
• Examples
• Product Wiki
