Introduction

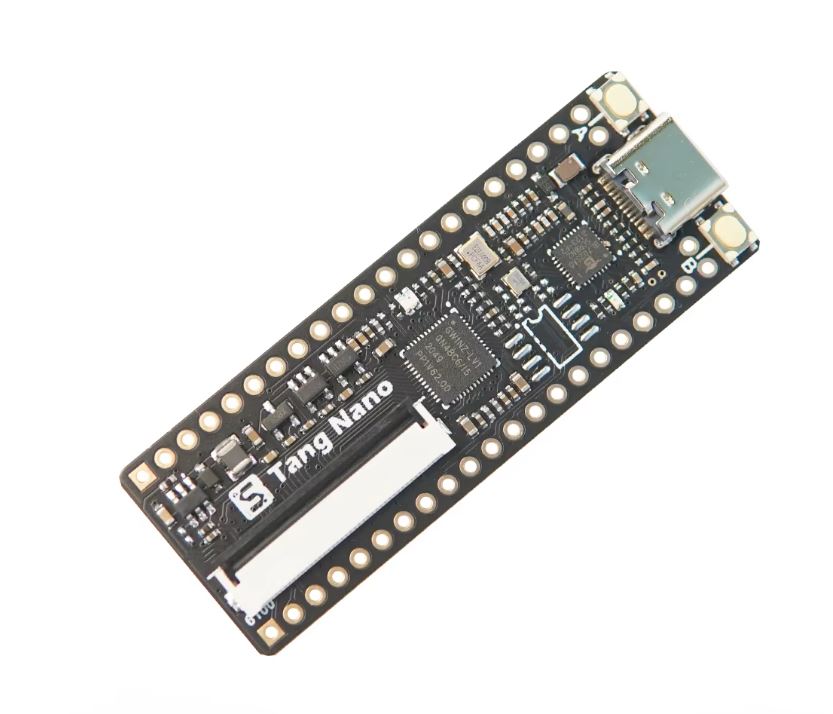

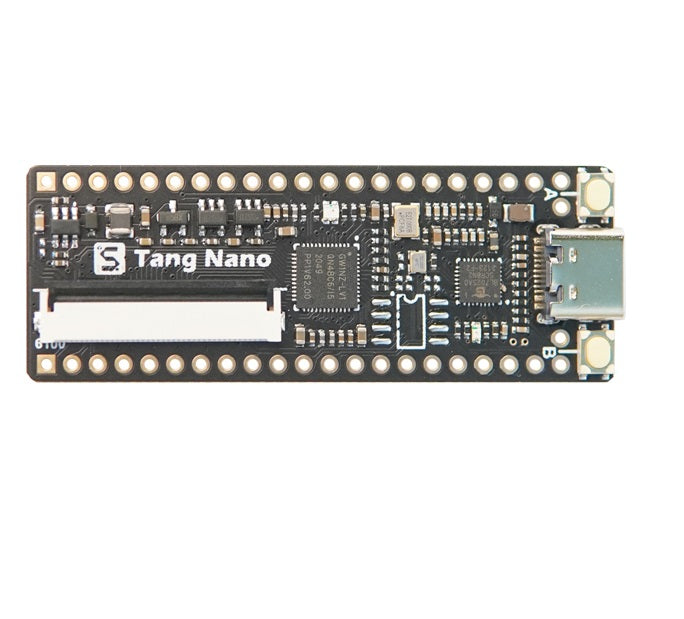

Tang Nano 1K is a core board designed based on Gowin GW1NZ-LV1 FPGA chip. The board is equipped with RGB LCD interface and onboard USG-JTAG debugger, which make it convenient for users to use. User can use this for small digital logic design and experiment.
Parameter
The Tang Nano 1K development board is equipped with the GW1NZ-LV1QN48C6/I5 FPGA chip, a powerful and versatile device featuring rich logic resources and support for multiple I/O voltage standards. It integrates embedded Block SRAM (BSRAM), Phase-Locked Loops (PLLs), and Flash memory, making it a robust non-volatile FPGA solution. Furthermore, the on-board 27MHz active crystal oscillator provides a highly precise clock source for various FPGA timing operations.

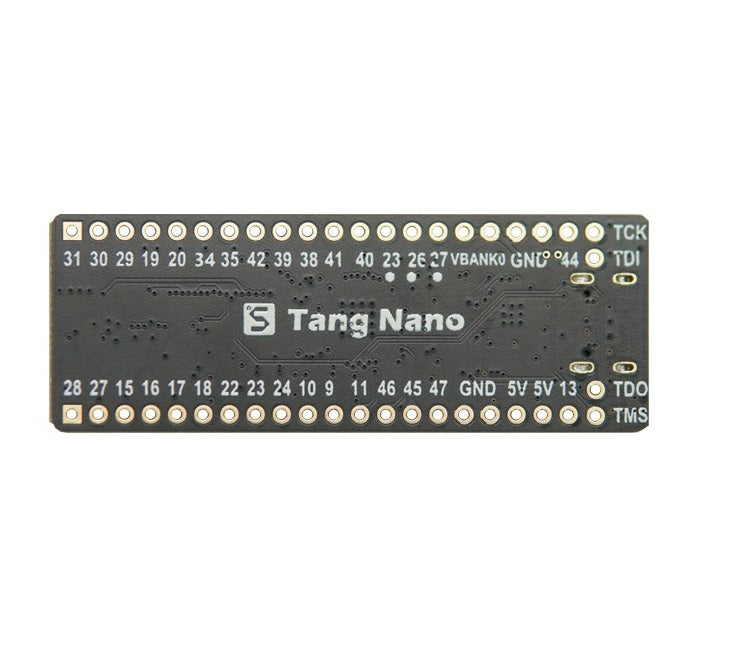

Pinmap
