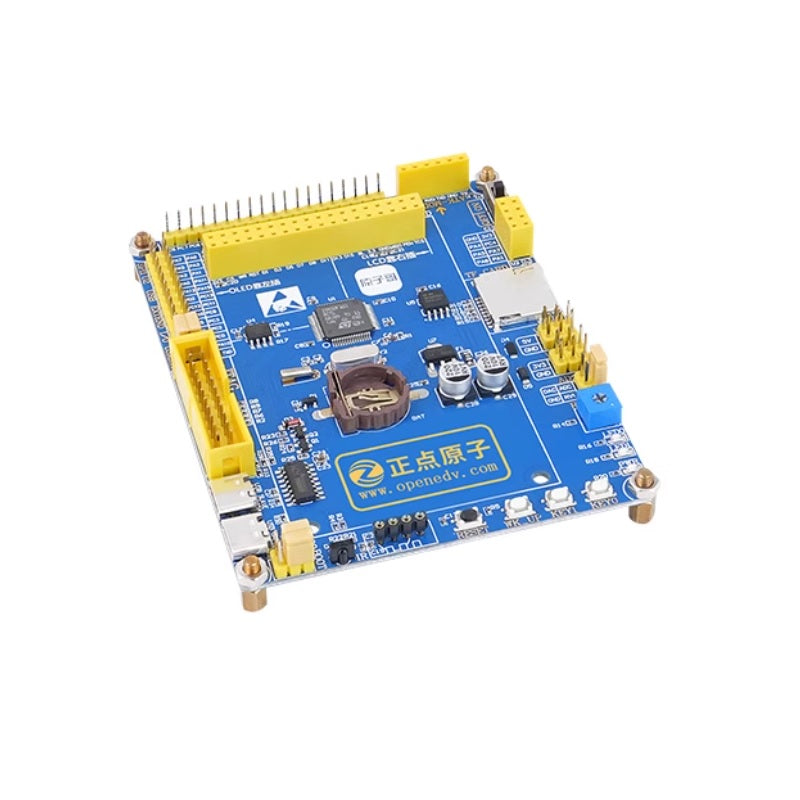

STM32F103RCT6 mini development board

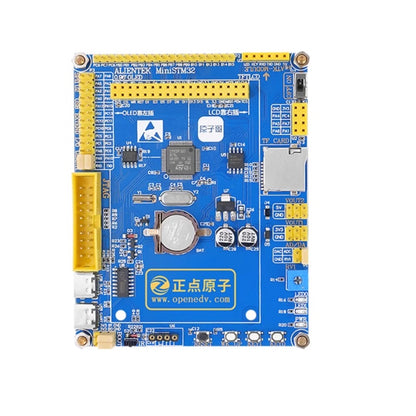

Hardware Design Features of MiniSTM32 V4 Development Board

1. Rich Interface Support
The board provides over ten types of standard interfaces, enabling convenient experimentation and development with various peripherals.

2. Flexible Design
Most onboard resources are configurable to meet different application requirements. All I/O pins (except those used by crystal oscillators) are accessible, significantly enhancing expansion capabilities. The integrated one-click download function eliminates the need for repeated B0/B1 configuration, allowing complete STM32 development through a single USB cable.

3. Sufficient Resources
Main controller: STM32F103RCT6 with 256KB internal Flash, extended with 8MB external Flash to accommodate substantial data storage requirements.

4. User-Friendly Design
- Clear silkscreen labeling with outlined boxes for intuitive interface identification
- Frequently used peripherals highlighted with prominent silkscreen markings
- Ergonomic interface layout ensuring convenient operation
- Logical resource distribution maximizing utilization efficiency

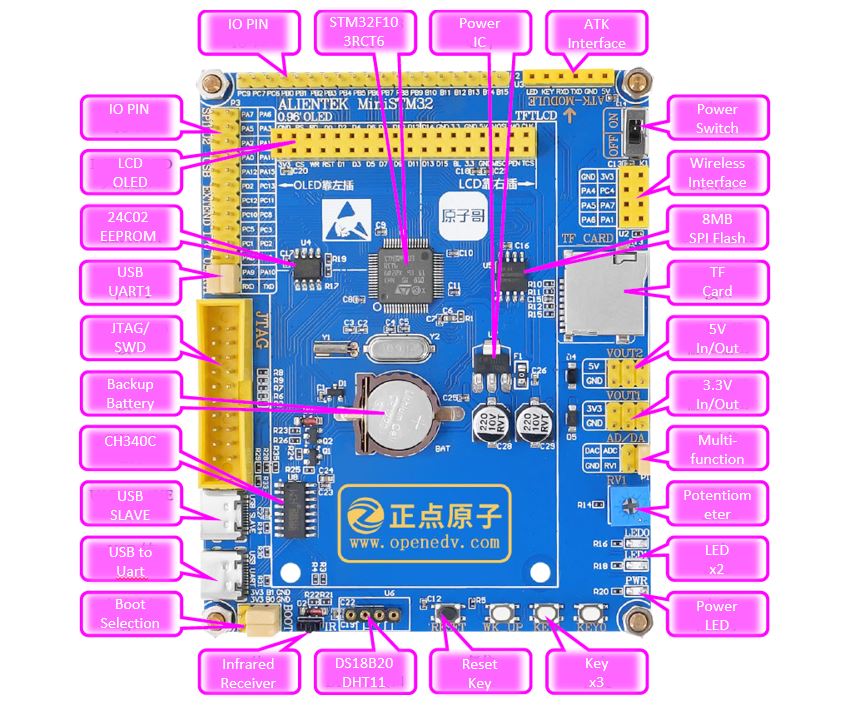

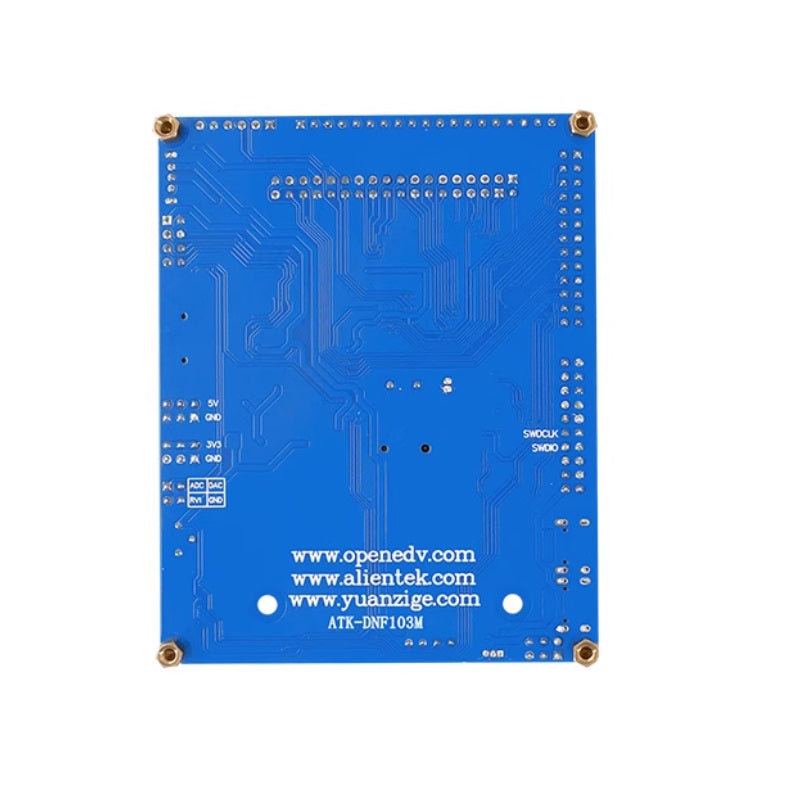

MiniSTM32 V4 Development Board - Complete Specifications

Main Controller
- CPU: STM32F103RCT6 ×1
- Flash: 256KB
- SRAM: 48KB

Memory & Storage
- SPI Flash: 8MB ×1
- EEPROM: 24C02, 2Kb (256B) ×1
- TF Card Interface ×1

Indicators & Controls
- Power Indicator: Blue LED ×1
- Status Indicators: Red (LED0), Green (LED1) ×2
- Reset Button: For MCU & LCD reset ×1
- Function Buttons: KEY0, KEY1, KEY_UP (with wake-up function) ×3
- Power Switch: Main board control ×1
- Adjustable Potentiometer: RV1 for ADC testing ×1

Communication & Interfaces
- USB to UART: CH340C chip ×1
- USB Slave Interface ×1
- Infrared Receiver: With remote control ×1
- Wireless Module Interface: Supports NRF24L01, etc. ×1
- ATK Module Interface: Supports various modules (Bluetooth/GPS/MPU6050, etc.) ×1
- JTAG/SWD Debug Interface ×1

Display & Sensors
- LCD Interface: Supports 2.8/3.5/4.3/7-inch TFT LCD modules (right-aligned insertion)
- OLED Module Interface: Shared with LCD interface (left-aligned insertion)
- Digital Temperature/Humidity Sensor: Supports DS18B20, DHT11, etc. ×1

Power Management
- 5V Power Input/Output ×1
- 3.3V Power Input/Output ×1
- Backup Battery Interface: For RTC ×1
- Boot Mode Selection Interface ×1

Expansion & Special Features
- Multi-function Interface: For DAC/ADC/TPAD/RV1, etc. ×1
- I/O Ports: 47 I/Os exposed (all except 4 for RTC crystal)
- One-Click Download Circuit: Proprietary design ×1
