STM32F750N8H6 polaris development board

The board provides over ten standard interfaces, allowing convenient experimentation and development with various peripherals. We adopt a core board + baseboard form factor, where one baseboard can be used to learn multiple MCUs, reducing redundant investments. Many resources on the board can be flexibly configured to meet usage requirements under different conditions. We have brought out 112 I/O ports, greatly facilitating expansion and usage. The onboard one-click download feature eliminates the hassle of frequently setting B0 and B1, enabling STM32 development with just a single USB cable. The board features a high-performance audio codec chip, a six-axis sensor, a Gigabit Ethernet port, an ambient light sensor, and various interface chips to meet diverse application needs.

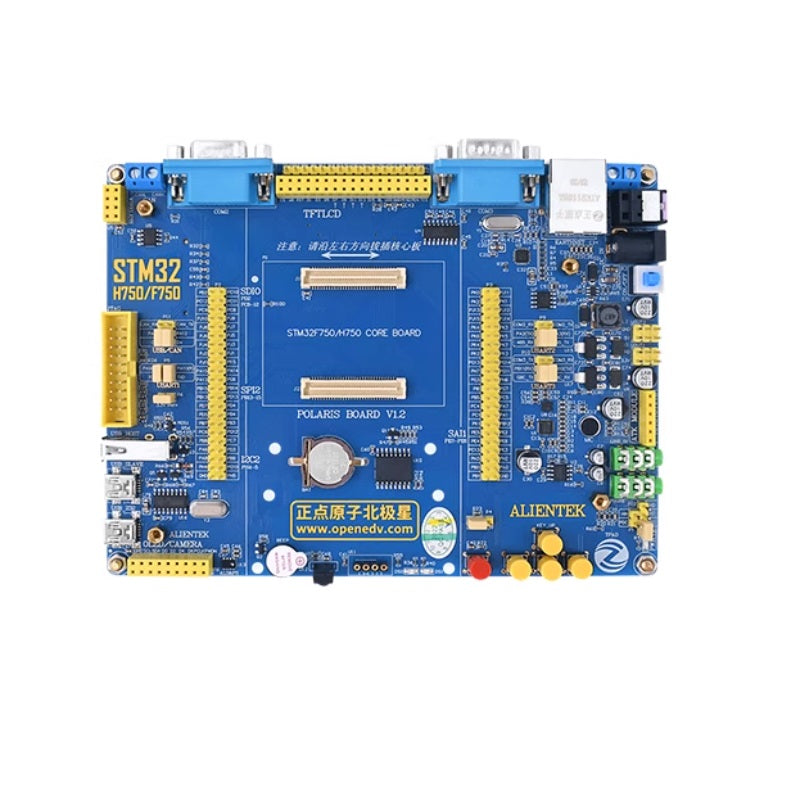

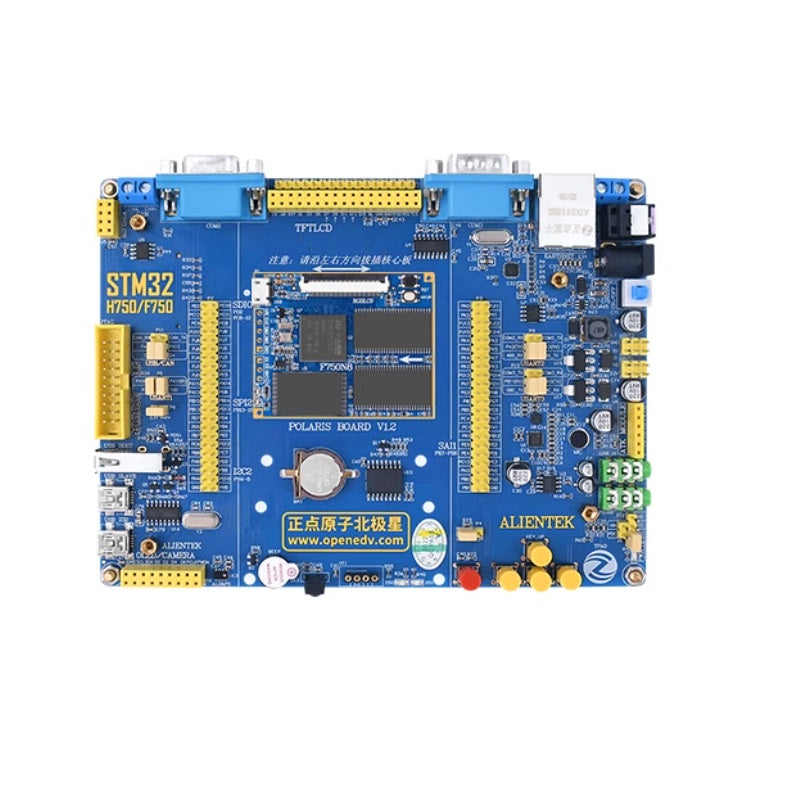

Base Board Interface

1x Connection for STM32F750/H750 Core Board
1x Power Indicator (Blue)
2x Status Indicators (Red - DS0; Green - DS1)
1x Reset Button (for MCU & LCD reset)
4x Function Buttons (KEY0, KEY1, KEY2, KEY_UP - with wake-up function)
1x Capacitive Touch Button (TPAD)
1x Power Switch (controls power for the entire board)
1x Buzzer (Active buzzer for audible alerts)

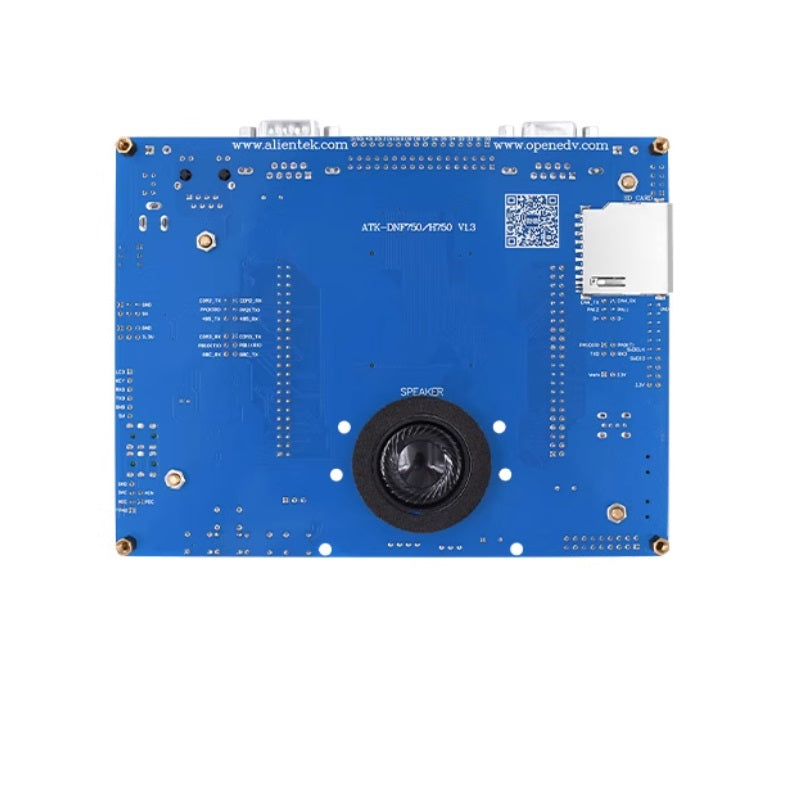

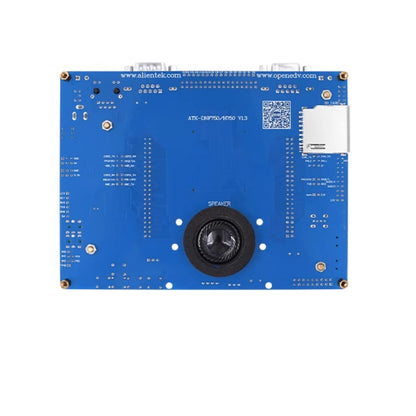

1x Onboard Speaker (on the back of the board for audio playback)
1x Infrared Receiver (for IR remote control, includes an IR remote)
1x Ambient Light Sensor (measures ambient light intensity, proximity, IR intensity, etc.)
1x 6-Axis Sensor (ICM20608, 3-axis gyroscope + 3-axis accelerometer for motion detection)
1x Audio Codec Chip (ES8388)
1x Wireless Module Interface (for modules like NRF24L01)
1x Optical Fiber Input Interface (for receiving SPDIF audio via optical fiber)
1x FDCAN Interface (FDCAN communication, uses TJA1050 chip)
1x RS485 Interface (with 120Ω termination resistor)
2x RS232 Interfaces (one male, one female connector)
1x Digital Temperature & Humidity Sensor Interface (supports DS18B20, DHT11, etc.)
1x ATK Module Interface (supports various modules from Punctual Atom, e.g., Bluetooth, GPS, MPU6050)
1x LCD Interface (supports various Punctual Atom TFT LCD modules: 2.8/3.5/4.3/7 inch)
1x Camera Module Interface (shared with OLED interface, supports various Punctual Atom camera modules)
1x OLED Module Interface (shared with the camera module interface)
1x USB to UART Interface
1x USB Device (SLAVE) Interface
1x USB Host (HOST) Interface
1x RS232/485 Selection Interface (selects PA2/PA3 for RS232 or RS485)
1x RS232/Module Selection Interface (selects PB10/PB11 for RS232 or ATK MODULE)
1x CAN/USB Selection Interface (selects PA11/PA12 for CAN or USB)
1x SD Card Interface (on the back of the board)
1x 10M/100M Ethernet Port
1x JTAG/SWD Debug Port
1x Microphone (for recording)
1x Stereo Audio Output Interface (for headphones, amplifiers, etc.)
1x Stereo Audio Input Interface (for external audio source input)
1x Multi-function Interface Group (for DAC/ADC/PWM DAC/AUDIO IN/TPAD interconnections)
1x 5V Power Input/Output Port Group
1x 3.3V Power Input/Output Port Group
1x Reference Voltage Setting Interface (for selecting ADC reference voltage)
1x DC Power Input Interface (supports DC 6V~15V input, uses DC005 connector)
1x Boot Mode Selection Configuration Interface
1x Backup Battery Interface (for RTC backup battery)
110x I/O Ports Brought Out (for user expansion and use)
1x One-Click Download Circuit (Punctual Atom patented circuit for easy UART code download)


The hardware design features of the Polaris STM32F750 core board include:

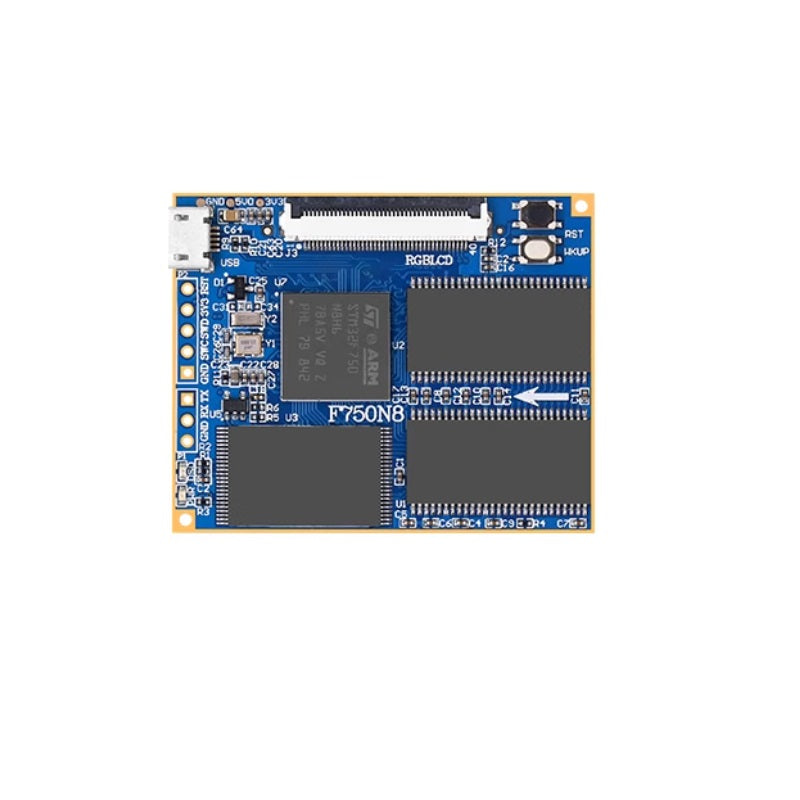

The core board measures only 52mm42mm, making it easy to integrate into various projects. The core board comes with a UART, SWD debugging interface, RGB LCD screen interface, USB interface, and 3.3V & 5V power interfaces. It also brings out 112 I/O ports through board-to-board connectors to meet various application requirements. The core board is equipped with 64MB SDRAM, 8MB CODE SPI FLASH, 32MB DATA SPI FLASH, 512MB NAND FLASH, and EEPROM, among other storage components, to fulfill the needs of various applications.


Core Board Components & Interfaces

1x CPU: STM32F750N8H6 (64KB FLASH, 320KB SRAM)
2x SDRAM: W9825G6KH (32MB each, 64MB total)
1x NAND FLASH: 512MB
2x SPI FLASH: 8MB CODE SPI FLASH & 32MB DATA SPI FLASH
1x EEPROM: 24C02 (256 bytes)
1x Power Indicator (Blue)
1x Status Indicator (Red - DS0)
1x Reset Button (for MCU & LCD reset)
1x Function Button (WK_UP, can be used to wake up the MCU)
1x TTL UART (USART1, for communication and debugging)
1x Set of 5V & 3.3V Pads (for external power input or to supply power externally)
1x RGB LCD Interface (Supports RGB interface LCD screens, RGB565 format)
1x SWD Debug Interface (for code download and emulation debugging)
1x Mini USB Interface (can be used for USB SLAVE/HOST (OTG) functionality)
2x Board-to-Board Connectors (on the bottom, bring out 112 I/O pins for easy connection to various baseboards)
