STM32H562VIT6 mini development board

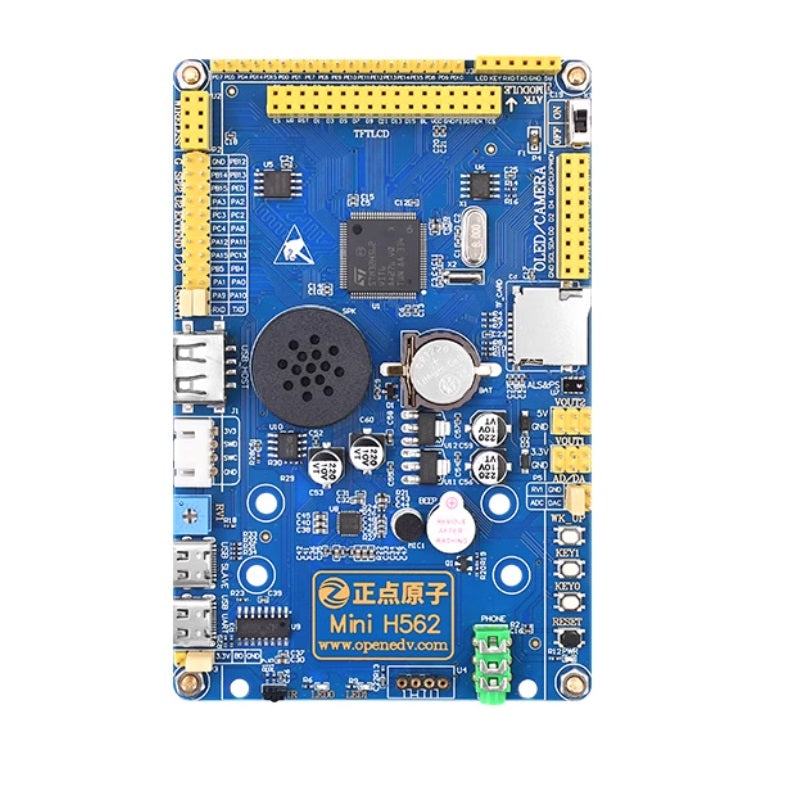

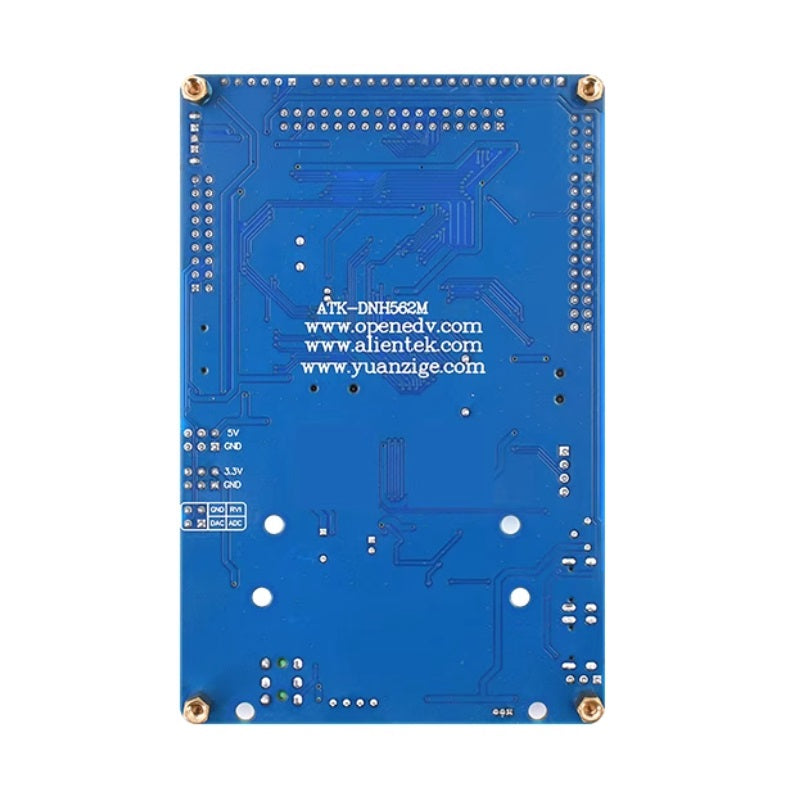

The hardware design features of the Mini STM32H562 development board include: The board provides over ten types of standard interfaces, enabling convenient experimentation and development with various peripherals. Many resources on the board can be flexibly configured to meet different usage conditions. Dozens of I/O ports are exposed, greatly facilitating expansion and application. The main chip uses the STM32H562VIT6, which comes with 2MB of FLASH and 640KB of SRAM, and is externally expanded with 16MB of FLASH to meet large data storage requirements. All interfaces are clearly labeled with silkscreen markings and outlined with boxes for easy identification. Frequently used peripherals are marked with larger silkscreen text for quick location. The interface layout is thoughtfully designed for convenience and ease of use, with rational resource allocation to maximize utility.

Core Components
CPU: 1 × STM32H562VIT6 (2MB FLASH, 640KB SRAM)
SPI FLASH: 1 × 16MB
EEPROM: 1 × 2Kb (256B)

Indicators & Buttons
Power Indicator: 1 × Blue LED
Status Indicators: 2 × LEDs (Red: LED0, Green: LED1)
Reset Button: 1 × For MCU & LCD reset
Function Buttons: 3 × (KEY0, KEY1, KEY_UP - with wake-up function)
Power Switch: 1 × Controls board power

Sensors & Transducers
Adjustable Potentiometer: 1 × (RV1) for ADC experiments
Buzzer: 1 × Active buzzer for audible alerts
Infrared Receiver: 1 × For IR remote control (includes remote)
Ambient Light Sensor: 1 × Measures ambient light, proximity, and infrared intensity

Audio Section
Audio Codec Chip: 1 × ES8388
Microphone (MIC): 1 × For recording
Onboard Speaker: 1 × For audio playback
Stereo Audio Output Interface: 1 × For headphones or amplifiers

Interfaces & Connectors
Wireless Module Interface: 1 × For NRF24L01, etc.
Digital Temp/Humidity Sensor Interface: 1 × Supports DS18B20, DHT11, etc.
ATK Module Interface: 1 × Supports various Atomic modules (Bluetooth, GPS, MPU6050, etc.)
LCD Interface: 1 × Supports various Atomic TFT LCD modules (2.8", 3.5", 4.3", 7", etc.)
Camera Interface: 1 × Shared with OLED interface; supports various Atomic camera modules
OLED Module Interface: 1 × Shared with camera interface; supports various Atomic OLED modules
USB to UART: 1 × For USB to TTL serial communication
USB Device Interface: 1 × For USB SLAVE communication
USB Host Interface: 1 × For USB_HOST communication
TF Card Interface: 1 × For microSD cards
SWD Debug Port: 1 × For debugging and programming
Multifunction Interface: 1 × Set for DAC/ADC/TPAD/RV1 interconnections
5V Power Input/Output: 1 × Set for 5V input or providing 5V output
3.3V Power Input/Output: 1 × Set for 3.3V input or providing 3.3V output
Boot Mode Configuration Interface: 1 × For setting STM32 boot mode
Backup Battery Interface: 1 × For RTC backup battery

I/O Expansion
Extended I/O Pins: 44 × For general-purpose use and expansion
