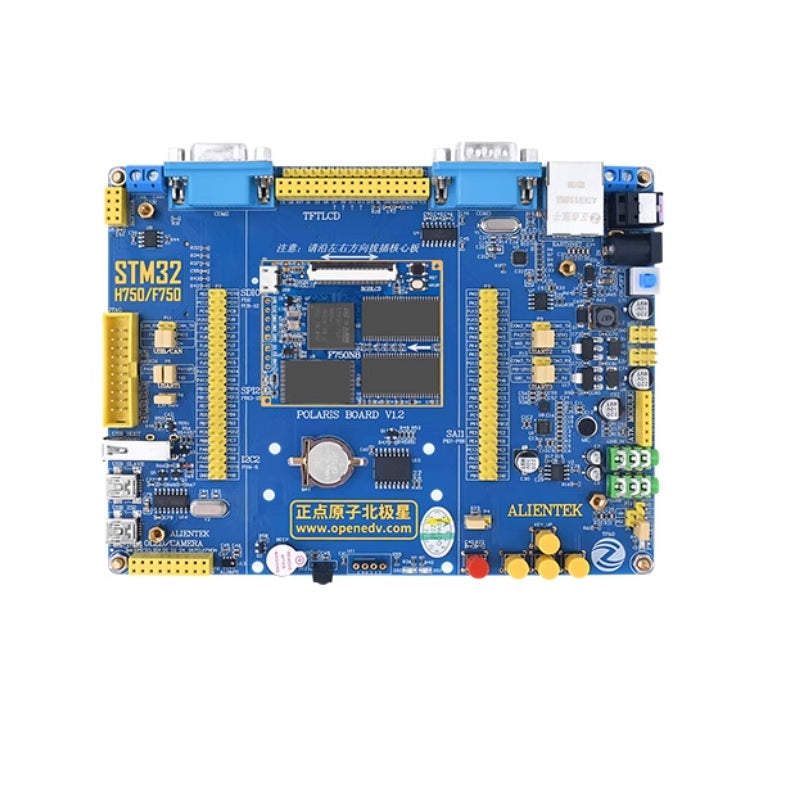

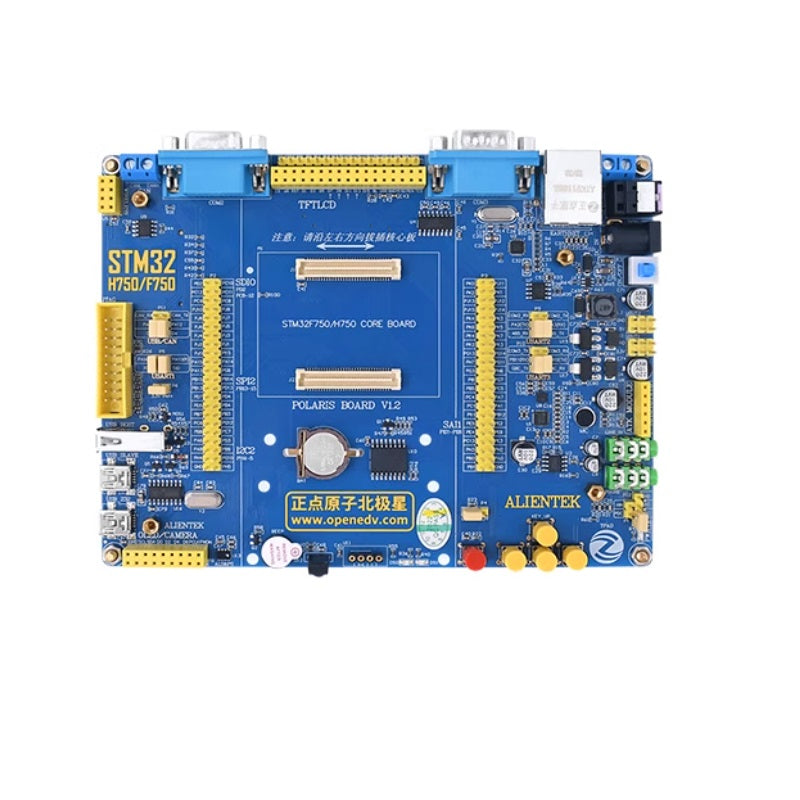

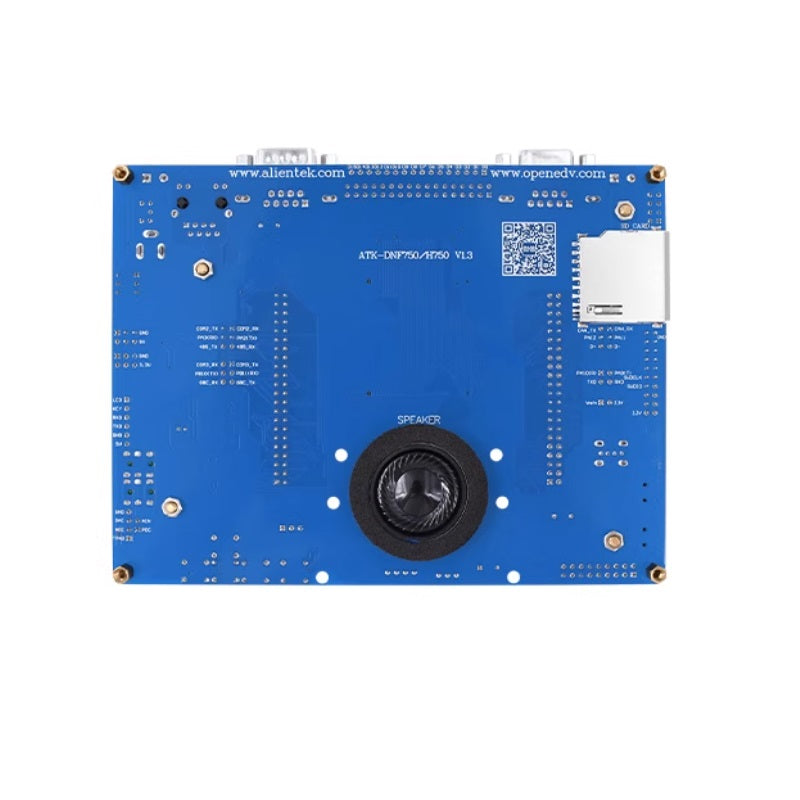

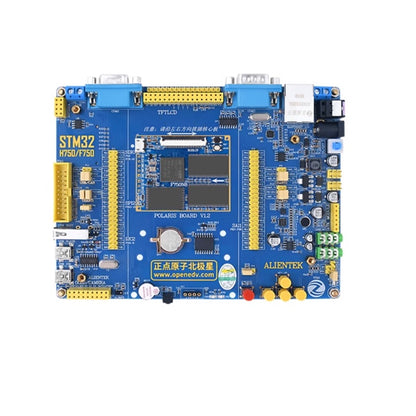

The Polaris STM32H750 development board adopts a core board + carrier board design. It provides 112 I/O pins, greatly facilitating expansion and usage. The board features a one-click download function, eliminating the need for frequent configuration of B0 and B1. STM32 development can be achieved with just a single USB cable. The board is equipped with a high-performance audio codec, a six-axis sensor, a 100 Mbps Ethernet port, an ambient light sensor, and various interface chips to meet diverse application needs.

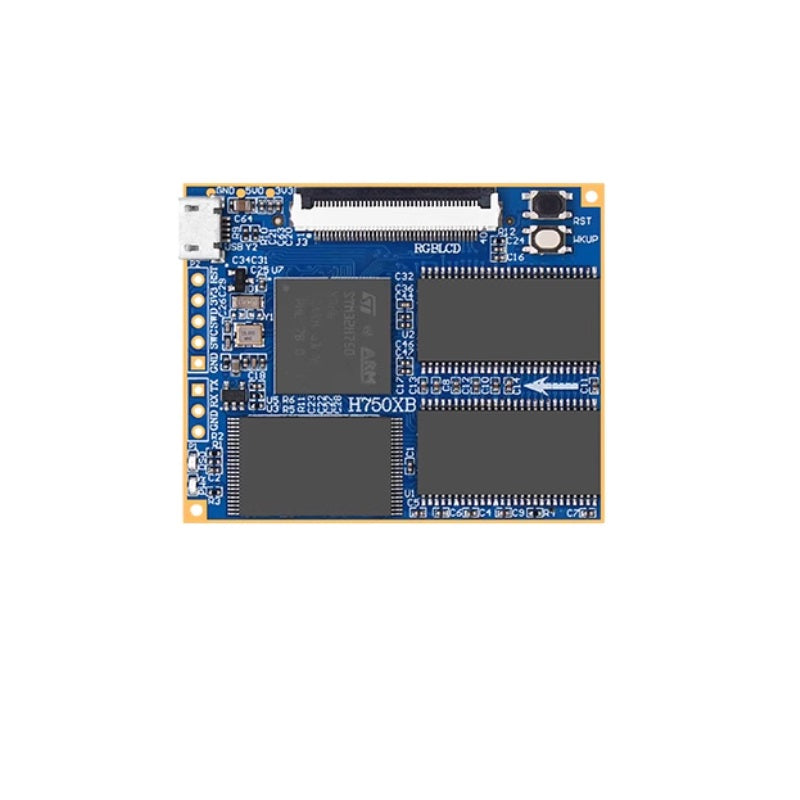

The hardware design of the Polaris
STM32H750 core board includes the following features:
•Compact size of only 52mm x 42mm.
•Rich interfaces: The core board includes a UART, SWD debugging interface, RGB LCD display interface, USB interface, and 3.3V & 5V power interfaces. It also provides 112 I/O pins through board-to-board connectors, meeting the requirements of various applications.
•Abundant resources: The core board integrates 64MB SDRAM, 8MB CODE SPI FLASH, 32MB DATA SPI FLASH, 512MB NAND FLASH, and EEPROM, catering to the needs of diverse applications.
