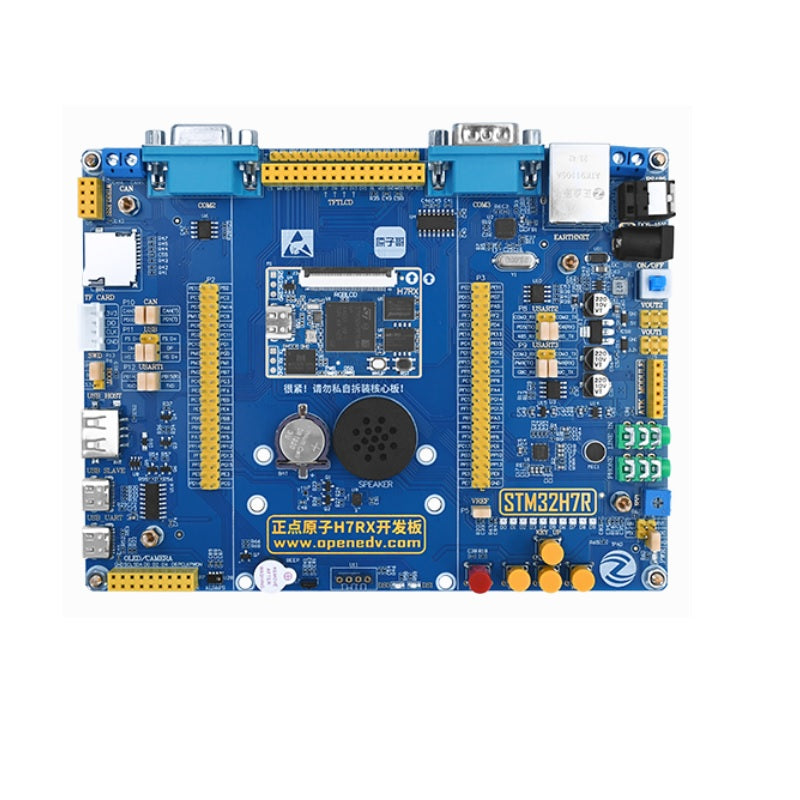

The H7RX development board adopts a core board + baseboard design.

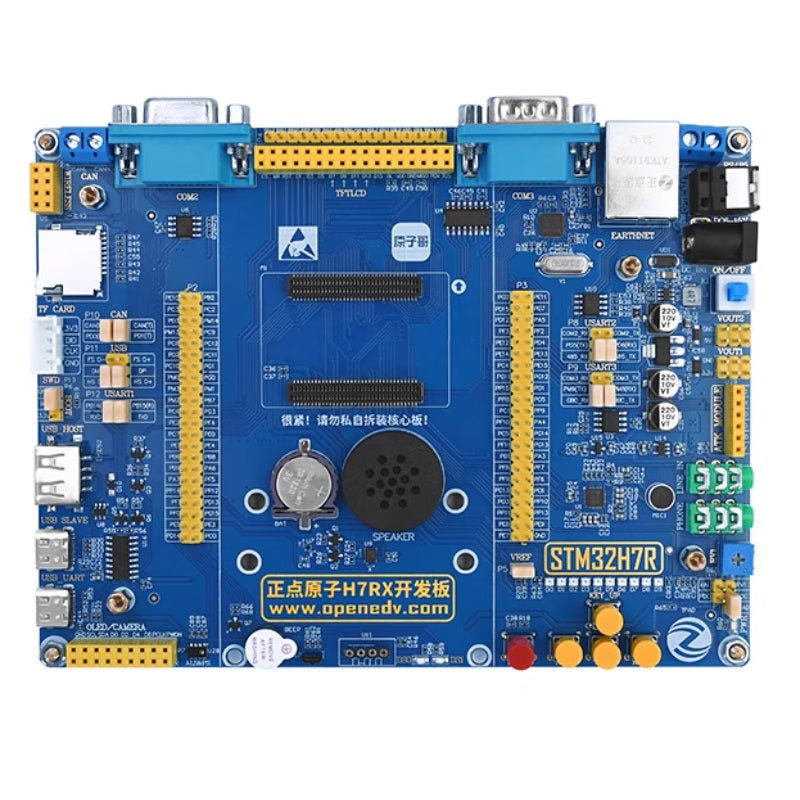

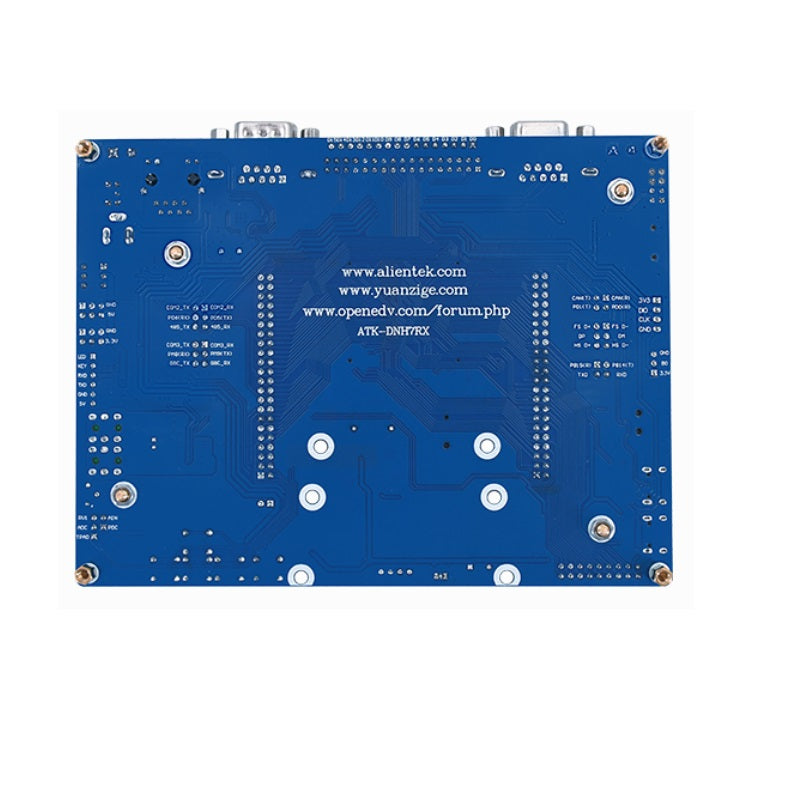

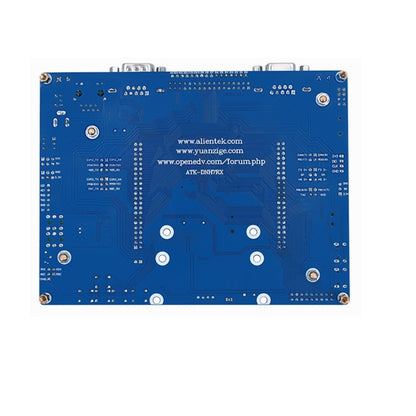

The hardware design of the H7RX baseboard features the following characteristics:

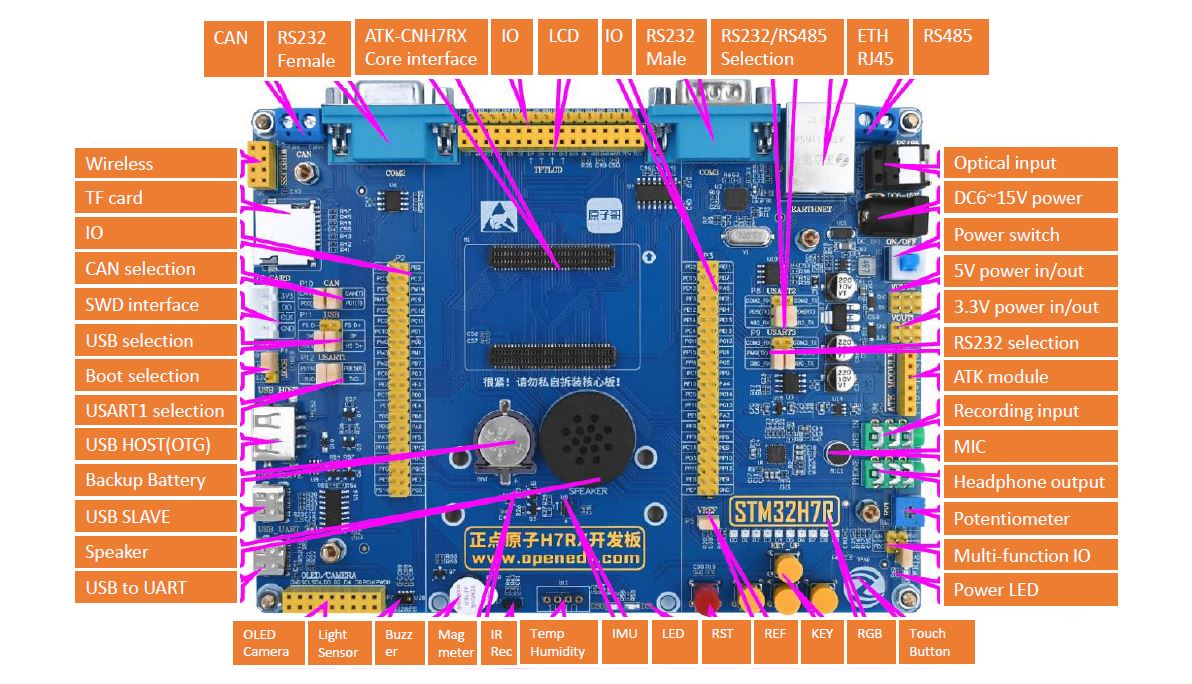

The board provides over ten types of standard interfaces. We adopt a core board + baseboard design, allowing one baseboard to support multiple MCUs, reducing redundant investments. A total of 117 I/O ports are exposed, greatly facilitating expansion and application. The board is equipped with a high-performance
audio codec chip, a six-axis sensor, a magnetometer, a Gigabit Ethernet port, an ambient light sensor, and various interface chips to meet diverse application requirements. All interfaces are clearly marked with silkscreen labels and outlined with boxes for easy identification. Frequently used peripherals are prominently labeled with large silkscreen text for quick access.

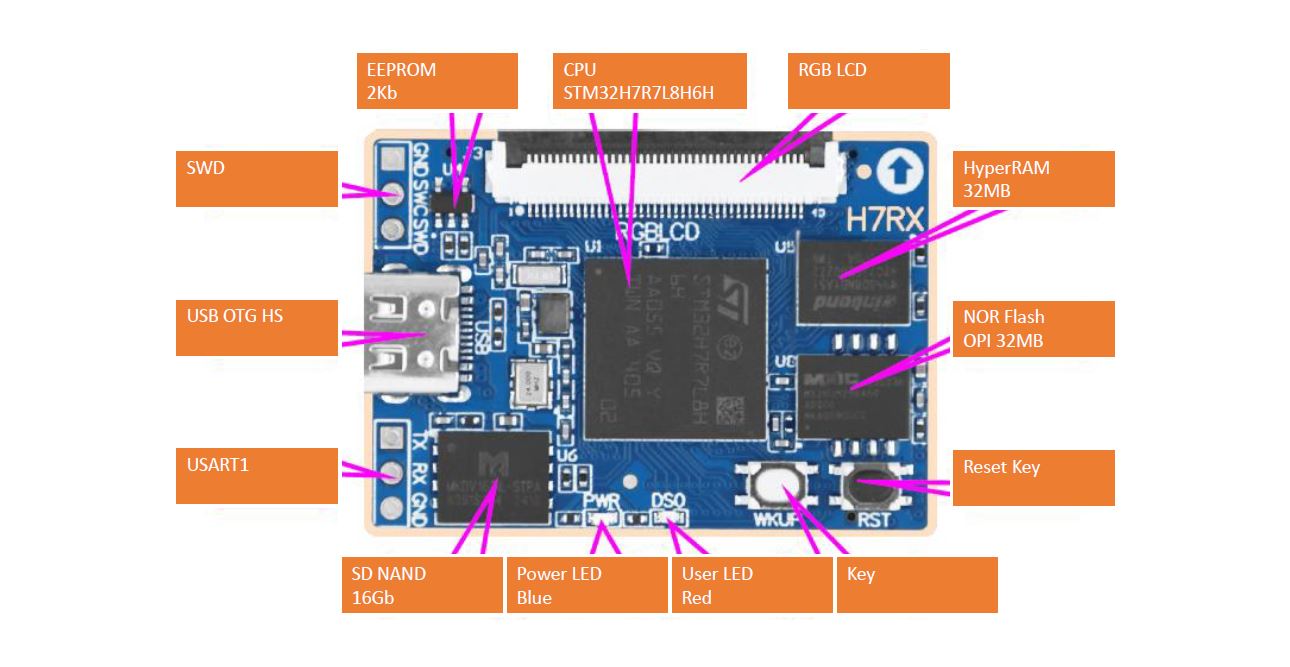

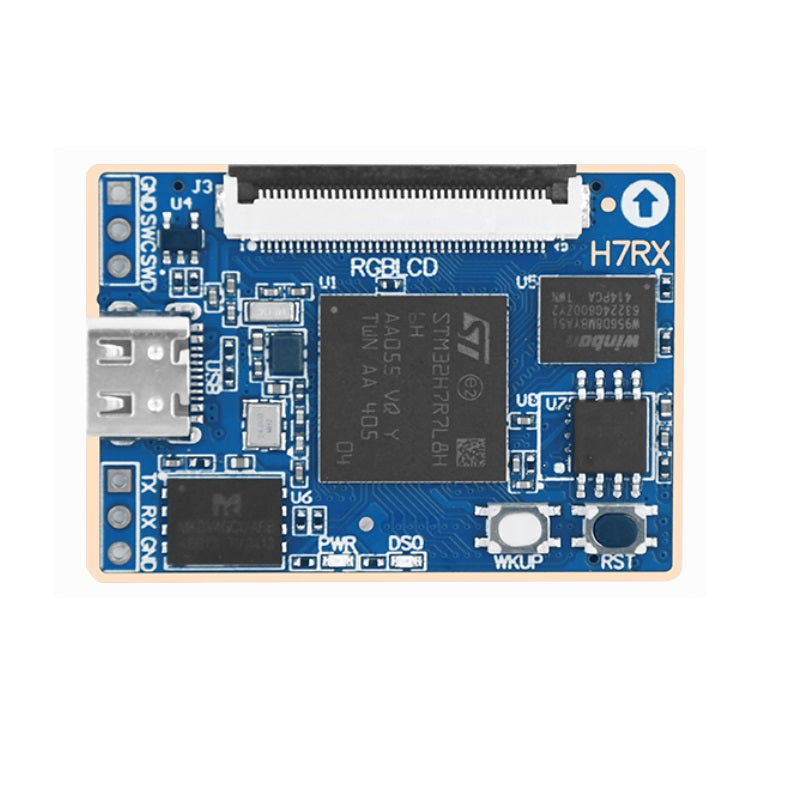

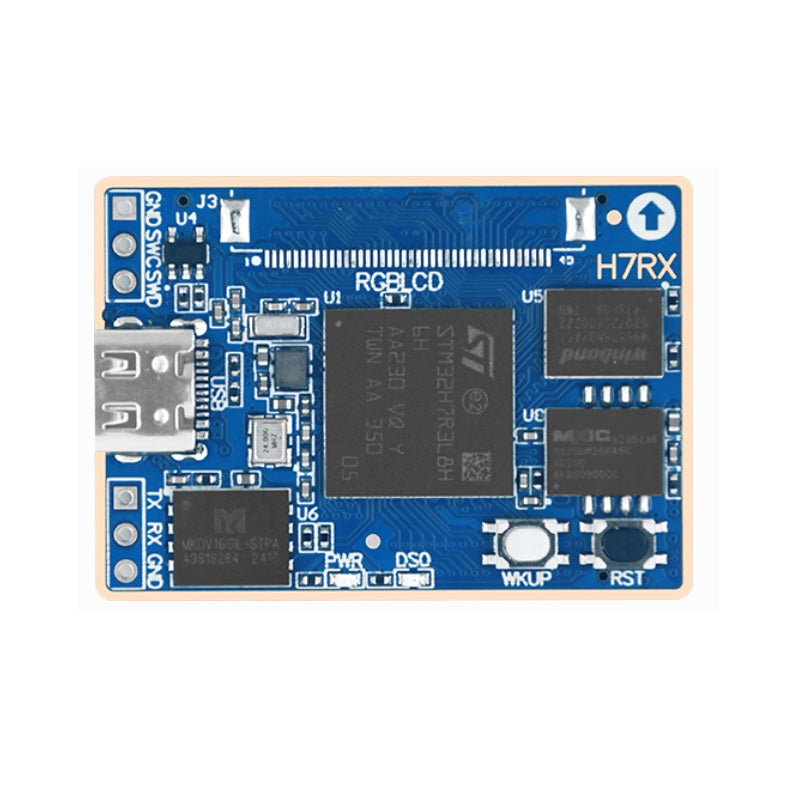

The H7RX core module features the following hardware design characteristics:
The core module measures only 30mm × 42mm. The core module comes with built-in interfaces including UART, SWD debugging, RGB LCD display, USB, and 3.3V & 5V power interfaces. It also provides 119 I/O pins through board-to-board
connectors, meeting diverse application requirements.
The core module is equipped with:
- Up to 32MB @400MB/s (R) NOR Flash
- Up to 32MB @400MB/s (R/W) HyperRAM
- Up to 16Gb SD NAND
- EEPROM and other memory options
