Introduction

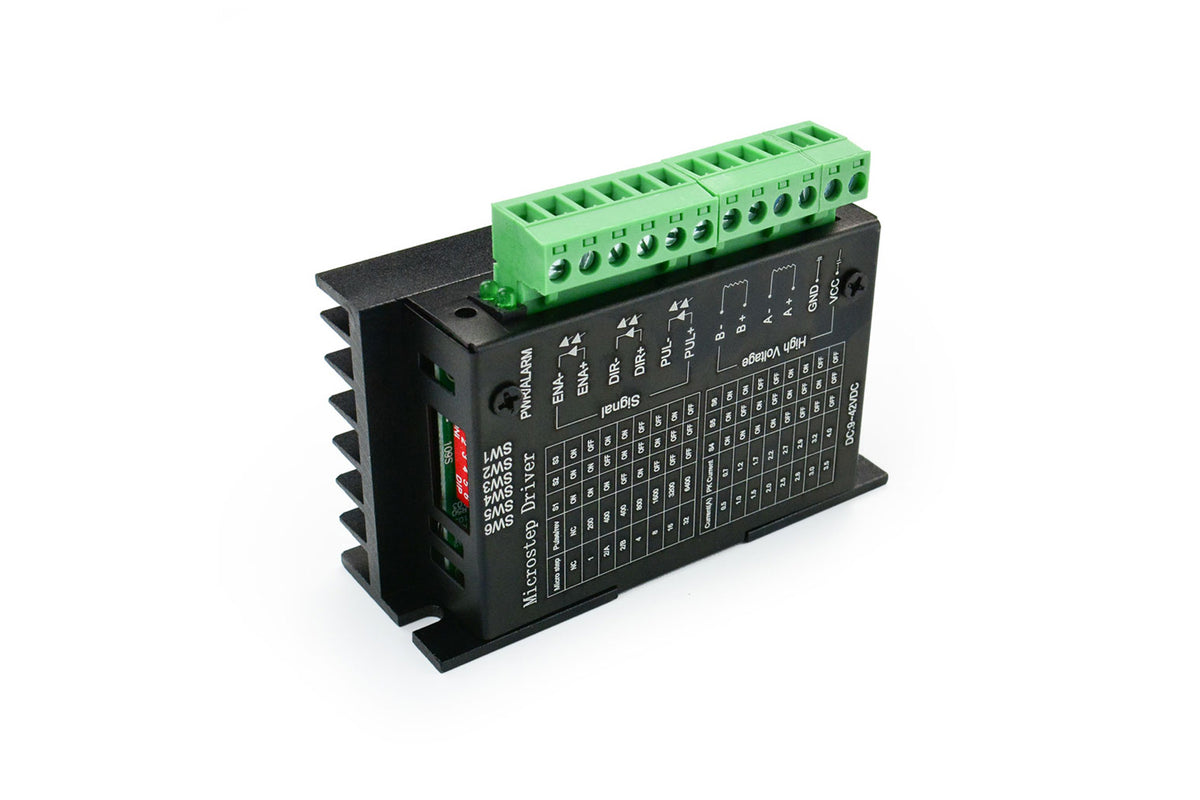

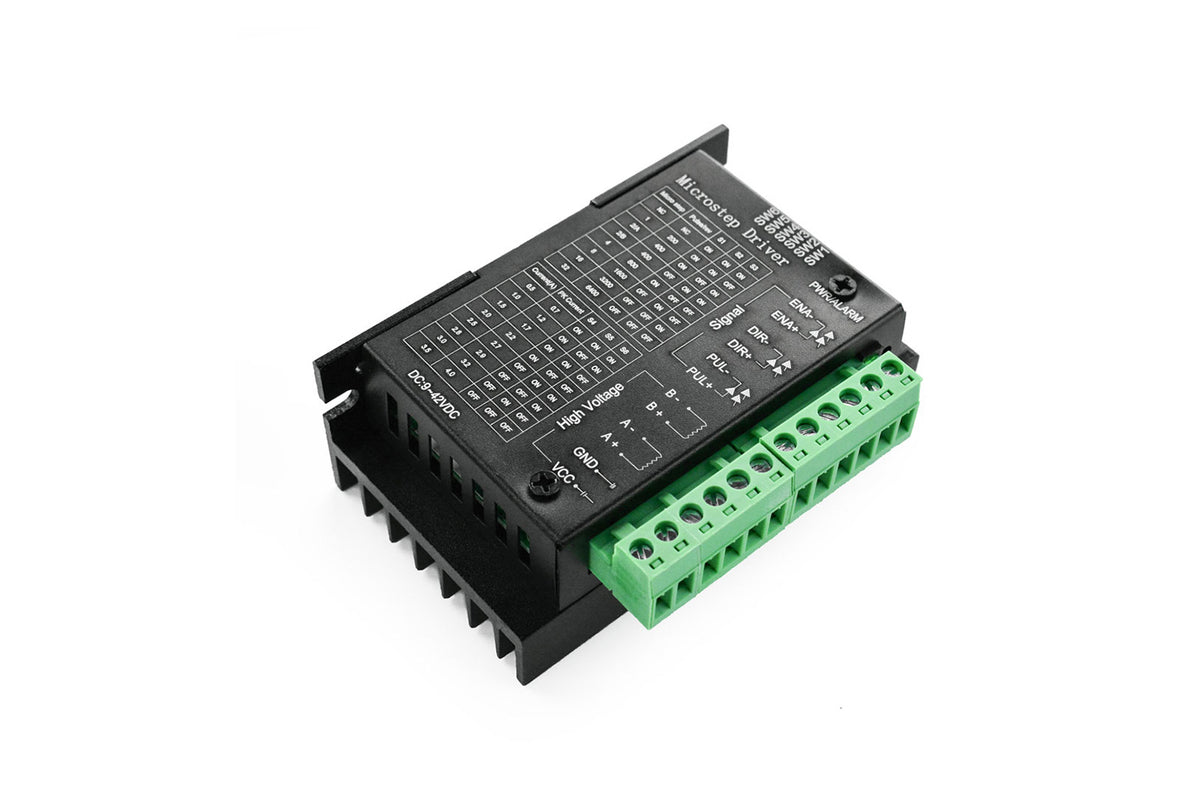

The TB6600 Stepper Motor Driver serves as a professional drive solution for two-phase hybrid stepper motors (Types 57, 42, NEMA 17 and NEMA 23). Compatible with Arduino and other microcontrollers outputting 5V digital pulse signals, this driver features high-speed optocoupler isolation to ensure signal stability and anti-high-frequency interference. Unlike generic alternatives, this module is supported by comprehensive WIKI documentation, verified connection diagrams, and ready-to-use sample code, enabling immediate system integration without the need for complex debugging.
- Wide Compatibility: Supports 9~42V DC power input; compatible with 2-phase/4-phase hybrid stepper motors.
- Precise Control: 8 adjustable current settings (0.5-3.5A) and 7 micro-step resolutions (up to 1/32) via onboard DIP switches.
- Signal Integrity: Signal terminals utilize high-speed optocoupler isolation for superior anti-interference performance.
- Robust Hardware: Equipped with anti-reverse connection protection and a rugged heat dissipation structure.
Why Choose the DFRobot Version?
- Verified wiring diagrams
- Arduino sample code

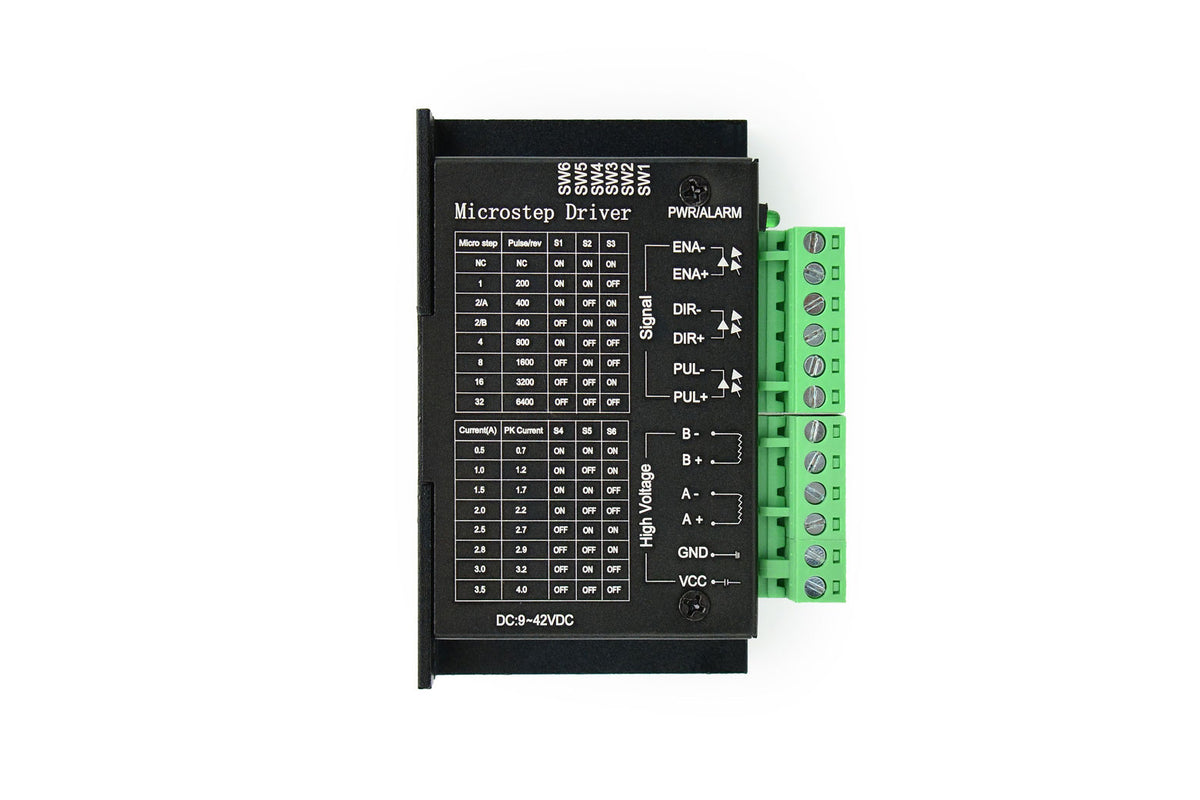

- DIP switch setup table
- Optocoupler-isolated control inputs
- Built-in protection and heat sink
- DFRobot technical documentation and support
Recommended Configuration:
- Controller: DFRduino UNO R3
- Bipolar Stepper Motor
- Power: 9~42V DC Power Supply
Integrated Protection & Stability

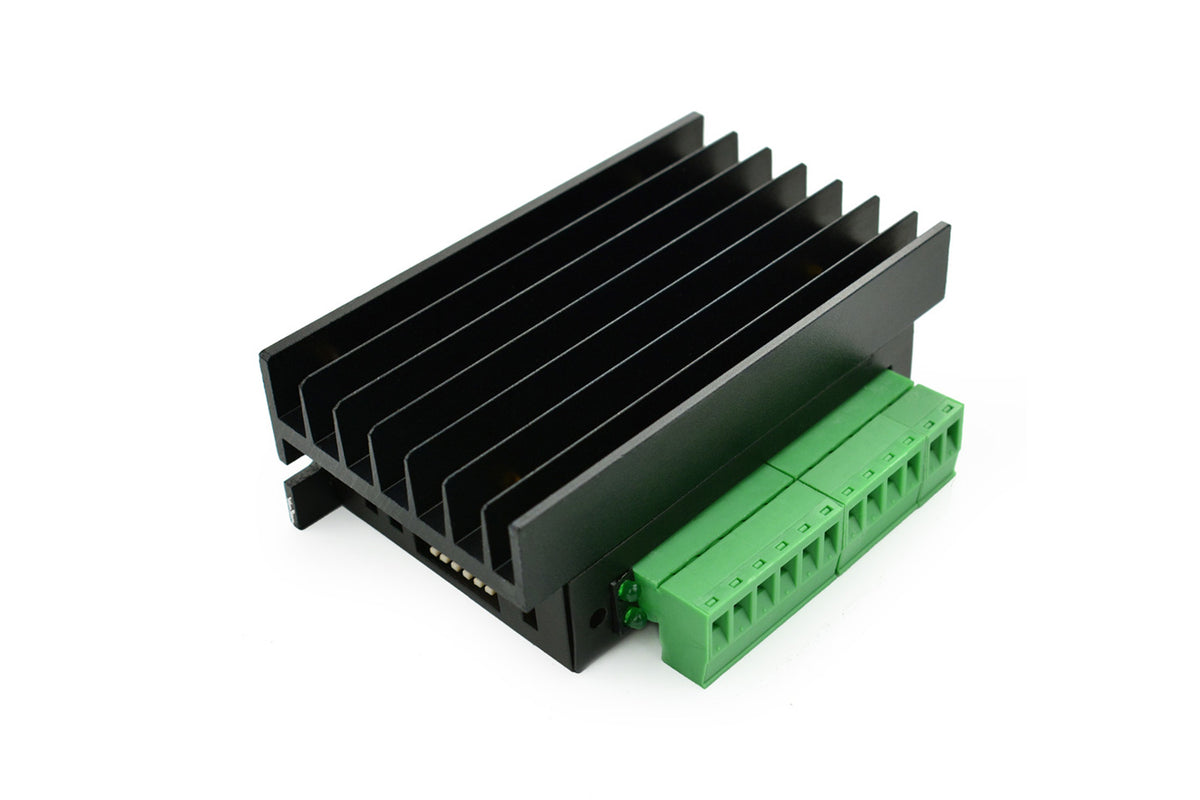

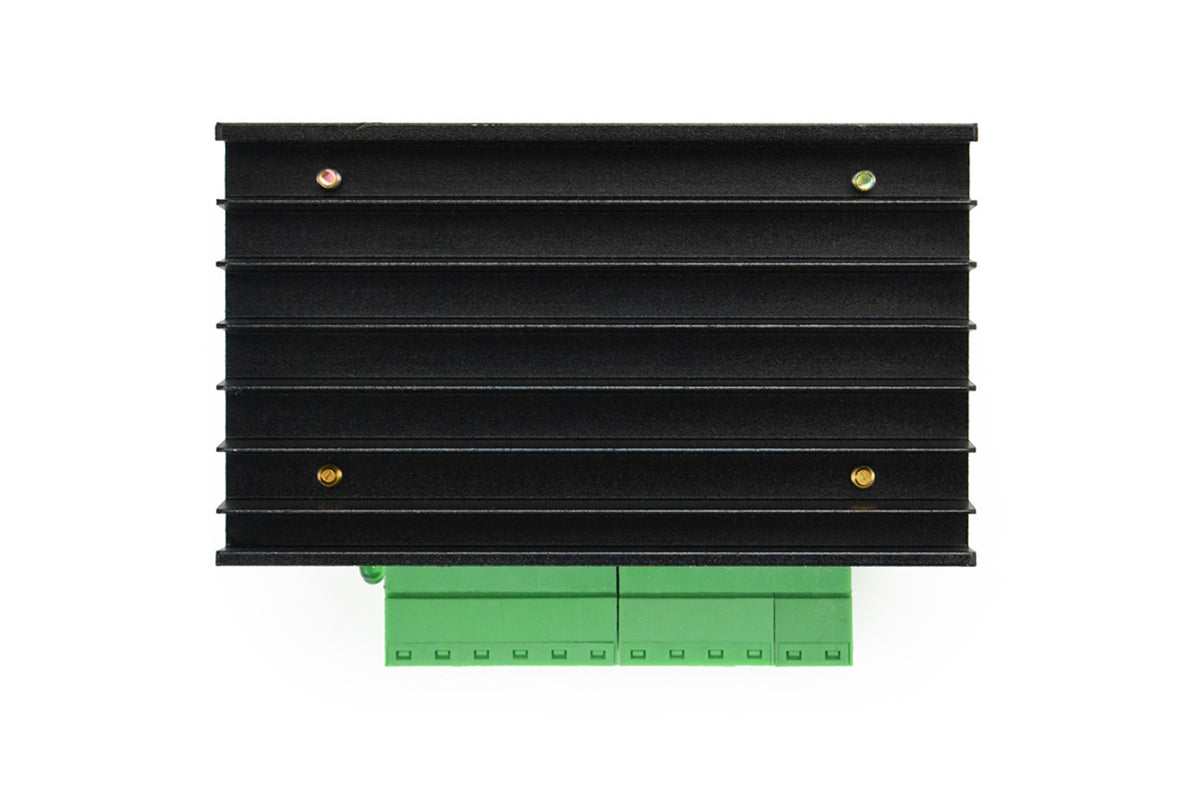

Designed for reliability in CNC and robotic applications, the driver incorporates a large-area heat sink and automatic semi-flow technology to effectively reduce heat accumulation. The internal circuit features multi-layer safety protection, including input anti-reverse, overheat, over-current, and short-circuit protection, minimizing the risk of hardware failure during operation.
Features
- Support 8 kinds of current control
- Support 7 kinds of micro steps adjustable
- The interface adopts high-speed optocoupler isolation
- Automatic semi-flow to reduce heat
- Large area heat sink
- Anti-high-frequency interference ability
- Input anti-reverse protection
- Overheat, over current and short circuit protection
Specification
- Input Current: 0~5A
- Output Current: 0.5-4.0A
- Control Signal: 3.3~24V
- Power (MAX): 160W
- Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
- Temperature: -10～45℃
- Humidity: No Condensation
- Dimension: 96*56*33 mm/ 3.78*2.2*1.3 inches
- Weight: 0.2 kg
- Drive IC: TB67S109AFTG
