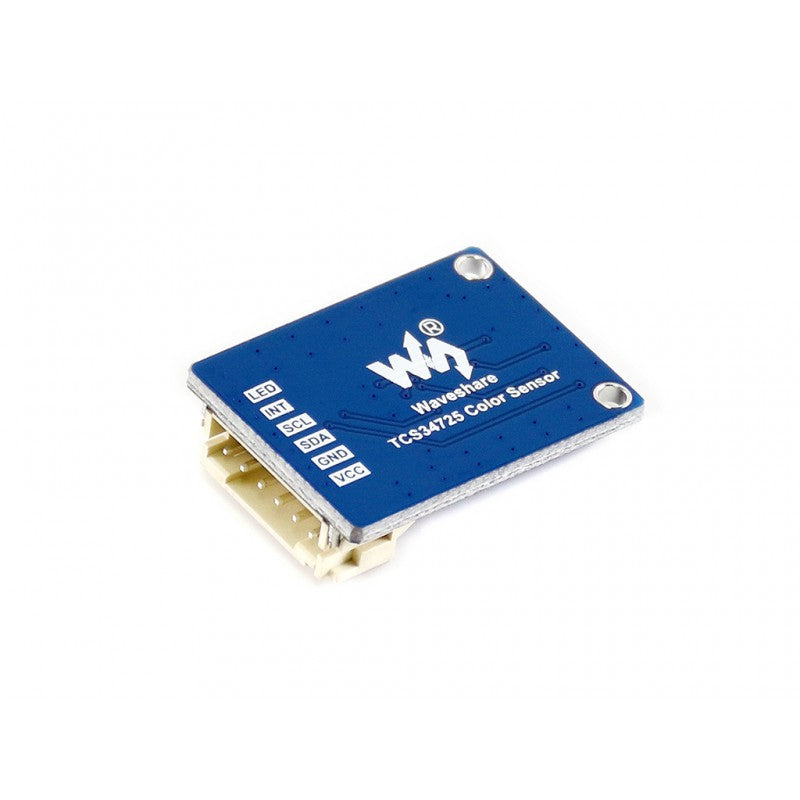

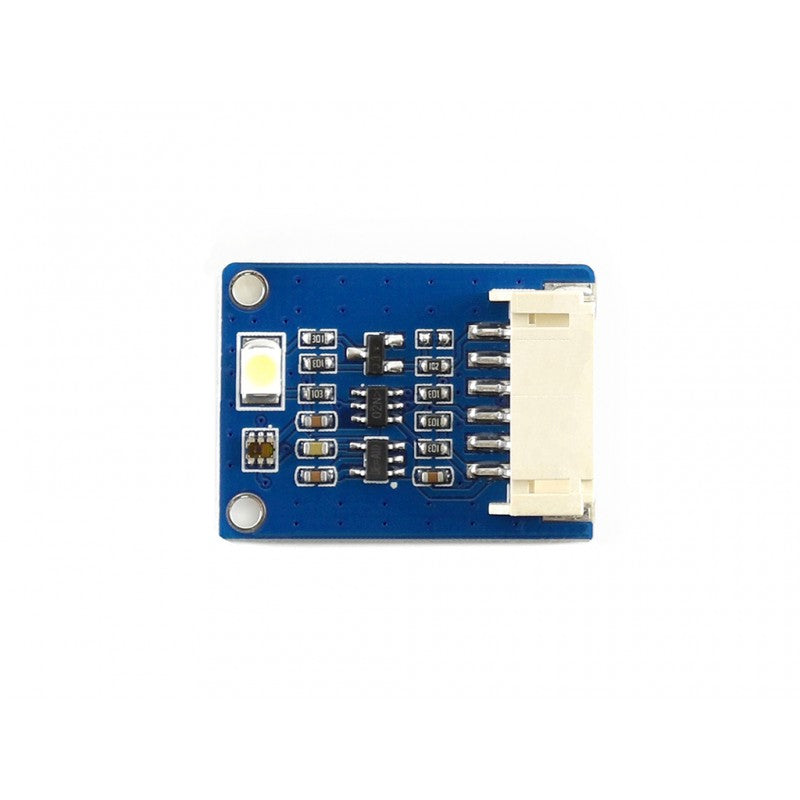

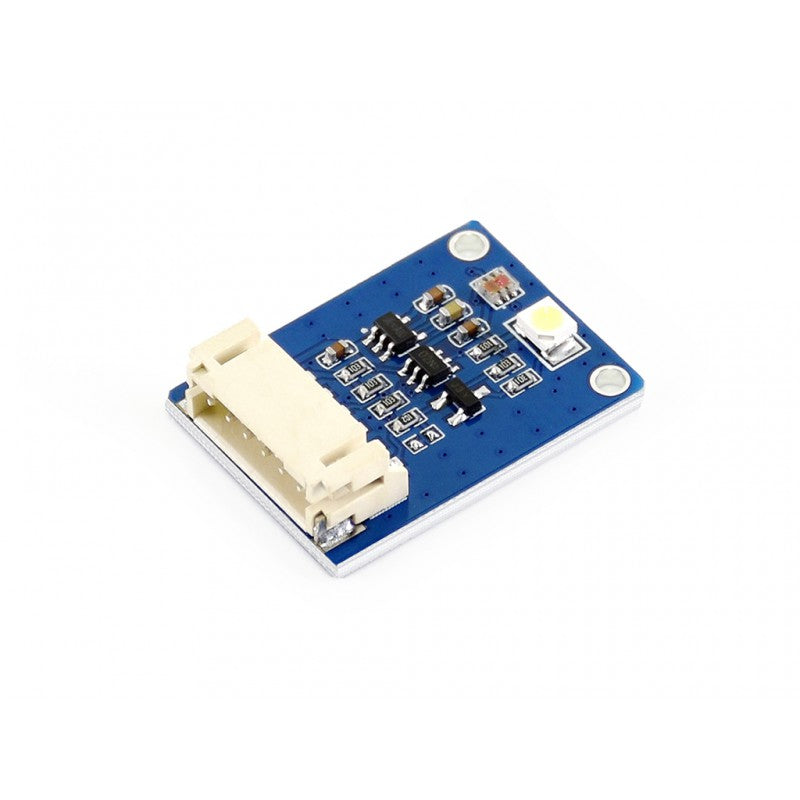

This is a color sensor module based on TCS34725, will output RGB data and light intensity through the I2C interface. Its advantages include high sensitivity, wide dynamic range, accurate measuring, etc.
Features
Onboard TCS34725FN, embedded ADC, high sensitivity, wide dynamic range
I2C communication, uses a few pins
Integrates IR blocking filter, minimizes the IR spectral component of the incoming light
Outputs RGB data without white balance
Outputs light intensity, feels the light like human eyes
Supports light intensity interrupt output, programmable upper and lower thresholds
Supports fill-light by onboard LED, adjustable brightness by PWM
Onboard voltage level translator, compatible with 3.3V/5V operating voltage
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
Sensor: TCS34725FN
Communication interface: I2C
Operating voltage: 3.3V/5V
Dimension: 27mm × 20mm
Resolution: 4-ch RGBC, 16-bit per ch
Recommended measuring distance: 2mm
Applications
Sorting by color
Ambient light sensing and calibration
Products color identification and classification
